SAXSdb — 9go0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cas12k

Scytonema hofmannii

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 DNA 2 RNA 1 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 1–639	Not recorded	sgRNA × 1 DNA target strand × 1 DNA non-target strand × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5；20 mM HEPES-KOH pH 7.5, 50 mM KCl, 10 mM MgCl2, 1 mM DTT cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.04 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9GO0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8AXA Cryo-EM structure of shCas12k-sgRNA-dsDNA ternary complex (type V-K CRISPR-associated transposon) Deposited 2022-08-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–639（639 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting, 4 degrees celcius	Resolution 2.96 Å
8AXB Cryo-EM structure of Cas12k-sgRNA binary complex (type V-K CRISPR-associated transposon) Deposited 2022-08-31	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–639（639 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting, 4 degrees celcius	Resolution 2.87 Å
8BD6 Cas12k-sgRNA-dsDNA-TnsC non-productive complex. Deposited 2022-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: pentadecameric	Chain A 2–639（638 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 9 MG MAGNESIUM ION × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8EA3 V-K CAST Transpososome from Scytonema hofmanni, major configuration Deposited 2022-08-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 30-meric	Chain O 1–639（639 aa）	Not recorded	MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8EA4 V-K CAST Transpososome from Scytonema hofmanni, minor configuration Deposited 2022-08-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 31-meric	Chain O 1–639（639 aa）	Not recorded	MG MAGNESIUM ION × 15 ATP ADENOSINE-5'-TRIPHOSPHATE × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A8M0FGU0_9CYAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–641； UniProt 1–639

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9go0
Deposition date deposition_date	2024-09-04
最后修订 last_revision	2025-09-17
Structure title title	Cryo-EM structure of ShCas12k in complex with a sgRNA and a dsDNA target
Keywords keywords	Cas12k, sgRNA, target DNA, Protein-RNA-DNA complex, Tn7, DNA Binding Protein, Transposition, CRISPR; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.93 Å
Radius of gyration Rg (electron density) rg_electron	33.95 Å
Forward intensity I(0) i0	572845000.00
Molecular weight molecular_weight	133180.0 kDa
Excluded volume excluded_volume	140760 Å³
Envelope volume envelope_volume	211450 Å³
Hydration-shell volume shell_volume	51468 Å³
Envelope diameter envelope_diameter	113.2 Å
Shell Rg shell_rg	40.96 Å
Envelope Rg envelope_rg	33.36 Å
Shape Rg shape_rg	33.86 Å
Total Rg total_rg	34.48 Å
Total atoms total_atoms	9014
Residues n_residues	696
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.5 Å
Rg (real space) rg_real	34.78 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	5.7280e+08
I(0) uncertainty (real space) i0_real_error	9.0140e+06
Rg (reciprocal space) rg_reciprocal	34.88 Å
I(0) (reciprocal space) i0_reciprocal	572900000.0000
Solution quality estimate total_estimate	0.9001
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	43.8 Å
Skewness Skewness skewness	0.178
Kurtosis Kurtosis kurtosis	-0.473
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	24350000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.910

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cas12k
Molecular weight formula_weight	73421.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9014

SNASQITIQARLISFESNRQQLWKLMADLNTPLINELLCQLGQHPDFEKWQQKGKLPSTVVSQLCQPLKTDPRFAGQPSRLYMSAIHIVDYIYKSWLAIQKRLQQQLDGKTRWLEMLNSDAELVELSGDTLEAIRVKAAEILAIAMPASESDSASPKGKKGKKEKKPSSSSPKRSLSKTLFDAYQETEDIKSRSAISYLLKNGCKLTDKEEDSEKFAKRRRQVEIQIQRLTEKLISRMPKGRDLTNAKWLETLLTATTTVAEDNAQAKRWQDILLTRSSSLPFPLVFETNEDMVWSKNQKGRLCVHFNGLSDLIFEVYCGNRQLHWFQRFLEDQQTKRKSKNQHSSGLFTLRNGHLVWLEGEGKGEPWNLHHLTLYCCVDNRLWTEEGTEIVRQEKADEITKFITNMKKKSDLSDTQQALIQRKQSTLTRINNSFERPSQPLYQGQSHILVGVSLGLEKPATVAVVDAIANKVLAYRSIKQLLGDNYELLNRQRRQQQYLSHERHKAQKNFSPNQFGASELGQHIDRLLAKAIVALARTYKAGSIVLPKLGDMREVVQSEIQAIAEQKFPGYIEGQQKYAKQYRVNVHRWSYGRLIQSIQSKAAQTGIVIEEGKQPIRGSPHDKAKELALSAYNLRLTRRS

来源 Source

来源生物 organism	Scytonema hofmannii
NCBI Class编号 ncbi_taxonomy_id	34078
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	sgRNA
Molecular weight formula_weight	82376.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B

GGAUAUUAAUAGCGCCGCAAUUCAUGCUGCUUGCAGCCUCUGAAUUUUGUUAAAUGAGGGUUAGUUUGACUGUAUAAAUACAGUCUUGCUUUCUGACCCUGGUAGCUGCUCACCCUGAUGCUGCUGUCAAUAGACAGGAUAGGUGCGCUCCCAGCAAUAAGGGCGCGGAUGUACUGCUGUAGUGGCUACUGAAUCACCCCCGAUCAAGGGGGAACCCUAAAUGGGUUGAAAGGAGAAGUCAUUUAAUAAGGCCACU

Entity 3 Entity 3 polymer

Description description	DNA target strand
Molecular weight formula_weight	15301.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GTTTAACAGTGGCCTTATTAAATGACTTCTCAACCTCCTACGTATCGTAG

Entity 4 Entity 4 polymer

Description description	DNA non-target strand
Molecular weight formula_weight	15498.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

CTACGATACGTAGGAGGTTGAGAAGTCATTTAATAAGGCCACTGTTAAAC

▶

8. Citations (1)

▶

Resolution resolution	3.04 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	138000

fit	/app/data/saxs_computation/go/9go0/9go0.fit
pddf	/app/data/pr_computation/go/9go0/9go0.pr.out
profile	/app/data/saxs_computation/go/9go0/9go0.dat

Cryo-EM structure of ShCas12k in complex with a sgRNA and a dsDNA target

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cas12k

State in the Current Structure

Other States of the Same Protein in the Database

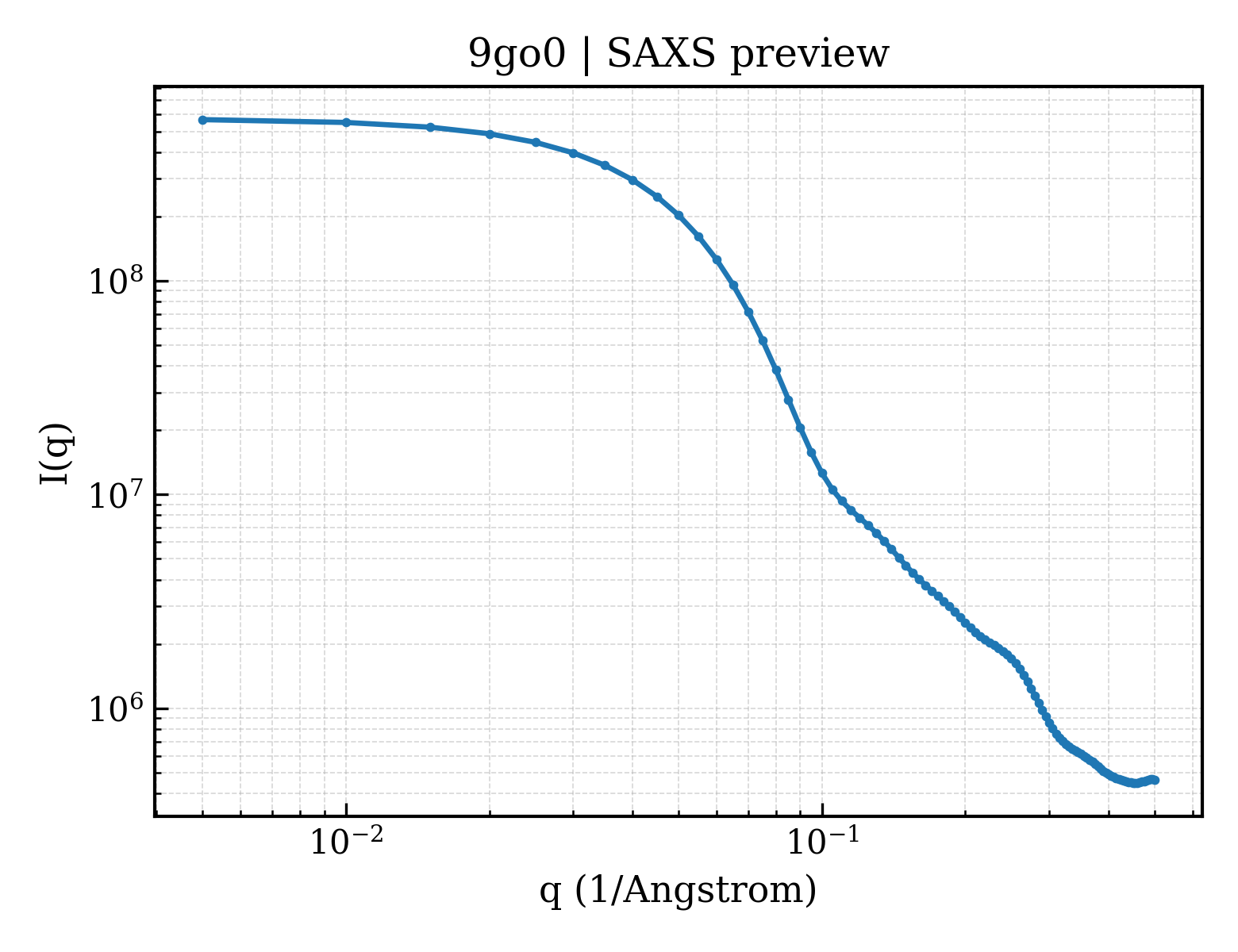

SAXS scattering curve SAXS Profile
