8ea3

V-K CAST Transpososome from Scytonema hofmanni, major configuration

Method: ELECTRON MICROSCOPY D_max: 226.7 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TnsC

Scytonema hofmannii

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 23 DNA 6 RNA 1 PDB declaration: 30-meric（30） Consistent with all polymer counts	Chain A； UniProt 1–276 Chain B； UniProt 1–276 Chain C； UniProt 1–276 Chain D； UniProt 1–276 Chain E； UniProt 1–276 Chain F； UniProt 1–276 Chain G； UniProt 1–276 Chain H； UniProt 1–276 Chain I； UniProt 1–276 Chain J； UniProt 1–276 Chain K； UniProt 1–276 Chain L； UniProt 1–276	Not recorded	Target_LE × 1 Non-target_R × 1 sg_RNA × 1 Cas12k × 1 （A0A8M0FGU0） TniQ × 1 （A0A8J0PCL5） 30S ribosomal protein S15 × 1 （D8EB41） TnsB × 8 LE_R × 1 RE_F × 1 RE_R1 × 1 RE_R2 × 1 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 12	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8BD4 TniQ-capped Tns-ATP-dsDNA complex Deposited 2022-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain A 1–276（276 aa） Chain B 1–276（276 aa） Chain C 1–276（276 aa） Chain D 1–276（276 aa） Chain E 1–276（276 aa） Chain F 1–276（276 aa） Chain G 1–276（276 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å
8BD5 Cas12k-sgRNA-dsDNA-S15-TniQ-TnsC transposon recruitment complex Deposited 2022-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric	Chain E 1–276（276 aa） Chain F 1–276（276 aa） Chain G 1–276（276 aa） Chain H 1–276（276 aa） Chain I 1–276（276 aa） Chain J 1–276（276 aa） Chain K 1–276（276 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8BD6 Cas12k-sgRNA-dsDNA-TnsC non-productive complex. Deposited 2022-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: pentadecameric	Chain R 1–276（276 aa） Chain S 1–276（276 aa） Chain T 1–276（276 aa） Chain U 1–276（276 aa） Chain V 1–276（276 aa） Chain W 1–276（276 aa） Chain X 1–276（276 aa） Chain Y 1–276（276 aa） Chain Z 1–276（276 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 9 MG MAGNESIUM ION × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8EA4 V-K CAST Transpososome from Scytonema hofmanni, minor configuration Deposited 2022-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 31-meric	Chain A 1–276（276 aa） Chain B 1–276（276 aa） Chain C 1–276（276 aa） Chain D 1–276（276 aa） Chain E 1–276（276 aa） Chain F 1–276（276 aa） Chain G 1–276（276 aa） Chain H 1–276（276 aa） Chain I 1–276（276 aa） Chain J 1–276（276 aa） Chain K 1–276（276 aa） Chain L 1–276（276 aa） Chain M 1–276（276 aa）	Not recorded	MG MAGNESIUM ION × 15 ATP ADENOSINE-5'-TRIPHOSPHATE × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8RDU Conformational Landscape of the Type V-K CRISPR-associated TransposonIntegration Assembly CAST V-K composite map Deposited 2023-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 32-meric	Chain D 2–276（275 aa） Chain E 2–276（275 aa） Chain F 2–276（275 aa） Chain G 2–276（275 aa） Chain H 2–276（275 aa） Chain I 2–276（275 aa） Chain J 2–276（275 aa） Chain K 2–276（275 aa） Chain L 2–276（275 aa） Chain M 2–276（275 aa） Chain N 2–276（275 aa） Chain O 2–276（275 aa） Chain P 2–276（275 aa） Chain Q 2–276（275 aa）	Not recorded	MG MAGNESIUM ION × 17 ZN ZINC ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
8RKU Conformational Landscape of the Type V-K CRISPR-associated TransposonIntegration Assembly CAST V-K TnsC domain local-refinement map Deposited 2023-12-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 14 PDB declaration: 16-meric	Chain D 2–276（275 aa） Chain E 2–276（275 aa） Chain F 2–276（275 aa） Chain G 2–276（275 aa） Chain H 2–276（275 aa） Chain I 2–276（275 aa） Chain J 2–276（275 aa） Chain K 2–276（275 aa） Chain L 2–276（275 aa） Chain M 2–276（275 aa） Chain N 2–276（275 aa） Chain O 2–276（275 aa） Chain P 2–276（275 aa） Chain Q 2–276（275 aa）	Not recorded	MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A8J0PCL3_9CYAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 1–276 Author chain B； PDBConstruct 1–276； UniProt 1–276 Author chain C； PDBConstruct 1–276； UniProt 1–276 Author chain D； PDBConstruct 1–276； UniProt 1–276 Author chain E； PDBConstruct 1–276； UniProt 1–276 Author chain F； PDBConstruct 1–276； UniProt 1–276 Author chain G； PDBConstruct 1–276； UniProt 1–276 Author chain H； PDBConstruct 1–276； UniProt 1–276 Author chain I； PDBConstruct 1–276； UniProt 1–276 Author chain J； PDBConstruct 1–276； UniProt 1–276 Author chain K； PDBConstruct 1–276； UniProt 1–276 Author chain L； PDBConstruct 1–276； UniProt 1–276

Cas12k

Scytonema hofmannii

UniProt A0A8M0FGU0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 23 DNA 6 RNA 1 PDB declaration: 30-meric（30） Consistent with all polymer counts	Chain O； UniProt 1–639	Not recorded	Target_LE × 1 Non-target_R × 1 sg_RNA × 1 TnsC × 12 （A0A8J0PCL3） TniQ × 1 （A0A8J0PCL5） 30S ribosomal protein S15 × 1 （D8EB41） TnsB × 8 LE_R × 1 RE_F × 1 RE_R1 × 1 RE_R2 × 1 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 12	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.70 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8EA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8AXA Cryo-EM structure of shCas12k-sgRNA-dsDNA ternary complex (type V-K CRISPR-associated transposon) Deposited 2022-08-31	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–639（639 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting, 4 degrees celcius	Resolution 2.96 Å
8AXB Cryo-EM structure of Cas12k-sgRNA binary complex (type V-K CRISPR-associated transposon) Deposited 2022-08-31	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–639（639 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting, 4 degrees celcius	Resolution 2.87 Å
8BD6 Cas12k-sgRNA-dsDNA-TnsC non-productive complex. Deposited 2022-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: pentadecameric	Chain A 2–639（638 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 9 MG MAGNESIUM ION × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8EA4 V-K CAST Transpososome from Scytonema hofmanni, minor configuration Deposited 2022-08-27	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 31-meric	Chain O 1–639（639 aa）	Not recorded	MG MAGNESIUM ION × 15 ATP ADENOSINE-5'-TRIPHOSPHATE × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9GO0 Cryo-EM structure of ShCas12k in complex with a sgRNA and a dsDNA target Deposited 2024-09-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–639（639 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES-KOH pH 7.5, 50 mM KCl, 10 mM MgCl2, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A8M0FGU0_9CYAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain O； PDBConstruct 1–639； UniProt 1–639

TniQ

Scytonema hofmannii

UniProt A0A8J0PCL5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 23 DNA 6 RNA 1 PDB declaration: 30-meric（30） Consistent with all polymer counts	Chain Q； UniProt 1–167	Not recorded	Target_LE × 1 Non-target_R × 1 sg_RNA × 1 TnsC × 12 （A0A8J0PCL3） Cas12k × 1 （A0A8M0FGU0） 30S ribosomal protein S15 × 1 （D8EB41） TnsB × 8 LE_R × 1 RE_F × 1 RE_R1 × 1 RE_R2 × 1 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 12	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.70 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8EA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8BD4 TniQ-capped Tns-ATP-dsDNA complex Deposited 2022-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain R 1–167（167 aa） Chain S 1–167（167 aa） Chain T 1–167（167 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å
8BD5 Cas12k-sgRNA-dsDNA-S15-TniQ-TnsC transposon recruitment complex Deposited 2022-10-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tridecameric	Chain Q 1–167（167 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8EA4 V-K CAST Transpososome from Scytonema hofmanni, minor configuration Deposited 2022-08-27	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 31-meric	Chain Q 1–167（167 aa）	Not recorded	MG MAGNESIUM ION × 15 ATP ADENOSINE-5'-TRIPHOSPHATE × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8RDU Conformational Landscape of the Type V-K CRISPR-associated TransposonIntegration Assembly CAST V-K composite map Deposited 2023-12-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 32-meric	Chain C 1–167（167 aa）	Not recorded	MG MAGNESIUM ION × 17 ZN ZINC ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
8RKT Conformational Landscape of the Type V-K CRISPR-associated TransposonIntegration Assembly CAST V-K Cas12k domain local-refinement map Deposited 2023-12-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: hexameric	Chain C 1–167（167 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.35 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A8J0PCL5_9CYAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain Q； PDBConstruct 1–167； UniProt 1–167

30S ribosomal protein S15

Escherichia coli

UniProt D8EB41

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 23 DNA 6 RNA 1 PDB declaration: 30-meric（30） Consistent with all polymer counts	Chain S； UniProt 1–89	Not recorded	Target_LE × 1 Non-target_R × 1 sg_RNA × 1 TnsC × 12 （A0A8J0PCL3） Cas12k × 1 （A0A8M0FGU0） TniQ × 1 （A0A8J0PCL5） TnsB × 8 LE_R × 1 RE_F × 1 RE_R1 × 1 RE_R2 × 1 MG MAGNESIUM ION × 14 ATP ADENOSINE-5'-TRIPHOSPHATE × 12	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.70 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8EA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7S1I Wild-type Escherichia coli stalled ribosome with antibiotic radezolid Deposited 2021-09-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain w 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 209 RD8 Radezolid × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.48 Å
7S1J Wild-type Escherichia coli ribosome with antibiotic radezolid Deposited 2021-09-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 52-meric	Chain w 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 199 RD8 Radezolid × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.47 Å
7S1K Cfr-modified Escherichia coli stalled ribosome with antibiotic radezolid Deposited 2021-09-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 50 PDB declaration: 55-meric	Chain w 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 207 RD8 Radezolid × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.42 Å
7UG7 70S ribosome complex in an intermediate state of translocation bound to EF-G(GDP) stalled by Argyrin B Deposited 2022-03-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric	Chain SO 1–89（89 aa）	Not recorded	PUT 1,4-DIAMINOBUTANE × 11 MG MAGNESIUM ION × 404 SPD SPERMIDINE × 2 ZN ZINC ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 FME N-FORMYLMETHIONINE × 1 PHE PHENYLALANINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.58 Å
8EA4 V-K CAST Transpososome from Scytonema hofmanni, minor configuration Deposited 2022-08-27	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 31-meric	Chain S 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 15 ATP ADENOSINE-5'-TRIPHOSPHATE × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8EIU E. coli 70S ribosome with A-loop mutations U2554C and U2555C Deposited 2022-09-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain O 1–89（89 aa）	Not recorded	ZN ZINC ION × 2 PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 268 SPD SPERMIDINE × 16 8AN 3'-amino-3'-deoxyadenosine 5'-(dihydrogen phosphate) × 2 SPM SPERMINE × 1 MET METHIONINE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.24 Å
8EKC Escherichia coli 70S ribosome bound to thermorubin, deacylated P-site tRNAfMet and aminoacylated A-site Phe-tRNA Deposited 2022-09-20	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 714 T8B Thermorubin × 1 PHE PHENYLALANINE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8EMM Composite 70S ribosome structure for "Atomistic simulations of the E. coli ribosome provide selection criteria for translationally active substrates Deposited 2022-09-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain O 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 321 SPD SPERMIDINE × 17 SPM SPERMINE × 1 K POTASSIUM ION × 10 ZN ZINC ION × 2 MET METHIONINE × 2 PAR PAROMOMYCIN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.10 Å
8EYQ 30S_delta_ksgA_h44_inactive_conformation Deposited 2022-10-28	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 17 PDB declaration: octadecameric	Chain O 1–89（89 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8EYT 30S_delta_ksgA+KsgA complex Deposited 2022-10-28	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 20 PDB declaration: 21-meric	Chain U 1–89（89 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8FIZ Cryo-EM structure of E. coli 70S Ribosome containing mRNA and tRNA (in the transcription-translation complex) Deposited 2022-12-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain AR 1–89（89 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8FTO E. coli 70S ribosome with an improved MS2 tag inserted in H98 Deposited 2023-01-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 54-meric	Chain O 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 284 FME N-FORMYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.85 Å
8FZD Cryo-EM structure of an E. coli non-rotated ribosome termination complex bound with apoRF3, RF1, P- and E-site tRNAPhe (Composite state I-B) Deposited 2023-01-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 581 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5 mM Tris-HCl, 60 mM NH4Cl, 10 mM MgCl2, 6 mM B-mercaptoethanol cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8FZE Cryo-EM structure of an E. coli non-rotated ribosome termination complex bound with RF1, P- and E-site tRNAPhe (State I-A) Deposited 2023-01-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 570 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5 mM Tris-HCl, 60 mM NH4Cl, 10 mM MgCl2, 6 mM B-mercaptoethanol cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8FZG Cryo-EM structure of an E. coli non-rotated ribosome termination complex bound with RF3-GDPCP, RF1, P- and E-site tRNAPhe (Composite state II-A) Deposited 2023-01-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 59-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 428 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5 mM Tris-HCl, 60 mM NH4Cl, 10 mM MgCl2, 6 mM B-mercaptoethanol cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8FZH Cryo-EM structure of an E. coli non-rotated ribosome termination complex bound with RF1, P- and E-site tRNAPhe (State II-D) Deposited 2023-01-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 595 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5 mM Tris-HCl, 60 mM NH4Cl, 10 mM MgCl2, 6 mM B-mercaptoethanol cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8FZI Cryo-EM structure of an E. coli rotated ribosome bound with RF3-GDPCP and p/E-tRNAPhe (Composite state II-B) Deposited 2023-01-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 737 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5 mM Tris-HCl, 60 mM NH4Cl, 10 mM MgCl2, 6 mM B-mercaptoethanol cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8FZJ Cryo-EM structure of an E. coli rotated ribosome bound with RF3-GDPCP and p/E-tRNAPhe (Composite state II-C) Deposited 2023-01-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 56-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 757 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；5 mM Tris-HCl, 60 mM NH4Cl, 10 mM MgCl2, 6 mM B-mercaptoethanol cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8G6W Structure of WT E.coli 70S ribosome complexed with mRNA, P-site fMet-NH-tRNAfMet and A-site ortho-aminobenzoic acid charged NH-tRNAPhe Deposited 2023-02-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain O 1–89（89 aa）	Not recorded	ZN ZINC ION × 2 PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 320 2AE 2-AMINO-BENZAMIDE × 1 8AN 3'-amino-3'-deoxyadenosine 5'-(dihydrogen phosphate) × 1 FME N-FORMYLMETHIONINE × 1 K POTASSIUM ION × 14 SPD SPERMIDINE × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.02 Å
8G7P Structure of the Escherichia coli 70S ribosome in complex with EF-Tu and Ile-tRNAIle(LAU) bound to the cognate AUA codon (Structure I) Deposited 2023-02-16	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 876 K POTASSIUM ION × 2 ILE ISOLEUCINE × 2 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8G7Q Structure of the Escherichia coli 70S ribosome in complex with EF-Tu and Ile-tRNAIle(LAU) bound to the near-cognate AUG codon (Structure II) Deposited 2023-02-16	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 51 PDB declaration: 58-meric	Chain o 1–89（89 aa）	Not recorded	PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 950 ILE ISOLEUCINE × 2 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8G7R Structure of the Escherichia coli 70S ribosome in complex with A-site tRNAIle(LAU) bound to the cognate AUA codon (Structure III) Deposited 2023-02-16	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric	Chain o 1–89（89 aa）	Not recorded	PAR PAROMOMYCIN × 1 MG MAGNESIUM ION × 734 K POTASSIUM ION × 2 ILE ISOLEUCINE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8G7S Structure of the Escherichia coli 70S ribosome in complex with P-site tRNAIle(LAU) bound to the cognate AUA codon (Structure IV) Deposited 2023-02-16	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 55-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 564 ILE ISOLEUCINE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8SYL Cryo-EM structure of the Escherichia coli 70S ribosome in complex with amikacin, mRNA, and A-, P-, and E-site tRNAs Deposited 2023-05-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 56-meric	Chain o 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 474 AKN (2S)-N-[(1R,2S,3S,4R,5S)-4-[(2R,3R,4S,5S,6R)-6-(aminomethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-5-azanyl-2-[(2S,3R,4S,5S ,6R)-4-azanyl-6-(hydroxymethyl)-3,5-bis(oxidanyl)oxan-2-yl]oxy-3-oxidanyl-cyclohexyl]-4-azanyl-2-oxidanyl-butanamide × 2 PHE PHENYLALANINE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8UPO Escherichia coli transcription-translation coupled complex class A (TTC-A) containing RfaH bound to ops signal, mRNA with a 21 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.50 Å
8UPR Escherichia coli transcription-translation coupled complex class A (TTC-A) containing RfaH bound to ops signal, mRNA with a 21 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8UQL Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH in loaded state, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8UQM Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH in loaded state, NusA, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8UQP Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8UR0 Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, NusA, mRNA with a 24 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8URH Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, mRNA with a 27 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.70 Å
8URI Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, NusA, mRNA with a 27 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
8URX Escherichia coli transcription-translation coupled complex class B (TTC-B) containing RfaH bound to ops signal, mRNA with a 30 nt long spacer, and fMet-tRNAs in E-site and P-site of the ribosome Deposited 2023-10-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric	Chain T 1–89（89 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å

33 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	D8EB41_ECOLX
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain S； PDBConstruct 1–89； UniProt 1–89

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

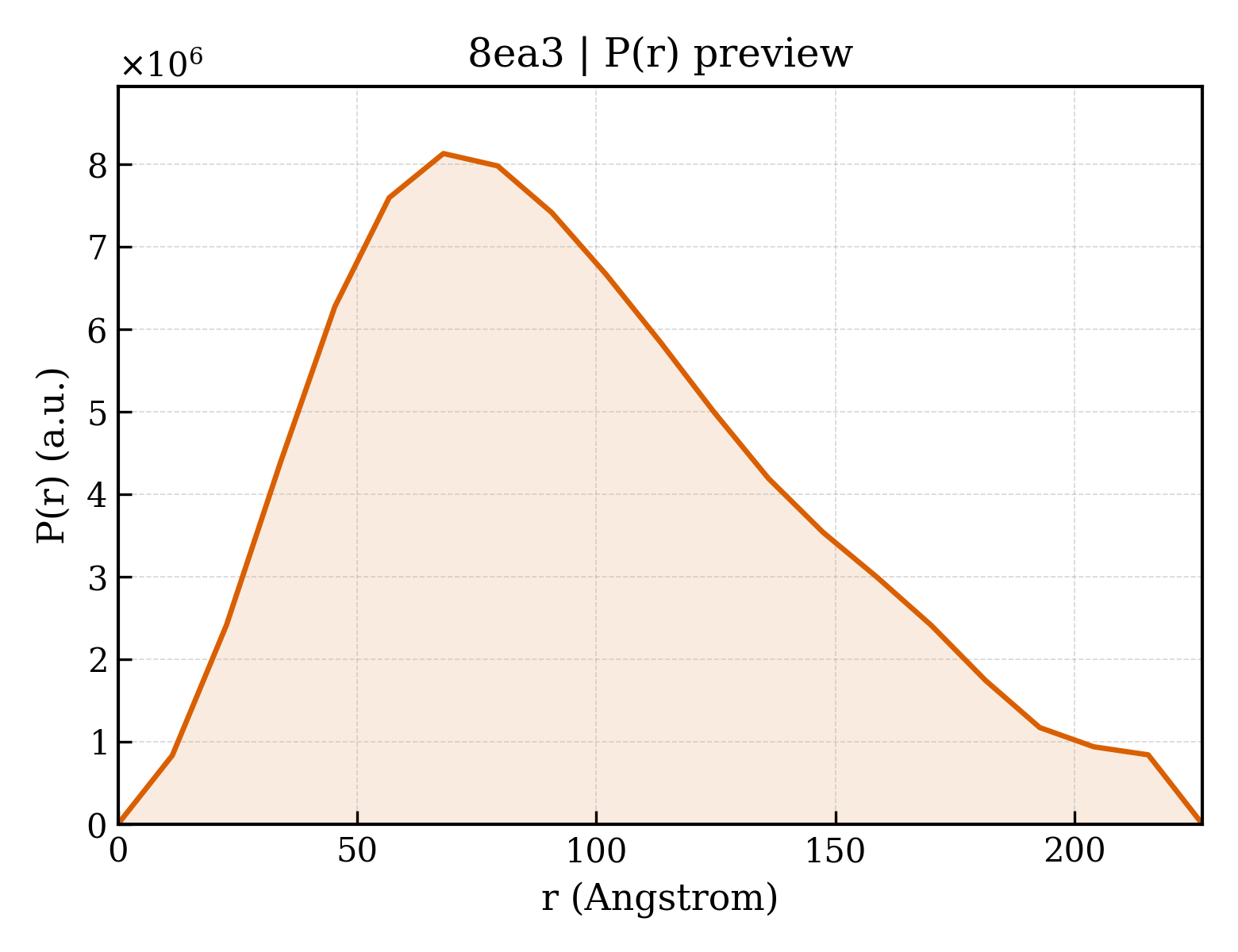

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ea3
Deposition date deposition_date	2022-08-27
Structure title title	V-K CAST Transpososome from Scytonema hofmanni, major configuration
Keywords keywords	DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA-RNA complex; DNA BINDING PROTEIN/DNA/RNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	78.86 Å
Radius of gyration Rg (electron density) rg_electron	77.99 Å
Forward intensity I(0) i0	11894300000.00
Molecular weight molecular_weight	805970.0 kDa
Excluded volume excluded_volume	961420 Å³
Envelope volume envelope_volume	1608400 Å³
Hydration-shell volume shell_volume	180870 Å³
Envelope diameter envelope_diameter	305.6 Å
Shell Rg shell_rg	70.53 Å
Envelope Rg envelope_rg	78.06 Å
Shape Rg shape_rg	77.95 Å
Total Rg total_rg	77.99 Å
Total atoms total_atoms	55955
Residues n_residues	6113
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	226.7 Å
Rg (real space) rg_real	74.53 Å
Rg uncertainty (real space) rg_real_error	1.01 Å
I(0) (real space) i0_real	1.1440e+10
I(0) uncertainty (real space) i0_real_error	2.0680e+08
Rg (reciprocal space) rg_reciprocal	75.91 Å
I(0) (reciprocal space) i0_reciprocal	11800000000.0000
Solution quality estimate total_estimate	0.9069
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	68.0 Å
Skewness Skewness skewness	0.506
Kurtosis Kurtosis kurtosis	-0.358
Angular range angular_range	— – 0.1000 Å⁻¹
Current regularization parameter α current_alpha	0.6180
Highest regularization parameter α highest_alpha	1255000000.0000
Real-space data points n_real_points	21
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.927; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.073

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	Target_LE
Molecular weight formula_weight	43440.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	1
Atom count atom_count	55955

GTCACAATGACATTAATCTGTCACCGACGACAGATAATTTGTCACTGTACAGTAGAATATAGATGCGCATCTATATAGATGCAAATTGAGTGGCCTTATTAAATGACTTCTCAACCAGTCAGCACGCCCAGACCAGGGCAC

Entity 2 Entity 2 polymer

Description description	Non-target_R
Molecular weight formula_weight	21815.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	3

GCGTGCTGACTGGTTCTCTTCAGTATTAATAAGGCCACTCAATTTGCATCTATATAGATGCGCATCTATAT

Entity 3 Entity 3 polymer

Description description	sg_RNA
Molecular weight formula_weight	85261.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	7

AUAUUAAUAGCGCCGCAAUUCAUGCUGCUUGCAGCCUCUGAAUUUUGUUAAAUGAGGGUUAGUUUGACUGUAUAAAUACAGUCUUGCUUUCUGACCCUGGUAGCUGCUCACCCUGAUGCUGCUGUCAAUAGACAGGAUAGGUGCGCUCCCAGCAAUAAGGGCGCGGAUGUACUGCUGUAGUGGCUACUGAAUCACCCCCGAUCAAGGGGGAACCCUCCAAAAGGUGGGUUGAAAGGAGAAGUCAUUUAAUAAGGCCACUGUUAAA

Entity 4 Entity 4 polymer

Description description	TnsC
Molecular weight formula_weight	31444.6 kDa
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L

MTEAQAIAKQLGGVKPDDEWLQAEIARLKGKSIVPLQQVKTLHDWLDGKRKARKSCRVVGESRTGKTVACDAYRYRHKPQQEAGRPPTVPVVYIRPHQKCGPKDLFKKITEYLKYRVTKGTVSDFRDRTIEVLKGCGVEMLIIDEADRLKPETFADVRDIAEDLGIAVVLVGTDRLDAVIKRDEQVLERFRAHLRFGKLSGEDFKNTVEMWEQMVLKLPVSSNLKSKEMLRILTSATEGYIGRLDEILREAAIRSLSRGLKKIDKAVLQEVAKEYK

来源 Source

来源生物 organism	Scytonema hofmannii
NCBI Class编号 ncbi_taxonomy_id	34078
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Cas12k
Molecular weight formula_weight	73280.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MSQITIQARLISFESNRQQLWKLMADLNTPLINELLCQLGQHPDFEKWQQKGKLPSTVVSQLCQPLKTDPRFAGQPSRLYMSAIHIVDYIYKSWLAIQKRLQQQLDGKTRWLEMLNSDAELVELSGDTLEAIRVKAAEILAIAMPASESDSASPKGKKGKKEKKPSSSSPKRSLSKTLFDAYQETEDIKSRSAISYLLKNGCKLTDKEEDSEKFAKRRRQVEIQIQRLTEKLISRMPKGRDLTNAKWLETLLTATTTVAEDNAQAKRWQDILLTRSSSLPFPLVFETNEDMVWSKNQKGRLCVHFNGLSDLIFEVYCGNRQLHWFQRFLEDQQTKRKSKNQHSSGLFTLRNGHLVWLEGEGKGEPWNLHHLTLYCCVDNRLWTEEGTEIVRQEKADEITKFITNMKKKSDLSDTQQALIQRKQSTLTRINNSFERPSQPLYQGQSHILVGVSLGLEKPATVAVVDAIANKVLAYRSIKQLLGDNYELLNRQRRQQQYLSHERHKAQKNFSPNQFGASELGQHIDRLLAKAIVALARTYKAGSIVLPKLGDMREVVQSEIQAIAEQKFPGYIEGQQKYAKQYRVNVHRWSYGRLIQSIQSKAAQTGIVIEEGKQPIRGSPHDKAKELALSAYNLRLTRRS

来源 Source

来源生物 organism	Scytonema hofmannii
NCBI Class编号 ncbi_taxonomy_id	34078
宿主生物 host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	TniQ
Molecular weight formula_weight	19011.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

MIEAPDVKPWLFLIKPYEGESLSHFLGRFRRANHLSASGLGTLAGIGAIVARWERFHFNPRPSQQELEAIASVVEVDAQRLAQMLPPAGVGMQHEPIRLCGACYAESPCHRIEWQYKSVWKCDRHQLKILAKCPNCQAPFKMPALWEDGCCHRCRMPFAEMAKLQKV

来源 Source

来源生物 organism	Scytonema hofmannii
NCBI Class编号 ncbi_taxonomy_id	34078
宿主生物 host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	30S ribosomal protein S15
Molecular weight formula_weight	10290.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MSLSTEATAKIVSEFGRDANDTGSTEVQVALLTAQINHLQGHFAEHKKDHHSRRGLLRMVSQRRKLLDYLKRKDVARYTQLIERLGLRR

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	TnsB
Molecular weight formula_weight	66637.1 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	w,x,y,z,W,X,Y,Z

MNSQQNPDLAVHPLAIPMEGLLGESATTLEKNVIATQLSEEAQVKLEVIQSLLEPCDRTTYGQKLREAAEKLNVSLRTVQRLVKNWEQDGLVGLTQTSRADKGKHRIGEFWENFITKTYKEGNKGSKRMTPKQVALRVEAKARELKDSKPPNYKTVLRVLAPILEKQQKAKSIRSPGWRGTTLSVKTREGKDLSVDYSNHVWQCDHTRVDVLLVDQHGEILSRPWLTTVIDTYSRCIMGINLGFDAPSSGVVALALRHAILPKRYGSEYKLHCEWGTYGKPEHFYTDGGKDFRSNHLSQIGAQLGFVCHLRDRPSEGGVVERPFKTLNDQLFSTLPGYTGSNVQERPEDAEKDARLTLRELEQLLVRYIVDRYNQSIDARMGDQTRFERWEAGLPTVPVPIPERDLDICLMKQSRRTVQRGGCLQFQNLMYRGEYLAGYAGETVNLRFDPRDITTILVYRQENNQEVFLTRAHAQGLETEQLALDEAEAASRRLRTAGKTISNQSLLQEVVDRDALVATKKSRKERQKLEQTVLRSAAVDESNRESLPSQIVEPDEVESTETVHSQYEDIEVWDYEQLREEYGF

来源 Source

来源生物 organism	Scytonema hofmannii
NCBI Class编号 ncbi_taxonomy_id	34078
宿主生物 host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	LE_R
Molecular weight formula_weight	15775.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	2

TGTACAGTGACAAATTATCTGTCGTCGGTGACAGATTAATGTCATTGTGAC

Entity 10 Entity 10 polymer

Description description	RE_F
Molecular weight formula_weight	23080.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	4

TTACTGATGACAATAATTTGTCACAACGACATATAATTAGTCACTGTACATCTACGATACGTAGCGGCCGACGCG

Entity 11 Entity 11 polymer

Description description	RE_R1
Molecular weight formula_weight	15444.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	5

TGTACAGTGACTAATTATATGTCGTTGTGACAAATTATTGTCATCAGTAA

Entity 12 Entity 12 polymer

Description description	RE_R2
Molecular weight formula_weight	6086.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	6

CGCGTCGGCCGCTACGTATC

Entity 13 Entity 13 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 14 Entity 14 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	12

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	8ea3D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8ea3G01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8ea3H01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Resolution resolution	3.70 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	188055

fit	/app/data/saxs_computation/ea/8ea3/8ea3.fit
pddf	/app/data/pr_computation/ea/8ea3/8ea3.pr.out
profile	/app/data/saxs_computation/ea/8ea3/8ea3.dat

V-K CAST Transpososome from Scytonema hofmanni, major configuration

1. Protein Identity and Related Structures Protein Identity & Related Structures

TnsC

State in the Current Structure

Other States of the Same Protein in the Database

Cas12k

State in the Current Structure

Other States of the Same Protein in the Database

TniQ

State in the Current Structure

Other States of the Same Protein in the Database

30S ribosomal protein S15

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

Entity 7 Entity 7 polymer

Polymer Polymer

来源 Source

Entity 8 Entity 8 polymer

Polymer Polymer

来源 Source

Entity 9 Entity 9 polymer

Polymer Polymer

Entity 10 Entity 10 polymer

Polymer Polymer

Entity 11 Entity 11 polymer

Polymer Polymer

Entity 12 Entity 12 polymer

Polymer Polymer

Entity 13 Entity 13 non-polymer

Entity 14 Entity 14 non-polymer

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
