Thermococcus gorgonarius
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | SULFATE ION × 2 water × 1 | Consistent with protein count |
| UniProt name | DPOL_THEGO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–773； UniProt 1–773 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 9gp8 |
| Deposition date deposition_date | 2024-09-07 |
| Structure title title | Crystal Structure of TgoT_PGLVVWA XNA Polymerase (Apo) |
| Keywords keywords | ;Xenonucleic Acid, XNA Polymerase, Synthetic Biology, Enzyme Structure, DNA/RNA Binding, Nucleotide Analogs, Polymerase Function, Protein Engineering, Xenobiology, Catalytic Mechanism, Enzyme Kinetics, Mutagenesis, Molecular Biology, Nucleic Acid Synthesis, Protein-Nucleic Acid Interaction, XNA Synthesis, Structural Biology, Active Site, Substrate Specificity, Enzyme Evolution, Alternative Nucleotides, Phosphonate, DNA BINDING PROTEIN ;; DNA BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

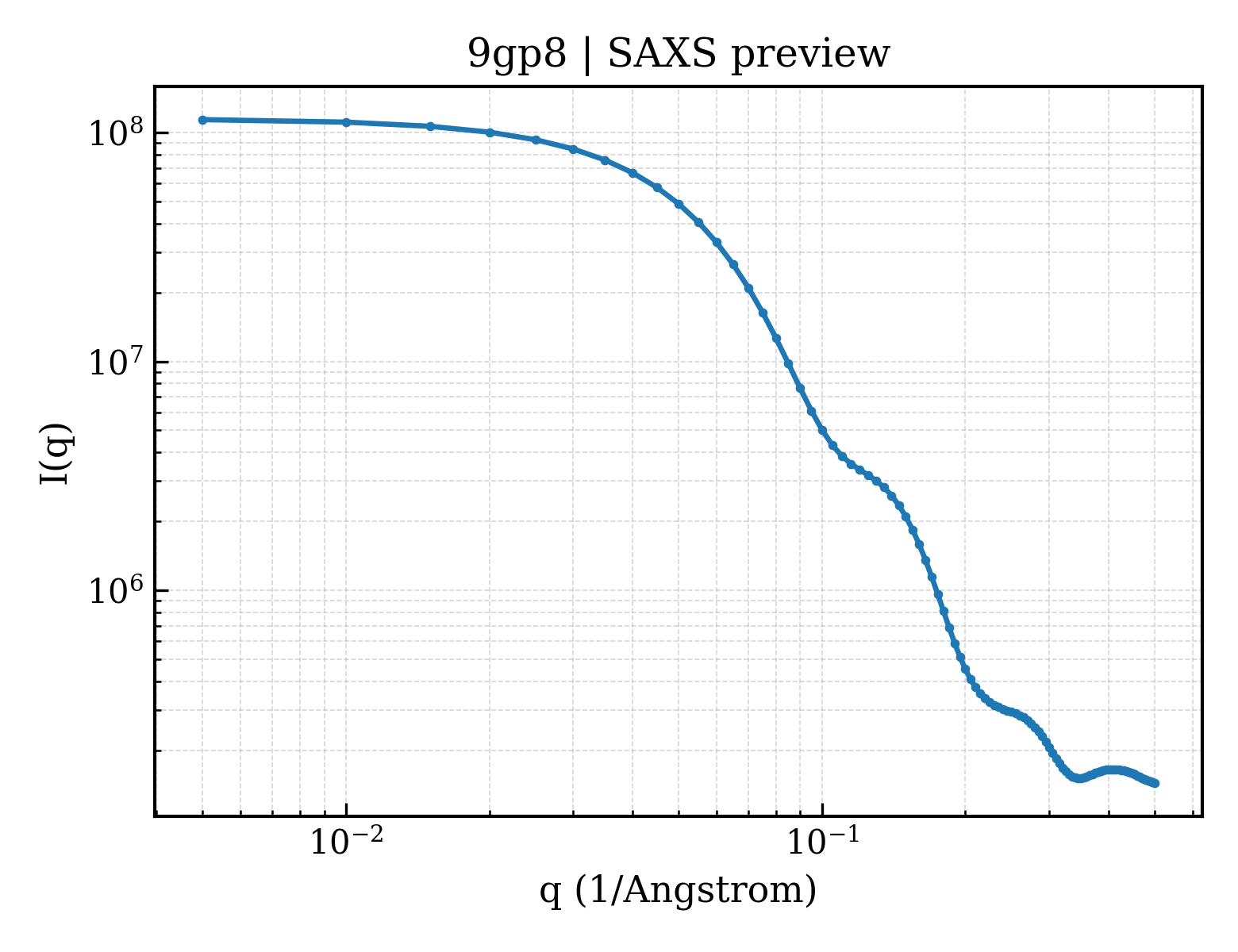

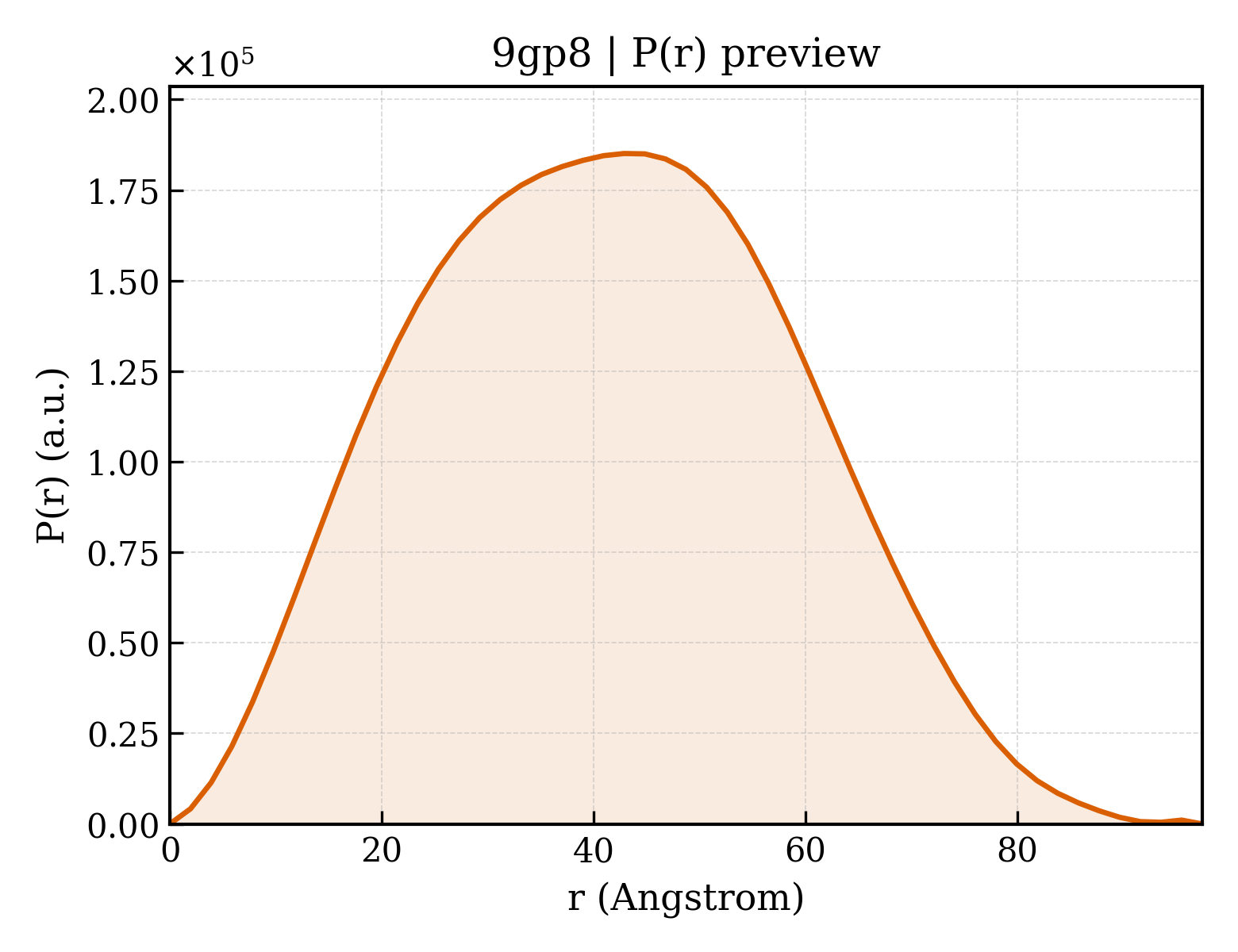

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 31.79 Å |
| Rg (electron density) | 30.80 Å |
| Total Rg | 31.53 Å |
| Atom count | 6237 |
| Residues | 759 |
| Excluded volume | 111900 ų |
| Maximum q | 0.500 Å⁻¹ |
