9h2g

;Cas9:crRNA:tracrRNA in complex with PAM-containing non-cognate DNA, PAM-bound conformation, Streptococcus thermophilus DGCC 7710 CRISPR3 system ;

Method: ELECTRON MICROSCOPY D_max: 117.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

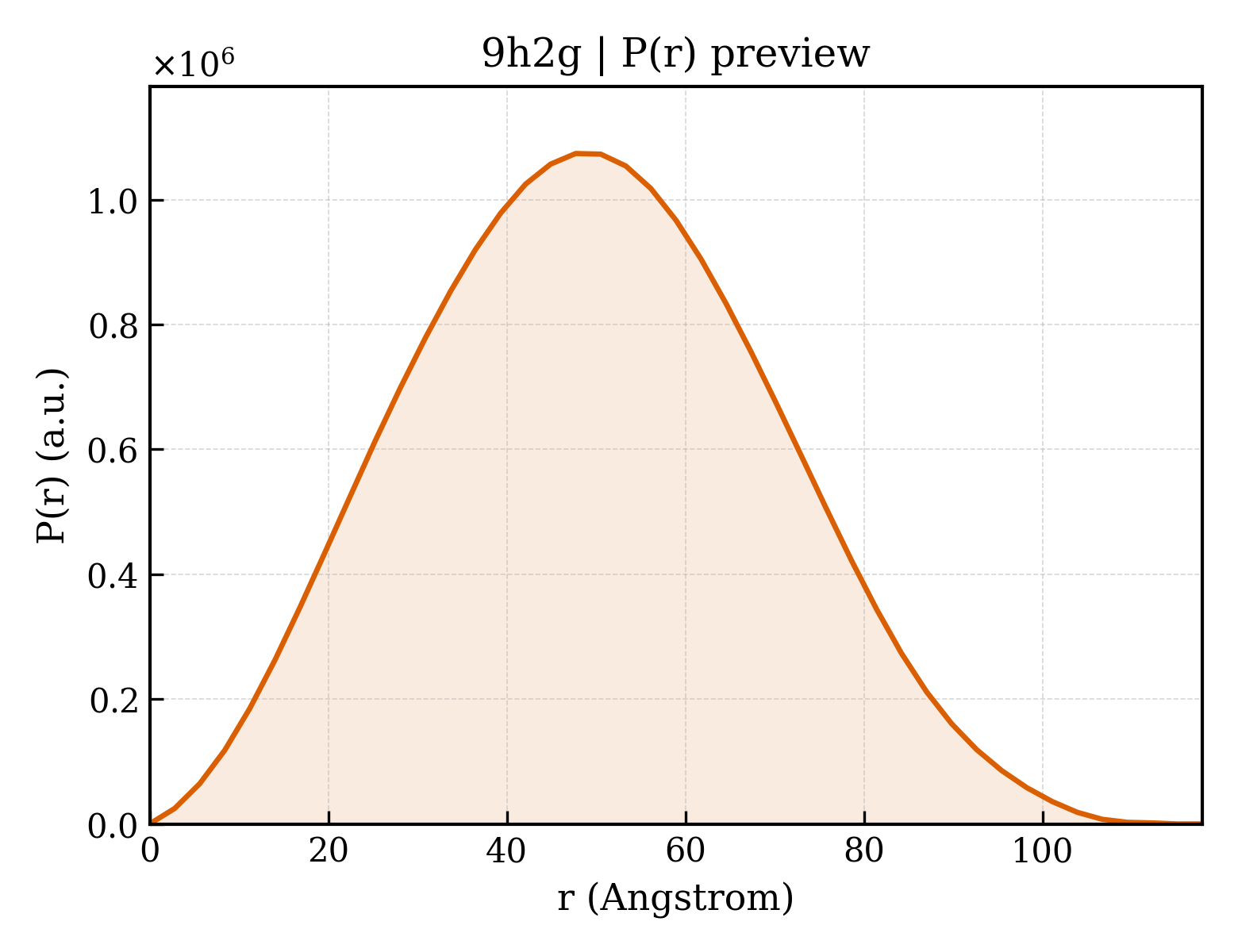

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h2g
沉积日期 deposition_date	2024-10-11
结构标题 title	;Cas9:crRNA:tracrRNA in complex with PAM-containing non-cognate DNA, PAM-bound conformation, Streptococcus thermophilus DGCC 7710 CRISPR3 system ;
关键词 keywords	Cas9, PAM, CRISPR-Cas, RNA BINDING PROTEIN, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.02 Å
回转半径 Rg (电子) rg_electron	37.35 Å
零角强度 I(0) i0	708162000.00
分子量 molecular_weight	188970.0 kDa
排除体积 excluded_volume	224520 Å³
包络体积 envelope_volume	323960 Å³
水化壳体积 shell_volume	69819 Å³
包络直径 envelope_diameter	118.7 Å
壳层 Rg shell_rg	45.73 Å
包络 Rg envelope_rg	36.24 Å
形状 Rg shape_rg	37.35 Å
总 Rg total_rg	37.81 Å
总原子数 total_atoms	13185
残基数 n_residues	1505
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	117.9 Å
Rg (实空间) rg_real	37.75 Å
Rg 误差 (实空间) rg_real_error	0.83 Å
I(0) (实空间) i0_real	7.0820e+08
I(0) 误差 (实空间) i0_real_error	1.0980e+07
Rg (倒空间) rg_reciprocal	37.92 Å
I(0) (倒空间) i0_reciprocal	708300000.0000
解质量估计 total_estimate	0.8236
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.7 Å
偏度 Skewness skewness	0.120
峰度 Kurtosis kurtosis	-0.471
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	67210000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	CRISPR-associated endonuclease Cas9
分子量 formula_weight	162498.5 kDa
EC 编号 ec_number	3.1.-.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	13185

MTKPYSIGLDIGTNSVGWAVITDNYKVPSKKMKVLGNTSKKYIKKNLLGVLLFDSGITAEGRRLKRTARRRYTRRRNRILYLQEIFSTEMATLDDAFFQRLDDSFLVPDDKRDSKYPIFGNLVEEKVYHDEFPTIYHLRKYLADSTKKADLRLVYLALAHMIKYRGHFLIEGEFNSKNNDIQKNFQDFLDTYNAIFESDLSLENSKQLEEIVKDKISKLEKKDRILKLFPGEKNSGIFSEFLKLIVGNQADFRKCFNLDEKASLHFSKESYDEDLETLLGYIGDDYSDVFLKAKKLYDAILLSGFLTVTDNETEAPLSSAMIKRYNEHKEDLALLKEYIRNISLKTYNEVFKDDTKNGYAGYIDGKTNQEDFYVYLKNLLAEFEGADYFLEKIDREDFLRKQRTFDNGSIPYQIHLQEMRAILDKQAKFYPFLAKNKERIEKILTFRIPYYVGPLARGNSDFAWSIRKRNEKITPWNFEDVIDKESSAEAFINRMTSFDLYLPEEKVLPKHSLLYETFNVYNELTKVRFIAESMRDYQFLDSKQKKDIVRLYFKDKRKVTDKDIIEYLHAIYGYDGIELKGIEKQFNSSLSTYHDLLNIINDKEFLDDSSNEAIIEEIIHTLTIFEDREMIKQRLSKFENIFDKSVLKKLSRRHYTGWGKLSAKLINGIRDEKSGNTILDYLIDDGISNRNFMQLIHDDALSFKKKIQKAQIIGDEDKGNIKEVVKSLPGSPAIKKGILQSIKIVDELVKVMGGRKPESIVVEMARENQYTNQGKSNSQQRLKRLEKSLKELGSKILKENIPAKLSKIDNNALQNDRLYLYYLQNGKDMYTGDDLDIDRLSNYDIDHIIPQAFLKDNSIDNKVLVSSASNRGKSDDFPSLEVVKKRKTFWYQLLKSKLISQRKFDNLTKAERGGLLPEDKAGFIQRQLVETRQITKHVARLLDEKFNNKKDENNRAVRTVKIITLKSTLVSQFRKDFELYKVREINDFHHAHDAYLNAVIASALLKKYPKLEPEFVYGDYPKYNSFRERKSATEKVYFYSNIMNIFKKSISLADGRVIERPLIEVNEETGESVWNKESDLATVRRVLSYPQVNVVKKVEEQNHGLDRGKPKGLFNANLSSKPKPNSNENLVGAKEYLDPKKYGGYAGISNSFAVLVKGTIEKGAKKKITNVLEFQGISILDRINYRKDKLNFLLEKGYKDIELIIELPKYSLFELSDGSRRMLASILSTNNKRGEIHKGNQIFLSQKFVKLLYHAKRISNTINENHRKYVENHKKEFEELFYYILEFNENYVGAKKNGKLLNSAFQSWQNHSIDELCSSFIGPTGSERKGLFELTSRGSAADFEFLGVKIPRYRDYTPSSLLKDATLIHQSVTGLYETRIDLAKLGEGLEGHHHHHH

来源 Source

来源生物 organism	Streptococcus thermophilus DGCC 7710
NCBI 分类编号 ncbi_taxonomy_id	1268061
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	crRNA (26-MER)
分子量 formula_weight	13609.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

CGCUAAAGAGGAAGAGGACAGUUUUAGAGCUGUGUUGUUUCG

Entity 3 polymer

描述 description	tracrRNA (65-MER)
分子量 formula_weight	24119.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C

CGAAACAACACAGCGAGUUAAAAUAAGGCUUAGUCCGUACUCAACUUGAAAAGGUGGCACCGAUUCGGUGUUUUU

Entity 4 polymer

描述 description	DNA
分子量 formula_weight	15003.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E

GATGTCTTCCAATTTACTACTCGTTCTGGTGTTTCTCGAGGCGTCAGCC

Entity 5 polymer

描述 description	DNA
分子量 formula_weight	15182.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D

GGCTGACGCCTCGAGAAACACCAGAACGAGTAGTAAATTGGAAGACATC

Entity 6 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.28 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	41668
