SAXSdb — 9h5h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform M1 of Microphthalmia-associated transcription factor

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	SULFATE ION × 5 DIMETHYL SULFOXIDE × 1 1-(2-phenylethynyl)cyclohexan-1-ol × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MITF_HUMAN
Isoform	O75030-9
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–83； UniProt 217–296 Author chain B； PDBConstruct 4–83； UniProt 217–296 Author chain C； PDBConstruct 4–83； UniProt 217–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9h5h
Deposition date deposition_date	2024-10-22
Last revision last_revision	2025-11-05
Structure title title	MITF in complex with 1-(phenylethynyl)cyclohexan-1-ol
Keywords keywords	transcription factor, regulator of melanocyte survival, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9h5h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

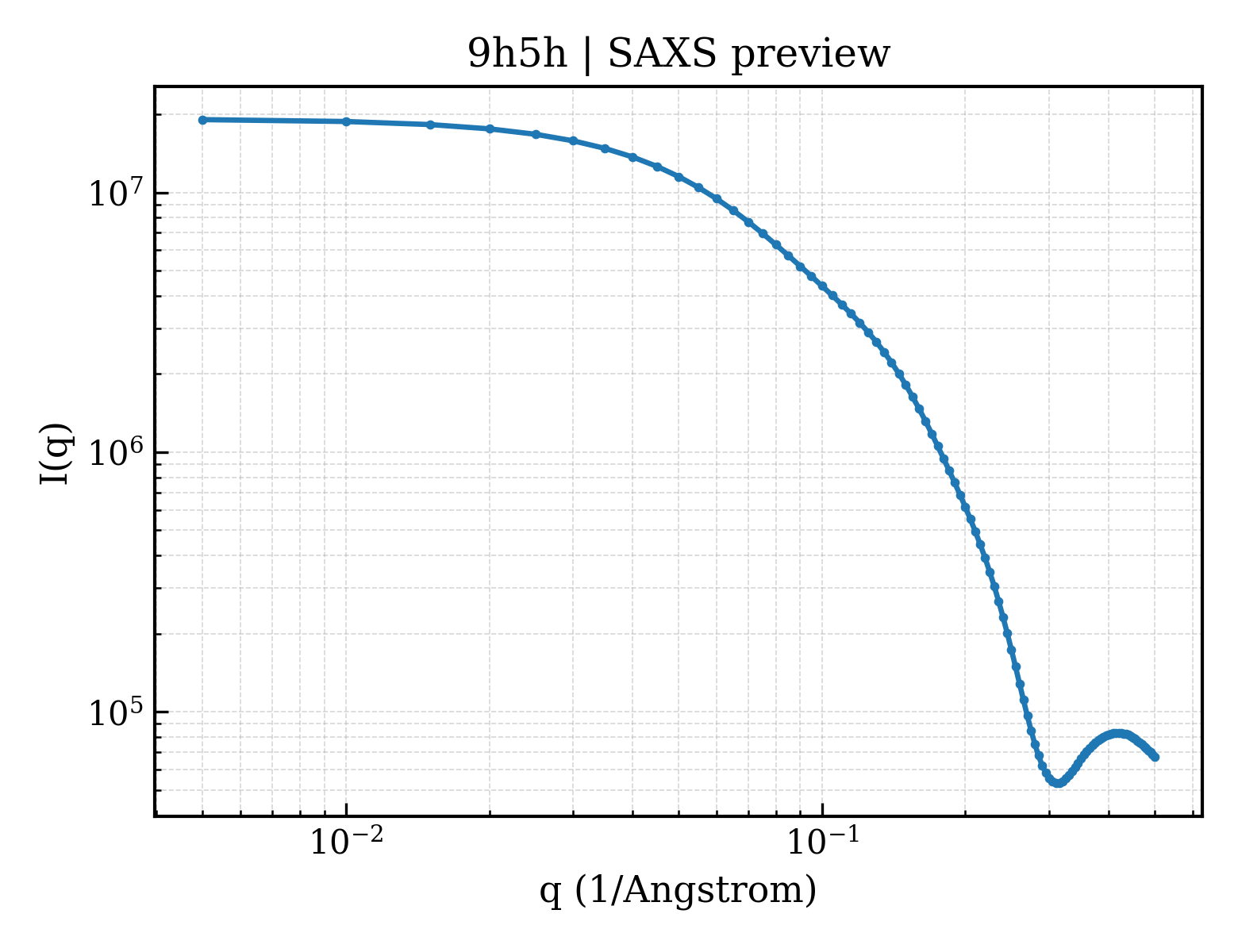

9h5h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

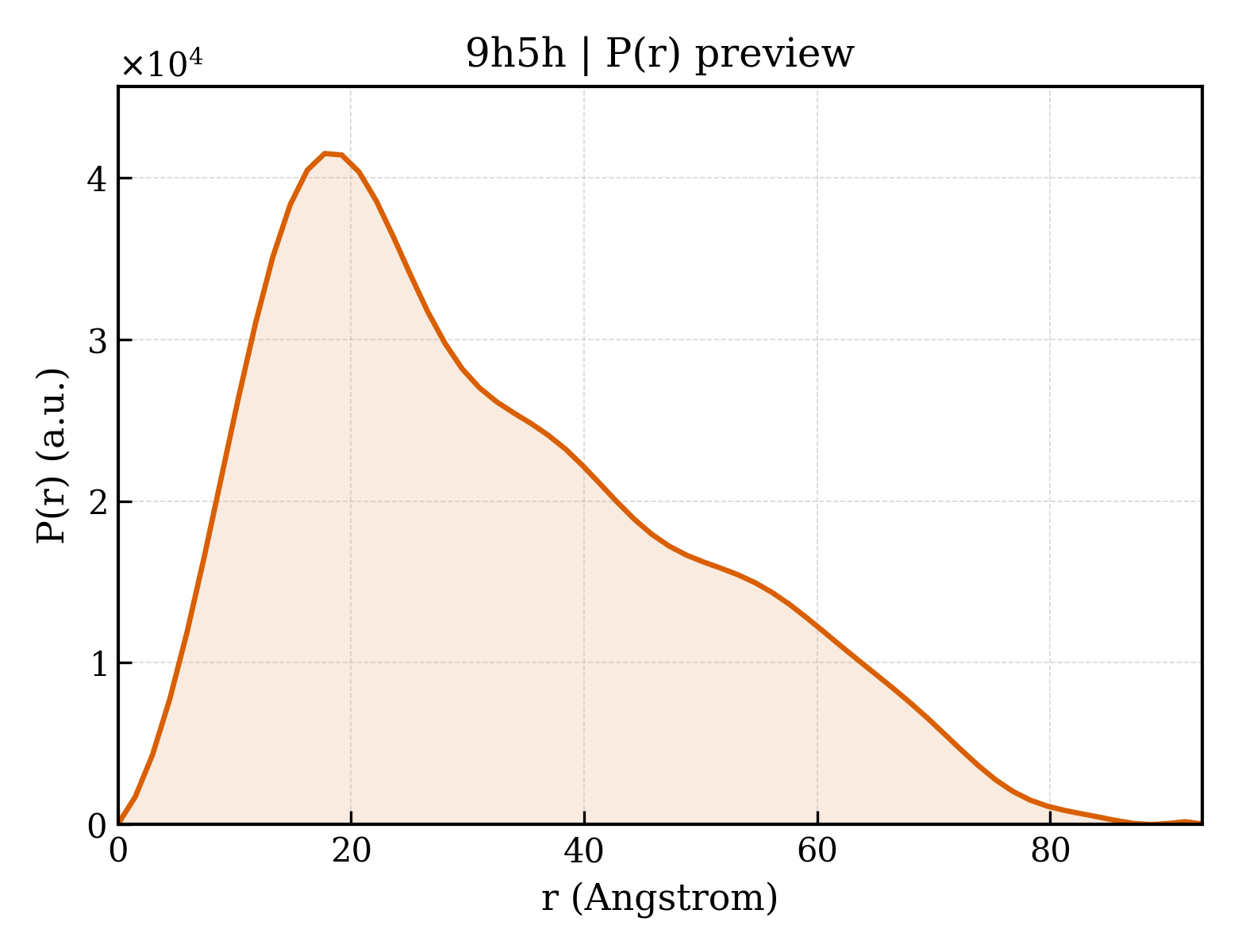

9h5h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.40 Å
Rg (electron density)	25.24 Å
Total Rg	25.81 Å
Atom count	1588
Residues	183
Excluded volume	27929 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9h5h__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Isoform M1 of Microphthalmia-associated transcription factor
Molecular weight formula_weight	9880.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	1740

GAMRFNINDRIKELGTLIPKSNDPDMRWNKGTILKASVDYIRKLQREQQRAKELENRQKKLEHANRHLLLRIQELEMQARAHG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1-(2-phenylethynyl)cyclohexan-1-ol
Molecular weight formula_weight	200.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	89

▶

Unit-cell length a length_a	90.353 Å
Unit-cell length b length_b	90.353 Å
Unit-cell length c length_c	82.487 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	1.740 Å
Low-resolution limit resolution_low	50.510 Å
R factor r_factor	0.2254
R_work r_work	0.2238
R_free r_free	0.2553
