1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin alpha-1B chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Tubulin beta chain × 2 （P07437） Tubulin polyglutamylase TTLL11 × 1 （P0A3G4,Q8NHH1） PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 4 MAGNESIUM ION × 4 TAXOL × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA1B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–451； UniProt 1–451 Author chain C； PDBConstruct 1–451； UniProt 1–451

Tubulin beta chain

OrganismNot specified

UniProt P07437

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Tubulin alpha-1B chain × 2 （P68363） Tubulin polyglutamylase TTLL11 × 1 （P0A3G4,Q8NHH1） PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 4 MAGNESIUM ION × 4 TAXOL × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBB5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–444； UniProt 1–444 Author chain D； PDBConstruct 1–444； UniProt 1–444

Tubulin polyglutamylase TTLL11

Homo sapiens

UniProt P0A3G4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Tubulin alpha-1B chain × 2 （P68363） Tubulin beta chain × 2 （P07437） PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 4 MAGNESIUM ION × 4 TAXOL × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DHAA_PSEPV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 52–339； UniProt 3–290

Tubulin polyglutamylase TTLL11

Homo sapiens

UniProt Q8NHH1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Tubulin alpha-1B chain × 2 （P68363） Tubulin beta chain × 2 （P07437） PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 4 MAGNESIUM ION × 4 TAXOL × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TTL11_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 401–990； UniProt 121–710

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9hq4
Deposition date deposition_date	2024-12-16
Last revision last_revision	2025-09-17
Structure title title	TTLL11 bound to microtubule
Keywords keywords	TTLL11, polyglutamylase, tubulin, microtubule, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9hq4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

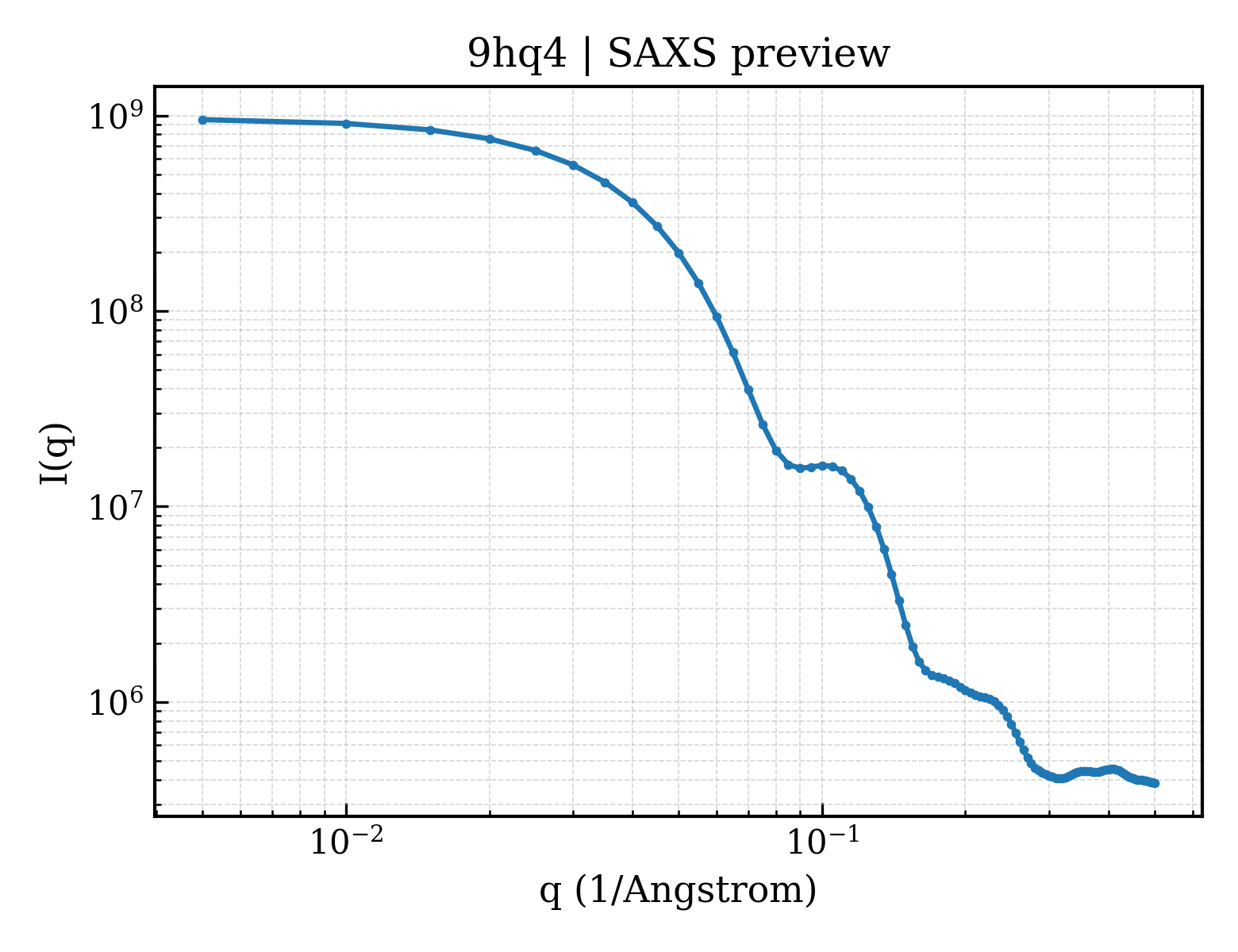

9hq4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9hq4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.49 Å
Rg (electron density)	41.90 Å
Total Rg	42.25 Å
Atom count	17848
Residues	2230
Excluded volume	316970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9hq4__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Tubulin alpha-1B chain
Molecular weight formula_weight	50204.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17848

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLISQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRSIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

Entity 2 Entity 2 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	49717.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGTYHGDSDLQLDRISVYYNEATGGKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKEAESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQVFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMAVTFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATAEEEEDFGEEAEEEA

Entity 3 Entity 3 polymer

Description description	Tubulin polyglutamylase TTLL11
Molecular weight formula_weight	111410.2 kDa
EC 编号 ec_number	6.3.2.-
Mutation mutation	E441G
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MASAWSHPQFEKGGGSGGGSGGSAWSHPQFEKGGSGGSDYKDDDDKGSGSGEIGTGFPFDPHYVEVLGERMHYVDVGPRDGTPVLFLHGNPTSSYVWRNIIPHVAPTHRCIAPDLIGMGKSDKPDLGYFFDDHVRFMDAFIEALGLEEVVLVIHDWGSALGFHWAKRNPERVKGIAFMEFIRPIPTWDEWPEFARETFQAFRTTDVGRKLIIDQNVFIEGTLPMGVVRPLTEVEMDHYREPFLNPVDREPLWRFPNELPIAGEPANIVALVEEYMDWLHQSPVPKLLFWGTPGVLIPPAEAARLAKSLPNCKAVDIGPGLNLLQEDNPDLIGSEIARWLSTLEISGEPTTEDLYFQSDNAIASEFCRYPAQWRPLESSRHNQTSLYKKAGSENLYFQSGGGENGSQRPVTVDSSKARTSLDALKISIRQLKWKEFPFGRRLPCDIYWHGVSFHDNDIFSGQVNKFPGMTEMVRKITLSRAVRTMQNLFPEEYNFYPRSWILPDEFQLFVAQVQMVKDDDPSWKPTFIVKPDGGCQGDGIYLIKDPSDIRLAGTLQSRPAVVQEYICKPLLIDKLKFDIRLYVLLKSLDPLEIYIAKDGLSRFCTEPYQEPTPKNLHRIFMHLTNYSLNIHSGNFIHSDSASTGSKRTFSSILCRLSSKGVDIKKVWSDIISVVIKTVIALTPELKVFYQSDIPTGRPGPTCFQILGFDILLMKNLKPILLGVNANPSMRIEHEHELSPGVFENVPSLVDEEVKVAVIRDTLRLMDPLKKKRENQSQQLEKPFAGKEDALDGELTSAPDCNANPEAHLPSICLKQVFPKYAKQFNYLRLVDRMANLFIRFLGIKGTMKLGPTGFRTFIRSCKLSSSSLSMAAVDILYIDITRRWNSMTLDQRDSGMCLQAFVEAFFFLAQRKFKMLPLHEQVASLIDLCEYHLSLLDEKRLVCGRGVPSGGRPPHRGPPQEPSPSAQPAGDNPPPRTSCANKLSHPRHTLS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
Molecular weight formula_weight	521.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	TAXOL
Molecular weight formula_weight	853.9 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.28 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	239587
