SAXSdb — 9caf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E1A-binding protein p400,Haloalkane dehalogenase chimera

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DHAA_PSEPV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 820–1107； UniProt 3–290

E1A-binding protein p400,Haloalkane dehalogenase chimera

Homo sapiens

UniProt Q96L91

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EP400_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–401； UniProt 513–913 Author chain A； PDBConstruct 404–800； UniProt 2134–2529

Isoform 2 of Transformation/transcription domain-associated protein

Homo sapiens

UniProt Q9Y4A5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	E1A-binding protein p400,Haloalkane dehalogenase chimera × 1 （P0A3G4,Q96L91） INOSITOL HEXAKISPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRRAP_HUMAN
Isoform	Q9Y4A5-2
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–3811； UniProt 1–3830

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9caf
Deposition date deposition_date	2024-06-17
Structure title title	Cryo-EM structure of the reconstituted TRRAP lobe of the human TIP60 complex (composite structure)
Keywords keywords	histone acetyltransferase, chromatin regulator, transcription regulation, GENE REGULATION; GENE REGULATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9caf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9caf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

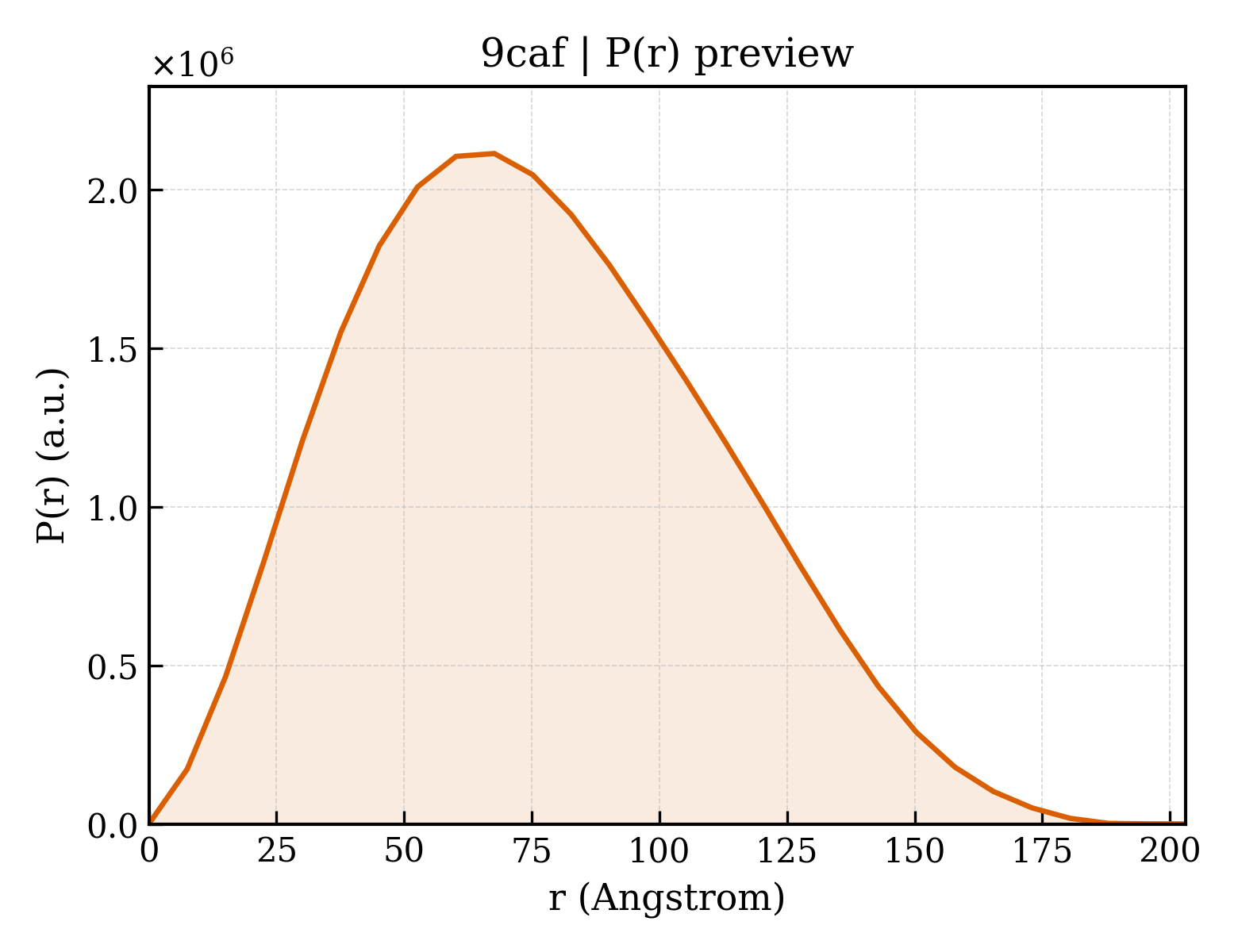

9caf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	59.01 Å
Rg (electron density)	58.82 Å
Total Rg	58.87 Å
Atom count	29921
Residues	3724
Excluded volume	538360 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9caf__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	E1A-binding protein p400,Haloalkane dehalogenase chimera
Molecular weight formula_weight	125783.7 kDa
EC 编号 ec_number	3.6.4.-,3.8.1.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	29921

MAEQSKRPRLEVGHQGVVFQHPGADAGVPLQQLMPTAQGGMPPTPQAAQLAGQRQSQQQYDPSTGPPVQNAASLHTPLPQLPGRLPPAGVPTAALSSALQFAQQPQVVEAQTQLQIPVKTQQPNVPIPAPPSSQLPIPPSQPAQLALHVPTPGKVQVQASQLSSLPQMVASTRLPVDPAPPCPRPLPTSSTSSLAPVSGSGPGPSPARSSPVNRPSSATNKALSPVTSRTPGVVASAPTKPQSPAQNATSSQDSSQDTLTEQITLENQVHQRIAELRKAGLWSQRRLPKLQEAPRPKSHWDYLLEEMQWMATDFAQERRWKVAAAKKLVRTVVRHHEEKQLREERGKKEEQSRLRRIAASTAREIECFWSNIEQVVEIKLRVELEEKRKKALNLQKVSRRGPGSSDSENMPCDEEPSQLEELADFMEQLTPIEKYALNYLELFHTSIEQEKERNSEDAVMTAVRAWEFWNLKTLQEREARLRLEQEEAELLTYTREDAYSMEYVYEDVDGQTEVMPLWTPPTPPQDDSDIYLDSVMCLMYEATPIPEAKLPPVYVRKERKRHKTDPSAAGRKKKQRHGEAVVPPRSLFDRATPGLLKIRREGKEQKKNILLKQQVPFAKPLPTFAKPTAEPGQDDNPEWLISEDWALLQAVKQLLELPLNLTIVSPAHTPNWDLVSDVVNSCSRIYRSSKQCRNRYENVIIPREEKSKNNRPLLRTSQIYAQDENATHTQLYTSHFDLMKMTAGKRPPIKPLLGMNPFQKNPPKHASVLAESGINYDKPLPPIQVASLRAERIAKEKKALDGSGGSGEDLYFQSGGSMAEIGTGFPFDPHYVEVLGERMHYVDVGPRDGTPVLFLHGNPTSSYVWRNIIPHVAPTHRCIAPDLIGMGKSDKPDLGYFFDDHVRFMDAFIEALGLEEVVLVIHDWGSALGFHWAKRNPERVKGIAFMEFIRPIPTWDEWPEFARETFQAFRTTDVGRKLIIDQNVFIEGTLPMGVVRPLTEVEMDHYREPFLNPVDREPLWRFPNELPIAGEPANIVALVEEYMDWLHQSPVPKLLFWGTPGVLIPPAEAARLAKSLPNCKAVDIGPGLNLLQEDNPDLIGSEIARWLSTLEISGGGHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Isoform 2 of Transformation/transcription domain-associated protein
Molecular weight formula_weight	433231.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MAFVATQGATVVDQTTLMKKYLQFVAALTDVNTPDETKLKMMQEVSENFENVTSSPQYSTFLEHIIPRFLTFLQDGEVQFLQEKPAQQLRKLVLEIIHRIPTNEHLRPHTKNVLSVMFRFLETENEENVLICLRIIIELHKQFRPPITQEIHHFLDFVKQIYKELPKVVNRYFENPQVIPENTVPPPEMVGMITTIAVKVNPEREDSETRTHSIIPRGSLSLKVLAELPIIVVLMYQLYKLNIHNVVAEFVPLIMNTIAIQVSAQARQHKLYNKELYADFIAAQIKTLSFLAYIIRIYQELVTKYSQQMVKGMLQLLSNCPAETAHLRKELLIAAKHILTTELRNQFIPCMDKLFDESILIGSGYTARETLRPLAYSTLADLVHHVRQHLPLSDLSLAVQLFAKNIDDESLPSSIQTMSCKLLLNLVDCIRSKSEQESGNGRDVLMRMLEVFVLKFHTIARYQLSAIFKKCKPQSELGAVEAALPGSGGGASGGGSGEKDKEDKQTFQVTDCRSLVKTLVCGVKTITWGITSCKAPGEAQFIPNKQLQPKETQIYIKLVKYAMQALDIYQVQIAGNGQTYIRVANCQTVRMKEEKEVLEHFAGVFTMMNPLTFKEIFQTTVPYMVERISKNYALQIVANSFLANPTTSALFATILVEYLLDRLPEMGSNVELSNLYLKLFKLVFGSVSLFAAENEQMLKPHLHKIVNSSMELAQTAKEPYNYFLLLRALFRSIGGGSHDLLYQEFLPLLPNLLQGLNMLQSGLHKQHMKDLFVELCLTVPVRLSSLLPYLPMLMDPLVSALNGSQTLVSQGLRTLELCVDNLQPDFLYDHIQPVRAELMQALWRTLRNPADSISHVAYRVLGKFGGSNRKMLKESQKLHYVVTEVQGPSITVEFSDCKASLQLPMEKAIETALDCLKSANTEPYYRRQAWEVIKCFLVAMMSLEDNKHALYQLLAHPNFTEKTIPNVIISHRYKAQDTPARKTFEQALTGAFMSAVIKDLRPSALPFVASLIRHYTMVAVAQQCGPFLLPCYQVGSQPSTAMFHSEENGSKGMDPLVLIDAIAICMAYEEKELCKIGEVALAVIFDVASIILGSKERACQLPLFSYIVERLCACCYEQAWYAKLGGVVSIKFLMERLPLTWVLQNQQTFLKALLFVMMDLTGEVSNGAVAMAKTTLEQLLMRCATPLKDEERAEEIVAAQEKSFHHVTHDLVREVTSPNSTVRKQAMHSLQVLAQVTGKSVTVIMEPHKEVLQDMVPPKKHLLRHQPANAQIGLMEGNTFCTTLQPRLFTMDLNVVEHKVFYTELLNLCEAEDSALTKLPCYKSLPSLVPLRIAALNALAACNYLPQSREKIIAALFKALNSTNSELQEAGEACMRKFLEGATIEVDQIHTHMRPLLMMLGDYRSLTLNVVNRLTSVTRLFPNSFNDKFCDQMMQHLRKWMEVVVITHKGGQRSDGNEMKICSAIINLFHLIPAAPQTLVKPLLEVVMKTERAMLIEAGSPFREPLIKFLTRHPSQTVELFMMEATLNDPQWSRMFMSFLKHKDARPLRDVLAANPNRFITLLLPGGAQTAVRPGSPSTSTMRLDLQFQAIKIISIIVKNDDSWLASQHSLVSQLRRVWVSENFQERHRKENMAATNWKEPKLLAYCLLNYCKRNYGDIELLFQLLRAFTGRFLCNMTFLKEYMEEEIPKNYSIAQKRALFFRFVDFNDPNFGDELKAKVLQHILNPAFLYSFEKGEGEQLLGPPNPEGDNPESITSVFITKVLDPEKQADMLDSLRIYLLQYATLLVEHAPHHIHDNNKNRNSKLRRLMTFAWPCLLSKACVDPACKYSGHLLLAHIIAKFAIHKKIVLQVFHSLLKAHAMEARAIVRQAMAILTPAVPARMEDGHQMLTHWTRKIIVEEGHTVPQLVHILHLIVQHFKVYYPVRHHLVQHMVSAMQRLGFTPSVTIEQRRLAVDLSEVVIKWELQRIKDQQPDSDMDPNSSGEGGDYKDHDIDYKDDDDKGSVSSSIKRGLSVDSAQEVKRFRTATGAISAVFGRSQSLPGADSLLAKPIDKQHTDTVVNFLIRVACQVNDNTNTAGSPGEVLSRRCVNLLKTALRPDMWPKSELKLQWFDKLLMTVEQPNQVNYGNICTGLEVLSFLLTVLQSPAILSSFKPLQRGIAACMTCGNTKVLRAVHSLLSRLMSIFPTEPSTSSVASKYEELECLYAAVGKVIYEGLTNYEKATNANPSQLFGTLMILKSACSNNPSYIDRLISVFMRSLQKMVREHLNPQAASGSTEATSGTSELVMLSLELVKTRLAVMSMEMRKNFIQAILTSLIEKSPDAKILRAVVKIVEEWVKNNSPMAANQTPTLREKSILLVKMMTYIEKRFPEDLELNAQFLDLVNYVYRDETLSGSELTAKLEPAFLSGLRCAQPLIRAKFFEVFDNSMKRRVYERLLYVTCSQNWEAMGNHFWIKQCIELLLAVCEKSTPIGTSCQGAMLPSITNVINLADSHDRAAFAMVTHVKQEPRERENSESKEEDVEIDIELAPGDQTSTPKTKELSEKDIGNQLHMLTNRHDKFLDTLREVKTGALLSAFVQLCHISTTLAEKTWVQLFPRLWKILSDRQQHALAGEISPFLCSGSHQVQRDCQPSALNCFVEAMSQCVPPIPIRPCVLKYLGKTHNLWFRSTLMLEHQAFEKGLSLQIKPKQTTEFYEQESITPPQQEILDSLAELYSLLQEEDMWAGLWQKRCKYSETATAIAYEQHGFFEQAQESYEKAMDKAKKEHERSNASPAIFPEYQLWEDHWIRCSKELNQWEALTEYGQSKGHINPYLVLECAWRVSNWTAMKEALVQVEVSCPKEMAWKVNMYRGYLAICHPEEQQLSFIERLVEMASSLAIREWRRLPHVVSHVHTPLLQAAQQIIELQEAAQINAGLQPTNLGRNNSLHDMKTVVKTWRNRLPIVSDDLSHWSSIFMWRQHHYQAIVTAYENSSQHDPSSNNAMLGVHASASAIIQYGKIARKQGLVNVALDILSRIHTIPTVPIVDCFQKIRQQVKCYLQLAGVMGKNECMQGLEVIESTNLKYFTKEMTAEFYALKGMFLAQINKSEEANKAFSAAVQMHDVLVKAWAMWGDYLENIFVKERQLHLGVSAITCYLHACRHQNESKSRKYLAKVLWLLSFDDDKNTLADAVDKYCIGVPPIQWLAWIPQLLTCLVGSEGKLLLNLISQVGRVYPQAVYFPIRTLYLTLKIEQRERYKSDPGPIRATAPMWRCSRIMHMQRELHPTLLSSLEGIVDQMVWFRENWHEEVLRQLQQGLAKCYSVAFEKSGAVSDAKITPHTLNFVKKLVSTFGVGLENVSNVSTMFSSAASESLARRAQATAQDPVFQKLKGQFTTDFDFSVPGSMKLHNLISKLKKWIKILEAKTKQLPKFFLIEEKCRFLSNFSAQTAEVEIPGEFLMPKPTHYYIKIARFMPRVEIVQKHNTAARRLYIRGHNGKIYPYLVMNDACLTESRREERVLQLLRLLNPCLEKRKETTKRHLFFTVPRVVAVSPQMRLVEDNPSSLSLVEIYKQRCAKKGIEHDNPISRYYDRLATVQARGTQASHQVLRDILKEVQSNMVPRSMLKEWALHTFPNATDYWTFRKMFTIQLALIGFAEFVLHLNRLNPEMLQIAQDTGKLNVAYFRFDINDATGDLDANRPVPFRLTPNISEFLTTIGVSGPLTASMIAVARCFAQPNFKVDGILKTVLRDEIIAWHKKTQEDTSSPLSAAGQPENMDSQQLVSLVQKAVTAIMTRLHNLAQFEGGESKVNTLVAAANSLDNLCRMDPAWHPWL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	INOSITOL HEXAKISPHOSPHATE
Molecular weight formula_weight	660.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.35 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	141352
