8qr1

Cryo-EM structure of the human Tip60 complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E1A-binding protein p400

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） Actin-like protein 6A × 1 （O96019） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EP400_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–3159； UniProt 1–3159

Enhancer of polycomb homolog 1

OrganismNot specified

UniProt Q9H2F5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） Actin-like protein 6A × 1 （O96019） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EPC1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–836； UniProt 1–836

DNA methyltransferase 1-associated protein 1

OrganismNot specified

UniProt Q9NPF5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） Actin-like protein 6A × 1 （O96019） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DMAP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–467； UniProt 1–467

Vacuolar protein sorting-associated protein 72 homolog

OrganismNot specified

UniProt Q15906

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） Actin-like protein 6A × 1 （O96019） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VPS72_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–364； UniProt 1–364

Actin, cytoplasmic 1, N-terminally processed

OrganismNot specified

UniProt P60709

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 1 （O96019） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTB_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 1–375； UniProt 1–375 Author chain G； PDBConstruct 1–375； UniProt 1–375

Actin-like protein 6A

OrganismNot specified

UniProt O96019

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACL6A_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain K； PDBConstruct 1–429； UniProt 1–429

RuvB-like 1

OrganismNot specified

UniProt Q9Y265

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） Actin-like protein 6A × 1 （O96019） RuvB-like 2 × 3 （Q9Y230）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB1_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain E； PDBConstruct 1–456； UniProt 1–456 Author chain I； PDBConstruct 1–456； UniProt 1–456 Author chain L； PDBConstruct 1–456； UniProt 1–456

RuvB-like 2

OrganismNot specified

UniProt Q9Y230

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin, cytoplasmic 1, N-terminally processed × 2 （P60709） Actin-like protein 6A × 1 （O96019） RuvB-like 1 × 3 （Q9Y265）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB2_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain D； PDBConstruct 1–463； UniProt 1–463 Author chain H； PDBConstruct 1–463； UniProt 1–463 Author chain J； PDBConstruct 1–463； UniProt 1–463

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qr1
Deposition date deposition_date	2023-10-06
Structure title title	Cryo-EM structure of the human Tip60 complex
Keywords keywords	Eukaryotic transcription, Histone acetyltransferase, chromatin remodeling, Complex, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qr1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8qr1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

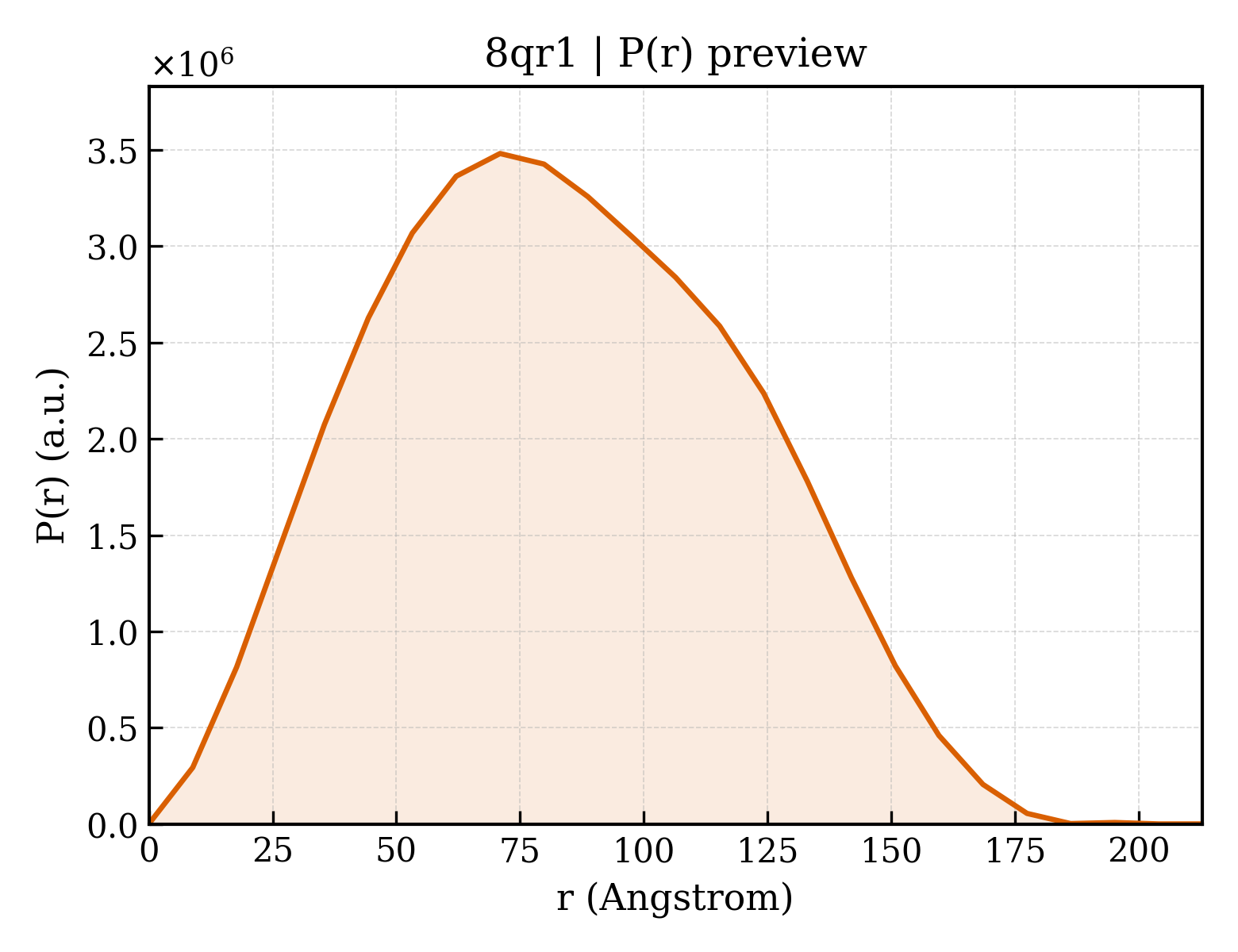

8qr1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	64.25 Å
Rg (electron density)	63.90 Å
Total Rg	63.91 Å
Atom count	39353
Residues	5031
Excluded volume	702700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qr1__assembly_1__model_1`	13-meric （13）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	E1A-binding protein p400
Molecular weight formula_weight	343867.3 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	39353

MHHGTGPQNVQHQLQRSRACPGSEGEEQPAHPNPPPSPAAPFAPSASPSAPQSPSYQIQQLMNRSPATGQNVNITLQSVGPVVGGNQQITLAPLPLPSPTSPGFQFSAQPRRFEHGSPSYIQVTSPLSQQVQTQSPTQPSPGPGQALQNVRAGAPGPGLGLCSSSPTGGFVDASVLVRQISLSPSSGGHFVFQDGSGLTQIAQGAQVQLQHPGTPITVRERRPSQPHTQSGGTIHHLGPQSPAAAGGAGLQPLASPSHITTANLPPQISSIIQGQLVQQQQVLQGPPLPRPLGFERTPGVLLPGAGGAAGFGMTSPPPPTSPSRTAVPPGLSSLPLTSVGNTGMKKVPKKLEEIPPASPEMAQMRKQCLDYHYQEMQALKEVFKEYLIELFFLQHFQGNMMDFLAFKKKHYAPLQAYLRQNDLDIEEEEEEEEEEEEKSEVINDEVKVVTGKDGQTGTPVAIATQLPPKVSAAFSSQQQPFQQALAGSLVAGAGSTVETDLFKRQQAMPSTGMAEQSKRPRLEVGHQGVVFQHPGADAGVPLQQLMPTAQGGMPPTPQAAQLAGQRQSQQQYDPSTGPPVQNAASLHTPLPQLPGRLPPAGVPTAALSSALQFAQQPQVVEAQTQLQIPVKTQQPNVPIPAPPSSQLPIPPSQPAQLALHVPTPGKVQVQASQLSSLPQMVASTRLPVDPAPPCPRPLPTSSTSSLAPVSGSGPGPSPARSSPVNRPSSATNKALSPVTSRTPGVVASAPTKPQSPAQNATSSQDSSQDTLTEQITLENQVHQRIAELRKAGLWSQRRLPKLQEAPRPKSHWDYLLEEMQWMATDFAQERRWKVAAAKKLVRTVVRHHEEKQLREERGKKEEQSRLRRIAASTAREIECFWSNIEQVVEIKLRVELEEKRKKALNLQKVSRRGKELRPKGFDALQESSLDSGMSGRKRKASISLTDDEVDDEEETIEEEEANEGVVDHQTELSNLAKEAELPLLDLMKLYEGAFLPSSQWPRPKPDGEDTSGEEDADDCPGDRESRKDLVLIDSLFIMDQFKAAERMNIGKPNAKDIADVTAVAEAILPKGSARVTTSVKFNAPSLLYGALRDYQKIGLDWLAKLYRKNLNGILADEAGLGKTVQIIAFFAHLACNEGNWGPHLVVVRSCNILKWELELKRWCPGLKILSYIGSHRELKAKRQEWAEPNSFHVCITSYTQFFRGLTAFTRVRWKCLVIDEMQRVKGMTERHWEAVFTLQSQQRLLLIDSPLHNTFLELWTMVHFLVPGISRPYLSSPLRAPSEESQDYYHKVVIRLHRVTQPFILRRTKRDVEKQLTKKYEHVLKCRLSNRQKALYEDVILQPGTQEALKSGHFVNVLSILVRLQRICNHPGLVEPRHPGSSYVAGPLEYPSASLILKALERDFWKEADLSMFDLIGLENKITRHEAELLSKKKIPRKLMEEISTSAAPAARPAAAKLKASRLFQPVQYGQKPEGRTVAFPSTHPPRTAAPTTASAAPQGPLRGRPPIATFSANPEAKAAAAPFQTSQASASAPRHQPASASSTAASPAHPAKLRAQTTAQASTPGQPPPQPQAPSHAAGQSALPQRLVLPSQAQARLPSGEVVKIAQLASITGPQSRVAQPETPVTLQFQGSKFTLSHSQLRQLTAGQPLQLQGSVLQIVSAPGQPYLRAPGPVVMQTVSQAGAVHGALGSKPPAGGPSPAPLTPQVGVPGRVAVNALAVGEPGTASKPASPIGGPTQEEKTRLLKERLDQIYLVNERRCSQAPVYGRDLLRICALPSHGRVQWRGSLDGRRGKEAGPAHSYTSSSESPSELMLTLCRCGESLQDVIDRVAFVIPPVVAAPPSLRVPRPPPLYSHRMRILRQGLREHAAPYFQQLRQTTAPRLLQFPELRLVQFDSGKLEALAILLQKLKSEGRRVLILSQMILMLDILEMFLNFHYLTYVRIDENASSEQRQELMRSFNRDRRIFCAILSTHSRTTGINLVEADTVVFYDNDLNPVMDAKAQEWCDRIGRCKDIHIYRLVSGNSIEEKLLKNGTKDLIREVAAQGNDYSMAFLTQRTIQELFEVYSPMDDAGFPVKAEEFVVLSQEPSVTETIAPKIARPFIEALKSIEYLEEDAQKSAQEGVLGPHTDALSSDSENMPCDEEPSQLEELADFMEQLTPIEKYALNYLELFHTSIEQEKERNSEDAVMTAVRAWEFWNLKTLQEREARLRLEQEEAELLTYTREDAYSMEYVYEDVDGQTEVMPLWTPPTPPQDDSDIYLDSVMCLMYEATPIPEAKLPPVYVRKERKRHKTDPSAAGRKKKQRHGEAVVPPRSLFDRATPGLLKIRREGKEQKKNILLKQQVPFAKPLPTFAKPTAEPGQDNPEWLISEDWALLQAVKQLLELPLNLTIVSPAHTPNWDLVSDVVNSCSRIYRSSKQCRNRYENVIIPREEGKSKNNRPLRTSQIYAQDENATHTQLYTSHFDLMKMTAGKRSPPIKPLLGMNPFQKNPKHASVLAESGINYDKPLPPIQVASLRAERIAKEKKALADQQKAQQPAVAQPPPPQPQPPPPPQQPPPPLPQPQAAGSQPPAGPPAVQPQPQPQPQTQPQPVQAPAKAQPAITTGGSAAVLAGTIKTSVTGTSMPTGAVSGNVIVNTIAGVPAATFQSINKRLASPVAPGALTTPGGSAPAQVVHTQPPPRAVGSPATATPDLVSMATTQGVRAVTSVTASAVVTTNLTPVQTPARSLVPQVSQATGVQLPGKTITPAHFQLLRQQQQQQQQQQQQQQQQQQQQQQQQQQQQQTTTTSQVQVPQIQGQAQSPAQIKAVGKLTPEHLIKMQKQKLQMPPQPPPPQAQSAPPQPTAQVQVQTSQPPQQQSPQLTTVTAPRPGALLTGTTVANLQVARLTRVPTSQLQAQGQMQTQAPQPAQVALAKPPVVSVPAAVVSSPGVTTLPMNVAGISVAIGQPQKAAGQTVVAQPVHMQQLLKLKQQAVQQQKAIQPQAAQGPAAVQQKITAQQITTPGAQQKVAYAAQPALKTQFLTTPISQAQKLAGAQQVQTQIQVAKLPQVVQQQTPVASIQQVASASQQASPQTVALTQATAAGQQVQMIPAVTATAQVVQQKLIQQQVVTTASAPLQTPGAPNPAQVPASSDSPSQQPKLQMRVPAVRLKTPTKPPCQ

Entity 2 Entity 2 polymer

Description description	Enhancer of polycomb homolog 1
Molecular weight formula_weight	93589.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSKLSFRARALDASKPLPVFRCEDLPDLHEYASINRAVPQMPTGMEKEEESEHHLQRAISAQQVYGEKRDNMVIPVPEAESNIAYYESIYPGEFKMPKQLIHIQPFSLDAEQPDYDLDSEDEVFVNKLKKKMDICPLQFEEMIDRLEKGSGQQPVSLQEAKLLLKEDDELIREVYEYWIKKRKNCRGPSLIPSVKQEKRDGSSTNDPYVAFRRRTEKMQTRKNRKNDEASYEKMLKLRRDLSRAVTILEMIKRREKSKRELLHLTLEIMEKRYNLGDYNGEIMSEVMAQRQPMKPTYAIPIIPITNSSQFKHQEAMDVKEFKVNKQDKADLIRPKRKYEKKPKVLPSSAAATPQQTSPAALPVFNAKDLNQYDFPSSDEEPLSQVLSGSSEAEEDNDPDGPFAFRRKAGCQYYAPHLDQTGNWPWTSPKDGGLGDVRYRYCLTTLTVPQRCIGFARRRVGRGGRVLLDRAHSDYDSVFHHLDLEMLSSPQHSPVNQFANTSETNTSDKSFSKDLSQILVNIKSCRWRHFRPRTPSLHDSDNDELSCRKLYRSINRTGTAQPGTQTCSTSTQSKSSSGSAHFAFTAEQYQQHQQQLALMQKQQLAQIQQQQANSNSSTNTSQNLASNQQKSGFRLNIQGLERTLQGFVSKTLDSASAQFAASALVTSEQLMGFKMKDDVVLGIGVNGVLPASGVYKGLHLSSTTPTALVHTSPSTAGSALLQPSNITQTSSSHSALSHQVTAANSATTQVLIGNNIRLTVPSSVATVNSIAPINARHIPRTLSAVPSSALKLAAAANCQVSKVPSSSSVDSVPRENHESEKPALNNIADNTVAMEVT

Entity 3 Entity 3 polymer

Description description	DNA methyltransferase 1-associated protein 1
Molecular weight formula_weight	53090.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MATGADVRDILELGGPEGDAASGTISKKDIINPDKKKSKKSSETLTFKRPEGMHREVYALLYSDKKDAPPLLPSDTGQGYRTVKAKLGSKKVRPWKWMPFTNPARKDGAMFFHWRRAAEEGKDYPFARFNKTVQVPVYSEQEYQLYLHDDAWTKAETDHLFDLSRRFDLRFVVIHDRYDHQQFKKRSVEDLKERYYHICAKLANVRAVPGTDLKIPVFDAGHERRRKEQLERLYNRTPEQVAEEEYLLQELRKIEARKKEREKRSQDLQKLITAADTTAEQRRTERKAPKKKLPQKKEAEKPAVPETAGIKFPDFKSAGVTLRSQRMKLPSSVGQKKIKALEQMLLELGVELSPTPTEELVHMFNELRSDLVLLYELKQACANCEYELQMLRHRHEALARAGVLGGPATPASGPGPASAEPAVTEPGLGPDPKDTIIDVVGAPLTPNSRKRRESASSSSSVKKAKKP

Entity 4 Entity 4 polymer

Description description	Vacuolar protein sorting-associated protein 72 homolog
Molecular weight formula_weight	40658.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MSLAGGRAPRKTAGNRLSGLLEAEEEDEFYQTTYGGFTEESGDDEYQGDQSDTEDEVDSDFDIDEGDEPSSDGEAEEPRRKRRVVTKAYKEPLKSLRPRKVNTPAGSSQKAREEKALLPLELQDDGSDSRKSMRQSTAEHTRQTFLRVQERQGQSRRRKGPHCERPLTQEELLREAKITEELNLRSLETYERLEADKKKQVHKKRKCPGPIITYHSVTVPLVGEPGPKEENVDIEGLDPAPSVSALTPHAGTGPVNPPARCSRTFITFSDDATFEEWFPQGRPPKVPVREVCPVTHRPALYRDPVTDIPYATARAFKIIREAYKKYITAHGLPPTASALGPGPPPPEPLPGSGPRALRQKIVIK

Entity 5 Entity 5 polymer

Description description	Actin, cytoplasmic 1, N-terminally processed
Molecular weight formula_weight	41782.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G

MDDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 6 Entity 6 polymer

Description description	Actin-like protein 6A
Molecular weight formula_weight	47509.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MSGGVYGGDEVGALVFDIGSYTVRAGYAGEDCPKVDFPTAIGMVVERDDGSTLMEIDGDKGKQGGPTYYIDTNALRVPRENMEAISPLKNGMVEDWDSFQAILDHTYKMHVKSEASLHPVLMSEAPWNTRAKREKLTELMFEHYNIPAFFLCKTAVLTAFANGRSTGLILDSGATHTTAIPVHDGYVLQQGIVKSPLAGDFITMQCRELFQEMNIELVPPYMIASKEAVREGSPANWKRKEKLPQVTRSWHNYMCNCVIQDFQASVLQVSDSTYDEQVAAQMPTVHYEFPNGYNCDFGAERLKIPEGLFDPSNVKGLSGNTMLGVSHVVTTSVGMCDIDIRPGLYGSVIVAGGNTLIQSFTDRLNRELSQKTPPSMRLKLIANNTTVERRFSSWIGGSILASLGTFQQMWISKQEYEEGGKQCVERKCP

Entity 7 Entity 7 polymer

Description description	RuvB-like 1
Molecular weight formula_weight	50296.9 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,I,E

MKIEEVKSTTKTQRIASHSHVKGLGLDESGLAKQAASGLVGQENAREACGVIVELIKSKKMAGRAVLLAGPPGTGKTALALAIAQELGSKVPFCPMVGSEVYSTEIKKTEVLMENFRRAIGLRIKETKEVYEGEVTELTPCETENPMGGYGKTISHVIIGLKTAKGTKQLKLDPSIFESLQKERVEAGDVIYIEANSGAVKRQGRCDTYATEFDLEAEEYVPLPKGDVHKKKEIIQDVTLHDLDVANARPQGGQDILSMMGQLMKPKKTEITDKLRGEINKVVNKYIDQGIAELVPGVLFVDEVHMLDIECFTYLHRALESSIAPIVIFASNRGNCVIRGTEDITSPHGIPLDLLDRVMIIRTMLYTPQEMKQIIKIRAQTEGINISEEALNHLGEIGTKTTLRYSVQLLTPANLLAKINGKDSIEKEHVEEISELFYDAKSSAKILADQQDKYMK

Entity 8 Entity 8 polymer

Description description	RuvB-like 2
Molecular weight formula_weight	51222.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,D,J

MATVTATTKVPEIRDVTRIERIGAHSHIRGLGLDDALEPRQASQGMVGQLAARRAAGVVLEMIREGKIAGRAVLIAGQPGTGKTAIAMGMAQALGPDTPFTAIAGSEIFSLEMSKTEALTQAFRRSIGVRIKEETEIIEGEVVEIQIDRPATGTGSKVGKLTLKTTEMETIYDLGTKMIESLTKDKVQAGDVITIDKATGKISKLGRSFTRARDYDAMGSQTKFVQCPDGELQKRKEVVHTVSLHEIDVINSRTQGFLALFSGDTGEIKSEVREQINAKVAEWREEGKAEIIPGVLFIDEVHMLDIESFSFLNRALESDMAPVLIMATNRGITRIRGTSYQSPHGIPIDLLDRLLIVSTTPYSEKDTKQILRIRCEEEDVEMSEDAYTVLTRIGLETSLRYAIQLITAASLVCRKRKGTEVQVDDIKRVYSLFLDESRSTQYMKEYQDAFLFNELKGETMDTS

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	180397
