9c62

P400 subcomplex of the native human TIP60 complex

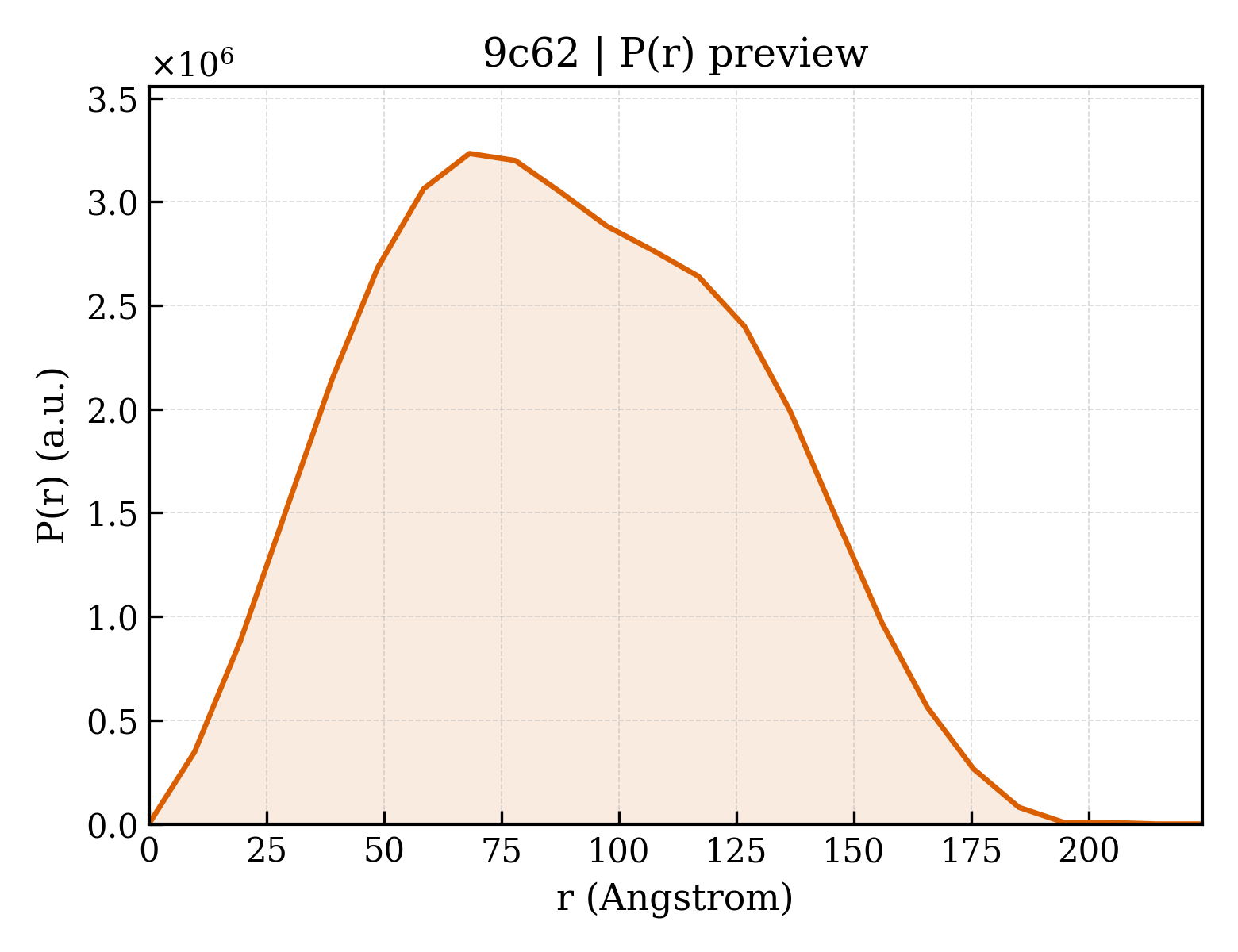

Method: ELECTRON MICROSCOPY Dmax: 224.1 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RuvB-like 2

OrganismNot specified

UniProt Q9Y230

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain B； UniProt 1–463 Chain D； UniProt 1–463 Chain F； UniProt 1–463 Not recorded RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2CQA Solution structure of RSGI RUH-039, a fragment of C-terminal domain of RuvB-like 2 from human cDNA Deposited 2005-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 131–212（82 aa） Fragment：C-terminal domain (Residues 132-213)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient
NMR sample composition 1.3mM RSGI RUH-039 U-15,13C; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O | 90% D2O, 10% D2O
Resolution not provided
2XSZ The dodecameric human RuvBL1:RuvBL2 complex with truncated domains II Deposited 2010-10-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 2–133（132 aa）
Chain D 238–463（226 aa）
Chain E 2–133（132 aa）
Chain E 238–463（226 aa）
Chain F 2–133（132 aa）
Chain F 238–463（226 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ATP ADENOSINE-5'-TRIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；CRYSTALLIZATION DROPS WERE MIXED FROM EQUAL VOLUMES OF PROTEIN SOLUTION (12 MG/ML, 20MM TRIS-HCL PH 8.0, 200MM NACL, 10% GLYCEROL, 4MM MGCL2, 4MM ADP, 0.5MM TCEP) AND CRYSTALLIZATION SOLUTION (0.2M MGCL2, 30% PEG 400, 0.1M HEPES PH 7.5).
Resolution 3.00 Å R-free 0.205
3UK6 Crystal Structure of the Tip48 (Tip49b) hexamer Deposited 2011-11-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain A 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain B 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain B 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain C 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain C 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain D 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain D 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain I 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain I 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain J 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain J 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M Tris-HCL, pH 8.0, 20% PEG 3000, 5% glucose, galactose or trehalose, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.95 Å R-free 0.264
3UK6 Crystal Structure of the Tip48 (Tip49b) hexamer Deposited 2011-11-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain E 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain E 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain F 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain F 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain G 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain G 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain H 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain H 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain K 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain K 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain L 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain L 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M Tris-HCL, pH 8.0, 20% PEG 3000, 5% glucose, galactose or trehalose, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.95 Å R-free 0.264
5OAF Human Rvb1/Rvb2 heterohexamer in INO80 complex Deposited 2017-06-21 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å
6FO1 Human R2TP subcomplex containing 1 RUVBL1-RUVBL2 hexamer bound to 1 RBD domain from RPAP3. Deposited 2018-02-05 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.57 Å
6H7X First X-ray structure of full-length human RuvB-Like 2. Deposited 2018-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–463（463 aa）
Not recorded MG MAGNESIUM ION × 18 EDO 1,2-ETHANEDIOL × 42 PEG DI(HYDROXYETHYL)ETHER × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；303.15 K；PEG 3350, Magnesium Chloride
Resolution 2.89 Å R-free 0.237
6HTS Cryo-EM structure of the human INO80 complex bound to nucleosome Deposited 2018-10-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6IGM Cryo-EM Structure of Human SRCAP Complex Deposited 2018-09-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–133（133 aa）
Chain D 238–463（226 aa）
Chain E 1–133（133 aa）
Chain E 238–463（226 aa）
Chain F 1–133（133 aa）
Chain F 238–463（226 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain J 1–133（133 aa）
Chain J 238–463（226 aa）
Chain K 1–133（133 aa）
Chain K 238–463（226 aa）
Chain L 1–133（133 aa）
Chain L 238–463（226 aa）
Not recorded CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CU0 [(2~{R},3~{S},4~{S})-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphono hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6QI8 Truncated human R2TP complex, structure 3 (ADP-filled) Deposited 2019-01-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.75 Å
6QI9 Truncated human R2TP complex, structure 4 (ADP-empty) Deposited 2019-01-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
7AHO RUVBL1-RUVBL2 heterohexameric ring after binding of RNA helicase DHX34 Deposited 2020-09-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris-HCl pH 7.4, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.18 Å
7OLE Cryo-EM structure of the TELO2-TTI1-TTI2-RUVBL1-RUVBL2 complex Deposited 2021-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh for protein purification
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3sec
Resolution 3.41 Å
7P6X Cryo-Em structure of the hexameric RUVBL1-RUVBL2 in complex with ZNHIT2 Deposited 2021-07-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7ZI4 Cryo-EM structure of the human INO80 complex bound to a WT nucleosome Deposited 2022-04-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4uL of sample applied to Quantifoil R2/2 Cu 300 mesh grids. blot parameters were wait time 30 sec, blot time 0.5 sec, blot force -8
Resolution 3.20 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain D 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain N 1–463（463 aa）
Chain P 1–463（463 aa）
Chain R 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain N 1–463（463 aa）
Chain P 1–463（463 aa）
Chain R 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain N 1–463（463 aa）
Chain P 1–463（463 aa）
Chain R 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CA9 Cryo-EM structure of the human SRCAP complex in the unbound state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9EMA RUVBL1/2 in complex with ATP and CB-6644 inhibitor Deposited 2024-03-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 A1H5V 5-chloranyl-2-ethoxy-4-fluoranyl-~{N}-[4-[[3-(methoxymethyl)-1-oxidanylidene-6,7-dihydro-5~{H}-pyrazolo[1,2-a][1,2]benzodiazepin-2-yl]amino]-2,2-dimethyl-4-oxidanylidene-butyl]benzamide × 3 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.40 Å
9EMC RUVBL1/2 in complex with ATP Deposited 2024-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.26 Å
9GCG CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9GE5 CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain D 15–453（439 aa）
Chain E 15–453（439 aa）
Chain F 15–453（439 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9GEV CryoEM structure of the human INO80 core-nucleosome complex state N-6 Deposited 2024-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9GFB CryoEM structure of the human INO80 core-nucleosome complex state N-7 Deposited 2024-08-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9HB4 Hexameric RuvBL1/RuvBL2 bound to SPAG1 C-ter Deposited 2024-11-05 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9HPO Docedameric RuvBL1/RuvBL2 Deposited 2024-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Chain J 1–463（463 aa）
Chain K 1–463（463 aa）
Chain L 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

37 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RUVB2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain B； PDBConstruct 1–463； UniProt 1–463 Author chain D； PDBConstruct 1–463； UniProt 1–463 Author chain F； PDBConstruct 1–463； UniProt 1–463

RuvB-like 1

OrganismNot specified

UniProt Q9Y265

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain A； UniProt 1–456 Chain C； UniProt 1–456 Chain E； UniProt 1–456 Not recorded RuvB-like 2 × 3 （Q9Y230） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2C9O 3D Structure of the human RuvB-like helicase RuvBL1 Deposited 2005-12-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；PROTEIN WAS CRYSTALLISED USING THE VAPOR DIFFUSION METHOD (SITTING DROP). THE WELLS CONTAINED 500 MICROLITERS OF PRECIPITANT SOLUTION AND THE DROPS WERE COMPOSED OF 1.5 MICROLITERS OF PROTEIN SOLUTION (15 MG/ML) AND 1.5 MICROLITERS OF RESERVOIR SOLUTION. THE BEST CRYSTALS WERE OBTAINED FROM A SOLUTION CONTAINING 1.6 M SODIUM MALONATE PH 6 AT 293 K.
Resolution 2.20 Å R-free 0.257
2C9O 3D Structure of the human RuvB-like helicase RuvBL1 Deposited 2005-12-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；PROTEIN WAS CRYSTALLISED USING THE VAPOR DIFFUSION METHOD (SITTING DROP). THE WELLS CONTAINED 500 MICROLITERS OF PRECIPITANT SOLUTION AND THE DROPS WERE COMPOSED OF 1.5 MICROLITERS OF PROTEIN SOLUTION (15 MG/ML) AND 1.5 MICROLITERS OF RESERVOIR SOLUTION. THE BEST CRYSTALS WERE OBTAINED FROM A SOLUTION CONTAINING 1.6 M SODIUM MALONATE PH 6 AT 293 K.
Resolution 2.20 Å R-free 0.257
2XSZ The dodecameric human RuvBL1:RuvBL2 complex with truncated domains II Deposited 2010-10-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–126（125 aa）
Chain A 234–456（223 aa）
Chain B 2–126（125 aa）
Chain B 234–456（223 aa）
Chain C 2–126（125 aa）
Chain C 234–456（223 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ATP ADENOSINE-5'-TRIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；CRYSTALLIZATION DROPS WERE MIXED FROM EQUAL VOLUMES OF PROTEIN SOLUTION (12 MG/ML, 20MM TRIS-HCL PH 8.0, 200MM NACL, 10% GLYCEROL, 4MM MGCL2, 4MM ADP, 0.5MM TCEP) AND CRYSTALLIZATION SOLUTION (0.2M MGCL2, 30% PEG 400, 0.1M HEPES PH 7.5).
Resolution 3.00 Å R-free 0.205
5OAF Human Rvb1/Rvb2 heterohexamer in INO80 complex Deposited 2017-06-21 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å
6FO1 Human R2TP subcomplex containing 1 RUVBL1-RUVBL2 hexamer bound to 1 RBD domain from RPAP3. Deposited 2018-02-05 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.57 Å
6HTS Cryo-EM structure of the human INO80 complex bound to nucleosome Deposited 2018-10-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6IGM Cryo-EM Structure of Human SRCAP Complex Deposited 2018-09-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–126（125 aa）
Chain A 234–456（223 aa）
Chain B 2–126（125 aa）
Chain B 234–456（223 aa）
Chain C 2–126（125 aa）
Chain C 234–456（223 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain G 2–126（125 aa）
Chain G 234–456（223 aa）
Chain H 2–126（125 aa）
Chain H 234–456（223 aa）
Chain I 2–126（125 aa）
Chain I 234–456（223 aa）
Not recorded CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CU0 [(2~{R},3~{S},4~{S})-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphono hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6QI8 Truncated human R2TP complex, structure 3 (ADP-filled) Deposited 2019-01-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.75 Å
6QI9 Truncated human R2TP complex, structure 4 (ADP-empty) Deposited 2019-01-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
7AHO RUVBL1-RUVBL2 heterohexameric ring after binding of RNA helicase DHX34 Deposited 2020-09-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris-HCl pH 7.4, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.18 Å
7OLE Cryo-EM structure of the TELO2-TTI1-TTI2-RUVBL1-RUVBL2 complex Deposited 2021-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh for protein purification
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3sec
Resolution 3.41 Å
7P6X Cryo-Em structure of the hexameric RUVBL1-RUVBL2 in complex with ZNHIT2 Deposited 2021-07-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7ZI4 Cryo-EM structure of the human INO80 complex bound to a WT nucleosome Deposited 2022-04-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4uL of sample applied to Quantifoil R2/2 Cu 300 mesh grids. blot parameters were wait time 30 sec, blot time 0.5 sec, blot force -8
Resolution 3.20 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain E 1–456（456 aa）
Chain I 1–456（456 aa）
Chain L 1–456（456 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain M 1–456（456 aa）
Chain O 1–456（456 aa）
Chain Q 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain M 1–456（456 aa）
Chain O 1–456（456 aa）
Chain Q 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain M 1–456（456 aa）
Chain O 1–456（456 aa）
Chain Q 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CA9 Cryo-EM structure of the human SRCAP complex in the unbound state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9EMA RUVBL1/2 in complex with ATP and CB-6644 inhibitor Deposited 2024-03-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 A1H5V 5-chloranyl-2-ethoxy-4-fluoranyl-~{N}-[4-[[3-(methoxymethyl)-1-oxidanylidene-6,7-dihydro-5~{H}-pyrazolo[1,2-a][1,2]benzodiazepin-2-yl]amino]-2,2-dimethyl-4-oxidanylidene-butyl]benzamide × 3 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.40 Å
9EMC RUVBL1/2 in complex with ATP Deposited 2024-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.26 Å
9GCG CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9GE5 CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain A 2–454（453 aa）
Chain B 2–454（453 aa）
Chain C 2–454（453 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9GEV CryoEM structure of the human INO80 core-nucleosome complex state N-6 Deposited 2024-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9GFB CryoEM structure of the human INO80 core-nucleosome complex state N-7 Deposited 2024-08-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9HB4 Hexameric RuvBL1/RuvBL2 bound to SPAG1 C-ter Deposited 2024-11-05 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9HPO Docedameric RuvBL1/RuvBL2 Deposited 2024-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 1–451（451 aa）
Chain B 1–451（451 aa）
Chain C 1–451（451 aa）
Chain G 1–451（451 aa）
Chain H 1–451（451 aa）
Chain I 1–451（451 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

35 other PDB entries and 37 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RUVB1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain A； PDBConstruct 1–456； UniProt 1–456 Author chain C； PDBConstruct 1–456； UniProt 1–456 Author chain E； PDBConstruct 1–456； UniProt 1–456

E1A-binding protein p400

OrganismNot specified

UniProt Q96L91

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain G； UniProt 1–3159 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain A 1–3159（3159 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8QRI TRRAP and EP400 in the human Tip60 complex Deposited 2023-10-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–3159（3159 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain H 1–3123（3123 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain H 1–3123（3123 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVV The TRRAP module of human NuA4/TIP60 complex Deposited 2024-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–3123（3123 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C47 TRRAP module of the human TIP60 complex Deposited 2024-06-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–3159（3159 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain G 1–3159（3159 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 1–3159（3159 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain A 1–3159（3159 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAD Cryo-EM structure of the TRRAP lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–3159（3159 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 658–3159（2502 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9CAF Cryo-EM structure of the reconstituted TRRAP lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 513–913（401 aa）
Chain A 2134–2529（396 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.35 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name EP400_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain G； PDBConstruct 1–3159； UniProt 1–3159

Enhancer of polycomb homolog 1

OrganismNot specified

UniProt Q9H2F5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain H； UniProt 1–836 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6NFX MBTD1 MBT repeats Deposited 2018-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 644–671（28 aa）
Not recorded UNX UNKNOWN LIGAND × 38 NA SODIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；297 K；10% PEG-6000, 0.1 M sodium citrate
Resolution 1.95 Å R-free 0.221
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain C 1–836（836 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain M 1–813（813 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain M 1–813（813 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain H 1–836（836 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 1–836（836 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain C 1–836（836 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain C 359–620（262 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name EPC1_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain H； PDBConstruct 1–836； UniProt 1–836

DNA methyltransferase 1-associated protein 1

OrganismNot specified

UniProt Q9NPF5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain I； UniProt 1–467 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3HM5 SANT domain of human DNA methyltransferase 1 associated protein 1 Deposited 2009-05-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 121–212（92 aa） Fragment：SANT domain, UNP residues 121-212
Not recorded CA CALCIUM ION × 1 UNX UNKNOWN LIGAND × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；20% PEG3350, 0.2M calcium chloride, 0.1M HEPES, pH 7.0, vapor diffusion, hanging drop, temperature 291K
Resolution 1.80 Å R-free 0.275
4IEJ Crystal structure of a DNA methyltransferase 1 associated protein 1 (DMAP1) from Homo sapiens at 1.45 A resolution Deposited 2012-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 121–212（92 aa） Fragment：SANT domain containing residues 121-212
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.20M calcium chloride 20.00% polyethylene glycol 3350, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.45 Å R-free 0.226
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain F 1–467（467 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain V 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain V 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain V 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain G 1–467（467 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain G 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain I 1–467（467 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 1–467（467 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain N 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain N 1–467（467 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DMAP1_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain I； PDBConstruct 1–467； UniProt 1–467

Actin, cytoplasmic 1

OrganismNot specified

UniProt P60709

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain J； UniProt 1–375 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
21VV Cryo-EM structure of ncBAF bound to the nucleosome Deposited 2025-12-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain J 1–375（375 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 100 mM KCl, 2 mM MgCl2, 2 mM DTT, 0.5 mM ADP, 8 mM NaF, 1 mM BeSO4.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
3D2U Structure of UL18, a Peptide-Binding Viral MHC Mimic, Bound to a Host Inhibitory Receptor Deposited 2008-05-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 170–178（9 aa） Fragment：sequence database residues 170-178
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 MAN alpha-D-mannopyranose × 1 BMA beta-D-mannopyranose × 1 FUC alpha-L-fucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.4 M Mg(NO3)2, and 16~22% (w/v) PEG 33500, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.21 Å R-free 0.259
3D2U Structure of UL18, a Peptide-Binding Viral MHC Mimic, Bound to a Host Inhibitory Receptor Deposited 2008-05-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 170–178（9 aa） Fragment：sequence database residues 170-178
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.4 M Mg(NO3)2, and 16~22% (w/v) PEG 33500, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.21 Å R-free 0.259
3J82 Electron cryo-microscopy of DNGR-1 in complex with F-actin Deposited 2014-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.70 Å
3LUE Model of alpha-actinin CH1 bound to F-actin Deposited 2010-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Chain G 2–375（374 aa）
Chain H 2–375（374 aa）
Chain I 2–375（374 aa）
Chain J 2–375（374 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.00 Å
6ANU Cryo-EM structure of F-actin complexed with the beta-III-spectrin actin-binding domain Deposited 2017-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–375（375 aa）
Chain B 1–375（375 aa）
Chain C 1–375（375 aa）
Chain D 1–375（375 aa）
Chain E 1–375（375 aa）
Chain F 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
6ICT Structure of SETD3 bound to SAH and methylated actin Deposited 2018-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 66–88（23 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Magnesium acetate tetrahydrate 0.1M Sodium cacodylate trihydrate pH 6.5 20% Polyethylene glycol 8000
Resolution 1.95 Å R-free 0.214
6ICT Structure of SETD3 bound to SAH and methylated actin Deposited 2018-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 66–88（23 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Magnesium acetate tetrahydrate 0.1M Sodium cacodylate trihydrate pH 6.5 20% Polyethylene glycol 8000
Resolution 1.95 Å R-free 0.214
6ICT Structure of SETD3 bound to SAH and methylated actin Deposited 2018-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 66–88（23 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Magnesium acetate tetrahydrate 0.1M Sodium cacodylate trihydrate pH 6.5 20% Polyethylene glycol 8000
Resolution 1.95 Å R-free 0.214
6ICT Structure of SETD3 bound to SAH and methylated actin Deposited 2018-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 66–88（23 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Magnesium acetate tetrahydrate 0.1M Sodium cacodylate trihydrate pH 6.5 20% Polyethylene glycol 8000
Resolution 1.95 Å R-free 0.214
6ICV Structure of SETD3 bound to SAH and unmodified actin Deposited 2018-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 66–88（23 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M HEPES sodium pH 7.5 2% Polyethylene glycol 400 2.0M Ammonium sulfate
Resolution 2.15 Å R-free 0.205
6ICV Structure of SETD3 bound to SAH and unmodified actin Deposited 2018-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 66–88（23 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M HEPES sodium pH 7.5 2% Polyethylene glycol 400 2.0M Ammonium sulfate
Resolution 2.15 Å R-free 0.205
6LTJ Structure of nucleosome-bound human BAF complex Deposited 2020-01-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain K 1–375（375 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6MBJ SETD3, a Histidine Methyltransferase, in Complex with an Actin Peptide and SAH, P21 Crystal Form Deposited 2018-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa）
Not recorded EDO 1,2-ETHANEDIOL × 19 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 3 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；292 K；0.2 M Ammonium acetate, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 30% w/v Polyethylene glycol 4,000
Resolution 1.78 Å R-free 0.223
6MBJ SETD3, a Histidine Methyltransferase, in Complex with an Actin Peptide and SAH, P21 Crystal Form Deposited 2018-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 66–80（15 aa）
Not recorded EDO 1,2-ETHANEDIOL × 16 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；292 K；0.2 M Ammonium acetate, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 30% w/v Polyethylene glycol 4,000
Resolution 1.78 Å R-free 0.223
6MBK SETD3, a Histidine Methyltransferase, in Complex with an Actin Peptide and SAH, First P212121 Crystal Form Deposited 2018-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa） Fragment：residues 66-80
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 6 GOL GLYCEROL × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；292 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5, 25% w/v Polyethylene glycol 3,350
Resolution 1.69 Å R-free 0.243
6MBK SETD3, a Histidine Methyltransferase, in Complex with an Actin Peptide and SAH, First P212121 Crystal Form Deposited 2018-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 66–80（15 aa） Fragment：residues 66-80
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；292 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5, 25% w/v Polyethylene glycol 3,350
Resolution 1.69 Å R-free 0.243
6MBL SETD3, a Histidine Methyltransferase, in Complex with an Actin Peptide and SAH, Second P212121 Crystal Form Deposited 2018-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa） Fragment：residues 66-80
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；292 K；0.2 M Sodium chloride, 0.1 M BIS-TRIS pH 5.5, 25% w/v Polyethylene glycol 3,350
Resolution 2.20 Å R-free 0.227
6NBW Ternary Complex of Beta/Gamma-Actin with Profilin and AnCoA-NAA80 Deposited 2018-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 LAB LATRUNCULIN B × 1 GOL GLYCEROL × 2 SOP [(2R,3S,4R,5R)-5-(6-AMINO-9H-PURIN-9-YL)-4-HYDROXY-3-(PHOSPHONOOXY)TETRAHYDROFURAN-2-YL]METHYL (3R)-3-HYDROXY-2,2-DIMETHYL-4-OXO-4-{[3-OXO-3-({2-[(2-OXOPROPYL)THIO]ETHYL}AMINO)PROPYL]AMINO}BUTYL DIHYDROGEN DIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；290 K；15% PEG 3350, 50mM MES pH6.2, 50mM NH4NO3
Resolution 2.50 Å R-free 0.209
6OX0 SETD3 in Complex with an Actin Peptide with Sinefungin Replacing SAH as Cofactor Deposited 2019-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa） Fragment：residues 66-80
Not recorded SFG SINEFUNGIN × 1 EDO 1,2-ETHANEDIOL × 18 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 1.75 Å R-free 0.225
6OX0 SETD3 in Complex with an Actin Peptide with Sinefungin Replacing SAH as Cofactor Deposited 2019-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 66–80（15 aa） Fragment：residues 66-80
Not recorded SFG SINEFUNGIN × 1 EDO 1,2-ETHANEDIOL × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 1.75 Å R-free 0.225
6OX1 SETD3 in Complex with an Actin Peptide with Target Histidine Partially Methylated Deposited 2019-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa） Fragment：residues 66-80
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 1.95 Å R-free 0.201
6OX1 SETD3 in Complex with an Actin Peptide with Target Histidine Partially Methylated Deposited 2019-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 66–80（15 aa） Fragment：residues 66-80
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 1.95 Å R-free 0.201
6OX2 SETD3in Complex with an Actin Peptide with the Target Histidine Fully Methylated Deposited 2019-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa） Fragment：residues 66-80
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 2.09 Å R-free 0.239
6OX2 SETD3in Complex with an Actin Peptide with the Target Histidine Fully Methylated Deposited 2019-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 66–80（15 aa） Fragment：residues 66-80
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 2.09 Å R-free 0.239
6OX4 A SETD3 Mutant (N255A) in Complex with an Actin Peptide Deposited 2019-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–80（15 aa） Fragment：residues 66-80
Not recorded EDO 1,2-ETHANEDIOL × 17 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 GOL GLYCEROL × 3 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 2.29 Å R-free 0.236
6OX4 A SETD3 Mutant (N255A) in Complex with an Actin Peptide Deposited 2019-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 66–80（15 aa） Fragment：residues 66-80
Not recorded EDO 1,2-ETHANEDIOL × 15 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 2.29 Å R-free 0.236
6OX5 A SETD3 Mutant (N255A) in Complex with an Actin Peptide with His73 Replaced with Lysine Deposited 2019-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 66–83（18 aa）
Mutation：H73K SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 EDO 1,2-ETHANEDIOL × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；0.2 M ammonium acetate, 0.1 M sodium citrate tribasic dihydrate pH 5.6 and 30% (w/v) polyethylene glycol 4000
Resolution 2.10 Å R-free 0.205
7AS4 Recombinant human gTuRC Deposited 2020-10-26 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain 7 2–375（374 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.13 Å
7P1H Structure of the V. vulnificus ExoY-G-actin-profilin complex Deposited 2021-07-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 4–375（372 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric
Chain P 1–375（375 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7W28 Crystal Structure of SETD3-SAH in complex with betaA-4PyrAla73 peptide Deposited 2021-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 66–81（16 aa） Fragment：SAH
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；30%(w/v) PEG4000, 0.1 M Tris base/Hydrochloric acid 8.5, 0.2M Lithium sulfate.
Resolution 1.79 Å R-free 0.211
7W29 Crystal Structure of SETD3-SAH in complex with betaA-Orn73 peptide Deposited 2021-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 66–81（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；289 K；20%(w/v) PEG6000, 0.1M Bicine/Sodium hydroxide 9.0
Resolution 2.90 Å R-free 0.279
8COG Human arginylated beta-actin Deposited 2023-02-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Actin for EM was polymerized by mixing, 20 ul 20 uM G-actin, 8 ul 10x MKE and 52 ul 5 mM HEPES-KOH pH 7.4 containing 0.2 mM ATP and 0.5 mM DTT and incubating at RT for 1 hour.
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.50 Å
8DNH Cryo-EM structure of nonmuscle beta-actin Deposited 2022-07-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.99 Å
8OI8 Cryo-EM structure of ADP-bound, filamentous beta-actin harboring the R183W mutation Deposited 2023-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric
Chain A 1–375（375 aa）
Chain B 1–375（375 aa）
Chain C 1–375（375 aa）
Chain D 1–375（375 aa）
Chain E 1–375（375 aa）
Mutation：R183W, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：R183W, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：R183W, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：R183W, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：R183W, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1x KMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA) supplemented with 0.02% Tween20 (v/v)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.28 Å
8OID Cryo-EM structure of ADP-bound, filamentous beta-actin harboring the N111S mutation Deposited 2023-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric
Chain A 1–375（375 aa）
Chain B 1–375（375 aa）
Chain C 1–375（375 aa）
Chain D 1–375（375 aa）
Chain E 1–375（375 aa）
Mutation：N111S, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：N111S, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：N111S, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：N111S, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：N111S, C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1x KMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA) supplemented with 0.02% Tween20 (v/v)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.30 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain B 1–375（375 aa）
Chain G 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8RTT Structure of the formin Cdc12 bound to the barbed end of phalloidin-stabilized F-actin. Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–375（375 aa）
Chain B 1–375（375 aa）
Chain C 1–375（375 aa）
Chain D 1–375（375 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.
Resolution 3.56 Å
8RTY Structure of the F-actin barbed end bound by Cdc12 and profilin (ring complex) at a resolution of 6.3 Angstrom Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.
Resolution 6.25 Å
8RU2 Structure of the F-actin barbed end bound by formin mDia1 Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.
Resolution 3.49 Å
8VRD Rigid body fitted model for free recombinant gamma tubulin ring complex. Deposited 2024-01-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 34 PDB declaration: 34-meric
Chain S 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
8VRJ Rigid body fitted model for gamma tubulin ring complex capped microtubule Deposited 2024-01-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric
Chain 9 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.70 Å
8VRK Rigid body fitted model for refined density map of gamma tubulin ring complex capped microtubule Deposited 2024-01-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric
Chain 9 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.50 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain S 1–375（375 aa）
Chain U 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain S 1–375（375 aa）
Chain U 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain S 1–375（375 aa）
Chain U 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9B2Z Actin-bound Legionella pneumophila AMPylase LnaB with AMPylated catalytic histidine Deposited 2024-03-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–375（375 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 CA CALCIUM ION × 1 LAB LATRUNCULIN B × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
9B7J Cryo-EM structure of human dynactin complex bound to Chlamydia effector Dre1 Deposited 2024-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 25 PDB declaration: 25-meric
Chain H 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.49 Å
9B85 Cryo-EM structure of human dynactin complex bound to Chlamydia effector Dre1 Deposited 2024-03-28 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain H 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain J 1–375（375 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain J 1–375（375 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain K 1–375（375 aa）
Chain L 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain L 1–375（375 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9FJM Cryo-EM structure of the phalloidin-bound pointed end of the actin filament. Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.
Resolution 3.65 Å
9GXI Subtomogram average of fascin-actin complex Deposited 2024-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–375（375 aa）
Chain C 1–375（375 aa）
Chain D 1–375（375 aa）
Chain E 1–375（375 aa）
Chain F 1–375（375 aa）
Chain G 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.00 Å
9I8G Inwards conformation' of the human gamma-TuRC from purified centrosomes obtained by rigid body docking Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain U 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 22.40 Å
9I8H Outwards conformation' of the human gamma-TuRC from purified centrosomes obtained by rigid body docking Deposited 2025-02-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain U 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 23.20 Å
9P1I Atomic structure of vibrio effector fragment VopV bound to Beta-cytoplasmic/gamma1-cytoplasmic F-actin Deposited 2025-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain Q 1–375（375 aa）
Chain R 1–375（375 aa）
Chain S 1–375（375 aa）
Chain T 1–375（375 aa）
Chain U 1–375（375 aa）
Chain V 1–375（375 aa）
Chain W 1–375（375 aa）
Chain X 1–375（375 aa）
Chain Y 1–375（375 aa）
Chain Z 1–375（375 aa）
Chain a 1–375（375 aa）
Chain b 1–375（375 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 12 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9QEW Cryo-EM structure of the undecorated actin filament in the ADP-Pi state. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.18 Å
9QEY Cryo-EM structure of the actin filament bound by a single Coronin-1B molecule. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.74 Å
9QF2 Cryo-EM structure of the fully Coronin-1B-decorated actin filament in the ADP state. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.42 Å
9QFB Cryo-EM structure of the fully Coronin-1B-decorated actin filament in the ADP state. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Chain G 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.74 Å
9QFD Cryo-EM structure of the fully cofilin-1-decorated actin filament (cofilactin) Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Chain G 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.61 Å
9QFE Cryo-EM structure of the actin filament hetero-decorated by Coronin-1 and Cofilin-1 on separate actin strands Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Chain G 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.12 Å
9QFG Cryo-EM structure of the actin filament hetero-decorated by Coronin-1 and Cofilin-1, strand boundary Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Chain G 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.49 Å
9QFJ Cryo-EM structure of the cofilactin filament core at 2.3 Angstrom resolution. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.015% Tween)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.31 Å
9QFK Cryo-EM structure of the Coronin-1B-decorated actin filament bound by one Cofilin-1 molecule (crosslinked) Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Chain G 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.99 Å
9QFO Cryo-EM structure of the cofilactin filament pointed end Deposited 2025-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Chain F 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.015% Tween20)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.96 Å
9QFQ Cryo-EM structure of the cofilactin barbed end bound by AIP1 Deposited 2025-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: 11-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.015% Tween20)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.76 Å
9QFW Cryo-EM structure of the cofilactin barbed end bound by two AIP1 molecules Deposited 2025-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 2–375（374 aa）
Chain B 2–375（374 aa）
Chain C 2–375（374 aa）
Chain D 2–375（374 aa）
Chain E 2–375（374 aa）
Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C272A Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.015% Tween20)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.16 Å
9QVM Cryo-EM reconstruction of the NEDD1 anchor protein and CDK5RAP2 bound to the gamma-tubulin ring complex Deposited 2025-04-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain Z 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.80 Å
9QVN Cryo-EM reconstruction of the NEDD1 anchor protein bound to the gamma-tubulin ring complex Deposited 2025-04-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric
Chain Z 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain K 1–375（375 aa）
Not recorded PTD PENTANEDIAL × 16 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain K 1–375（375 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain K 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric
Chain K 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9UXA local ARP-NCP structure of the ncBAF-nucleosome complex in the apo state Deposited 2025-05-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain I 2–375（374 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
9UXB The apo structure of BCL7B-containing ARP module of the human SWI/SNF complex Deposited 2025-05-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–375（374 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
9UXC The ADP-bound structure of BCL7B-containing ARP module of the human SWI/SNF complex Deposited 2025-05-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–375（374 aa）
Not recorded MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
9WBZ The structure of NCP-motor-ARP module of ncBAF-nucleosome complex Deposited 2025-08-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain L 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9WC1 The structure of ARP module in ncBAF complex Deposited 2025-08-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

72 other PDB entries and 83 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ACTB_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain J； PDBConstruct 1–375； UniProt 1–375

Vacuolar protein sorting-associated protein 72 homolog

OrganismNot specified

UniProt Q15906

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain K； UniProt 1–364 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain S 1–364（364 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain J 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain J 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain J 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain N 1–364（364 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain N 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CA9 Cryo-EM structure of the human SRCAP complex in the unbound state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain B 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 8–73（66 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 8–73（66 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 8–73（66 aa）
Chain F 8–73（66 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257

16 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name VPS72_HUMAN
Isoform —
PDB entities 7
Chains and sequence ranges Author chain K； PDBConstruct 1–364； UniProt 1–364

Actin-like protein 6A

OrganismNot specified

UniProt O96019

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain L； UniProt 1–429 Chain M； UniProt 1–429 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Histone H2A.Z × 1 （P0C0S5） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
21VV Cryo-EM structure of ncBAF bound to the nucleosome Deposited 2025-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain K 1–429（429 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 100 mM KCl, 2 mM MgCl2, 2 mM DTT, 0.5 mM ADP, 8 mM NaF, 1 mM BeSO4.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
6LTJ Structure of nucleosome-bound human BAF complex Deposited 2020-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain J 12–417（406 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric
Chain N 1–429（429 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7Y8R The nucleosome-bound human PBAF complex Deposited 2022-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain K 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain K 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain T 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain T 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain T 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVG Structure of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain I 1–429（429 aa）
Chain J 1–429（429 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain I 1–429（429 aa）
Chain J 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C4B Second BAF53a of the human TIP60 complex Deposited 2024-06-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain L 1–429（429 aa）
Chain M 1–429（429 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain L 1–429（429 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain M 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain M 1–429（429 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain J 1–429（429 aa）
Not recorded PTD PENTANEDIAL × 16 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain J 1–429（429 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain J 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric
Chain J 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9UXA local ARP-NCP structure of the ncBAF-nucleosome complex in the apo state Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain J 2–423（422 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
9UXB The apo structure of BCL7B-containing ARP module of the human SWI/SNF complex Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–429（428 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
9UXC The ADP-bound structure of BCL7B-containing ARP module of the human SWI/SNF complex Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–429（428 aa）
Not recorded MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
9WBZ The structure of NCP-motor-ARP module of ncBAF-nucleosome complex Deposited 2025-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain N 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9WC1 The structure of ARP module in ncBAF complex Deposited 2025-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

24 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ACL6A_HUMAN
Isoform —
PDB entities 8
Chains and sequence ranges Author chain L； PDBConstruct 1–429； UniProt 1–429 Author chain M； PDBConstruct 1–429； UniProt 1–429

Histone H2A.Z

OrganismNot specified

UniProt P0C0S5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain N； UniProt 1–128 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2B type 1-B × 1 （P33778） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3WA9 The nucleosome containing human H2A.Z.1 Deposited 2013-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–128（128 aa）
Chain G 1–128（128 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.07 Å R-free 0.271
4CAY Crystal structure of a human Anp32e-H2A.Z-H2B complex Deposited 2013-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 19–128（110 aa） Fragment：GLOBULAR DOMAIN, RESIDUES 19-128
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE, PH 7.0, 0.2 M NA FORMATE, 24% TO 30% PEG 3350
Resolution 1.48 Å R-free 0.195
4NFT Crystal structure of human lnkH2B-h2A.Z-Anp32e Deposited 2013-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 16–114（99 aa） Fragment：UNP residues 34-126, 16-114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.2M Sodium thiocyanate, 20%(w/v) polyethylene glycol 3350, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.61 Å R-free 0.273
4NFT Crystal structure of human lnkH2B-h2A.Z-Anp32e Deposited 2013-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 16–114（99 aa） Fragment：UNP residues 34-126, 16-114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.2M Sodium thiocyanate, 20%(w/v) polyethylene glycol 3350, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.61 Å R-free 0.273
4NFT Crystal structure of human lnkH2B-h2A.Z-Anp32e Deposited 2013-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 16–114（99 aa） Fragment：UNP residues 34-126, 16-114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.2M Sodium thiocyanate, 20%(w/v) polyethylene glycol 3350, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.61 Å R-free 0.273
4NFT Crystal structure of human lnkH2B-h2A.Z-Anp32e Deposited 2013-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 16–114（99 aa） Fragment：UNP residues 34-126, 16-114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.2M Sodium thiocyanate, 20%(w/v) polyethylene glycol 3350, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.61 Å R-free 0.273
5B31 The crystal structure of the heterotypic H2AZ/H2A nucleosome with H3.1. Deposited 2016-02-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain G 1–128（128 aa）
Not recorded MN MANGANESE (II) ION × 8 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.20 Å R-free 0.271
5B32 The crystal structure of the heterotypic H2AZ/H2A nucleosome with H3.3. Deposited 2016-02-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain G 1–128（128 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.35 Å R-free 0.259
5B33 The crystal structure of the H2AZ nucleosome with H3.3. Deposited 2016-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–128（128 aa）
Chain G 1–128（128 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.92 Å R-free 0.252
5CHL Structural basis of H2A.Z recognition by YL1 histone chaperone component of SRCAP/SWR1 chromatin remodeling complex Deposited 2015-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–113（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.19 mM CYMAL-7, 0.1 M HEPES, pH 7.5, 40% Polyethylene glycol 400
Resolution 1.89 Å R-free 0.231
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 19–128（110 aa） Fragment：GLOBULAR DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 19–128（110 aa） Fragment：GLOBULAR DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 19–128（110 aa） Fragment：GLOBULAR DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 19–128（110 aa） Fragment：GLOBULAR DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5Z30 The crystal structure of the nucleosome containing a cancer-associated histone H2A.Z R80C mutant Deposited 2018-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–128（128 aa）
Chain G 1–128（128 aa）
Mutation：R80C Mutation：R80C CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.45 Å R-free 0.243
6JOU Crystal structure of the human nucleosome containing H2A.Z.1 S42R Deposited 2019-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–128（128 aa）
Chain G 1–128（128 aa）
Mutation：S42R Mutation：S42R MN MANGANESE (II) ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.17 Å R-free 0.250
7YRD histone methyltransferase Deposited 2022-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain C 11–123（113 aa）
Chain G 11–123（113 aa）
Not recorded ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7YRG histone methyltransferase Deposited 2022-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain C 11–123（113 aa）
Chain G 11–123（113 aa）
Not recorded ZN ZINC ION × 2 SAM S-ADENOSYLMETHIONINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8JHF Native SUV420H1 bound to 167-bp nucleosome Deposited 2023-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain C 14–126（113 aa）
Chain G 14–126（113 aa）
Not recorded ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blotted for 3 s before being plunged into liquid ethane
Resolution 3.68 Å
8T9F Catalytic and non-catalytic mechanisms of histone H4 lysine 20 methyltransferase SUV420H1 Deposited 2023-06-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain C 1–128（128 aa）
Chain G 1–128（128 aa）
Not recorded SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；50 mM HEPES pH 7.9, 100 mM NaCl, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8THU Catalytic and non-catalytic mechanisms of histone H4 lysine 20 methyltransferase SUV420H1 Deposited 2023-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–128（128 aa）
Chain G 1–128（128 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；50 mM HEPES pH 7.9, 100 mM NaCl, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9GCG CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain O 2–128（127 aa）
Chain S 2–128（127 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9GE4 CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain O 2–128（127 aa）
Chain S 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 17–114（98 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 17–114（98 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 17–114（98 aa）
Chain D 17–114（98 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9OGR Cryo-EM analysis of human H2A.Z on methylated Sat2R-P DNA (v1) Deposited 2025-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 2–128（127 aa）
Chain G 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.78 Å
9OGS Cryo-EM analysis of human H2A.Z on Sat2R-P DNA (v1) Deposited 2025-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 2–128（127 aa）
Chain G 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9OGZ Cryo-EM analysis of human H2A.Z on Sat2R-P DNA (v2) Deposited 2025-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 2–128（127 aa）
Chain G 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9OH0 Cryo-EM analysis of human H2A.Z on methylated Sat2R-P DNA (v2) Deposited 2025-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 2–128（127 aa）
Chain G 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.78 Å
9OH1 Cryo-EM analysis of human H2A.Z on 601L DNA Deposited 2025-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 2–128（127 aa）
Chain G 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
9OH2 Cryo-EM analysis of human H2A.Z on methylated 601L DNA Deposited 2025-05-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 2–128（127 aa）
Chain G 2–128（127 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.14 Å
9UBD The Structural Basis of the Recognition of the Histone Variant H2A.Z by the SRCAP Catalytic Subunit Deposited 2025-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 17–114（98 aa）
Chain D 17–114（98 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；0.2 M Potassium thiocyanate 15 % w/v PEG 3,350 pH 7.0
Resolution 2.53 Å R-free 0.288

25 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name H2AZ_HUMAN
Isoform —
PDB entities 9
Chains and sequence ranges Author chain N； PDBConstruct 1–128； UniProt 1–128

Histone H2B type 1-B

OrganismNot specified

UniProt P33778

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 15 PDB declaration: pentadecameric（15） Consistent with protein copy count Chain O； UniProt 1–126 Not recorded RuvB-like 2 × 3 （Q9Y230） RuvB-like 1 × 3 （Q9Y265） E1A-binding protein p400 × 1 （Q96L91） Enhancer of polycomb homolog 1 × 1 （Q9H2F5） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） Actin-like protein 6A × 2 （O96019） Histone H2A.Z × 1 （P0C0S5） ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 5.28 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9C62 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3X1S Crystal structure of the nucleosome core particle Deposited 2014-11-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 6 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；60-70mM KCL, 70-90mM MnCl2, 24% MPD, 20mM Na-Cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.81 Å R-free 0.270
3X1U Crystal structure of nucleosome core particle in the presence of histone variants involved in reprogramming Deposited 2014-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 3–126（124 aa）
Chain H 3–126（124 aa）
Not recorded MN MANGANESE (II) ION × 4 CL CHLORIDE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；60-70 mM KCl, 70-90 mM MnCl2, 24% MPD, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.25 Å R-free 0.270
9FGQ Structure of human APC3loop 375-381 bound to the NCP Deposited 2024-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPEs pH8.0, 50 mM NaCl, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9GE5 CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain T 33–124（92 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name H2B1B_HUMAN
Isoform —
PDB entities 10
Chains and sequence ranges Author chain O； PDBConstruct 1–126； UniProt 1–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9c62

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9c62
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9c62
Deposition date deposition_date2024-06-07
Structure title titleP400 subcomplex of the native human TIP60 complex
Keywords keywordscomplex, chromatin regulator, GENE REGULATION; GENE REGULATION
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier67.90 Å
Radius of gyration Rg (electron density) rg_electron67.63 Å
Forward intensity I(0) i04428340000.00
Molecular weight molecular_weight561900.0 kDa
Excluded volume excluded_volume703910 ų
Envelope volume envelope_volume1128300 ų
Hydration-shell volume shell_volume138990 ų
Envelope diameter envelope_diameter216.6 Å
Shell Rg shell_rg68.76 Å
Envelope Rg envelope_rg65.21 Å
Shape Rg shape_rg67.66 Å
Total Rg total_rg67.51 Å
Total atoms total_atoms79168
Residues n_residues4997
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax224.1 Å
Rg (real space) rg_real67.80 Å
Rg uncertainty (real space) rg_real_error2.21 Å
I(0) (real space) i0_real4.4280e+09
I(0) uncertainty (real space) i0_real_error9.5810e+07
Rg (reciprocal space) rg_reciprocal68.08 Å
I(0) (reciprocal space) i0_reciprocal4430000000.0000
Solution quality estimate total_estimate0.8714
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary68.2 Å
Skewness Skewness skewness0.150
Kurtosis Kurtosis kurtosis-0.734
Angular range angular_range— – 0.1150 Å−1
Current regularization parameter α current_alpha0.0001
Highest regularization parameter α highest_alpha317600000.0000
Real-space data points n_real_points24
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.597
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (11)

▶

8. Citations (1)

▶

9. Files and Curves (10)
