9b85

Cryo-EM structure of human dynactin complex bound to Chlamydia effector Dre1

Method: ELECTRON MICROSCOPY D_max: 283.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

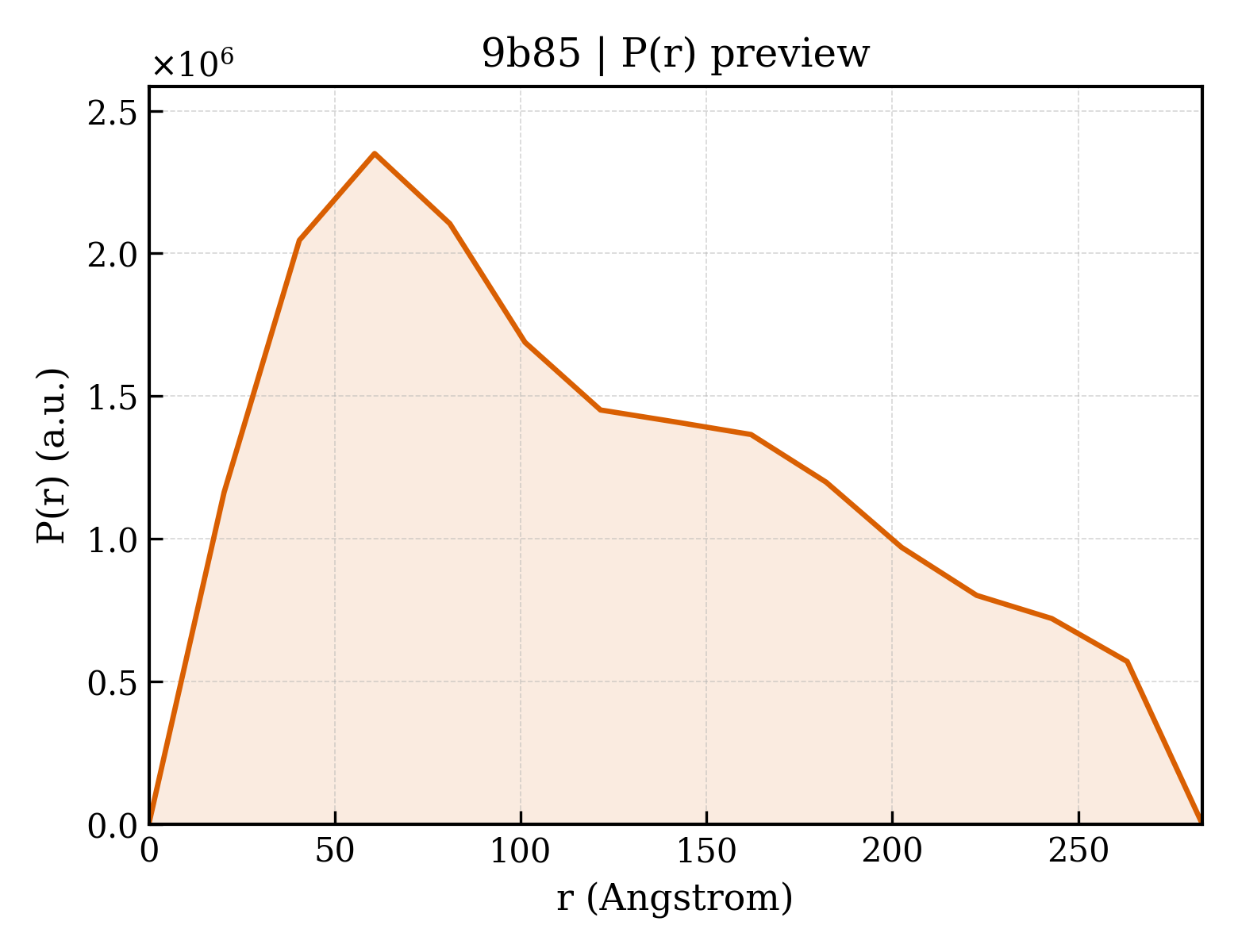

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b85
沉积日期 deposition_date	2024-03-28
最后修订 last_revision	2025-04-16
结构标题 title	Cryo-EM structure of human dynactin complex bound to Chlamydia effector Dre1
关键词 keywords	Human dynactin, Chlamydia effector, host-pathogen interaction, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	107.30 Å
零角强度 I(0) i0	4727630000.00
分子量 molecular_weight	586080.0 kDa
排除体积 excluded_volume	735140 Å³
包络体积 envelope_volume	1208800 Å³
水化壳体积 shell_volume	115020 Å³
包络直径 envelope_diameter	388.2 Å
壳层 Rg shell_rg	62.69 Å
包络 Rg envelope_rg	107.70 Å
形状 Rg shape_rg	107.20 Å
总 Rg total_rg	107.00 Å
总原子数 total_atoms	82296
残基数 n_residues	5159
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	283.4 Å
Rg (实空间) rg_real	96.23 Å
Rg 误差 (实空间) rg_real_error	2.04 Å
I(0) (实空间) i0_real	4.5370e+09
I(0) 误差 (实空间) i0_real_error	1.0430e+08
Rg (倒空间) rg_reciprocal	88.76 Å
I(0) (倒空间) i0_reciprocal	4515000000.0000
解质量估计 total_estimate	0.8478
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	60.7 Å
偏度 Skewness skewness	0.451
峰度 Kurtosis kurtosis	-0.844
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.2318
最高正则化参数 α highest_alpha	63120000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.007; Oscil: 0.712; Stabil: 0.975; Sysdev: 1.000; Positv: 1.000; Valcen: 0.856; Smooth: 0.107

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	Alpha-centractin
分子量 formula_weight	42670.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,I
原子数 atom_count	82296

MESYDVIANQPVVIDNGSGVIKAGFAGDQIPKYCFPNYVGRPKHVRVMAGALEGDIFIGPKAEEHRGLLSIRYPMEHGIVKDWNDMERIWQYVYSKDQLQTFSEEHPVLLTEAPLNPRKNRERAAEVFFETFNVPALFISMQAVLSLYATGRTTGVVLDSGDGVTHAVPIYEGFAMPHSIMRIDIAGRDVSRFLRLYLRKEGYDFHSSSEFEIVKAIKERACYLSINPQKDETLETEKAQYYLPDGSTIEIGPSRFRAPELLFRPDLIGEESEGIHEVLVFAIQKSDMDLRRTLFSNIVLSGGSTLFKGFGDRLLSEVKKLAPKDVKIRISAPQERLYSTWIGGSILASLDTFKKMWVSKKEYEEDGARSIHRKTF

Entity 2 polymer

描述 description	Actin, cytoplasmic 1
分子量 formula_weight	41782.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MDDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 3 polymer

描述 description	Actin-related protein 10
分子量 formula_weight	46360.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MPLYEGLGSGGEKTAVVIDLGEAFTKCGFAGETGPRCIIPSVIKRAGMPKPVRVVQYNINTEELYSYLKEFIHILYFRHLLVNPRDRRVVIIESVLCPSHFRETLTRVLFKYFEVPSVLLAPSHLMALLTLGINSAMVLDCGYRESLVLPIYEGIPVLNCWGALPLGGKALHKELETQLLEQCTVDTSVAKEQSLPSVMGSVPEGVLEDIKARTCFVSDLKRGLKIQAAKFNIDGNNERPSPPPNVDYPLDGEKILHILGSIRDSVVEILFEQDNEEQSVATLILDSLIQCPIDTRKQLAENLVVIGGTSMLPGFLHRLLAEIRYLVEKPKYKKALGTKTFRIHTPPAKANCVAWLGGAIFGALQDILGSRSVSKEYYNQTGRIPDWCSLNNPPLEMMFDVGKTQPPLMKRAFSTEK

Entity 4 polymer

描述 description	Dynactin subunit 4
分子量 formula_weight	52409.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MASLLQSDRVLYLVQGEKKVRAPLSQLYFCRYCSELRSLECVSHEVDSHYCPSCLENMPSAEAKLKKNRCANCFDCPGCMHTLSTRATSISTQLPDDPAKTTMKKAYYLACGFCRWTSRDVGMADKSVASGGWQEPENPHTQRMNKLIEYYQQLAQKEKVERDRKKLARRRNYMPLAFSDKYGLGTRLQRPRAGASISTLAGLSLKEGEDQKEIKIEPAQAVDEVEPLPEDYYTRPVNLTEVTTLQQRLLQPDFQPVCASQLYPRHKHLLIKRSLRCRKCEHNLSKPEFNPTSIKFKIQLVAVNYIPEVRIMSIPNLRYMKESQVLLTLTNPVENLTHVTLFECEEGDPDDINSTAKVVVPPKELVLAGKDAAAEYDELAEPQDFQDDPDIIAFRKANKVGIFIKVTPQREEGEVTVCFKMKHDFKNLAAPIRPIEESDQGTEVIWLTQHVELSLGPLLP

Entity 5 polymer

描述 description	Dynactin subunit 5
分子量 formula_weight	20150.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MELGELLYNKSEYIETASGNKVSRQSVLCGSQNIVLNGKTIVMNDCIIRGDLANVRVGRHCVVKSRSVIRPPFKKFSKGVAFFPLHIGDHVFIEEDCVVNAAQIGSYVHVGKNCVIGRRCVLKDCCKILDNTVLPPETVVPPFTVFSGCPGLFSGELPECTQELMIDVTKSYYQKFLPLTQV

Entity 6 polymer

描述 description	Dynactin subunit 6
分子量 formula_weight	20769.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MAEKTQKSVKIAPGAVVCVESEIRGDVTIGPRTVIHPKARIIAEAGPIVIGEGNLIEEQALIINAYPDNITPDTEDPEPKPMIIGTNNVFEVGCYSQAMKMGDNNVIESKAYVGRNVILTSGCIIGACCNLNTFEVIPENTVIYGADCLRRVQTERPQPQTLQLDFLMKILPNYHHLKKTMKGSSTPVKN

Entity 7 polymer

描述 description	F-actin-capping protein subunit alpha-1
分子量 formula_weight	32964.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MADFDDRVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYEDQVLITEHGDLGNSRFLDPRNKISFKFDHLRKEASDPQPEEADGGLKSWRESCDSALRAYVKDHYSNGFCTVYAKTIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVVGVLKIQVHYYEDGNVQLVSHKDVQDSLTVSNEAQTAKEFIKIIENAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGKEMQNA

Entity 8 polymer

描述 description	F-actin-capping protein subunit beta
分子量 formula_weight	30669.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKSGSGTMNLGGSLTRQMEKDETVSDCSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLRSVQTFADKSKQEALKNDLVEALKRKQQC

Entity 9 polymer

描述 description	Dynactin subunit 2
分子量 formula_weight	44285.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q,p,q

MADPKYADLPGIARNEPDVYETSDLPEDDQAEFDAEELTSTSVEHIIVNPNAAYDKFKDKRVGTKGLDFSDRIGKTKRTGYESGEYEMLGEGLGVKETPQQKYQRLLHEVQELTTEVEKIKTTVKESATEEKLTPVLLAKQLAALKQQLVASHLEKLLGPDAAINLTDPDGALAKRLLLQLEATKNSKGGSGGKTTGTPPDSSLVTYELHSRPEQDKFSQAAKVAELEKRLTELETAVRCDQDAQNPLSAGLQGACLMETVELLQAKVSALDLAVLDQVEARLQSVLGKVNEIAKHKASVEDADTQSKVHQLYETIQRWSPIASTLPELVQRLVTIKQLHEQAMQFGQLLTHLDTTQQMIANSLKDNTTLLTQVQTTMRENLATVEGNFASIDERMKKLGK

Entity 10 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 11 non-polymer

描述 description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
分子量 formula_weight	506.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 12 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.47 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	50376

fit	/app/data/saxs_computation/b8/9b85/9b85.fit
pddf	/app/data/pr_computation/b8/9b85/9b85.pr.out
profile	/app/data/saxs_computation/b8/9b85/9b85.dat
