SAXSdb — 9y9l

▼

1. Structure Basics

entry_id	9y9l
deposition_date	2025-09-14
title	CP at the barbed end with one cofilin on second-to-last subunit
keywords	Cytoskeleton, Actin, Filament, Helical, PROTEIN FIBRIL; PROTEIN FIBRIL
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	55.95 Å
rg_electron	56.19 Å
i0	1659540000.00
molecular_weight	340650.0 kDa
excluded_volume	426440 Å³
envelope_volume	618670 Å³
shell_volume	94756 Å³
envelope_diameter	209.7 Å
shell_rg	55.77 Å
envelope_rg	55.54 Å
shape_rg	56.22 Å
total_rg	56.06 Å
total_atoms	23917
n_residues	3008
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

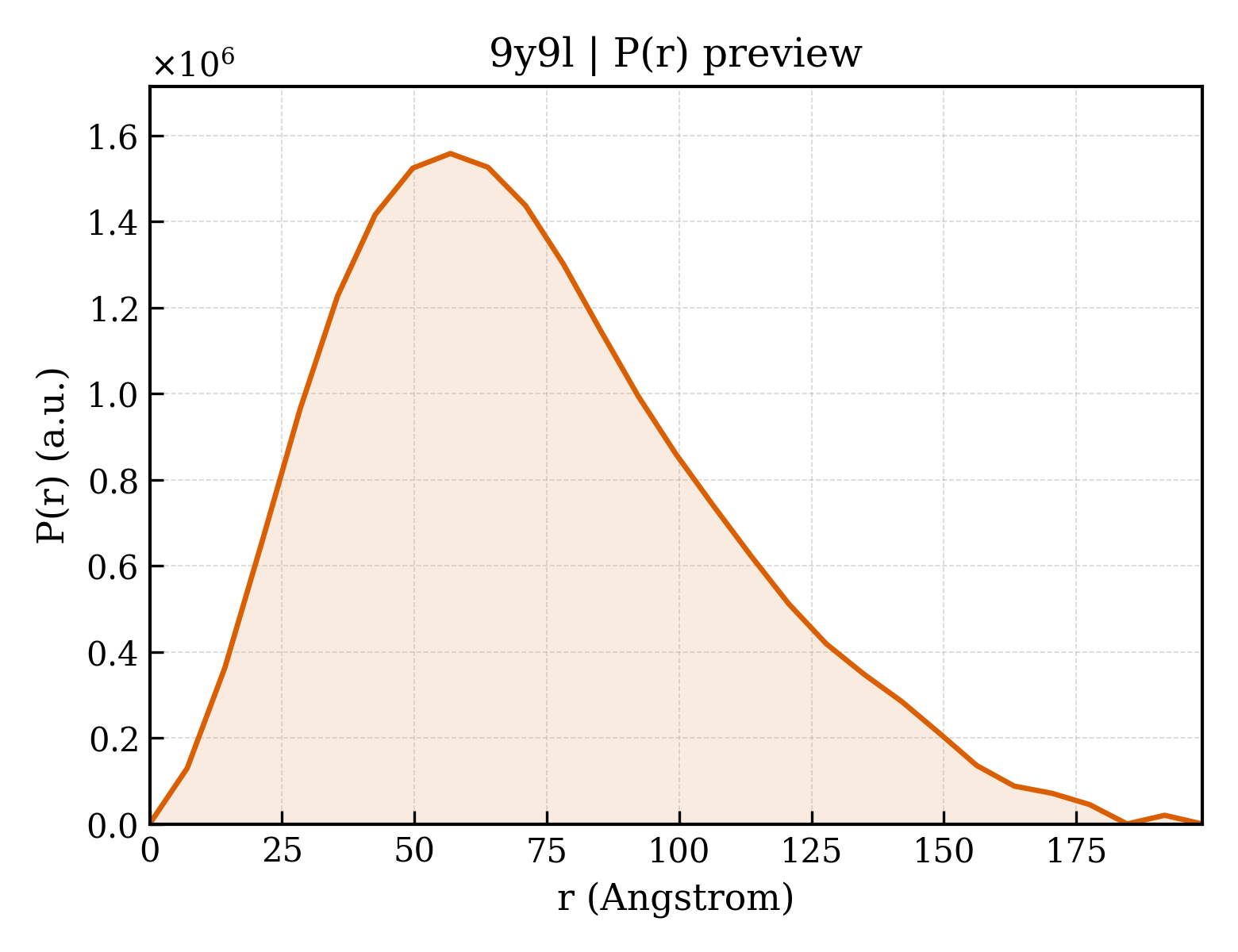

3. P(r) Analysis (GNOM)

dmax	198.8 Å
rg_real	56.35 Å
rg_real_error	2.63 Å
i0_real	1.6600e+09
i0_real_error	3.9840e+07
rg_reciprocal	55.61 Å
i0_reciprocal	1658000000.0000
total_estimate	0.8307
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	56.8 Å
skewness	0.577
kurtosis	-0.096
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	172900000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.723; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.946; Smooth: 0.681

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Actin, alpha skeletal muscle
formula_weight	41978.8 kDa
ec_number	3.6.4.-
src_method	nat
entity_count	5

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E
atom_count	23917

CDEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 2 polymer

description	F-actin-capping protein subunit alpha-1
formula_weight	32964.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Y

MADFDDRVSDEEKVRIAAKFITHAPPGEFNEVFNDVRLLLNNDNLLREGAAHAFAQYNMDQFTPVKIEGYEDQVLITEHGDLGNSRFLDPRNKISFKFDHLRKEASDPQPEEADGGLKSWRESCDSALRAYVKDHYSNGFCTVYAKTIDGQQTIIACIESHQFQPKNFWNGRWRSEWKFTITPPTAQVVGVLKIQVHYYEDGNVQLVSHKDVQDSLTVSNEAQTAKEFIKIIENAENEYQTAISENYQTMSDTTFKALRRQLPVTRTKIDWNKILSYKIGKEMQNA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 polymer

description	F-actin-capping protein subunit beta
formula_weight	30669.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Z

MSDQQLDCALDLMRRLPPQQIEKNLSDLIDLVPSLCEDLLSSVDQPLKIARDKVVGKDYLLCDYNRDGDSYRSPWSNKYDPPLEDGAMPSARLRKLEVEANNAFDQYRDLYFEGGVSSVYLWDLDHGFAGVILIKKAGDGSKKIKGCWDSIHVVEVQEKSSGRTAHYKLTSTVMLWLQTNKSGSGTMNLGGSLTRQMEKDETVSDCSPHIANIGRLVEDMENKIRSTLNEIYFGKTKDIVNGLRSVQTFADKSKQEALKNDLVEALKRKQQC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 4 polymer

description	Cofilin-2
formula_weight	18765.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	a,b,c,d

MASGVTVNDEVIKVFNDMKVRKSSTQEEIKKRKKAVLFCLSDDKRQIIVEEAKQILVGDIGDTVEDPYTSFVKLLPLNDCRYALYDATYETKESKKEDLVFIFWAPESAPLKSKMIYASSKDAIKKKFTGIKHEWQVNGLDDIKDRSTLGEKLGGNVVVSLEGKPL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 5 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	5

Entity 6 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.060 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.06 Å
resolution_method	—
num_particles	67400

fit	/app/data/saxs_computation/y9/9y9l/9y9l.fit
pddf	/app/data/pr_computation/y9/9y9l/9y9l.pr.out
profile	/app/data/saxs_computation/y9/9y9l/9y9l.dat
