SAXSdb — 9qfw

▼

1. Structure Basics

entry_id	9qfw
deposition_date	2025-03-12
title	Cryo-EM structure of the cofilactin barbed end bound by two AIP1 molecules
keywords	actin, cofilin, AIP1, barbed end, filament, cytoskeleton, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	57.85 Å
rg_electron	57.92 Å
i0	2531650000.00
molecular_weight	423710.0 kDa
excluded_volume	530690 Å³
envelope_volume	745850 Å³
shell_volume	108610 Å³
envelope_diameter	199.0 Å
shell_rg	58.69 Å
envelope_rg	56.87 Å
shape_rg	57.96 Å
total_rg	57.80 Å
total_atoms	29759
n_residues	3802
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	203.3 Å
rg_real	57.99 Å
rg_real_error	2.21 Å
i0_real	2.5320e+09
i0_real_error	5.4660e+07
rg_reciprocal	57.70 Å
i0_reciprocal	2530000000.0000
total_estimate	0.8573
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	67.8 Å
skewness	0.404
kurtosis	-0.355
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0001
highest_alpha	171700000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.785; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.809

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Actin, cytoplasmic 1, N-terminally processed
formula_weight	41632.4 kDa
mutation	C272A
src_method	man
entity_count	5

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E
atom_count	29759

DDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESAGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Cofilin-1
formula_weight	18532.5 kDa
src_method	man
entity_count	5

Polymer

type	polypeptide(L)
strand_id	F,G,H,I,J

MASGVAVSDGVIKVFNDMKVRKSSTPEEVKKRKKAVLFCLSEDKKNIILEEGKEILVGDVGQTVDDPYATFVKMLPDKDCRYALYDATYETKESKKEDLVFIFWAPESAPLKSKMIYASSKDAIKKKLTGIKHELQANCYEEVKDRCTLAEKLGGSAVISLEGKPL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

description	WD repeat-containing protein 1,Methylated-DNA--protein-cysteine methyltransferase
formula_weight	86760.9 kDa
ec_number	2.1.1.63
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	P,Q

GAMGSMPYEIKKVFASLPQVERGVSKIIGGDPKGNNFLYTNGKCVILRNIDNPALADIYTEHAHQVVVAKYAPSGFYIASGDVSGKLRIWDTTQKEHLLKYEYQPFAGKIKDIAWTEDSKRIAVVGEGREKFGAVFLWDSGSSVGEITGHNKVINSVDIKQSRPYRLATGSDDNCAAFFEGPPFKFKFTIGDHSRFVNCVRFSPDGNRFATASADGQIYIYDGKTGEKVCALGGSKAHDGGIYAISWSPDSTHLLSASGDKTSKIWDVSVNSVVSTFPMGSTVLDQQLGCLWQKDHLLSVSLSGYINYLDRNNPSKPLHVIKGHSKSIQCLTVHKNGGKSYIYSGSHDGHINYWDSETGENDSFAGKGHTNQVSRMTVDESGQLISCSMDDTVRYTSLMLRDYSGQGVVKLDVQPKCVAVGPGGYAVVVCIGQIVLLKDQRKCFSIDNPGYEPEVVAVHPGGDTVAIGGVDGNVRLYSILGTTLKDEGKLLEAKGPVTDVAYSHDGAFLAVCDASKVVTVFSVADGYSENNVFYGHHAKIVCLAWSPDNEHFASGGMDMMVYVWTLSDPETRVKIQDAHRLHHVSSLAWLDEHTLVTTSHDASVKEWTITYGTGGGGSGGGGSMDKDCEMKRTTLDSPLGKLELSGCEQGLHEIKLLGKGTSAADAVEVPAPAAVLGGPEPLMQATAWLNAYFHQPEAIEEFPVPALHHPVFQQESFTRQVLWKLLKVVKFGEVISYQQLAALAGNPAATAAVKTALSGNPVPILIPCHRVVSSSGAVGGYEGGLAVKEWLLAHEGHRLGKPGLG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	5

Entity 5 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.16 Å
resolution_method	—
num_particles	23577

fit	/app/data/saxs_computation/qf/9qfw/9qfw.fit
pddf	/app/data/pr_computation/qf/9qfw/9qfw.pr.out
profile	/app/data/saxs_computation/qf/9qfw/9qfw.dat

Cryo-EM structure of the cofilactin barbed end bound by two AIP1 molecules

SAXS Profile

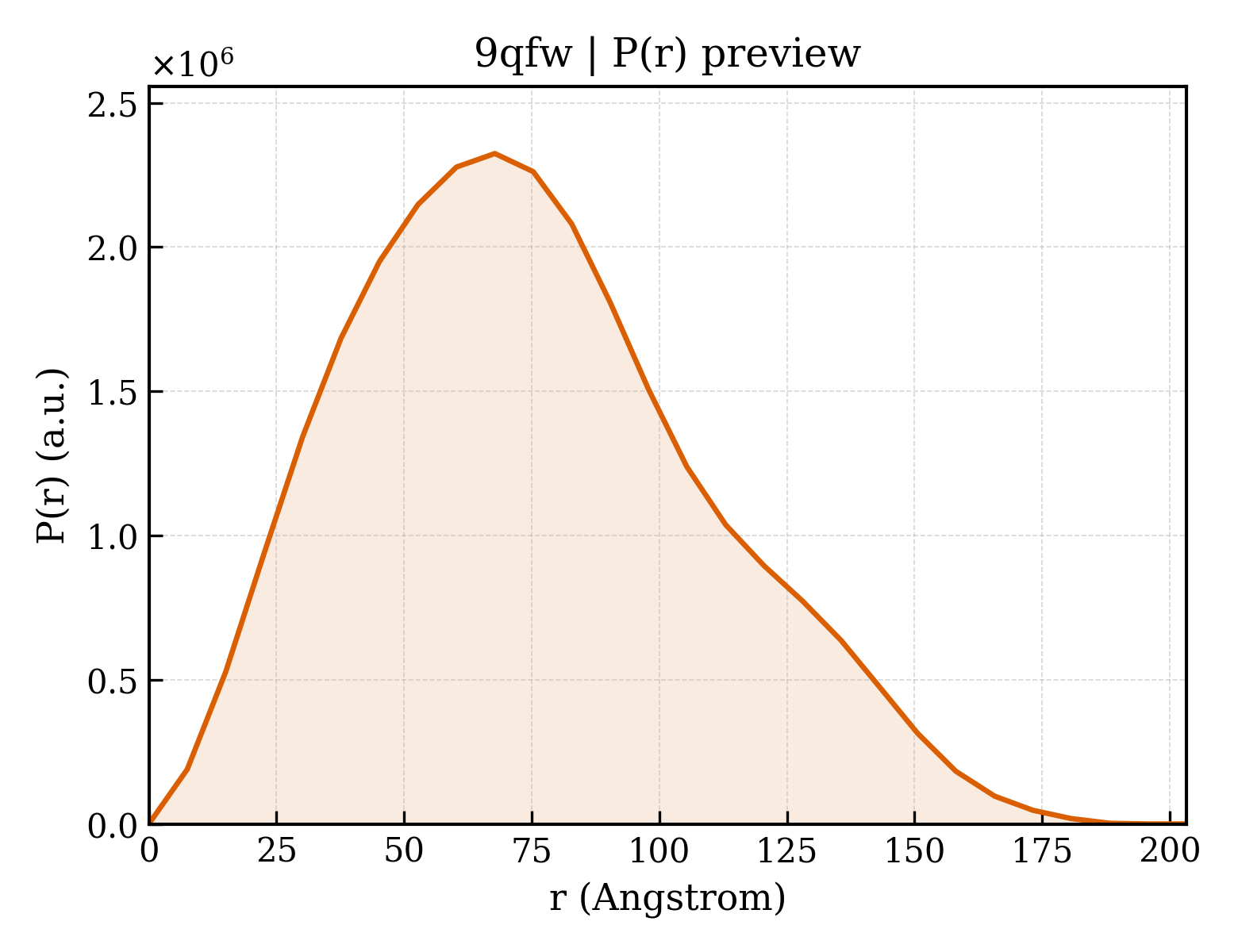

P(r) Distribution
