9qfe

Cryo-EM structure of the actin filament hetero-decorated by Coronin-1 and Cofilin-1 on separate actin strands

Method: ELECTRON MICROSCOPY D_max: 208.3 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9qfe
deposition_date	2025-03-11
title	Cryo-EM structure of the actin filament hetero-decorated by Coronin-1 and Cofilin-1 on separate actin strands
keywords	actin, coronin, cofilin, filament, cytoskeleton, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	63.07 Å
rg_electron	64.05 Å
i0	3391090000.00
molecular_weight	490510.0 kDa
excluded_volume	613950 Å³
envelope_volume	856600 Å³
shell_volume	116360 Å³
envelope_diameter	248.9 Å
shell_rg	59.55 Å
envelope_rg	64.17 Å
shape_rg	64.05 Å
total_rg	63.95 Å
total_atoms	34422
n_residues	4366
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

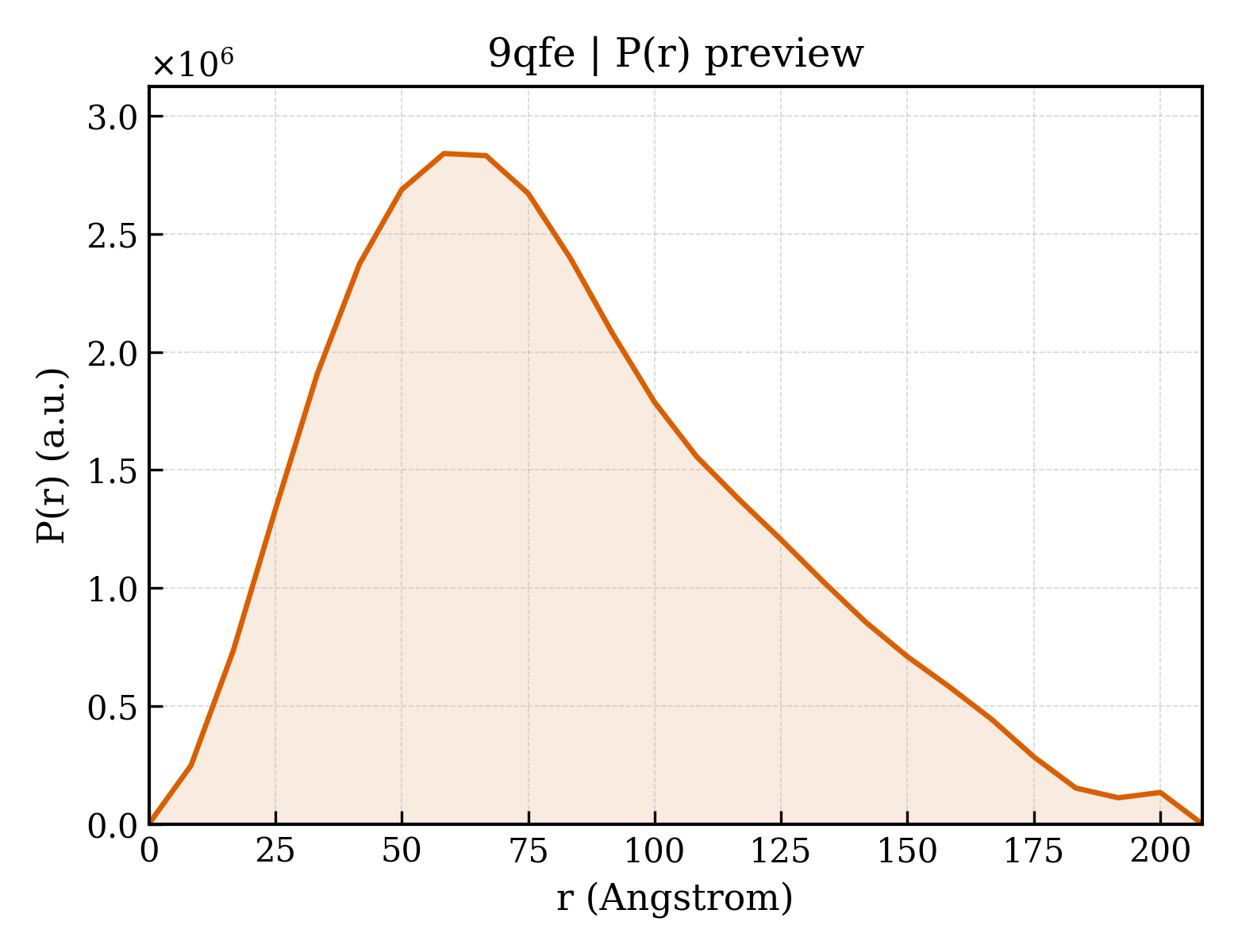

3. P(r) Analysis (GNOM)

dmax	208.3 Å
rg_real	63.49 Å
rg_real_error	1.58 Å
i0_real	3.3850e+09
i0_real_error	6.4560e+07
rg_reciprocal	62.42 Å
i0_reciprocal	3383000000.0000
total_estimate	0.8229
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	58.3 Å
skewness	0.583
kurtosis	-0.199
angular_range	— – 0.1250 Å⁻¹
current_alpha	0.0116
highest_alpha	271500000.0000
n_real_points	26
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.812; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.260

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Actin, cytoplasmic 1, N-terminally processed
formula_weight	41632.4 kDa
mutation	C272A
src_method	man
entity_count	7

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G
atom_count	34422

DDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESAGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Cofilin-1
formula_weight	18532.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	H,I,J,K

MASGVAVSDGVIKVFNDMKVRKSSTPEEVKKRKKAVLFCLSEDKKNIILEEGKEILVGDVGQTVDDPYATFVKMLPDKDCRYALYDATYETKESKKEDLVFIFWAPESAPLKSKMIYASSKDAIKKKLTGIKHELQANCYEEVKDRCTLAEKLGGSAVISLEGKPL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

description	Coronin-1B,Methylated-DNA--protein-cysteine methyltransferase
formula_weight	74788.1 kDa
ec_number	2.1.1.63
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	L,M,N

GAMGSMSFRKVVRQSKFRHVFGQPVKNDQCYEDIRVSRVTWDSTFCAVNPKFLAVIVEASGGGAFLVLPLSKTGRIDKAYPTVCGHTGPVLDIDWCPHNDEVIASGSEDCTVMVWQIPENGLTSPLTEPVVVLEGHTKRVGIIAWHPTARNVLLSAGCDNVVLIWNVGTAEELYRLDSLHPDLIYNVSWNHNGSLFCSACKDKSVRIIDPRRGTLVAEREKAHEGARPMRAIFLADGKVFTTGFSRMSERQLALWDPENLEEPMALQELDSSNGALLPFYDPDTSVVYVCGKGDSSIRYFEITEEPPYIHFLNTFTSKEPQRGMGSMPKRGLEVSKCEIARFYKLHERKCEPIVMTVPRKSDLFQDDLYPDTAGPEAALEAEEWVSGRDADPILISLREAYVPSKQRDLKISRRNVLSDSRPAMAPGSSHLGAPASTTTAADATPSGSLARAGEAGKLEEVMQELRALRALVKEQGDRICRLEEQLGRMENGDAGTGGGGSGGGGSMDKDCEMKRTTLDSPLGKLELSGCEQGLHEIKLLGKGTSAADAVEVPAPAAVLGGPEPLMQATAWLNAYFHQPEAIEEFPVPALHHPVFQQESFTRQVLWKLLKVVKFGEVISYQQLAALAGNPAATAAVKTALSGNPVPILIPCHRVVSSSGAVGGYEGGLAVKEWLLAHEGHRLGKPGLG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	7

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	7

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.12 Å
resolution_method	—
num_particles	40453

fit	/app/data/saxs_computation/qf/9qfe/9qfe.fit
pddf	/app/data/pr_computation/qf/9qfe/9qfe.pr.out
profile	/app/data/saxs_computation/qf/9qfe/9qfe.dat
