8vrj

Rigid body fitted model for gamma tubulin ring complex capped microtubule

Method: ELECTRON MICROSCOPY D_max: 295.4 Å Quality: GOOD

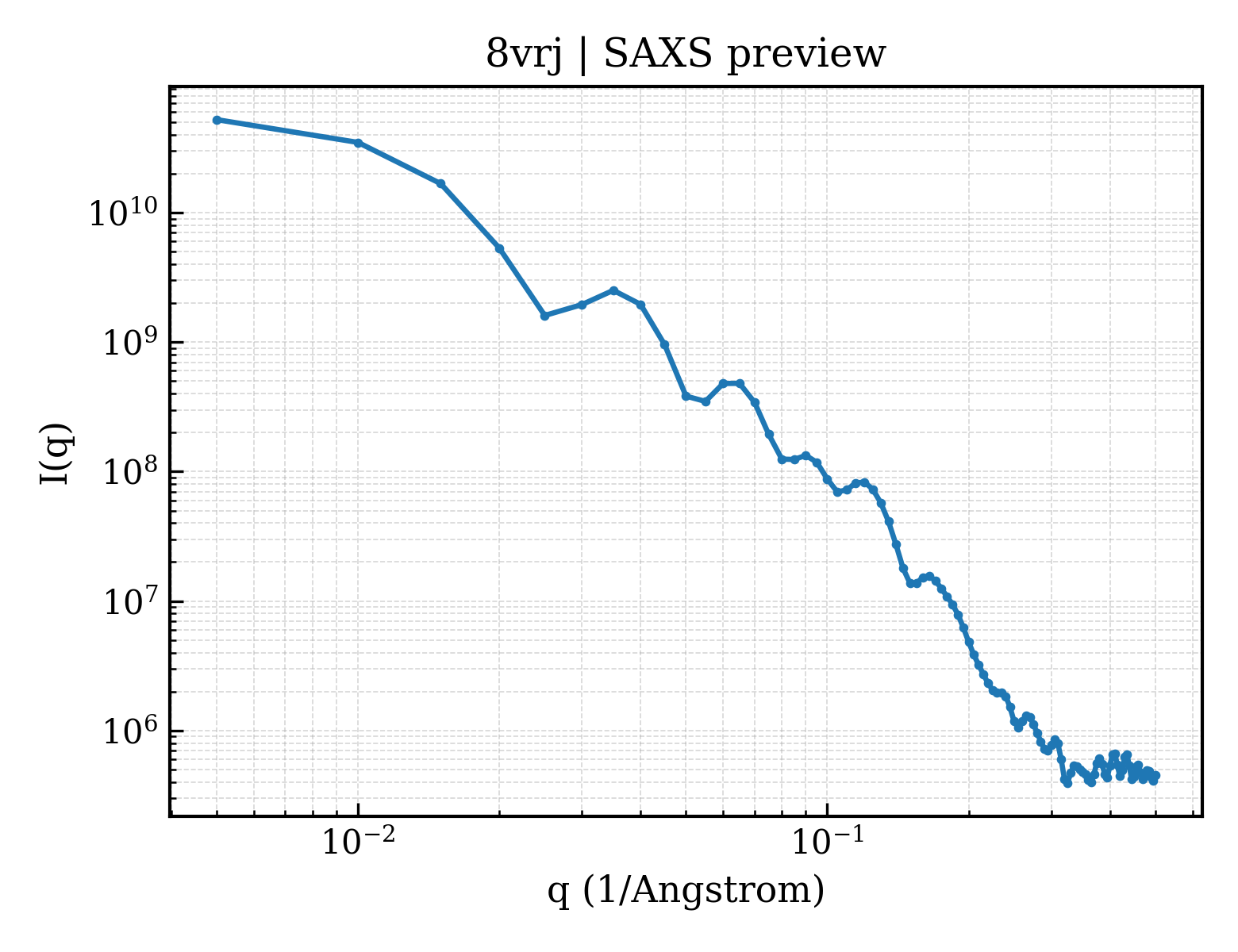

SAXS 散射曲线 SAXS Profile

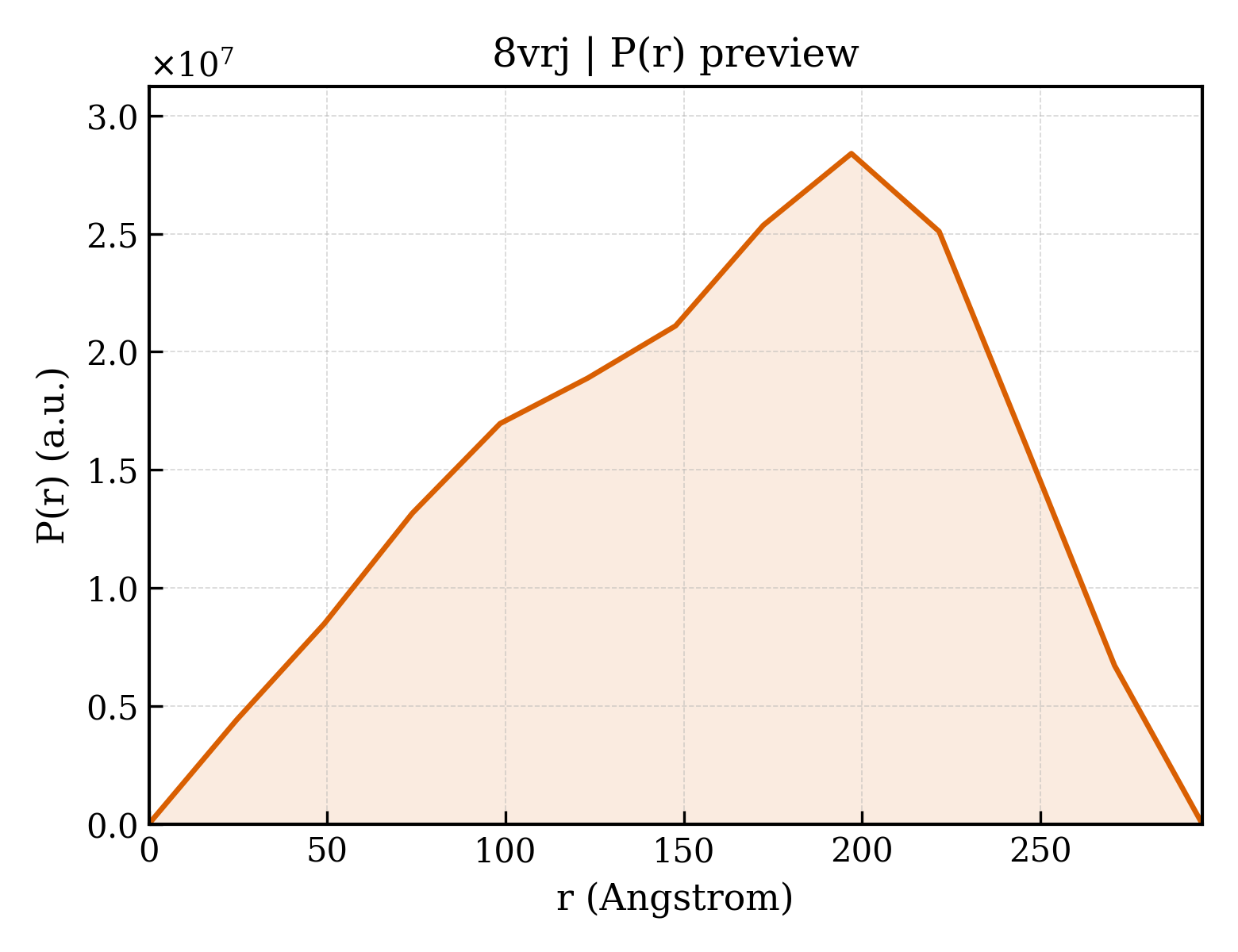

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8vrj
沉积日期 deposition_date	2024-01-22
结构标题 title	Rigid body fitted model for gamma tubulin ring complex capped microtubule
关键词 keywords	Microtubule nucleation complex bound to a microtubule, CELL CYCLE; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	124.30 Å
零角强度 I(0) i0	59553000000.00
分子量 molecular_weight	1705400.0 kDa
排除体积 excluded_volume	1962500 Å³
包络体积 envelope_volume	6950100 Å³
水化壳体积 shell_volume	478240 Å³
包络直径 envelope_diameter	363.6 Å
壳层 Rg shell_rg	130.20 Å
包络 Rg envelope_rg	107.80 Å
形状 Rg shape_rg	124.30 Å
总 Rg total_rg	124.40 Å
总原子数 total_atoms	121870
残基数 n_residues	24650
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	295.4 Å
Rg (实空间) rg_real	122.70 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	5.7090e+10
I(0) 误差 (实空间) i0_real_error	1.0330e+09
Rg (倒空间) rg_reciprocal	134.50 Å
I(0) (倒空间) i0_reciprocal	61670000000.0000
解质量估计 total_estimate	0.8788
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	197.0 Å
偏度 Skewness skewness	-0.299
峰度 Kurtosis kurtosis	-0.771
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	1.6050
最高正则化参数 α highest_alpha	3390000000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.995; Stabil: 0.949; Sysdev: 1.000; Positv: 1.000; Valcen: 0.596; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Tubulin alpha-1B chain
分子量 formula_weight	51019.3 kDa
EC 编号 ec_number	3.6.5.-
突变 mutation	E254D
来源方法 src_method	man
拷贝数 entity_count	13

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,O,P,Q,R,S,T,U,V,W,X,Y,Z
原子数 atom_count	121890

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIHHHHHHGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLISQIVSSITASLRFDGALNVDLTDFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRSIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Tubulin beta-3 chain
分子量 formula_weight	51276.4 kDa
来源方法 src_method	man
拷贝数 entity_count	13

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,o,p,q,r,s,t,u,v,w,x,y,z

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPSGNYVGDSDLQLERISVYYNEASSHKYVPRAILVDLEPGTMDSVRSGAFGHLFRPDNFIFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKECENCDCLQGFQLTHSLGGGTGSGMGTLLISKVREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSIHQLVENTDETYCIDNEALYDICFRTLKLATPTYGDLNHLVSATMSGVTTSLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTARGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVATVFRGRMSMKEVDEQMLAIQSKNSSYFVEWIPNNVKVAVCDIPPRGLKMSSTFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATAEEEGEMYEDDEEESEAQGPKENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	TUBGCP6 protein
分子量 formula_weight	199732.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3,6,L

MASITQLFDDLCEALLPAAKTHLGQRSVNRKRAKRSLKKVAYNALFTNLFQDETQQLQPDMSKLPARNKILMLSFDLRVGGLGPKADRLEELVEELEAAPCCPLLEVGSVLDLLVQLAGSGPPQVLPRKRDYFLNNKHVGRNVPYSGYDCDDLSVFEMDVQSLISREECLCHSMIQETLQVMEAAPGTGLPTVGLFSFGDPCGDRFERDTRVSLFGALVHSRTYDMDVRLGLPPVPDNADLSGLAIKVPPSVDQWEDEGFQSASNLTPDSQSEPSVTPDVDLWEAALTYEASKRRCWERVGCPPGHREEPYLTEAGRDAFDKFCRLHQGELQLLAGGVLQAPQPVLVKECELVKDVLNVLIGVVSATFSLCQPAQAFVVKRGVHVSGASPESISSLLSEVAEYGTCYTRLSHFSLQPVLDSLYSKGLVFQAFTSGLRRYLQYYRACVLSTPPTLSLLTIGFLFKKLGRQLRYLAELCGVGAVLPGTCGGGPRAAFPTGVKLLSYLYQEALHNCSNEHYPVLLSLLKTSCEPYTRFIHDWVYSGVFRDAYGEFMIQVNHEYLSFRDKLYWTHGYVLISKEVEDCVPVFLKHIAHDIYVCGKTINLLKLCCPRHYLCWSDVPVPRISVIFSLEELKEIEKDCAVYVGRMERVARHSSVSKEEKELRMEIAKQELIAHAREAASRVLSALSDRQMSERMALDARKREQFQRLKEQFVKDQERRQAARQEELDDDFSYARELRDRERRLKSLEEELERKASKLSAEAARREQKALWRIQRHRLESARLRFLLEDEKHIQEMLKAVSEAHQPQEPPDVLLSVHPQVTSPGPEHPEGGQGCDSGSAEQHSPAWDGWNRPGLLTPQPLKPLAVGAGGRGLQQAEGARPFSDSLSIGDFLPVGPGAEPSVQTGMVPLLEVALQTINLDLPPSAPGEAPAAASTQPSRPQEYDFSTVLRPAVATSPAPGPLQAAECSLGSSGLQLWEDSCGKMDACGSASRETLLPSHPPRRAALEEGSSQPTERLFGQVSGGGLPTGDYASEIAPTRPRWNTHGHVSDASIRVGENVSDVAPTQPRWNTHGHVSNASISLGESVSDVAPTRPRWNIHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSDASISLGESVSDMAPARPRWNTHGHVSDASISLGESVSDMAPTRPRWNTHGHVSDTSIRVGENVSDVAPIRSRCNTHGHVSDASISLGEPVSDVVSTRPRWNTHVPIPPPHMVLGALSPEAEPNTPRPQQSPPGHTSQSALSLGAQSAVLDCGPRLPVEVGPSLSSPSSGCGEGSISVGENVSDVAPTQPWWPNTPGDSVSEELGPGRSGDTEDLSPNWPLNSQEDTAAQSSPGRGEEAEASAAEAQGGEQAYLAGLAGQYHLERYPDSYESMSEPPIAHLLRPVLPRAFAFPVDPQVQSAADETAVQLSELLTLPVLMKRSITAPLAAHISLVNKAAVDYFFVELHLEAHYEALRHFLLMEDGEFAQSLSDLLFEKLGAGQTPGELLNPLVLNSVLSKALQCSLHGDTPHASNLSLALKYLPEVFAPNAPDVLSCLELRYKVDWPLNIVITEGCLSKYSGVFSFLLQLKLMMWALKDVCFHLKRTALLSHMAGSVQFRQLQLFKHEMQHFVKVIQGYIANQILHVTWCEFRARLATVGDLEEIQRAHAEYLHEAVFRGLLTEKAAPVMNVIHSIFSLVLKFRSQLISQAWGPPGGPRGAEHPNFALMQQSYNTFKYYSHFLFKVVTKLVNRGYQPHLEDFLLRINFNNYYQDA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 4 polymer

描述 description	Gamma-tubulin complex component 3
分子量 formula_weight	103710.1 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5,B,D,F,H,N

MATPDQKSPNVLLQNLCCRILGRSEADVAQQFQYAVRVIGSNFAPTVERDEFLVAEKIKKELIRQRREADAALFSELHRKLHSQGVLKNKWSILYLLLSLSEDPRRQPSKVSSYATLFAQALPRDAHSTPYYYARPQTLPLSYQDRSAQSAQSSGSVGSSGISSIGLCALSGPAPAPQSLLPGQSNQAPGVGDCLRQQLGSRLAWTLTANQPSSQATTSKGVPSAVSRNMTRSRREGDTGGTMEITEAALVRDILYVFQGIDGKNIKMNNTENCYKVEGKANLSRSLRDTAVRLSELGWLHNKIRRYTDQRSLDRSFGLVGQSFCAALHQELREYYRLLSVLHSQLQLEDDQGVNLGLESSLTLRRLLVWTYDPKIRLKTLAALVDHCQGRKGGELASAVHAYTKTGDPYMRSLVQHILSLVSHPVLSFLYRWIYDGELEDTYHEFFVASDPTVKTDRLWHDKYTLRKSMIPSFMTMDQSRKVLLIGKSINFLHQVCHDQTPTTKMIAVTKSAESPQDAADLFTDLENAFQGKIDAAYFETSKYLLDVLNKKYSLLDHMQAMRRYLLLGQGDFIRHLMDLLKPELVRPATTLYQHNLTGILETAVRATNAQFDSPEILRRLDVRLLEVSPGDTGWDVFSLDYHVDGPIATVFTRECMSHYLRVFNFLWRAKRMEYILTDIRKGHMCNAKLLRNMPEFSGVLHQCHILASEMVHFIHQMQYYITFEVLECSWDELWNKVQQAQDLDHIIAAHEVFLDTIISRCLLDSDSRALLNQLRAVFDQIIELQNAQDAIYRAALEELQRRLQFEEKKKQREIEGQWGVTAAEEEEENKRIGEFKESIPKMCSQLRILTHFYQGIVQQFLVLLTTSSDESLRFLSFRLDFNEHYKAREPRLRVSLGTRGRRSSHT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 5 polymer

描述 description	Mitotic-spindle organizing protein 1
分子量 formula_weight	8485.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7,8

MASSSGAGAAAAAAAANLNAVRETMDVLLEISRILNTGLDMETLSICVRLCEQGINPEALSSVIKELRKATEALKAAENMTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 6 polymer

描述 description	Actin, cytoplasmic 1
分子量 formula_weight	41782.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9

MDDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 7 polymer

描述 description	Isoform 3 of Gamma-tubulin complex component 2
分子量 formula_weight	105581.5 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,M

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIVLLGWSLALSPRLKCSGVISAHCGLHLPGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 8 polymer

描述 description	Isoform 2 of Gamma-tubulin complex component 4
分子量 formula_weight	76108.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,K

MIHELLLALSGYPGSIFTWNKRSGLQVSQDFPFLHPSETSVLNRLCRLGTDYIRFTEFIEQYTGHVQQQDHHPSQQGQGGLHGIYLRAFCTGLDSVLQPYRQALLDLEQEFLGDPHLSISHVNYFLDQFQLLFPSVMVVVEQIKSQKIHGCQILETVYKHSCGGLPPVRSALEKILAVCHGVMYKQLSAWMLHGLLLDQHEEFFIKQGPSSGNVSAQPEEDEEDLGIGGLTGKQLRELQDLRLIEEENMLAPSLKQFSLRVEILPSYIPVRVAEKILFVGESVQMFENQNVNLTRKGSILKNQEDTFAAELHRLKQQPLFSLVDFEQVVDRIRSTVAEHLWKLMVEESDLLGQLKIIKDFYLLGRGELFQAFIDTAQHMLKTPPTAVTEHDVNVAFQQSAHKVLLDDDNLLPLLHLTIEYHGKEHKDATQAREGPSRETSPREAPASGWAALGLSYKVQWPLHILFTPAVLEKYNVVFKYLLSVRRVQAELQHCWALQMQRKHLKSNQTDAIKWRLRNHMAFLVDNLQYYLQVDVLESQFSQLLHQINSTRDFESIRLAHDHFLSNLLAQSFILLKPVFHCLNEILDLCHSFCSLVSQNLGPLDERGAAQLSILVKGFSRQSSLLFKILSSVRNHQINSDLAQLLLRLDYNKYYTQAGGTLGSFGM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 9 polymer

描述 description	Gamma-tubulin complex component 5
分子量 formula_weight	118367.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MARHGPPWSRLDAQQERDVRELVRGVAGLQDEADPNFQLALNFAWSNFRFHRFLDVNSHKIEKTIEGIYEKFVIHSDLSKAASWKRLTEEFLNAPLPSIKEIKTDAHYSILSLLLCLSDSPSNSSYVETPRNKEVEKKDDFDWGKYLMEDEEMDIGPYMDTPNWSEESEEENDQQPLSREDSGIQVDRTPLEEQDQNGKLDPCISWKDEPDDRSWLEHHVVHQYWTARPSQFPHSLHLHSNLAAVWDQHLYSSDPLYVPDDRVLVTETQVIRETLWLLSGVKKLFIFQLIDGKVTVRNNIIVTHLTHSCLRSVLEQIAAYGQVVFRLQEFIDEVMGHSSESMLPGSGSVPKKSTEAPFRTYQAFMWALYKYFISFKEELAEIEKCIINNDTTITLAIVVDKLAPRLSQLKVLHKVFSTGVAEVPPDTRNVVRASHLLNTLYKAILEYDNVGEASEQTVSLLFSLWVETVRPYLQTVDEWIVHGHLWDGAREFIIQRNKNVPVNHRDFWYATYTLYSVSEKTENEEKMSDNASASSGSDQGPSSRQHTMVSFLKPVLKQIIMAGKSMQLLKNLQCAESTTCQAGARDAERKSLYTLFLESVQSRLRHGEDSTPQVLTEQQATKENLMKMQSIAESHLELDDVHDPLLAINFARMYLEQSDFHEKFAGGDVCVDRSSESVTCQTFELTLRSCLYPHIDKQYLDCCGNLMQTLKKDYRLVEYLQAMRNFFLMEGGDTMYDFYTSIFDKIREKETWQNVSFLNVQLQEAVGQRYPEDSSRLSISFENVDTAKKKLPVHILDGLTLSYKVPWPVDIVISLECQKIYNQVFLLLLQIKWAKYSLDVLLFGELVSTAEKPRLKEGLIHEQDTVAQFGPQKEPVRQQIHRMFLLRVKLMHFVNSLHNYIMTRILHSTGLEFQHQVEEAKDLDQLIKIHYRYLSTIHDRCLLREKVSFVKEAIMKVLNLALMFADGWQAGLGTWRMESIEKMESDFKNCHMFLVTILNKAVCRGSFPHLESLALSLMAGMEQS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 10 polymer

描述 description	Tubulin gamma-1 chain
分子量 formula_weight	52022.6 kDa
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f,g,h,i,j,k,l,m,n

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEGIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYAKLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSDVVVQPYNSLLTLKRLTQNADCVVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTSISSLFERTCRQYDKLRKREAFLEQFRKEDMFKDNFDEMDTSREIVQQLIDEYHAATRPDYISWGTQEQENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

▶

7. 引用文献 (1)

▶

分辨率 resolution	7.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	32375

fit	/app/data/saxs_computation/vr/8vrj/8vrj.fit
pddf	/app/data/pr_computation/vr/8vrj/8vrj.pr.out
profile	/app/data/saxs_computation/vr/8vrj/8vrj.dat
