Structure of MZT2/GCP-NHD and CDK5Rap2 at position 13 of the gamma-TuRC

Method: ELECTRON MICROSCOPY D_max: 70.0 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitotic-spindle organizing protein 2A

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–158	Not recorded	Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Centrosome protein Cep215 × 2 （Q66GT8）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6X0V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8RX1 CryoEM structure of the gTuRC-CM1dim complex Deposited 2024-02-06	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain e 1–158（158 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.57 Å
9H9P Spokes 12 and 13 of the human gamma-tubulin ring complex in complex with CDK5RAP2 and docked MZT2/GCP2-NHD module Deposited 2024-10-31	Different oligomeric state Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain C 1–158（158 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
9SMX CM1-activated gTuRC in complex with nascent alpha-E254D mutant microtubules Deposited 2025-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 73 PDB declaration: 73-meric	Chain CM 1–158（158 aa） Chain EM 1–158（158 aa） Chain GM 1–158（158 aa） Chain MM 1–158（158 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 6.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.67 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MZT2A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–158； UniProt 1–158

Gamma-tubulin complex component 2

OrganismNot specified

UniProt Q9BSJ2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain F； UniProt 1–930	Not recorded	Mitotic-spindle organizing protein 2A × 1 （Q6P582） Centrosome protein Cep215 × 2 （Q66GT8）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.50 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6X0V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6V6B Structures of GCP2 and GCP3 in the native human gamma-tubulin ring complex Deposited 2019-12-04	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–930（930 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6V6S Structure of the native human gamma-tubulin ring complex Deposited 2019-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 38 PDB declaration: 38-meric	Chain A 1–930（930 aa） Chain C 1–930（930 aa） Chain E 1–930（930 aa） Chain G 1–930（930 aa） Chain M 1–930（930 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
7AS4 Recombinant human gTuRC Deposited 2020-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
7QJ0 Structure of recombinant human gamma-Tubulin Ring Complex 6-spoked assembly intermediate (spokes 7-12) Deposited 2021-12-16	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.32 Å
7QJ1 Structure of the recombinant human gamma-Tubulin Ring Complex 6-spoked assembly intermediate (spokes 7-12, homogeneous dataset) Deposited 2021-12-16	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
7QJ2 Structure of recombinant human gamma-Tubulin Ring Complex 8-spoked assembly intermediate (spokes 5-12) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain E 1–902（902 aa） Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.60 Å
7QJ3 Structure of recombinant human gamma-Tubulin Ring Complex 8-spoked assembly intermediate (spokes 7-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.60 Å
7QJ4 Structure of recombinant human gamma-Tubulin Ring Complex 10-spoked assembly intermediate (spokes 5-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
7QJ5 Structure of recombinant human gamma-Tubulin Ring Complex (spokes 1-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 41 PDB declaration: 41-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
7QJ6 Structure of recombinant human gamma-Tubulin Ring Complex 10-spoked assembly intermediate (spokes 3-12, substoichiometric spokes 13-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.80 Å
7QJ7 Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 1-12 substoichiometric spokes 13-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
7QJ8 Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 3-14, substoichiometric spokes 1-2) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
7QJ9 Structure of recombinant human gamma-Tubulin Ring Complex 10-spoked assembly intermediate (spokes 3-12, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.10 Å
7QJA Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 1-12, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.20 Å
7QJB Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 3-14, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.20 Å
7QJC Structure of recombinant human gamma-Tubulin Ring Complex (spokes 1-14, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 41 PDB declaration: 41-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 16.10 Å
7QJD Structure of recombinant human gamma-Tubulin Ring Complex without actin Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 42 PDB declaration: 42-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.10 Å
8Q62 Early closed conformation of the g-tubulin ring complex Deposited 2023-08-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.72 Å
8RX1 CryoEM structure of the gTuRC-CM1dim complex Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain M 1–902（902 aa） Chain f 1–902（902 aa） Chain k 1–902（902 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.57 Å
8VRD Rigid body fitted model for free recombinant gamma tubulin ring complex. Deposited 2024-01-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 34 PDB declaration: 34-meric	Chain A 1–930（930 aa） Chain C 1–930（930 aa） Chain E 1–930（930 aa） Chain G 1–930（930 aa） Chain M 1–930（930 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
8VRJ Rigid body fitted model for gamma tubulin ring complex capped microtubule Deposited 2024-01-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric	Chain A 1–930（930 aa） Chain C 1–930（930 aa） Chain E 1–930（930 aa） Chain G 1–930（930 aa） Chain M 1–930（930 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.70 Å
8VRK Rigid body fitted model for refined density map of gamma tubulin ring complex capped microtubule Deposited 2024-01-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 60 PDB declaration: 60-meric	Chain A 1–930（930 aa） Chain C 1–930（930 aa） Chain E 1–930（930 aa） Chain G 1–930（930 aa） Chain M 1–930（930 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.50 Å
9H9P Spokes 12 and 13 of the human gamma-tubulin ring complex in complex with CDK5RAP2 and docked MZT2/GCP2-NHD module Deposited 2024-10-31	Different oligomeric state Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain M 1–930（930 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
9I8G Inwards conformation' of the human gamma-TuRC from purified centrosomes obtained by rigid body docking Deposited 2025-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 22.40 Å
9I8H Outwards conformation' of the human gamma-TuRC from purified centrosomes obtained by rigid body docking Deposited 2025-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain E 1–902（902 aa） Chain G 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 23.20 Å
9QVM Cryo-EM reconstruction of the NEDD1 anchor protein and CDK5RAP2 bound to the gamma-tubulin ring complex Deposited 2025-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric	Chain A 1–930（930 aa） Chain C 1–930（930 aa） Chain E 1–930（930 aa） Chain G 1–930（930 aa） Chain M 1–930（930 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.80 Å
9QVN Cryo-EM reconstruction of the NEDD1 anchor protein bound to the gamma-tubulin ring complex Deposited 2025-04-11	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric	Chain A 1–930（930 aa） Chain C 1–930（930 aa） Chain E 1–930（930 aa） Chain G 1–930（930 aa） Chain M 1–930（930 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
9SMX CM1-activated gTuRC in complex with nascent alpha-E254D mutant microtubules Deposited 2025-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 73 PDB declaration: 73-meric	Chain A 1–902（902 aa） Chain C 1–902（902 aa） Chain CN 1–902（902 aa） Chain E 1–902（902 aa） Chain EN 1–902（902 aa） Chain G 1–902（902 aa） Chain GN 1–902（902 aa） Chain M 1–902（902 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 6.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.67 Å

28 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GCP2_HUMAN
Isoform	Q9BSJ2-4
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–930； UniProt 1–930

Centrosome protein Cep215

OrganismNot specified

UniProt Q66GT8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 1–1893 Chain H； UniProt 1–1893	Not recorded	Mitotic-spindle organizing protein 2A × 1 （Q6P582） Gamma-tubulin complex component 2 × 1 （Q9BSJ2）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.50 Å

Other States of the Same Protein in the Database

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q66GT8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–1893； UniProt 1–1893 Author chain H； PDBConstruct 1–1893； UniProt 1–1893

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6x0v
Deposition date deposition_date	2020-05-17
Structure title title	Structure of MZT2/GCP-NHD and CDK5Rap2 at position 13 of the gamma-TuRC
Keywords keywords	gamma-TuRC, MZT2, GCP, CDK5Rap2, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.90 Å
Radius of gyration Rg (electron density) rg_electron	21.44 Å
Forward intensity I(0) i0	8000860.00
Molecular weight molecular_weight	18645.0 kDa
Excluded volume excluded_volume	22417 Å³
Envelope volume envelope_volume	35451 Å³
Hydration-shell volume shell_volume	15382 Å³
Envelope diameter envelope_diameter	71.8 Å
Shell Rg shell_rg	25.50 Å
Envelope Rg envelope_rg	20.86 Å
Shape Rg shape_rg	21.39 Å
Total Rg total_rg	22.21 Å
Total atoms total_atoms	1384
Residues n_residues	211
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

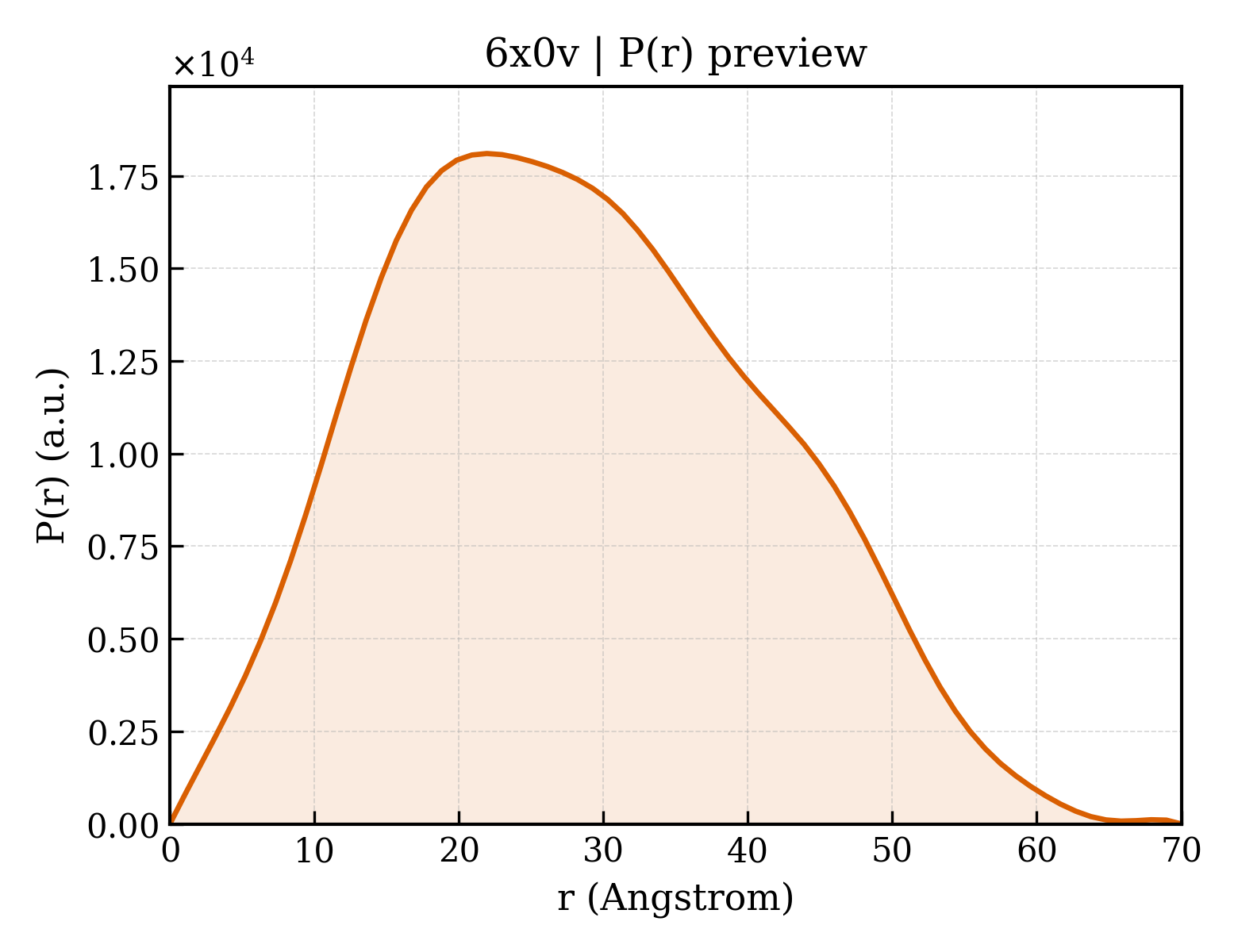

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.0 Å
Rg (real space) rg_real	21.91 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	8.0010e+06
I(0) uncertainty (real space) i0_real_error	1.1080e+05
Rg (reciprocal space) rg_reciprocal	21.91 Å
I(0) (reciprocal space) i0_reciprocal	8001000.0000
Solution quality estimate total_estimate	0.9057
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.9 Å
Skewness Skewness skewness	0.251
Kurtosis Kurtosis kurtosis	-0.604
Angular range angular_range	— – 0.3650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1198000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.943; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Mitotic-spindle organizing protein 2A
Molecular weight formula_weight	16240.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	1384

MAAQGVGPGPGSAAPPGLEAARQKLALRRKKVLSTEEMELYELAQAAGGGIDPDVFKILVDLLKLNVAPLAVFQMLKSMCAGQRLASEPQDPAAVSLPTSSVPETRGRDKGSAALGGVLALAERSNHEGSSQRMPRQPSATRLPKGGGPGKSPTQGST

Entity 2 Entity 2 polymer

Description description	Gamma-tubulin complex component 2
Molecular weight formula_weight	105765.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIVLLRWNLALSPRLKCSGVISAHCNLHLPGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

Entity 3 Entity 3 polymer

Description description	Centrosome protein Cep215
Molecular weight formula_weight	215417.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

MMDLVLEEDVTVPGTLSGCSGLVPSVPDDLDGINPNAGLGNGLLPNVSEETVSPTRARNMKDFENQITELKKENFNLKLRIYFLEERMQQEFHGPTEHIYKTNIELKVEVESLKRELQEREQLLIKASKAVESLAEAGGSEIQRVKEDARKKVQQVEDLLTKRILLLEKDVTAAQAELEKAFAGTETEKALRLRLESKLSEMKKMHEGDLAMALVLDEKDRLIEELKLSLKSKEALIQCLKEEKSQMACPDENVSSGELRGLCAAPREEKERETEAAQMEHQKERNSFQERIQALEEDLREKEREIATEKKNSLKRDKAIQGLTMALKSKEKKVEELNSEIEKLSAAFAKAREALQKAQTQEFQGSEDYETALSGKEALSAALRSQNLTKSTENHRLRRSIKKITQELSDLQQERERLEKDLEEAHREKSKGDCTIRDLRNEVEKLRNEVNEREKAMENRYKSLLSESNKKLHNQEQVIKHLTESTNQKDVLLQKFNEKDLEVIQQNCYLMAAEDLELRSEGLITEKCSSQQPPGSKTIFSKEKKQSSDYEELIQVLKKEQDIYTHLVKSLQESDSINNLQAELNKIFALRKQLEQDVLSYQNLRKTLEEQISEIRRREEESFSLYSDQTFYLSICLEENNRFQVEHFSQEELKKKVSDLIQLVKELYTDNQHLKKTIFDLSCMGFQGNGFPDRLASTEQTELLASKEDEDTIKIGEDDEINFLSDQHLQQSNEIMKDLSKGGCKNGYLRHTESKISDCDGAHAPGCLEEGAFINLLAPLFNEKATLLLESRPDLLKVVRELLLGQLFLTEQEVSGEHLDGKTEKTPKQKGELVHFVQTNSFSKPHDELKLSCEAQLVKAGEVPKVGLKDASVQTVATEGDLLRFKHEATREAWEEKPINTALSAEHRPENLHGVPGWQAALLSLPGITNREAKKSRLPILIKPSRSLGNMYRLPATQEVVTQLQSQILELQGELKEFKTCNKQLHQKLILAEAVMEGRPTPDKTLLNAQPPVGAAYQDSPGEQKGIKTTSSVWRDKEMDSDQQRSYEIDSEICPPDDLASLPSCKENPEDVLSPTSVATYLSSKSQPSAKVSVMGTDQSESINTSNETEYLKQKIHDLETELEGYQNFIFQLQKHSQCSEAIITVLCGTEGAQDGLSKPKNGSDGEEMTFSSLHQVRYVKHVKILGPLAPEMIDSRVLENLKQQLEEQEYKLQKEQNLNMQLFSEIHNLQNKFRDLSPPRYDSLVQSQARELSLQRQQIKDGHGICVISRQHMNTMIKAFEELLQASDVDYCVAEGFQEQLNQCAELLEKLEKLFLNGKSVGVEMNTQNELMERIEEDNLTYQHLLPESPEPSASHALSDYETSEKSFFSRDQKQDNETEKTSVMVNSFSQDLLMEHIQEIRTLRKRLEESIKTNEKLRKQLERQGSEFVQGSTSIFASGSELHSSLTSEIHFLRKQNQALNAMLIKGSRDKQKENDKLRESLSRKTVSLEHLQREYASVKEENERLQKEGSEKERHNQQLIQEVRCSGQELSRVQEELKLRQQLLSQNDKLLQSLRVELKAYEKLDEEHRRLREASGEGWKGQDPFRDLHSLLMEIQALRLQLERSIETSSTLQSRLKEQLARGAEKAQEGALTLAVQAVSIPEVPLQPDKHDGDKYPMESDNSFDLFDSSQAVTPKSVSETPPLSGNDTDSLSCDSGSSATSTPCVSRLVTGHHLWASKNGRHVLGLIEDYEALLKQISQGQRLLAEMDIQTQEAPSSTSQELGTKGPHPAPLSKFVSSVSTAKLTLEEAYRRLKLLWRVSLPEDGQCPLHCEQIGEMKAEVTKLHKKLFEQEKKLQNTMKLLQLSKRQEKVIFDQLVVTHKILRKARGNLELRPGGAHPGTCSPSRPGS

▶

8. Citations (1)

▶

Resolution resolution	4.50 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	137513

fit	/app/data/saxs_computation/x0/6x0v/6x0v.fit
pddf	/app/data/pr_computation/x0/6x0v/6x0v.pr.out
profile	/app/data/saxs_computation/x0/6x0v/6x0v.dat
