SAXSdb — 8q62

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8q62
沉积日期 deposition_date	2023-08-10
结构标题 title	Early closed conformation of the g-tubulin ring complex
关键词 keywords	Microtubule, cytoskeleton, g-tubulin ring complex, tubulin, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	111.00 Å
零角强度 I(0) i0	35457800000.00
分子量 molecular_weight	1641300.0 kDa
排除体积 excluded_volume	2065500 Å³
包络体积 envelope_volume	4240500 Å³
水化壳体积 shell_volume	322420 Å³
包络直径 envelope_diameter	312.6 Å
壳层 Rg shell_rg	113.40 Å
包络 Rg envelope_rg	99.76 Å
形状 Rg shape_rg	111.00 Å
总 Rg total_rg	111.00 Å
总原子数 total_atoms	230564
残基数 n_residues	14273
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	368.7 Å
Rg (实空间) rg_real	115.00 Å
Rg 误差 (实空间) rg_real_error	2.49 Å
I(0) (实空间) i0_real	3.5460e+10
I(0) 误差 (实空间) i0_real_error	8.2640e+08
Rg (倒空间) rg_reciprocal	115.40 Å
I(0) (倒空间) i0_reciprocal	35820000000.0000
解质量估计 total_estimate	0.8648
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	184.3 Å
偏度 Skewness skewness	0.095
峰度 Kurtosis kurtosis	-0.372
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.9364
最高正则化参数 α highest_alpha	649800000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.854; Stabil: 0.917; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Tubulin gamma-1 chain
分子量 formula_weight	51227.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k,a,b,c,d,e,f,g,h,i,j,l,m,n
原子数 atom_count	230788

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEGIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYAKLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSDVVVQPYNSLLTLKRLTQNADCVVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTSISSLFERTCRQYDKLRKREAFLEQFRKEDMFKDNFDEMDTSREIVQQLIDEYHAATRPDYISWGTQEQ

Entity 2 polymer

描述 description	Gamma-tubulin complex component 5
分子量 formula_weight	118467.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MARHGPPWSRLDAQQERDVRELVRGVAGLQDEADPNFQLALNFAWSNFRFHRFLDVNSHKIEKTIEGIYEKFVIHSDLSKAASWKRLTEEFLNAPLPSIKEIKTDAHYSILSLLLCLSDSPSNSSYVETPRNKEVEKKDDFDWGKYLMEDEEMDIGPYMDTPNWSEESEEENDQQPLSREDSGIQVDRTPLEEQDQNRKLDPCISWKDEPDDRSWLEHHVVHQYWTARPSQFPHSLHLHSNLAAVWDQHLYSSDPLYVPDDRVLVTETQVIRETLWLLSGVKKLFIFQLIDGKVTVRNNIIVTHLTHSCLRSVLEQIAAYGQVVFRLQEFIDEVMGHSSESMLPGSGSVPKKSTEAPFRTYQAFMWALYKYFISFKEELAEIEKCIINNDTTITLAIVVDKLAPRLSQLKVLHKVFSTGVAEVPPDTRNVVRASHLLNTLYKAILEYDNVGEASEQTVSLLFSLWVETVRPYLQTVDEWIVHGHLWDGAREFIIQRNKNVPVNHRDFWYATYTLYSVSEKTENEEKMSDNASASSGSDQGPSSRQHTMVSFLKPVLKQIIMAGKSMQLLKNLQCAESTTCQAGARDAERKSLYTLFLESVQSRLRHGEDSTPQVLTEQQATKENLMKMQSIAESHLELDDVHDPLLAINFARMYLEQSDFHEKFAGGDVCVDRSSESVTCQTFELTLRSCLYPHIDKQYLDCCGNLMQTLKKDYRLVEYLQAMRNFFLMEGGDTMYDFYTSIFDKIREKETWQNVSFLNVQLQEAVGQRYPEDSSRLSISFENVDTAKKKLPVHILDGLTLSYKVPWPVDIVISLECQKIYNQVFLLLLQIKWAKYSLDVLLFGELVSTAEKPRLKEGLIHEQDTVAQFGPQKEPVRQQIHRMFLLRVKLMHFVNSLHNYIMTRILHSTGLEFQHQVEEAKDLDQLIKIHYRYLSTIHDRCLLREKVSFVKEAIMKVLNLALMFADGWQAGLGTWRMESIEKMESDFKNCHMFLVTILNKAVCRGSFPHLESLALSLMAGMEQS

Entity 3 polymer

描述 description	Gamma-tubulin complex component 4
分子量 formula_weight	76180.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,I

MIHELLLALSGYPGSIFTWNKRSGLQVSQDFPFLHPSETSVLNRLCRLGTDYIRFTEFIEQYTGHVQQQDHHPSQQGQGGLHGIYLRAFCTGLDSVLQPYRQALLDLEQEFLGDPHLSISHVNYFLDQFQLLFPSVMVVVEQIKSQKIHGCQILETVYKHSCGGLPPVRSALEKILAVCHGVMYKQLSAWMLHGLLLDQHEEFFIKQGPSSGNVSAQPEEDEEDLGIGGLTGKQLRELQDLRLIEEENMLAPSLKQFSLRVEILPSYIPVRVAEKILFVGESVQMFENQNVNLTRKGSILKNQEDTFAAELHRLKQQPLFSLVDFEQVVDRIRSTVAEHLWKLMVEESDLLGQLKIIKDFYLLGRGELFQAFIDTAQHMLKTPPTAVTEHDVNVAFQQSAHKVLLDDDNLLPLLHLTIEYHGKEHKADATQAREGPSRETSPREAPASGWAALGLSYKVQWPLHILFTPAVLEKYNVVFKYLLSVRRVQAELQHCWALQMQRKHLKSNQTDAIKWRLRNHMAFLVDNLQYYLQVDVLESQFSQLLHQINSTRDFESIRLAHDHFLSNLLAQSFILLKPVFHCLNEILDLCHSFCSLVSQNLGPLDERGAAQLSILVKGFSRQSSLLFKILSSVRNHQINSDLAQLLLRLDYNKYYTQAGGTLGSFGM

Entity 4 polymer

描述 description	Gamma-tubulin complex component 3
分子量 formula_weight	103710.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,N

MATPDQKSPNVLLQNLCCRILGRSEADVAQQFQYAVRVIGSNFAPTVERDEFLVAEKIKKELIRQRREADAALFSELHRKLHSQGVLKNKWSILYLLLSLSEDPRRQPSKVSSYATLFAQALPRDAHSTPYYYARPQTLPLSYQDRSAQSAQSSGSVGSSGISSIGLCALSGPAPAPQSLLPGQSNQAPGVGDCLRQQLGSRLAWTLTANQPSSQATTSKGVPSAVSRNMTRSRREGDTGGTMEITEAALVRDILYVFQGIDGKNIKMNNTENCYKVEGKANLSRSLRDTAVRLSELGWLHNKIRRYTDQRSLDRSFGLVGQSFCAALHQELREYYRLLSVLHSQLQLEDDQGVNLGLESSLTLRRLLVWTYDPKIRLKTLAALVDHCQGRKGGELASAVHAYTKTGDPYMRSLVQHILSLVSHPVLSFLYRWIYDGELEDTYHEFFVASDPTVKTDRLWHDKYTLRKSMIPSFMTMDQSRKVLLIGKSINFLHQVCHDQTPTTKMIAVTKSAESPQDAADLFTDLENAFQGKIDAAYFETSKYLLDVLNKKYSLLDHMQAMRRYLLLGQGDFIRHLMDLLKPELVRPATTLYQHNLTGILETAVRATNAQFDSPEILRRLDVRLLEVSPGDTGWDVFSLDYHVDGPIATVFTRECMSHYLRVFNFLWRAKRMEYILTDIRKGHMCNAKLLRNMPEFSGVLHQCHILASEMVHFIHQMQYYITFEVLECSWDELWNKVQQAQDLDHIIAAHEVFLDTIISRCLLDSDSRALLNQLRAVFDQIIELQNAQDAIYRAALEELQRRLQFEEKKKQREIEGQWGVTAAEEEEENKRIGEFKESIPKMCSQLRILTHFYQGIVQQFLVLLTTSSDESLRFLSFRLDFNEHYKAREPRLRVSLGTRGRRSSHT

Entity 5 polymer

描述 description	Gamma-tubulin complex component 2
分子量 formula_weight	102667.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E,G,M,A

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

Entity 6 polymer

描述 description	Gamma-tubulin complex component 6
分子量 formula_weight	200733.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MASITQLFDDLCEALLPAAKTHLGQRSVNRKRAKRSLKKVAYNALFTNLFQDETQQLQPDMSKLPARNKILMLSFDLRVGGLGPKADRLEELVEELEAAPCCPLLEVGSVLDLLVQLAGSGPPQVLPRKRDYFLNNKHVGRNVPYSGYDCDDLSVFEMDVQSLISREECLCHSMIQETLQVMEAAPGTGLPTVGLFSFGDPCGDRFERDTRVSLFGALVHSRTYDMDVRLGLPPVPDNADLSGLAIKVPPSVDQWEDEGFQSASNLTPDSQSEPSVTPDVDLWEAALTYEASKRRCWERVGCPPGHREEPYLTEAGRDAFDKFCRLHQGELQLLAGGVLQAPQPVLVKECELVKDVLNVLIGVVSATFSLCQPAQAFVVKRGVHVSGASPESISSLLSEVAEYGTCYTRLSHFSLQPVLDSLYSKGLVFQAFTSGLRRYLQYYRACVLSTPPTLSLLTIGFLFKKLGRQLRYLAELCGVGAVLPGTCGGGPRAAFPTGVKLLSYLYQEALHNCSNEHYPVLLSLLKTSCEPYTRFIHDWVYSGVFRDAYGEFMIQVNHEYLSFRDKLYWTHGYVLISKEVEDCVPVFLKHIAHDIYVCGKTINLLKLCCPRHYLCWSDVPVPRISVIFSLEELKEIEKDCAVYVGRMERVARHSSVSKEEKELRMEIAKQELIAHAREAASRVLSALSDRQMSERMALDARKREQFQRLKEQFVKDQERRQAARQEELDDDFSYARELRDRERRLKSLEEELERKARQALVDHYSKLSAEAARREQKALWRIQRHRLESARLRFLLEDEKHIQEMLKAVSEAHQPQEPPDVLLSVHPQVTSPGPEHPEGGQGCDSGSAEQHSPAWDGWNRPGLLTPQPLKPLAVGAGGRGLQQAEGARPFSDSLSIGDFLPVGPGAEPSVQTGMVPLLEVALQTINLDLPPSAPGEAPAAASTQPSRPQEYDFSTVLRPAVATSPAPGPLQAAECSLGSSGLQLWEDSCGKMDACGSASRETLLPSHPPRRAALEEGSSQPTERLFGQVSGGGLPTGDYASEIAPTRPRWNTHGHVSDASIRVGENVSDVAPTQPRWNTHGHVSNASISLGESVSDVAPTRPRWNIHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSDASISLGESVSDMAPARPRWNTHGHVSDASISLGESVSDMAPTRPRWNTHGHVSDTSIRVGENVSDVAPIRSRCNTHGHVSDASISLGEPVSDVVSTRPRWNTHVPIPPPHMVLGALSPEAEPNTPRPQQSPPGHTSQSALSLGAQSTVLDCGPRLPVEVGPSLSSPSSGCGEGSISVGENVSDVAPTQPWWPNTPGDSVSEELGPGRSGDTEDLSPNWPLNSQEDTAAQSSPGRGEEAEASAAEAQGGEQAYLAGLAGQYHLERYPDSYESMSEPPIAHLLRPVLPRAFAFPVDPQVQSAADETAVQLSELLTLPVLMKRSITAPLAAHISLVNKAAVDYFFVELHLEAHYEALRHFLLMEDGEFAQSLSDLLFEKLGAGQTPGELLNPLVLNSVLSKALQCSLHGDTPHASNLSLALKYLPEVFAPNAPDVLSCLELRYKVDWPLNIVITEGCVSKYSGVFSFLLQLKLMMWALKDVCFHLKRTALLSHMAGSVQFRQLQLFKHEMQHFVKVIQGYIANQILHVTWCEFRARLATVGDLEEIQRAHAEYLHKAVFRGLLTEKAAPVMNVIHSIFSLVLKFRSQLISQAWGPPGGPRGAEHPNFALMQQSYNTFKYYSHFLFKVVTKLVNRGYQPHLEDFLLRINFNNYYQDA

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.720 Å
最低分辨率 resolution_low	3.720 Å
R 因子 r_factor	0.5141
R_work r_work	0.5141
R_free r_free	—

分辨率 resolution	3.72 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	357509

fit	/app/data/saxs_computation/q6/8q62/8q62.fit
pddf	/app/data/pr_computation/q6/8q62/8q62.pr.out
profile	/app/data/saxs_computation/q6/8q62/8q62.dat

Early closed conformation of the g-tubulin ring complex

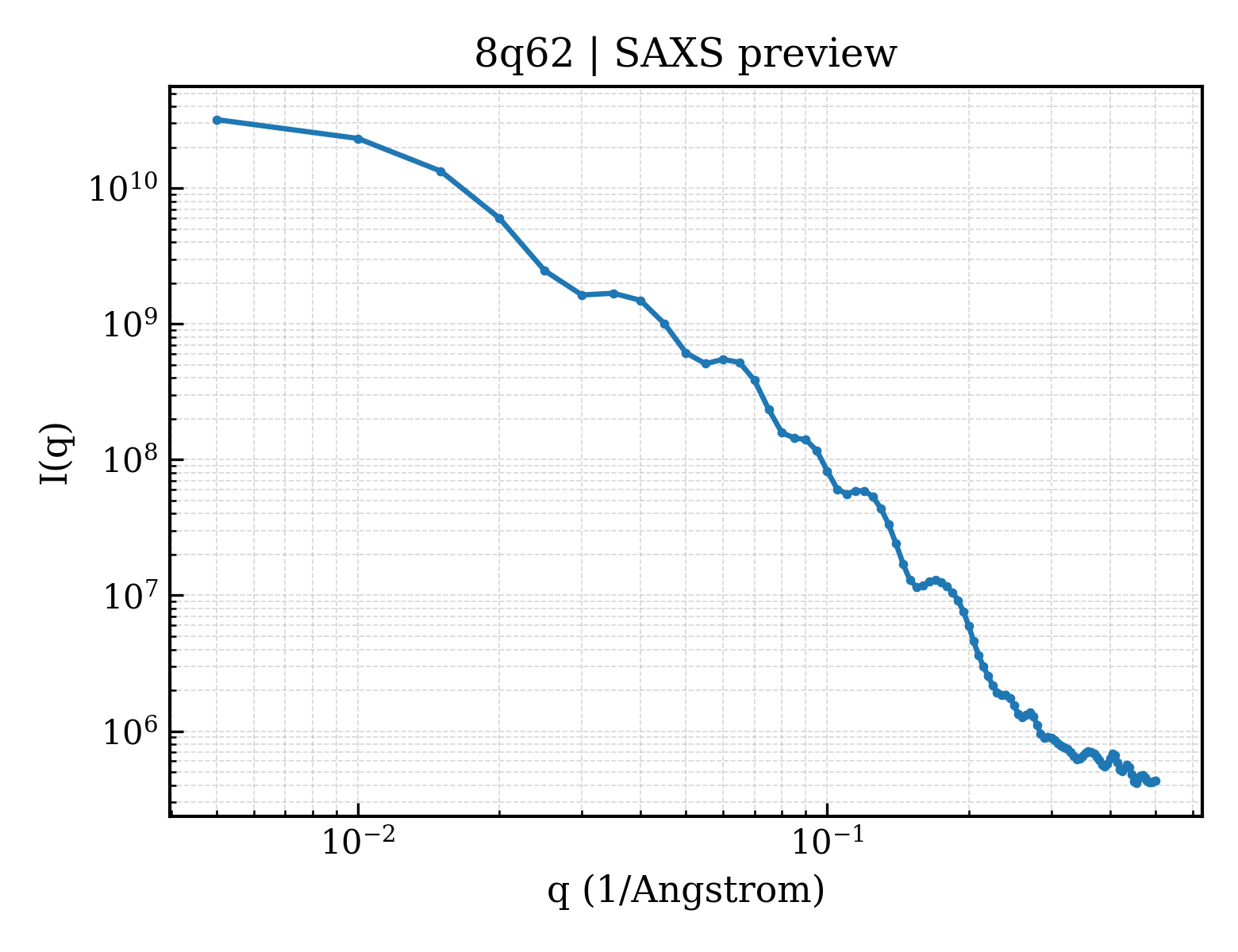

SAXS 散射曲线 SAXS Profile

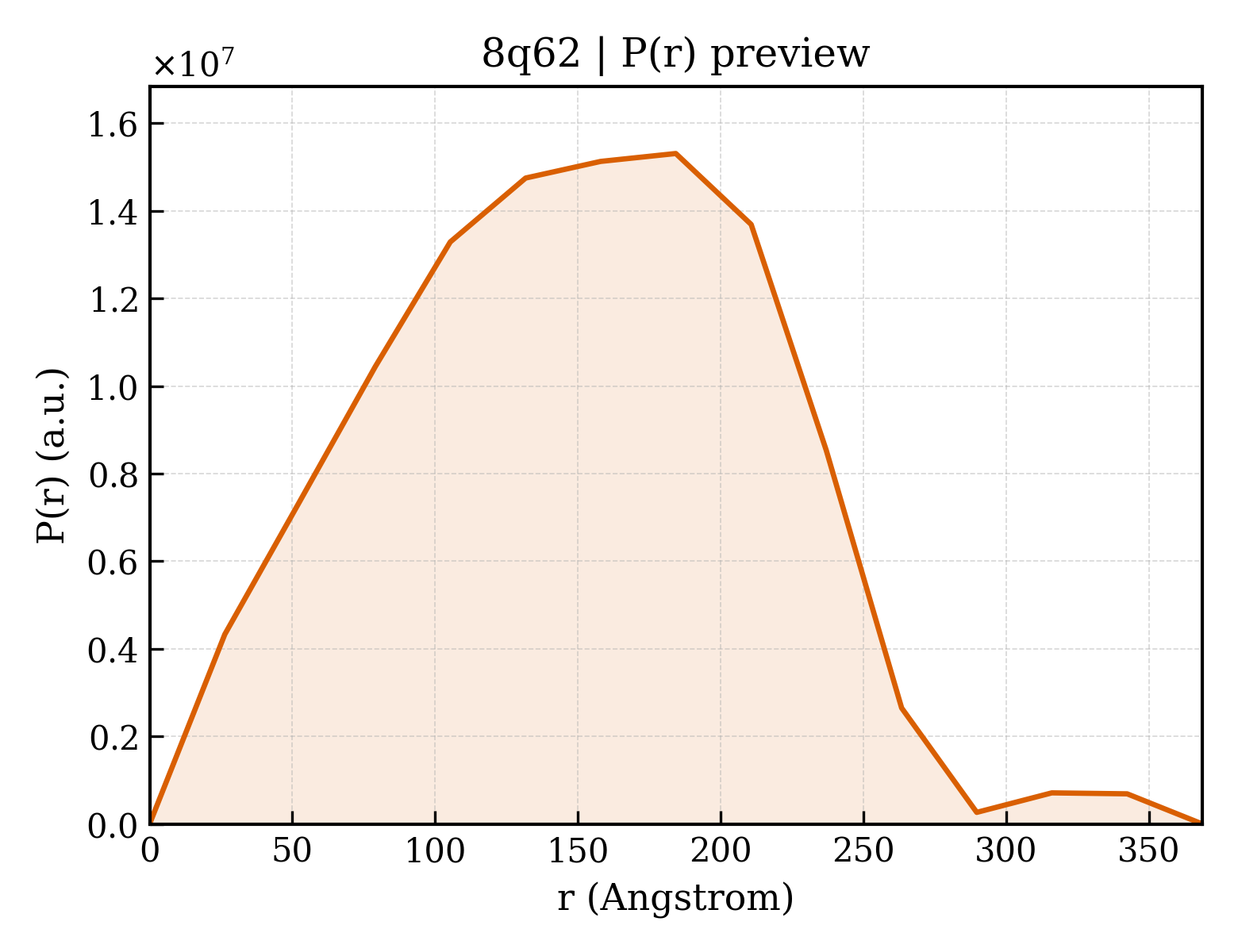

P(r) 距离分布 P(r) Distribution
