SAXSdb — 9h9p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CDK5 regulatory subunit-associated protein 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Gamma-tubulin complex component 6 × 1 （Q96RT7） Isoform 3 of Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Tubulin gamma-1 chain × 2 （P23258） Mitotic-spindle organizing protein 2A × 1 （Q6P582） GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CK5P2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1893； UniProt 1–1893 Author chain G； PDBConstruct 1–1893； UniProt 1–1893

Gamma-tubulin complex component 6

OrganismNot specified

UniProt Q96RT7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	CDK5 regulatory subunit-associated protein 2 × 2 （Q96SN8） Isoform 3 of Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Tubulin gamma-1 chain × 2 （P23258） Mitotic-spindle organizing protein 2A × 1 （Q6P582） GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP6_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain L； PDBConstruct 1–1819； UniProt 1–1819

Isoform 3 of Gamma-tubulin complex component 2

OrganismNot specified

UniProt Q9BSJ2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	CDK5 regulatory subunit-associated protein 2 × 2 （Q96SN8） Gamma-tubulin complex component 6 × 1 （Q96RT7） Tubulin gamma-1 chain × 2 （P23258） Mitotic-spindle organizing protein 2A × 1 （Q6P582） GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP2_HUMAN
Isoform	Q9BSJ2-4
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–930； UniProt 1–930

Tubulin gamma-1 chain

OrganismNot specified

UniProt P23258

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	CDK5 regulatory subunit-associated protein 2 × 2 （Q96SN8） Gamma-tubulin complex component 6 × 1 （Q96RT7） Isoform 3 of Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Mitotic-spindle organizing protein 2A × 1 （Q6P582） GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBG1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain l； PDBConstruct 1–451； UniProt 1–451 Author chain m； PDBConstruct 1–451； UniProt 1–451

Mitotic-spindle organizing protein 2A

OrganismNot specified

UniProt Q6P582

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	CDK5 regulatory subunit-associated protein 2 × 2 （Q96SN8） Gamma-tubulin complex component 6 × 1 （Q96RT7） Isoform 3 of Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Tubulin gamma-1 chain × 2 （P23258） GUANOSINE-5'-DIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MZT2A_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain C； PDBConstruct 1–158； UniProt 1–158

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9h9p
Deposition date deposition_date	2024-10-31
Last revision last_revision	2025-01-15
Structure title title	Spokes 12 and 13 of the human gamma-tubulin ring complex in complex with CDK5RAP2 and docked MZT2/GCP2-NHD module
Keywords keywords	;cytoskeleton, microtubule, microtubule nucleation, complex, template, cap, gamma-tubulin, gamma-tubulin ring complex, CDK5RAP2, Homo, sapiens, GCP6, GCP2, gamma-tubulin complex protein, MZT2, Mozart, Mozart2, module, CM1, CM1 motif, CEP215, CELL CYCLE ;; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9h9p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9h9p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

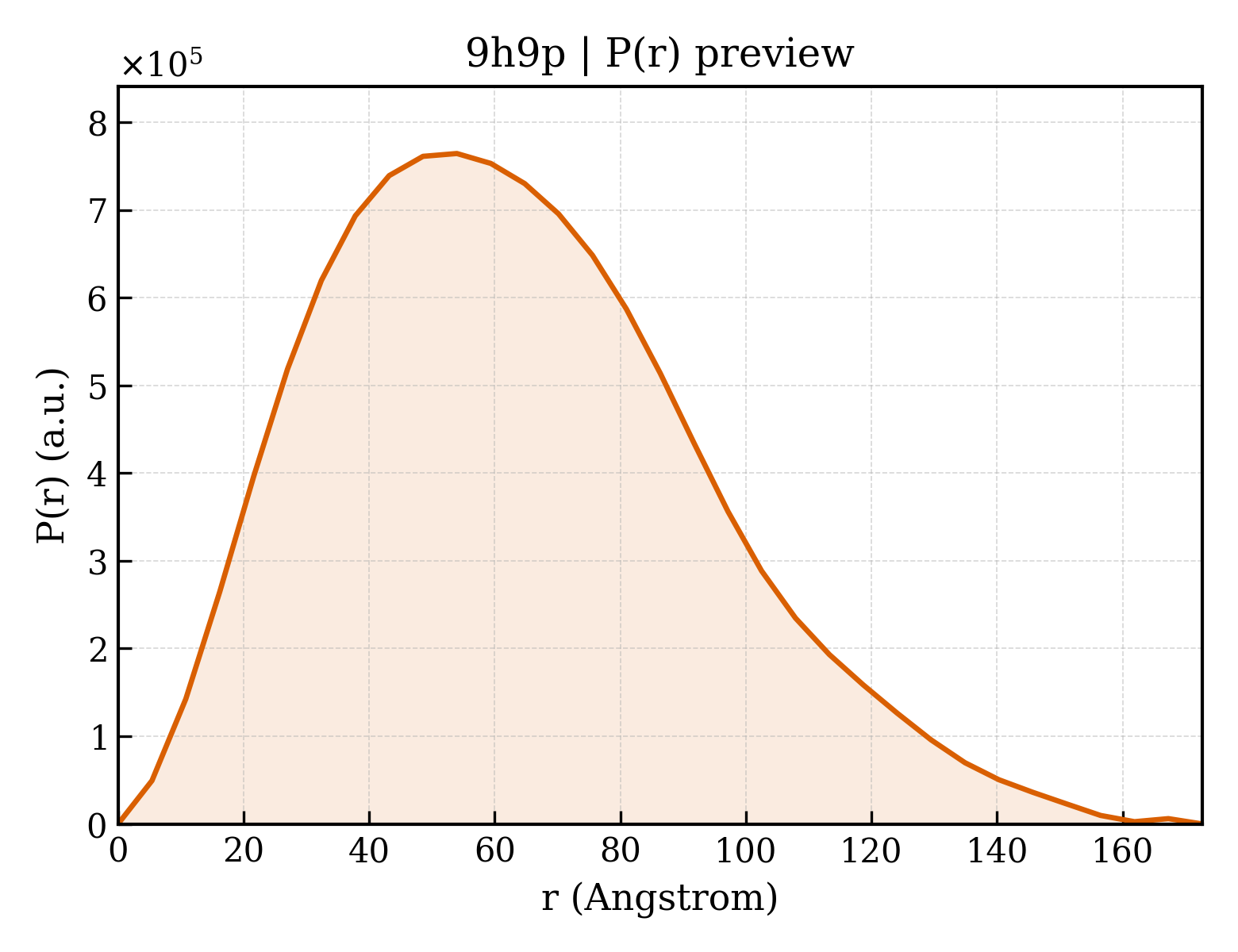

9h9p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.01 Å
Rg (electron density)	49.18 Å
Total Rg	49.27 Å
Atom count	16352
Residues	2016
Excluded volume	293410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9h9p__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	CDK5 regulatory subunit-associated protein 2
Molecular weight formula_weight	215417.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	16352

MMDLVLEEDVTVPGTLSGCSGLVPSVPDDLDGINPNAGLGNGLLPNVSEETVSPTRARNMKDFENQITELKKENFNLKLRIYFLEERMQQEFHGPTEHIYKTNIELKVEVESLKRELQEREQLLIKASKAVESLAEAGGSEIQRVKEDARKKVQQVEDLLTKRILLLEKDVTAAQAELEKAFAGTETEKALRLRLESKLSEMKKMHEGDLAMALVLDEKDRLIEELKLSLKSKEALIQCLKEEKSQMACPDENVSSGELRGLCAAPREEKERETEAAQMEHQKERNSFQERIQALEEDLREKEREIATEKKNSLKRDKAIQGLTMALKSKEKKVEELNSEIEKLSAAFAKAREALQKAQTQEFQGSEDYETALSGKEALSAALRSQNLTKSTENHRLRRSIKKITQELSDLQQERERLEKDLEEAHREKSKGDCTIRDLRNEVEKLRNEVNEREKAMENRYKSLLSESNKKLHNQEQVIKHLTESTNQKDVLLQKFNEKDLEVIQQNCYLMAAEDLELRSEGLITEKCSSQQPPGSKTIFSKEKKQSSDYEELIQVLKKEQDIYTHLVKSLQESDSINNLQAELNKIFALRKQLEQDVLSYQNLRKTLEEQISEIRRREEESFSLYSDQTFYLSICLEENNRFQVEHFSQEELKKKVSDLIQLVKELYTDNQHLKKTIFDLSCMGFQGNGFPDRLASTEQTELLASKEDEDTIKIGEDDEINFLSDQHLQQSNEIMKDLSKGGCKNGYLRHTESKISDCDGAHAPGCLEEGAFINLLAPLFNEKATLLLESRPDLLKVVRELLLGQLFLTEQEVSGEHLDGKTEKTPKQKGELVHFVQTNSFSKPHDELKLSCEAQLVKAGEVPKVGLKDASVQTVATEGDLLRFKHEATREAWEEKPINTALSAEHRPENLHGVPGWQAALLSLPGITNREAKKSRLPILIKPSRSLGNMYRLPATQEVVTQLQSQILELQGELKEFKTCNKQLHQKLILAEAVMEGRPTPDKTLLNAQPPVGAAYQDSPGEQKGIKTTSSVWRDKEMDSDQQRSYEIDSEICPPDDLASLPSCKENPEDVLSPTSVATYLSSKSQPSAKVSVMGTDQSESINTSNETEYLKQKIHDLETELEGYQNFIFQLQKHSQCSEAIITVLCGTEGAQDGLSKPKNGSDGEEMTFSSLHQVRYVKHVKILGPLAPEMIDSRVLENLKQQLEEQEYKLQKEQNLNMQLFSEIHNLQNKFRDLSPPRYDSLVQSQARELSLQRQQIKDGHGICVISRQHMNTMIKAFEELLQASDVDYCVAEGFQEQLNQCAELLEKLEKLFLNGKSVGVEMNTQNELMERIEEDNLTYQHLLPESPEPSASHALSDYETSEKSFFSRDQKQDNETEKTSVMVNSFSQDLLMEHIQEIRTLRKRLEESIKTNEKLRKQLERQGSEFVQGSTSIFASGSELHSSLTSEIHFLRKQNQALNAMLIKGSRDKQKENDKLRESLSRKTVSLEHLQREYASVKEENERLQKEGSEKERHNQQLIQEVRCSGQELSRVQEELKLRQQLLSQNDKLLQSLRVELKAYEKLDEEHRRLREASGEGWKGQDPFRDLHSLLMEIQALRLQLERSIETSSTLQSRLKEQLARGAEKAQEGALTLAVQAVSIPEVPLQPDKHDGDKYPMESDNSFDLFDSSQAVTPKSVSETPPLSGNDTDSLSCDSGSSATSTPCVSRLVTGHHLWASKNGRHVLGLIEDYEALLKQISQGQRLLAEMDIQTQEAPSSTSQELGTKGPHPAPLSKFVSSVSTAKLTLEEAYRRLKLLWRVSLPEDGQCPLHCEQIGEMKAEVTKLHKKLFEQEKKLQNTMKLLQLSKRQEKVIFDQLVVTHKILRKARGNLELRPGGAHPGTCSPSRPGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Gamma-tubulin complex component 6
Molecular weight formula_weight	200733.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MASITQLFDDLCEALLPAAKTHLGQRSVNRKRAKRSLKKVAYNALFTNLFQDETQQLQPDMSKLPARNKILMLSFDLRVGGLGPKADRLEELVEELEAAPCCPLLEVGSVLDLLVQLAGSGPPQVLPRKRDYFLNNKHVGRNVPYSGYDCDDLSVFEMDVQSLISREECLCHSMIQETLQVMEAAPGTGLPTVGLFSFGDPCGDRFERDTRVSLFGALVHSRTYDMDVRLGLPPVPDNADLSGLAIKVPPSVDQWEDEGFQSASNLTPDSQSEPSVTPDVDLWEAALTYEASKRRCWERVGCPPGHREEPYLTEAGRDAFDKFCRLHQGELQLLAGGVLQAPQPVLVKECELVKDVLNVLIGVVSATFSLCQPAQAFVVKRGVHVSGASPESISSLLSEVAEYGTCYTRLSHFSLQPVLDSLYSKGLVFQAFTSGLRRYLQYYRACVLSTPPTLSLLTIGFLFKKLGRQLRYLAELCGVGAVLPGTCGGGPRAAFPTGVKLLSYLYQEALHNCSNEHYPVLLSLLKTSCEPYTRFIHDWVYSGVFRDAYGEFMIQVNHEYLSFRDKLYWTHGYVLISKEVEDCVPVFLKHIAHDIYVCGKTINLLKLCCPRHYLCWSDVPVPRISVIFSLEELKEIEKDCAVYVGRMERVARHSSVSKEEKELRMEIAKQELIAHAREAASRVLSALSDRQMSERMALDARKREQFQRLKEQFVKDQERRQAARQEELDDDFSYARELRDRERRLKSLEEELERKARQALVDHYSKLSAEAARREQKALWRIQRHRLESARLRFLLEDEKHIQEMLKAVSEAHQPQEPPDVLLSVHPQVTSPGPEHPEGGQGCDSGSAEQHSPAWDGWNRPGLLTPQPLKPLAVGAGGRGLQQAEGARPFSDSLSIGDFLPVGPGAEPSVQTGMVPLLEVALQTINLDLPPSAPGEAPAAASTQPSRPQEYDFSTVLRPAVATSPAPGPLQAAECSLGSSGLQLWEDSCGKMDACGSASRETLLPSHPPRRAALEEGSSQPTERLFGQVSGGGLPTGDYASEIAPTRPRWNTHGHVSDASIRVGENVSDVAPTQPRWNTHGHVSNASISLGESVSDVAPTRPRWNIHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSDASISLGESVSDMAPARPRWNTHGHVSDASISLGESVSDMAPTRPRWNTHGHVSDTSIRVGENVSDVAPIRSRCNTHGHVSDASISLGEPVSDVVSTRPRWNTHVPIPPPHMVLGALSPEAEPNTPRPQQSPPGHTSQSALSLGAQSTVLDCGPRLPVEVGPSLSSPSSGCGEGSISVGENVSDVAPTQPWWPNTPGDSVSEELGPGRSGDTEDLSPNWPLNSQEDTAAQSSPGRGEEAEASAAEAQGGEQAYLAGLAGQYHLERYPDSYESMSEPPIAHLLRPVLPRAFAFPVDPQVQSAADETAVQLSELLTLPVLMKRSITAPLAAHISLVNKAAVDYFFVELHLEAHYEALRHFLLMEDGEFAQSLSDLLFEKLGAGQTPGELLNPLVLNSVLSKALQCSLHGDTPHASNLSLALKYLPEVFAPNAPDVLSCLELRYKVDWPLNIVITEGCVSKYSGVFSFLLQLKLMMWALKDVCFHLKRTALLSHMAGSVQFRQLQLFKHEMQHFVKVIQGYIANQILHVTWCEFRARLATVGDLEEIQRAHAEYLHKAVFRGLLTEKAAPVMNVIHSIFSLVLKFRSQLISQAWGPPGGPRGAEHPNFALMQQSYNTFKYYSHFLFKVVTKLVNRGYQPHLEDFLLRINFNNYYQDA

Entity 3 Entity 3 polymer

Description description	Isoform 3 of Gamma-tubulin complex component 2
Molecular weight formula_weight	105765.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIVLLRWNLALSPRLKCSGVISAHCNLHLPGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

Entity 4 Entity 4 polymer

Description description	Tubulin gamma-1 chain
Molecular weight formula_weight	51255.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	l,m

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEAIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYAKLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSDVVVQPYNSLLTLKRLTQNADCLVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTSISSLFERTCRQYDKLRKREAFLEQFRKEDMFKDNFDEMDTSREIVQQLIDEYHAATRPDYISWGTQEQ

Entity 5 Entity 5 polymer

Description description	Mitotic-spindle organizing protein 2A
Molecular weight formula_weight	16240.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MAAQGVGPGPGSAAPPGLEAARQKLALRRKKVLSTEEMELYELAQAAGGGIDPDVFKILVDLLKLNVAPLAVFQMLKSMCAGQRLASEPQDPAAVSLPTSSVPETRGRDKGSAALGGVLALAERSNHEGSSQRMPRQPSATRLPKGGGPGKSPTQGST

Entity 6 Entity 6 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	4.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	137513
