7qj1

Structure of the recombinant human gamma-Tubulin Ring Complex 6-spoked assembly intermediate (spokes 7-12, homogeneous dataset)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma-tubulin complex component 5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Mitotic-spindle organizing protein 1 × 2 （Q08AG7） Gamma-tubulin complex component 3 × 2 （Q96CW5） Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Gamma-tubulin complex component 4 × 2 （Q9UGJ1） Gamma-tubulin complex component 6 × 1 （Q96RT7） Tubulin gamma-1 chain × 6 （P23258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain J； PDBConstruct 1–1024； UniProt 1–1024 Author chain l； PDBConstruct 1–1024； UniProt 1–1024

Mitotic-spindle organizing protein 1

Homo sapiens

UniProt Q08AG7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Gamma-tubulin complex component 5 × 2 （Q96RT8） Gamma-tubulin complex component 3 × 2 （Q96CW5） Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Gamma-tubulin complex component 4 × 2 （Q9UGJ1） Gamma-tubulin complex component 6 × 1 （Q96RT7） Tubulin gamma-1 chain × 6 （P23258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MZT1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain b； PDBConstruct 1–82； UniProt 1–82 Author chain m； PDBConstruct 1–82； UniProt 1–82

Gamma-tubulin complex component 3

Homo sapiens

UniProt Q96CW5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Gamma-tubulin complex component 5 × 2 （Q96RT8） Mitotic-spindle organizing protein 1 × 2 （Q08AG7） Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Gamma-tubulin complex component 4 × 2 （Q9UGJ1） Gamma-tubulin complex component 6 × 1 （Q96RT7） Tubulin gamma-1 chain × 6 （P23258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP3_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 1–907； UniProt 1–907 Author chain a； PDBConstruct 1–907； UniProt 1–907

Gamma-tubulin complex component 2

Homo sapiens

UniProt Q9BSJ2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Gamma-tubulin complex component 5 × 2 （Q96RT8） Mitotic-spindle organizing protein 1 × 2 （Q08AG7） Gamma-tubulin complex component 3 × 2 （Q96CW5） Gamma-tubulin complex component 4 × 2 （Q9UGJ1） Gamma-tubulin complex component 6 × 1 （Q96RT7） Tubulin gamma-1 chain × 6 （P23258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–902； UniProt 1–902

Gamma-tubulin complex component 4

Homo sapiens

UniProt Q9UGJ1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Gamma-tubulin complex component 5 × 2 （Q96RT8） Mitotic-spindle organizing protein 1 × 2 （Q08AG7） Gamma-tubulin complex component 3 × 2 （Q96CW5） Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Gamma-tubulin complex component 6 × 1 （Q96RT7） Tubulin gamma-1 chain × 6 （P23258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP4_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–667； UniProt 1–667 Author chain K； PDBConstruct 1–667； UniProt 1–667

Gamma-tubulin complex component 6

Homo sapiens

UniProt Q96RT7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Gamma-tubulin complex component 5 × 2 （Q96RT8） Mitotic-spindle organizing protein 1 × 2 （Q08AG7） Gamma-tubulin complex component 3 × 2 （Q96CW5） Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Gamma-tubulin complex component 4 × 2 （Q9UGJ1） Tubulin gamma-1 chain × 6 （P23258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GCP6_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain L； PDBConstruct 1–1819； UniProt 1–1819

Tubulin gamma-1 chain

Homo sapiens

UniProt P23258

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Gamma-tubulin complex component 5 × 2 （Q96RT8） Mitotic-spindle organizing protein 1 × 2 （Q08AG7） Gamma-tubulin complex component 3 × 2 （Q96CW5） Gamma-tubulin complex component 2 × 1 （Q9BSJ2） Gamma-tubulin complex component 4 × 2 （Q9UGJ1） Gamma-tubulin complex component 6 × 1 （Q96RT7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBG1_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain U； PDBConstruct 1–451； UniProt 1–451 Author chain V； PDBConstruct 1–451； UniProt 1–451 Author chain W； PDBConstruct 1–451； UniProt 1–451 Author chain X； PDBConstruct 1–451； UniProt 1–451 Author chain Y； PDBConstruct 1–451； UniProt 1–451 Author chain Z； PDBConstruct 1–451； UniProt 1–451

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7qj1
Deposition date deposition_date	2021-12-16
Structure title title	Structure of the recombinant human gamma-Tubulin Ring Complex 6-spoked assembly intermediate (spokes 7-12, homogeneous dataset)
Keywords keywords	Assembly, Intermediate, Complex, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7qj1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7qj1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

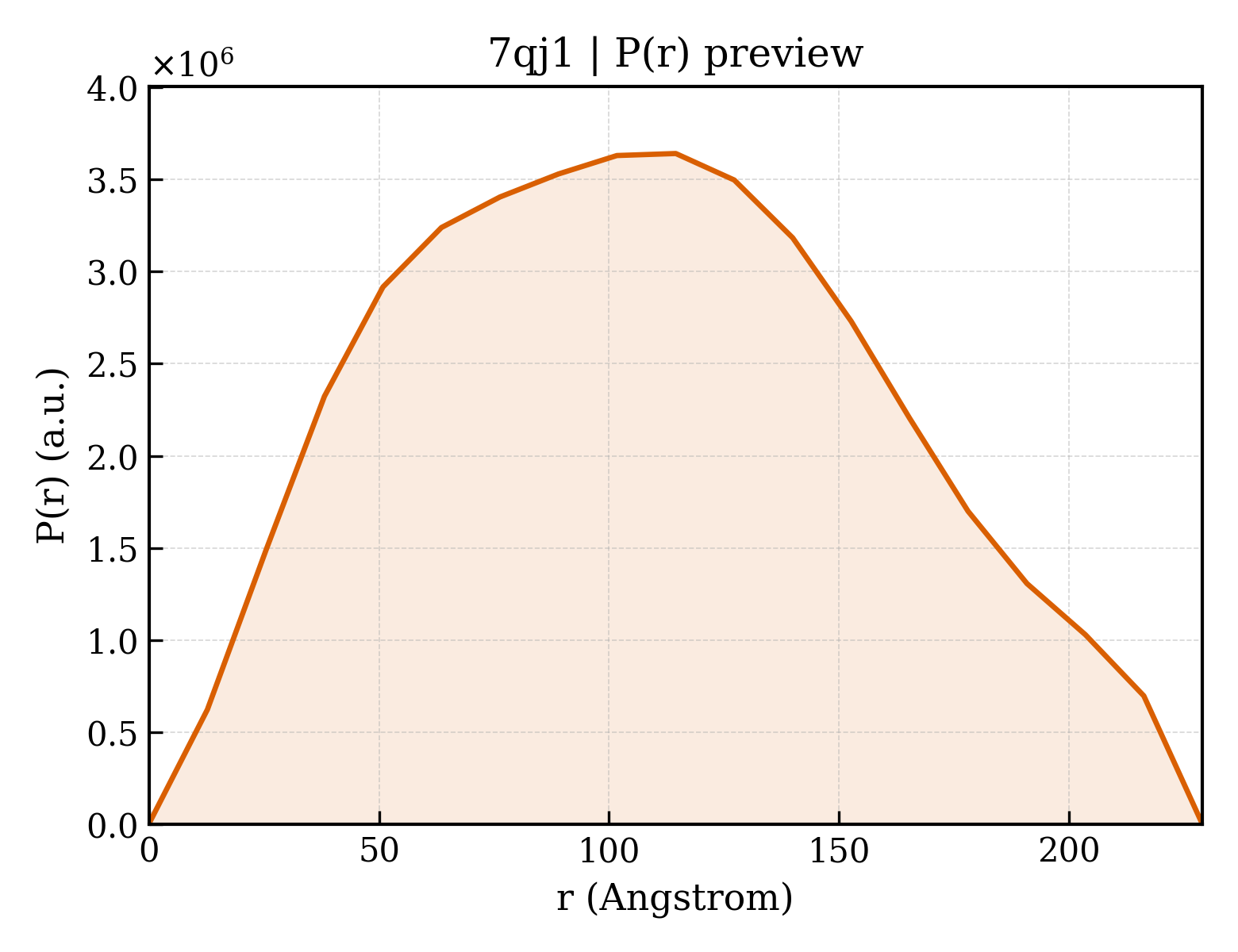

7qj1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	87.20 Å
Rg (electron density)	87.17 Å
Total Rg	87.14 Å
Atom count	50899
Residues	6287
Excluded volume	910480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7qj1__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Gamma-tubulin complex component 5
Molecular weight formula_weight	118467.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	l,J
Atom count atom_count	50899

MARHGPPWSRLDAQQERDVRELVRGVAGLQDEADPNFQLALNFAWSNFRFHRFLDVNSHKIEKTIEGIYEKFVIHSDLSKAASWKRLTEEFLNAPLPSIKEIKTDAHYSILSLLLCLSDSPSNSSYVETPRNKEVEKKDDFDWGKYLMEDEEMDIGPYMDTPNWSEESEEENDQQPLSREDSGIQVDRTPLEEQDQNRKLDPCISWKDEPDDRSWLEHHVVHQYWTARPSQFPHSLHLHSNLAAVWDQHLYSSDPLYVPDDRVLVTETQVIRETLWLLSGVKKLFIFQLIDGKVTVRNNIIVTHLTHSCLRSVLEQIAAYGQVVFRLQEFIDEVMGHSSESMLPGSGSVPKKSTEAPFRTYQAFMWALYKYFISFKEELAEIEKCIINNDTTITLAIVVDKLAPRLSQLKVLHKVFSTGVAEVPPDTRNVVRASHLLNTLYKAILEYDNVGEASEQTVSLLFSLWVETVRPYLQTVDEWIVHGHLWDGAREFIIQRNKNVPVNHRDFWYATYTLYSVSEKTENEEKMSDNASASSGSDQGPSSRQHTMVSFLKPVLKQIIMAGKSMQLLKNLQCAESTTCQAGARDAERKSLYTLFLESVQSRLRHGEDSTPQVLTEQQATKENLMKMQSIAESHLELDDVHDPLLAINFARMYLEQSDFHEKFAGGDVCVDRSSESVTCQTFELTLRSCLYPHIDKQYLDCCGNLMQTLKKDYRLVEYLQAMRNFFLMEGGDTMYDFYTSIFDKIREKETWQNVSFLNVQLQEAVGQRYPEDSSRLSISFENVDTAKKKLPVHILDGLTLSYKVPWPVDIVISLECQKIYNQVFLLLLQIKWAKYSLDVLLFGELVSTAEKPRLKEGLIHEQDTVAQFGPQKEPVRQQIHRMFLLRVKLMHFVNSLHNYIMTRILHSTGLEFQHQVEEAKDLDQLIKIHYRYLSTIHDRCLLREKVSFVKEAIMKVLNLALMFADGWQAGLGTWRMESIEKMESDFKNCHMFLVTILNKAVCRGSFPHLESLALSLMAGMEQS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 2 Entity 2 polymer

Description description	Mitotic-spindle organizing protein 1
Molecular weight formula_weight	8485.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	m,b

MASSSGAGAAAAAAAANLNAVRETMDVLLEISRILNTGLDMETLSICVRLCEQGINPEALSSVIKELRKATEALKAAENMTS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 3 Entity 3 polymer

Description description	Gamma-tubulin complex component 3
Molecular weight formula_weight	103710.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a,H

MATPDQKSPNVLLQNLCCRILGRSEADVAQQFQYAVRVIGSNFAPTVERDEFLVAEKIKKELIRQRREADAALFSELHRKLHSQGVLKNKWSILYLLLSLSEDPRRQPSKVSSYATLFAQALPRDAHSTPYYYARPQTLPLSYQDRSAQSAQSSGSVGSSGISSIGLCALSGPAPAPQSLLPGQSNQAPGVGDCLRQQLGSRLAWTLTANQPSSQATTSKGVPSAVSRNMTRSRREGDTGGTMEITEAALVRDILYVFQGIDGKNIKMNNTENCYKVEGKANLSRSLRDTAVRLSELGWLHNKIRRYTDQRSLDRSFGLVGQSFCAALHQELREYYRLLSVLHSQLQLEDDQGVNLGLESSLTLRRLLVWTYDPKIRLKTLAALVDHCQGRKGGELASAVHAYTKTGDPYMRSLVQHILSLVSHPVLSFLYRWIYDGELEDTYHEFFVASDPTVKTDRLWHDKYTLRKSMIPSFMTMDQSRKVLLIGKSINFLHQVCHDQTPTTKMIAVTKSAESPQDAADLFTDLENAFQGKIDAAYFETSKYLLDVLNKKYSLLDHMQAMRRYLLLGQGDFIRHLMDLLKPELVRPATTLYQHNLTGILETAVRATNAQFDSPEILRRLDVRLLEVSPGDTGWDVFSLDYHVDGPIATVFTRECMSHYLRVFNFLWRAKRMEYILTDIRKGHMCNAKLLRNMPEFSGVLHQCHILASEMVHFIHQMQYYITFEVLECSWDELWNKVQQAQDLDHIIAAHEVFLDTIISRCLLDSDSRALLNQLRAVFDQIIELQNAQDAIYRAALEELQRRLQFEEKKKQREIEGQWGVTAAEEEEENKRIGEFKESIPKMCSQLRILTHFYQGIVQQFLVLLTTSSDESLRFLSFRLDFNEHYKAREPRLRVSLGTRGRRSSHT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 4 Entity 4 polymer

Description description	Gamma-tubulin complex component 2
Molecular weight formula_weight	102667.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 5 Entity 5 polymer

Description description	Gamma-tubulin complex component 4
Molecular weight formula_weight	76180.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,K

MIHELLLALSGYPGSIFTWNKRSGLQVSQDFPFLHPSETSVLNRLCRLGTDYIRFTEFIEQYTGHVQQQDHHPSQQGQGGLHGIYLRAFCTGLDSVLQPYRQALLDLEQEFLGDPHLSISHVNYFLDQFQLLFPSVMVVVEQIKSQKIHGCQILETVYKHSCGGLPPVRSALEKILAVCHGVMYKQLSAWMLHGLLLDQHEEFFIKQGPSSGNVSAQPEEDEEDLGIGGLTGKQLRELQDLRLIEEENMLAPSLKQFSLRVEILPSYIPVRVAEKILFVGESVQMFENQNVNLTRKGSILKNQEDTFAAELHRLKQQPLFSLVDFEQVVDRIRSTVAEHLWKLMVEESDLLGQLKIIKDFYLLGRGELFQAFIDTAQHMLKTPPTAVTEHDVNVAFQQSAHKVLLDDDNLLPLLHLTIEYHGKEHKADATQAREGPSRETSPREAPASGWAALGLSYKVQWPLHILFTPAVLEKYNVVFKYLLSVRRVQAELQHCWALQMQRKHLKSNQTDAIKWRLRNHMAFLVDNLQYYLQVDVLESQFSQLLHQINSTRDFESIRLAHDHFLSNLLAQSFILLKPVFHCLNEILDLCHSFCSLVSQNLGPLDERGAAQLSILVKGFSRQSSLLFKILSSVRNHQINSDLAQLLLRLDYNKYYTQAGGTLGSFGM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 6 Entity 6 polymer

Description description	Gamma-tubulin complex component 6
Molecular weight formula_weight	200733.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MASITQLFDDLCEALLPAAKTHLGQRSVNRKRAKRSLKKVAYNALFTNLFQDETQQLQPDMSKLPARNKILMLSFDLRVGGLGPKADRLEELVEELEAAPCCPLLEVGSVLDLLVQLAGSGPPQVLPRKRDYFLNNKHVGRNVPYSGYDCDDLSVFEMDVQSLISREECLCHSMIQETLQVMEAAPGTGLPTVGLFSFGDPCGDRFERDTRVSLFGALVHSRTYDMDVRLGLPPVPDNADLSGLAIKVPPSVDQWEDEGFQSASNLTPDSQSEPSVTPDVDLWEAALTYEASKRRCWERVGCPPGHREEPYLTEAGRDAFDKFCRLHQGELQLLAGGVLQAPQPVLVKECELVKDVLNVLIGVVSATFSLCQPAQAFVVKRGVHVSGASPESISSLLSEVAEYGTCYTRLSHFSLQPVLDSLYSKGLVFQAFTSGLRRYLQYYRACVLSTPPTLSLLTIGFLFKKLGRQLRYLAELCGVGAVLPGTCGGGPRAAFPTGVKLLSYLYQEALHNCSNEHYPVLLSLLKTSCEPYTRFIHDWVYSGVFRDAYGEFMIQVNHEYLSFRDKLYWTHGYVLISKEVEDCVPVFLKHIAHDIYVCGKTINLLKLCCPRHYLCWSDVPVPRISVIFSLEELKEIEKDCAVYVGRMERVARHSSVSKEEKELRMEIAKQELIAHAREAASRVLSALSDRQMSERMALDARKREQFQRLKEQFVKDQERRQAARQEELDDDFSYARELRDRERRLKSLEEELERKARQALVDHYSKLSAEAARREQKALWRIQRHRLESARLRFLLEDEKHIQEMLKAVSEAHQPQEPPDVLLSVHPQVTSPGPEHPEGGQGCDSGSAEQHSPAWDGWNRPGLLTPQPLKPLAVGAGGRGLQQAEGARPFSDSLSIGDFLPVGPGAEPSVQTGMVPLLEVALQTINLDLPPSAPGEAPAAASTQPSRPQEYDFSTVLRPAVATSPAPGPLQAAECSLGSSGLQLWEDSCGKMDACGSASRETLLPSHPPRRAALEEGSSQPTERLFGQVSGGGLPTGDYASEIAPTRPRWNTHGHVSDASIRVGENVSDVAPTQPRWNTHGHVSNASISLGESVSDVAPTRPRWNIHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSDASISLGESVSDMAPARPRWNTHGHVSDASISLGESVSDMAPTRPRWNTHGHVSDTSIRVGENVSDVAPIRSRCNTHGHVSDASISLGEPVSDVVSTRPRWNTHVPIPPPHMVLGALSPEAEPNTPRPQQSPPGHTSQSALSLGAQSTVLDCGPRLPVEVGPSLSSPSSGCGEGSISVGENVSDVAPTQPWWPNTPGDSVSEELGPGRSGDTEDLSPNWPLNSQEDTAAQSSPGRGEEAEASAAEAQGGEQAYLAGLAGQYHLERYPDSYESMSEPPIAHLLRPVLPRAFAFPVDPQVQSAADETAVQLSELLTLPVLMKRSITAPLAAHISLVNKAAVDYFFVELHLEAHYEALRHFLLMEDGEFAQSLSDLLFEKLGAGQTPGELLNPLVLNSVLSKALQCSLHGDTPHASNLSLALKYLPEVFAPNAPDVLSCLELRYKVDWPLNIVITEGCVSKYSGVFSFLLQLKLMMWALKDVCFHLKRTALLSHMAGSVQFRQLQLFKHEMQHFVKVIQGYIANQILHVTWCEFRARLATVGDLEEIQRAHAEYLHKAVFRGLLTEKAAPVMNVIHSIFSLVLKFRSQLISQAWGPPGGPRGAEHPNFALMQQSYNTFKYYSHFLFKVVTKLVNRGYQPHLEDFLLRINFNNYYQDA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 7 Entity 7 polymer

Description description	Tubulin gamma-1 chain
Molecular weight formula_weight	51227.8 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,V,W,X,Y,Z

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEGIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYAKLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSDVVVQPYNSLLTLKRLTQNADCVVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTSISSLFERTCRQYDKLRKREAFLEQFRKEDMFKDNFDEMDTSREIVQQLIDEYHAATRPDYISWGTQEQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	7.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	59861
