8xvg

Structure of human NuA4/TIP60 complex

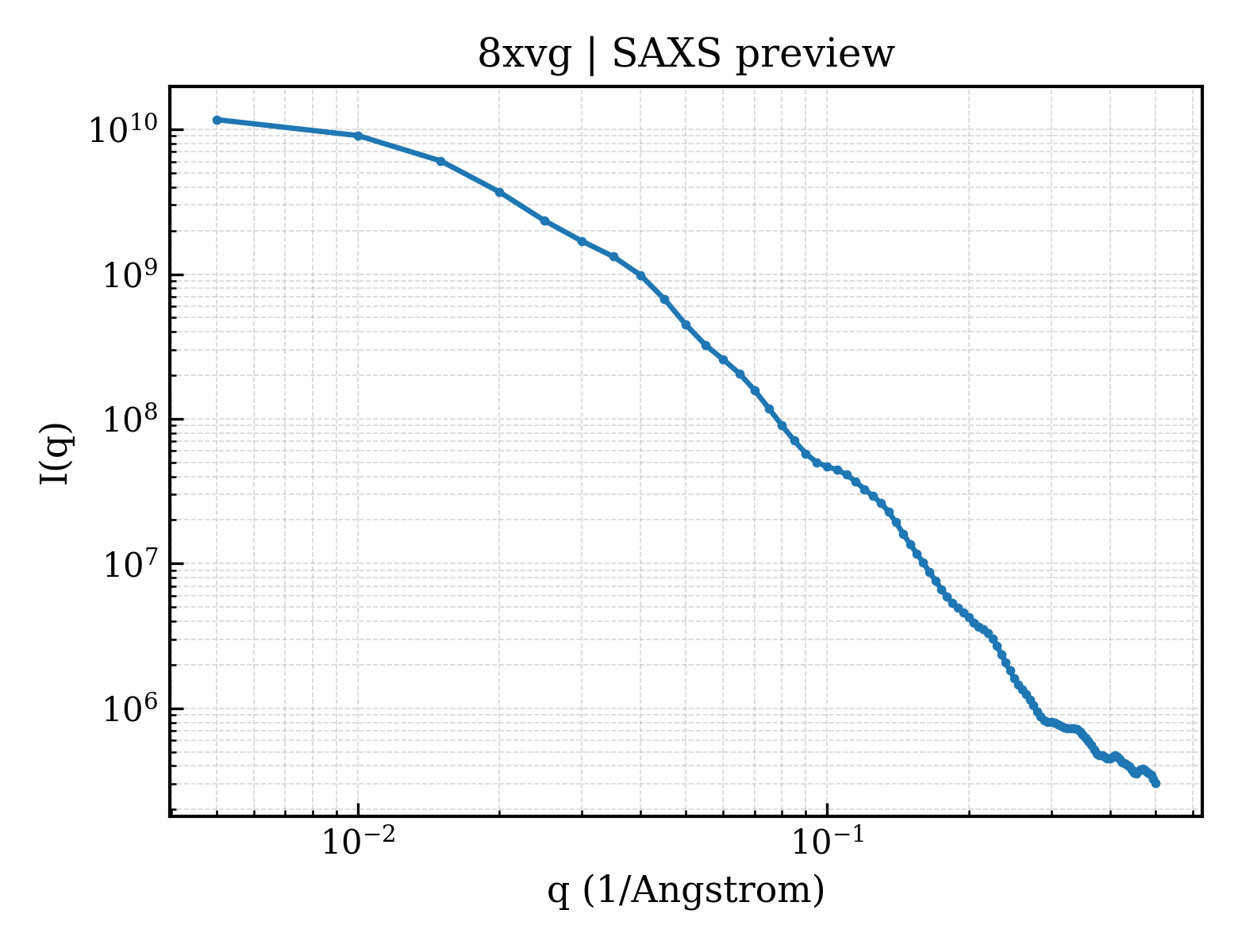

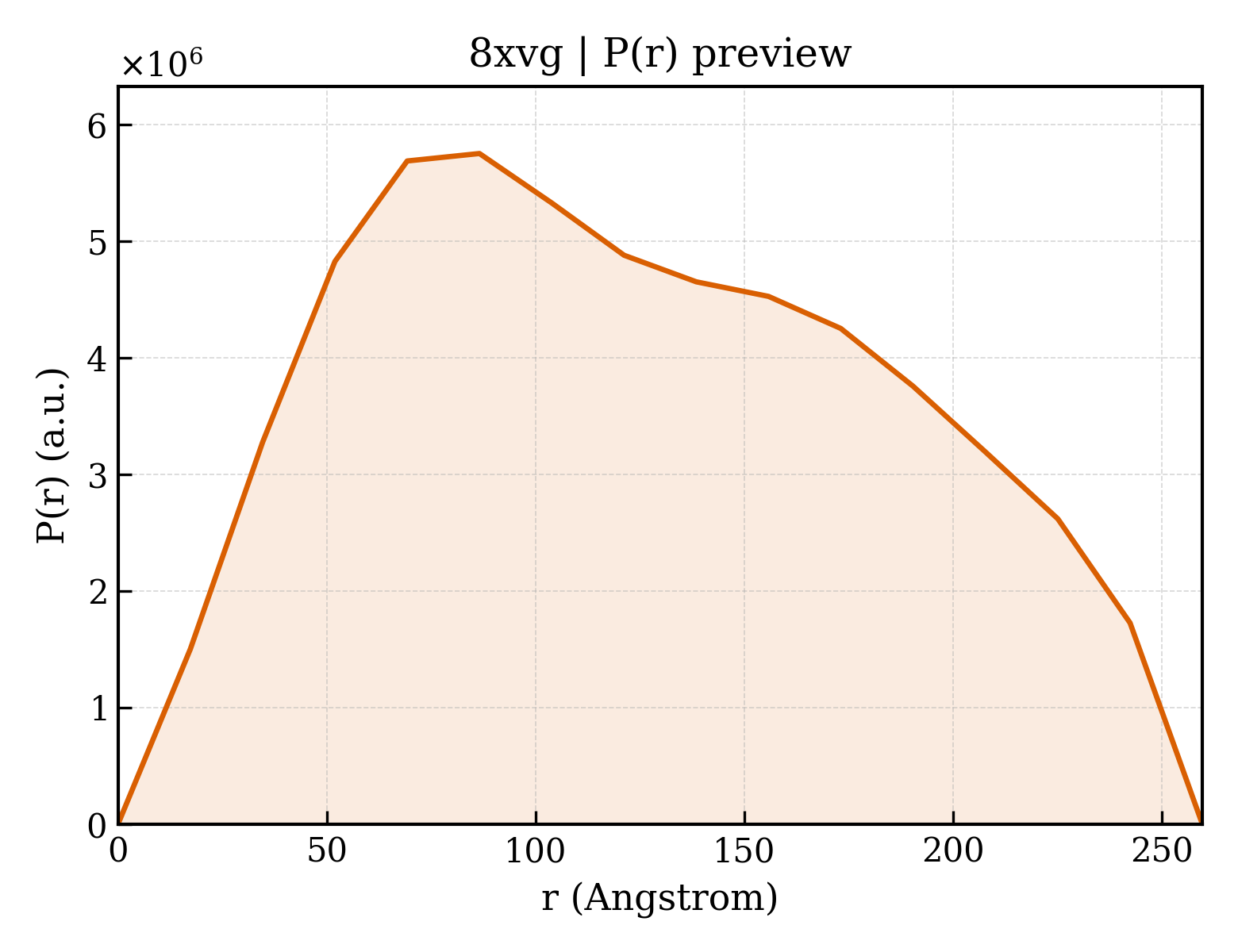

Method: ELECTRON MICROSCOPY Dmax: 259.7 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 2 of Transformation/transcription domain-associated protein

Homo sapiens

UniProt Q9Y4A5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain L； UniProt 1–3830 Not recorded RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8H7G Cryo-EM structure of the human SAGA complex Deposited 2022-10-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain C 1–3859（3859 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8QRI TRRAP and EP400 in the human Tip60 complex Deposited 2023-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–3859（3859 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8XVV The TRRAP module of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–3830（3830 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C47 TRRAP module of the human TIP60 complex Deposited 2024-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–3859（3859 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9CAD Cryo-EM structure of the TRRAP lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–3830（3830 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9CAF Cryo-EM structure of the reconstituted TRRAP lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–3830（3830 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.35 Å
9RDK Cryo-EM structure of the human SAGA co-activator complex Deposited 2025-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain C 1–3859（3859 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.41 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TRRAP_HUMAN
Isoform Q9Y4A5-2
PDB entities 1
Chains and sequence ranges Author chain L； PDBConstruct 1–3830； UniProt 1–3830

RuvB-like 1

Homo sapiens

UniProt Q9Y265

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain A； UniProt 1–456 Chain C； UniProt 1–456 Chain E； UniProt 1–456 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2C9O 3D Structure of the human RuvB-like helicase RuvBL1 Deposited 2005-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；PROTEIN WAS CRYSTALLISED USING THE VAPOR DIFFUSION METHOD (SITTING DROP). THE WELLS CONTAINED 500 MICROLITERS OF PRECIPITANT SOLUTION AND THE DROPS WERE COMPOSED OF 1.5 MICROLITERS OF PROTEIN SOLUTION (15 MG/ML) AND 1.5 MICROLITERS OF RESERVOIR SOLUTION. THE BEST CRYSTALS WERE OBTAINED FROM A SOLUTION CONTAINING 1.6 M SODIUM MALONATE PH 6 AT 293 K.
Resolution 2.20 Å R-free 0.257
2C9O 3D Structure of the human RuvB-like helicase RuvBL1 Deposited 2005-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；PROTEIN WAS CRYSTALLISED USING THE VAPOR DIFFUSION METHOD (SITTING DROP). THE WELLS CONTAINED 500 MICROLITERS OF PRECIPITANT SOLUTION AND THE DROPS WERE COMPOSED OF 1.5 MICROLITERS OF PROTEIN SOLUTION (15 MG/ML) AND 1.5 MICROLITERS OF RESERVOIR SOLUTION. THE BEST CRYSTALS WERE OBTAINED FROM A SOLUTION CONTAINING 1.6 M SODIUM MALONATE PH 6 AT 293 K.
Resolution 2.20 Å R-free 0.257
2XSZ The dodecameric human RuvBL1:RuvBL2 complex with truncated domains II Deposited 2010-10-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–126（125 aa）
Chain A 234–456（223 aa）
Chain B 2–126（125 aa）
Chain B 234–456（223 aa）
Chain C 2–126（125 aa）
Chain C 234–456（223 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ATP ADENOSINE-5'-TRIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；CRYSTALLIZATION DROPS WERE MIXED FROM EQUAL VOLUMES OF PROTEIN SOLUTION (12 MG/ML, 20MM TRIS-HCL PH 8.0, 200MM NACL, 10% GLYCEROL, 4MM MGCL2, 4MM ADP, 0.5MM TCEP) AND CRYSTALLIZATION SOLUTION (0.2M MGCL2, 30% PEG 400, 0.1M HEPES PH 7.5).
Resolution 3.00 Å R-free 0.205
5OAF Human Rvb1/Rvb2 heterohexamer in INO80 complex Deposited 2017-06-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å
6FO1 Human R2TP subcomplex containing 1 RUVBL1-RUVBL2 hexamer bound to 1 RBD domain from RPAP3. Deposited 2018-02-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.57 Å
6HTS Cryo-EM structure of the human INO80 complex bound to nucleosome Deposited 2018-10-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6IGM Cryo-EM Structure of Human SRCAP Complex Deposited 2018-09-25 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–126（125 aa）
Chain A 234–456（223 aa）
Chain B 2–126（125 aa）
Chain B 234–456（223 aa）
Chain C 2–126（125 aa）
Chain C 234–456（223 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain G 2–126（125 aa）
Chain G 234–456（223 aa）
Chain H 2–126（125 aa）
Chain H 234–456（223 aa）
Chain I 2–126（125 aa）
Chain I 234–456（223 aa）
Not recorded CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CU0 [(2~{R},3~{S},4~{S})-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphono hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6QI8 Truncated human R2TP complex, structure 3 (ADP-filled) Deposited 2019-01-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.75 Å
6QI9 Truncated human R2TP complex, structure 4 (ADP-empty) Deposited 2019-01-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
7AHO RUVBL1-RUVBL2 heterohexameric ring after binding of RNA helicase DHX34 Deposited 2020-09-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris-HCl pH 7.4, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.18 Å
7OLE Cryo-EM structure of the TELO2-TTI1-TTI2-RUVBL1-RUVBL2 complex Deposited 2021-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh for protein purification
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3sec
Resolution 3.41 Å
7P6X Cryo-Em structure of the hexameric RUVBL1-RUVBL2 in complex with ZNHIT2 Deposited 2021-07-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7ZI4 Cryo-EM structure of the human INO80 complex bound to a WT nucleosome Deposited 2022-04-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4uL of sample applied to Quantifoil R2/2 Cu 300 mesh grids. blot parameters were wait time 30 sec, blot time 0.5 sec, blot force -8
Resolution 3.20 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain E 1–456（456 aa）
Chain I 1–456（456 aa）
Chain L 1–456（456 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain M 1–456（456 aa）
Chain O 1–456（456 aa）
Chain Q 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain M 1–456（456 aa）
Chain O 1–456（456 aa）
Chain Q 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain M 1–456（456 aa）
Chain O 1–456（456 aa）
Chain Q 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain A 1–456（456 aa）
Chain C 1–456（456 aa）
Chain E 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CA9 Cryo-EM structure of the human SRCAP complex in the unbound state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain E 1–456（456 aa）
Chain G 1–456（456 aa）
Chain I 1–456（456 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9EMA RUVBL1/2 in complex with ATP and CB-6644 inhibitor Deposited 2024-03-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 A1H5V 5-chloranyl-2-ethoxy-4-fluoranyl-~{N}-[4-[[3-(methoxymethyl)-1-oxidanylidene-6,7-dihydro-5~{H}-pyrazolo[1,2-a][1,2]benzodiazepin-2-yl]amino]-2,2-dimethyl-4-oxidanylidene-butyl]benzamide × 3 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.40 Å
9EMC RUVBL1/2 in complex with ATP Deposited 2024-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.26 Å
9GCG CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9GE5 CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain A 2–454（453 aa）
Chain B 2–454（453 aa）
Chain C 2–454（453 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9GEV CryoEM structure of the human INO80 core-nucleosome complex state N-6 Deposited 2024-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9GFB CryoEM structure of the human INO80 core-nucleosome complex state N-7 Deposited 2024-08-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9HB4 Hexameric RuvBL1/RuvBL2 bound to SPAG1 C-ter Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–456（456 aa）
Chain B 1–456（456 aa）
Chain C 1–456（456 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9HPO Docedameric RuvBL1/RuvBL2 Deposited 2024-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 1–451（451 aa）
Chain B 1–451（451 aa）
Chain C 1–451（451 aa）
Chain G 1–451（451 aa）
Chain H 1–451（451 aa）
Chain I 1–451（451 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

35 other PDB entries and 37 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RUVB1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain A； PDBConstruct 1–456； UniProt 1–456 Author chain C； PDBConstruct 1–456； UniProt 1–456 Author chain E； PDBConstruct 1–456； UniProt 1–456

RuvB-like 2

Homo sapiens

UniProt Q9Y230

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain B； UniProt 1–463 Chain D； UniProt 1–463 Chain F； UniProt 1–463 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2CQA Solution structure of RSGI RUH-039, a fragment of C-terminal domain of RuvB-like 2 from human cDNA Deposited 2005-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 131–212（82 aa） Fragment：C-terminal domain (Residues 132-213)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient
NMR sample composition 1.3mM RSGI RUH-039 U-15,13C; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O | 90% D2O, 10% D2O
Resolution not provided
2XSZ The dodecameric human RuvBL1:RuvBL2 complex with truncated domains II Deposited 2010-10-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 2–133（132 aa）
Chain D 238–463（226 aa）
Chain E 2–133（132 aa）
Chain E 238–463（226 aa）
Chain F 2–133（132 aa）
Chain F 238–463（226 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ATP ADENOSINE-5'-TRIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；CRYSTALLIZATION DROPS WERE MIXED FROM EQUAL VOLUMES OF PROTEIN SOLUTION (12 MG/ML, 20MM TRIS-HCL PH 8.0, 200MM NACL, 10% GLYCEROL, 4MM MGCL2, 4MM ADP, 0.5MM TCEP) AND CRYSTALLIZATION SOLUTION (0.2M MGCL2, 30% PEG 400, 0.1M HEPES PH 7.5).
Resolution 3.00 Å R-free 0.205
3UK6 Crystal Structure of the Tip48 (Tip49b) hexamer Deposited 2011-11-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain A 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain B 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain B 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain C 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain C 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain D 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain D 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain I 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain I 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain J 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain J 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M Tris-HCL, pH 8.0, 20% PEG 3000, 5% glucose, galactose or trehalose, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.95 Å R-free 0.264
3UK6 Crystal Structure of the Tip48 (Tip49b) hexamer Deposited 2011-11-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain E 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain E 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain F 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain F 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain G 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain G 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain H 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain H 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain K 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain K 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Chain L 1–132（132 aa） Fragment：UNP residues 1-132, 239-463
Chain L 239–463（225 aa） Fragment：UNP residues 1-132, 239-463
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M Tris-HCL, pH 8.0, 20% PEG 3000, 5% glucose, galactose or trehalose, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.95 Å R-free 0.264
5OAF Human Rvb1/Rvb2 heterohexamer in INO80 complex Deposited 2017-06-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å
6FO1 Human R2TP subcomplex containing 1 RUVBL1-RUVBL2 hexamer bound to 1 RBD domain from RPAP3. Deposited 2018-02-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.57 Å
6H7X First X-ray structure of full-length human RuvB-Like 2. Deposited 2018-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 1–463（463 aa）
Not recorded MG MAGNESIUM ION × 18 EDO 1,2-ETHANEDIOL × 42 PEG DI(HYDROXYETHYL)ETHER × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；303.15 K；PEG 3350, Magnesium Chloride
Resolution 2.89 Å R-free 0.237
6HTS Cryo-EM structure of the human INO80 complex bound to nucleosome Deposited 2018-10-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6IGM Cryo-EM Structure of Human SRCAP Complex Deposited 2018-09-25 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–133（133 aa）
Chain D 238–463（226 aa）
Chain E 1–133（133 aa）
Chain E 238–463（226 aa）
Chain F 1–133（133 aa）
Chain F 238–463（226 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6K0R Ruvbl1-Ruvbl2 with truncated domain II in complex with phosphorylated Cordycepin Deposited 2019-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain J 1–133（133 aa）
Chain J 238–463（226 aa）
Chain K 1–133（133 aa）
Chain K 238–463（226 aa）
Chain L 1–133（133 aa）
Chain L 238–463（226 aa）
Not recorded CUU [(2~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-oxolan-2-yl]methyl phosphono hydrogen phosphate × 4 MG MAGNESIUM ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CU0 [(2~{R},3~{S},4~{S})-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphono hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES-Na pH 7.5-7.6, 0.2 M MgCl2, 20-21 % PEG400
Resolution 2.50 Å R-free 0.269
6QI8 Truncated human R2TP complex, structure 3 (ADP-filled) Deposited 2019-01-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.75 Å
6QI9 Truncated human R2TP complex, structure 4 (ADP-empty) Deposited 2019-01-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.63 Å
7AHO RUVBL1-RUVBL2 heterohexameric ring after binding of RNA helicase DHX34 Deposited 2020-09-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM Tris-HCl pH 7.4, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.18 Å
7OLE Cryo-EM structure of the TELO2-TTI1-TTI2-RUVBL1-RUVBL2 complex Deposited 2021-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were made fresh for protein purification
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3sec
Resolution 3.41 Å
7P6X Cryo-Em structure of the hexameric RUVBL1-RUVBL2 in complex with ZNHIT2 Deposited 2021-07-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7ZI4 Cryo-EM structure of the human INO80 complex bound to a WT nucleosome Deposited 2022-04-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4uL of sample applied to Quantifoil R2/2 Cu 300 mesh grids. blot parameters were wait time 30 sec, blot time 0.5 sec, blot force -8
Resolution 3.20 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain D 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain N 1–463（463 aa）
Chain P 1–463（463 aa）
Chain R 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain N 1–463（463 aa）
Chain P 1–463（463 aa）
Chain R 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain N 1–463（463 aa）
Chain P 1–463（463 aa）
Chain R 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain B 1–463（463 aa）
Chain D 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CA9 Cryo-EM structure of the human SRCAP complex in the unbound state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain F 1–463（463 aa）
Chain H 1–463（463 aa）
Chain J 1–463（463 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9EMA RUVBL1/2 in complex with ATP and CB-6644 inhibitor Deposited 2024-03-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 A1H5V 5-chloranyl-2-ethoxy-4-fluoranyl-~{N}-[4-[[3-(methoxymethyl)-1-oxidanylidene-6,7-dihydro-5~{H}-pyrazolo[1,2-a][1,2]benzodiazepin-2-yl]amino]-2,2-dimethyl-4-oxidanylidene-butyl]benzamide × 3 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.40 Å
9EMC RUVBL1/2 in complex with ATP Deposited 2024-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.26 Å
9GCG CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9GE5 CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain D 15–453（439 aa）
Chain E 15–453（439 aa）
Chain F 15–453（439 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9GEV CryoEM structure of the human INO80 core-nucleosome complex state N-6 Deposited 2024-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9GFB CryoEM structure of the human INO80 core-nucleosome complex state N-7 Deposited 2024-08-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9HB4 Hexameric RuvBL1/RuvBL2 bound to SPAG1 C-ter Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9HPO Docedameric RuvBL1/RuvBL2 Deposited 2024-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain D 1–463（463 aa）
Chain E 1–463（463 aa）
Chain F 1–463（463 aa）
Chain J 1–463（463 aa）
Chain K 1–463（463 aa）
Chain L 1–463（463 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES, 170 mM NaCL, 2mM MgCl2, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å

37 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RUVB2_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain B； PDBConstruct 1–463； UniProt 1–463 Author chain D； PDBConstruct 1–463； UniProt 1–463 Author chain F； PDBConstruct 1–463； UniProt 1–463

DNA methyltransferase 1-associated protein 1

Homo sapiens

UniProt Q9NPF5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain G； UniProt 1–467 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3HM5 SANT domain of human DNA methyltransferase 1 associated protein 1 Deposited 2009-05-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 121–212（92 aa） Fragment：SANT domain, UNP residues 121-212
Not recorded CA CALCIUM ION × 1 UNX UNKNOWN LIGAND × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；20% PEG3350, 0.2M calcium chloride, 0.1M HEPES, pH 7.0, vapor diffusion, hanging drop, temperature 291K
Resolution 1.80 Å R-free 0.275
4IEJ Crystal structure of a DNA methyltransferase 1 associated protein 1 (DMAP1) from Homo sapiens at 1.45 A resolution Deposited 2012-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 121–212（92 aa） Fragment：SANT domain containing residues 121-212
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.20M calcium chloride 20.00% polyethylene glycol 3350, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.45 Å R-free 0.226
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain F 1–467（467 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain V 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain V 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain V 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain G 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain I 1–467（467 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain I 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 1–467（467 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain N 1–467（467 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain N 1–467（467 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DMAP1_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain G； PDBConstruct 1–467； UniProt 1–467

Isoform 2 of E1A-binding protein p400

Homo sapiens

UniProt Q96L91

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain H； UniProt 1–3123 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain A 1–3159（3159 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8QRI TRRAP and EP400 in the human Tip60 complex Deposited 2023-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–3159（3159 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain H 1–3123（3123 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVV The TRRAP module of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–3123（3123 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C47 TRRAP module of the human TIP60 complex Deposited 2024-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–3159（3159 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain G 1–3159（3159 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain G 1–3159（3159 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 1–3159（3159 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain A 1–3159（3159 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAD Cryo-EM structure of the TRRAP lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–3159（3159 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain A 658–3159（2502 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9CAF Cryo-EM structure of the reconstituted TRRAP lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 513–913（401 aa）
Chain A 2134–2529（396 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.35 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name EP400_HUMAN
Isoform Q96L91-2
PDB entities 5
Chains and sequence ranges Author chain H； PDBConstruct 1–3123； UniProt 1–3123

Actin-like protein 6A

Homo sapiens

UniProt O96019

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain I； UniProt 1–429 Chain J； UniProt 1–429 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
21VV Cryo-EM structure of ncBAF bound to the nucleosome Deposited 2025-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain K 1–429（429 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 100 mM KCl, 2 mM MgCl2, 2 mM DTT, 0.5 mM ADP, 8 mM NaF, 1 mM BeSO4.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
6LTJ Structure of nucleosome-bound human BAF complex Deposited 2020-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain J 12–417（406 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric
Chain N 1–429（429 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7Y8R The nucleosome-bound human PBAF complex Deposited 2022-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain K 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain K 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain T 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain T 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain T 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain I 1–429（429 aa）
Chain J 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C4B Second BAF53a of the human TIP60 complex Deposited 2024-06-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain L 1–429（429 aa）
Chain M 1–429（429 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain L 1–429（429 aa）
Chain M 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain L 1–429（429 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain M 1–429（429 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain M 1–429（429 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain J 1–429（429 aa）
Not recorded PTD PENTANEDIAL × 16 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain J 1–429（429 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain J 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric
Chain J 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9UXA local ARP-NCP structure of the ncBAF-nucleosome complex in the apo state Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain J 2–423（422 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
9UXB The apo structure of BCL7B-containing ARP module of the human SWI/SNF complex Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–429（428 aa）
Not recorded MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
9UXC The ADP-bound structure of BCL7B-containing ARP module of the human SWI/SNF complex Deposited 2025-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–429（428 aa）
Not recorded MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
9WBZ The structure of NCP-motor-ARP module of ncBAF-nucleosome complex Deposited 2025-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain N 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9WC1 The structure of ARP module in ncBAF complex Deposited 2025-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–429（429 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å

24 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ACL6A_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain I； PDBConstruct 1–429； UniProt 1–429 Author chain J； PDBConstruct 1–429； UniProt 1–429

ACTB protein (Fragment)

Homo sapiens

UniProt A0A7K5XZZ2

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain K； UniProt 1–375 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7Y8R The nucleosome-bound human PBAF complex Deposited 2022-06-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain J 1–375（375 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8IB8 Human TRiC-PhLP2A-actin complex in the closed state Deposited 2023-02-09 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain S 1–375（375 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.42 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name A0A7K5XZZ2_9CHAR
Isoform —
PDB entities 7
Chains and sequence ranges Author chain K； PDBConstruct 1–375； UniProt 1–375

Isoform 2 of Enhancer of polycomb homolog 1

Homo sapiens

UniProt Q9H2F5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain M； UniProt 1–813 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6NFX MBTD1 MBT repeats Deposited 2018-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 644–671（28 aa）
Not recorded UNX UNKNOWN LIGAND × 38 NA SODIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；297 K；10% PEG-6000, 0.1 M sodium citrate
Resolution 1.95 Å R-free 0.221
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain C 1–836（836 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain M 1–813（813 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain H 1–836（836 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain H 1–836（836 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9C6N ARP module of the human TIP60 complex Deposited 2024-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 1–836（836 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain C 1–836（836 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain C 359–620（262 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name EPC1_HUMAN
Isoform Q9H2F5-2
PDB entities 8
Chains and sequence ranges Author chain M； PDBConstruct 1–813； UniProt 1–813

Vacuolar protein sorting-associated protein 72 homolog

Homo sapiens

UniProt Q15906

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 14 PDB declaration: tetradecameric（14） Consistent with protein copy count Chain N； UniProt 1–364 Not recorded Isoform 2 of Transformation/transcription domain-associated protein × 1 （Q9Y4A5） RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） ACTB protein (Fragment) × 1 （A0A7K5XZZ2） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） IHP INOSITOL HEXAKISPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 9.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
5FUG Crystal structure of a human YL1-H2A.Z-H2B complex Deposited 2016-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 6–69（64 aa） Fragment：N-TERMINAL DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M SUCCINIC ACID/PHOSPHATE/GLYCINE SYSTEM PH 6/7 ; 25% PEG 1500
Resolution 2.70 Å R-free 0.243
8QR1 Cryo-EM structure of the human Tip60 complex Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain S 1–364（364 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain J 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain J 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain J 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XVT The core subcomplex of human NuA4/TIP60 complex Deposited 2024-01-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain N 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9C57 Reconstituted P400 Subcomplex of the human TIP60 complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain K 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9C62 P400 subcomplex of the native human TIP60 complex Deposited 2024-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain K 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.28 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CA9 Cryo-EM structure of the human SRCAP complex in the unbound state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAC Cryo-EM structure of the RuvBL lobe of the native human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain B 1–364（364 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9CAE Cryo-EM structure of the reconstituted RuvBL lobe of the human TIP60 complex (composite structure) Deposited 2024-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain B 1–364（364 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 8 MG MAGNESIUM ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 8–73（66 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 8–73（66 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257
9INC High resolutional Crystal Structure of human H2A.Z-H2B dimer in complex with human YL1-Z domain Deposited 2024-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 8–73（66 aa）
Chain F 8–73（66 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；45% PEG200 0.1 M HEPES pH 7.5
Resolution 2.01 Å R-free 0.257

16 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name VPS72_HUMAN
Isoform —
PDB entities 9
Chains and sequence ranges Author chain N； PDBConstruct 1–364； UniProt 1–364

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8xvg

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8xvg
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8xvg
Deposition date deposition_date2024-01-15
Structure title titleStructure of human NuA4/TIP60 complex
Keywords keywordsRemodeler; Histone Acetyltransferase Complex; NuA4; TIP60, TRANSCRIPTION; TRANSCRIPTION
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier— Å
Radius of gyration Rg (electron density) rg_electron101.70 Å
Forward intensity I(0) i012720500000.00
Molecular weight molecular_weight973690.0 kDa
Excluded volume excluded_volume1223900 ų
Envelope volume envelope_volume2144900 ų
Hydration-shell volume shell_volume174060 ų
Envelope diameter envelope_diameter328.6 Å
Shell Rg shell_rg97.17 Å
Envelope Rg envelope_rg97.31 Å
Shape Rg shape_rg101.70 Å
Total Rg total_rg101.70 Å
Total atoms total_atoms98226
Residues n_residues8571
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax259.7 Å
Rg (real space) rg_real96.91 Å
Rg uncertainty (real space) rg_real_error0.91 Å
I(0) (real space) i0_real1.2180e+10
I(0) uncertainty (real space) i0_real_error2.5050e+08
Rg (reciprocal space) rg_reciprocal96.36 Å
I(0) (reciprocal space) i0_reciprocal12520000000.0000
Solution quality estimate total_estimate0.9103
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary86.6 Å
Skewness Skewness skewness0.200
Kurtosis Kurtosis kurtosis-0.962
Angular range angular_range— – 0.0750 Å−1
Current regularization parameter α current_alpha0.9418
Highest regularization parameter α highest_alpha314000000.0000
Real-space data points n_real_points16
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.998; Stabil: 0.956; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (11)

▶

8. Citations (1)

▶

9. Files and Curves (10)
