SAXSdb — 9i9f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic initiation factor 4A-I

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 239–406	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；18.5% (w/v) PEG 8000, 0.2M sodium acetate trihydrate, 0.1M MES, pH 6.0	Resolution 2.73 Å R-free 0.294
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 239–406	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；18.5% (w/v) PEG 8000, 0.2M sodium acetate trihydrate, 0.1M MES, pH 6.0	Resolution 2.73 Å R-free 0.294
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 239–406	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；18.5% (w/v) PEG 8000, 0.2M sodium acetate trihydrate, 0.1M MES, pH 6.0	Resolution 2.73 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9I9F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2G9N Structure of the DEAD domain of Human eukaryotic initiation factor 4A, eIF4A Deposited 2006-03-07	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–236（217 aa） Fragment：DEAD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG3350, 200 mM Ammonium Nitrate, 500 mM NaCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.25 Å R-free 0.257
2G9N Structure of the DEAD domain of Human eukaryotic initiation factor 4A, eIF4A Deposited 2006-03-07	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 20–236（217 aa） Fragment：DEAD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG3350, 200 mM Ammonium Nitrate, 500 mM NaCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.25 Å R-free 0.257
2ZU6 crystal structure of the eIF4A-PDCD4 complex Deposited 2008-10-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 20–406（387 aa） Fragment：UNP residues 20-406 Chain C 20–406（387 aa） Fragment：UNP residues 20-406	Not recorded	EDO 1,2-ETHANEDIOL × 2 ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；14% MPD, 0.1M Sodium Citrate, pH6.0, 100mM Ammonium acetate, 5mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.294
2ZU6 crystal structure of the eIF4A-PDCD4 complex Deposited 2008-10-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 20–406（387 aa） Fragment：UNP residues 20-406 Chain F 20–406（387 aa） Fragment：UNP residues 20-406	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；14% MPD, 0.1M Sodium Citrate, pH6.0, 100mM Ammonium acetate, 5mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.294
3EIQ Crystal structure of Pdcd4-eIF4A Deposited 2008-09-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–406（406 aa） Chain D 1–406（406 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；20% PEG 3350, 0.1M Bis-Tris Propane pH6.5, 0.2M sodium citrate, 0.1M taurine, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.269
5ZBZ Crystal structure of the DEAD domain of Human eIF4A with sanguinarine Deposited 2018-02-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–238（219 aa） Fragment：DEAD domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	SAU 13-methyl[1,3]benzodioxolo[5,6-c][1,3]dioxolo[4,5-i]phenanthridin-13-ium × 1 MLI MALONATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium malonate	Resolution 1.31 Å R-free 0.210
5ZC9 Crystal structure of the human eIF4A1-ATP analog-RocA-polypurine RNA complex Deposited 2018-02-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 19–406（388 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 RCG (1R,2R,3S,3aR,8bS)-6,8-dimethoxy-3a-(4-methoxyphenyl)-N,N-dimethyl-1,8b-bis(oxidanyl)-3-phenyl-2,3-dihydro-1H-cyclopenta[b][1]benzofuran-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；80mM HEPES (pH7.5), 1120mM tri-sodium citrate, 100mM ammonium sulfate, 20mM Bis-Tris (pH 6.0), 0.2% (w/v) polyethylene glycol 3350, 40mM lithium chloride	Resolution 2.00 Å R-free 0.231
6ZMW Structure of a human 48S translational initiation complex Deposited 2020-07-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 57-meric	Chain j 1–406（406 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 89	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7PPZ Crystal structure of the Burkholderia Lethal Factor 1 (BLF1) C94S inactive mutant in complex with human eIF4A - Crystal form A Deposited 2021-09-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–406（387 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；290 K；0.1 M MES, 50 mM magnesium chloride, 10 % (w/v) 2-propanol, 5 % (w/v) PEG 4000	Resolution 2.52 Å R-free 0.276
7PQ0 Crystal structure of the Burkholderia Lethal Factor 1 (BLF1) C94S inactive mutant in complex with human eIF4A - Crystal form B Deposited 2021-09-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–406（387 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；290 K；0.1 M HEPES, 4 % (w/v) PEG 6000	Resolution 3.00 Å R-free 0.230
8HUJ Cryo-EM structure of the J-K-St region of EMCV IRES in complex with eIF4G-HEAT1 and eIF4A Deposited 2022-12-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain A 2–406（405 aa）	Not recorded	MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
8OZ0 Structure of a human 48S translation initiation complex with eIF4F and eIF4A Deposited 2023-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 57-meric	Chain 1 1–406（406 aa） Chain 3 1–406（406 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 89	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8XXN Cryo-EM structure of the human 43S ribosome with PDCD4 Deposited 2024-01-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 50-meric	Chain 4A 1–406（406 aa）	Not recorded	MG MAGNESIUM ION × 23 ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9AVR Human eIF4A-1 in complex with AMP-PNP, RNA, and the inhibitor silvestrol Deposited 2024-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–406（406 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 IOD IODIDE ION × 2 A1AG8 silvestrol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；0.2 M sodium iodide, 20% PEG3350	Resolution 1.91 Å R-free 0.197
9BLN The structure of human Pdcd4 bound to the 40S-eIF4A-eIF3-eIF1 complex Deposited 2024-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 49 PDB declaration: 50-meric	Chain l 20–406（387 aa）	Not recorded	MG MAGNESIUM ION × 88 K POTASSIUM ION × 19 SPD SPERMIDINE × 1 ZN ZINC ION × 3 ACY ACETIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9DTS Crystal structure of the human eIF4A1/AMPPNP/amidino-rocaglate/polypurine RNA complex Deposited 2024-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 21–406（386 aa）	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 A1BB1 (3aR,4R,5S,5aR,10bR)-3a-hydroxy-N,8,10-trimethoxy-5a-(4-methoxyphenyl)-N,2-dimethyl-5-phenyl-3a,4,5,5a-tetrahydro-1H-[1]benzofuro[3',2':1,5]cyclopenta[1,2-d]imidazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；290 K；0.2 M ammonium acetate, 8% PEG20000, 10% Hampton Silver Bullet Reagent B5 (0.33% w/v 2,7-naphthalenedisulfonic acid disodium salt, 0.33% w/v azelaic acid, 0.33% w/v trans-cinnamic acid, 0.02 M HEPES sodium pH 6.8)	Resolution 1.69 Å R-free 0.240
9DTS Crystal structure of the human eIF4A1/AMPPNP/amidino-rocaglate/polypurine RNA complex Deposited 2024-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 21–406（386 aa）	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 A1BB1 (3aR,4R,5S,5aR,10bR)-3a-hydroxy-N,8,10-trimethoxy-5a-(4-methoxyphenyl)-N,2-dimethyl-5-phenyl-3a,4,5,5a-tetrahydro-1H-[1]benzofuro[3',2':1,5]cyclopenta[1,2-d]imidazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；290 K；0.2 M ammonium acetate, 8% PEG20000, 10% Hampton Silver Bullet Reagent B5 (0.33% w/v 2,7-naphthalenedisulfonic acid disodium salt, 0.33% w/v azelaic acid, 0.33% w/v trans-cinnamic acid, 0.02 M HEPES sodium pH 6.8)	Resolution 1.69 Å R-free 0.240
9DTS Crystal structure of the human eIF4A1/AMPPNP/amidino-rocaglate/polypurine RNA complex Deposited 2024-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain C 21–406（386 aa）	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 A1BB1 (3aR,4R,5S,5aR,10bR)-3a-hydroxy-N,8,10-trimethoxy-5a-(4-methoxyphenyl)-N,2-dimethyl-5-phenyl-3a,4,5,5a-tetrahydro-1H-[1]benzofuro[3',2':1,5]cyclopenta[1,2-d]imidazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；290 K；0.2 M ammonium acetate, 8% PEG20000, 10% Hampton Silver Bullet Reagent B5 (0.33% w/v 2,7-naphthalenedisulfonic acid disodium salt, 0.33% w/v azelaic acid, 0.33% w/v trans-cinnamic acid, 0.02 M HEPES sodium pH 6.8)	Resolution 1.69 Å R-free 0.240
9DTS Crystal structure of the human eIF4A1/AMPPNP/amidino-rocaglate/polypurine RNA complex Deposited 2024-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain D 21–406（386 aa）	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 A1BB1 (3aR,4R,5S,5aR,10bR)-3a-hydroxy-N,8,10-trimethoxy-5a-(4-methoxyphenyl)-N,2-dimethyl-5-phenyl-3a,4,5,5a-tetrahydro-1H-[1]benzofuro[3',2':1,5]cyclopenta[1,2-d]imidazole-4-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；290 K；0.2 M ammonium acetate, 8% PEG20000, 10% Hampton Silver Bullet Reagent B5 (0.33% w/v 2,7-naphthalenedisulfonic acid disodium salt, 0.33% w/v azelaic acid, 0.33% w/v trans-cinnamic acid, 0.02 M HEPES sodium pH 6.8)	Resolution 1.69 Å R-free 0.240
9I9G Crystal structure of human eIF4A1 C-terminal domain in complex with hippuristanol Deposited 2025-02-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 239–406（168 aa）	Not recorded	A1I1L Hippuristanol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20 % (w/v) PEG 6000, 0.2 M sodium chloride, 0.1 M sodium acetate, pH 5.0	Resolution 1.70 Å R-free 0.190

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IF4A1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–170； UniProt 239–406 Author chain B； PDBConstruct 3–170； UniProt 239–406 Author chain C； PDBConstruct 3–170； UniProt 239–406

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9i9f
Deposition date deposition_date	2025-02-06
最后修订 last_revision	2026-02-18
Structure title title	Crystal structure of apoform human eIF4A1 C-terminal domain
Keywords keywords	INITIATION FACTOR, DEAD-BOX, HELICASE, ATPASE, TRANSLATION; TRANSLATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.89 Å
Radius of gyration Rg (electron density) rg_electron	26.82 Å
Forward intensity I(0) i0	47088100.00
Molecular weight molecular_weight	53051.0 kDa
Excluded volume excluded_volume	66398 Å³
Envelope volume envelope_volume	86189 Å³
Hydration-shell volume shell_volume	27600 Å³
Envelope diameter envelope_diameter	87.2 Å
Shell Rg shell_rg	33.19 Å
Envelope Rg envelope_rg	26.54 Å
Shape Rg shape_rg	26.81 Å
Total Rg total_rg	27.59 Å
Total atoms total_atoms	3732
Residues n_residues	486
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.3 Å
Rg (real space) rg_real	27.80 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	4.7090e+07
I(0) uncertainty (real space) i0_real_error	6.7940e+05
Rg (reciprocal space) rg_reciprocal	27.83 Å
I(0) (reciprocal space) i0_reciprocal	47090000.0000
Solution quality estimate total_estimate	0.9112
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.6 Å
Skewness Skewness skewness	0.138
Kurtosis Kurtosis kurtosis	-0.736
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14450000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.944

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	84.970 Å
Unit-cell length b length_b	84.970 Å
Unit-cell length c length_c	66.420 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	—

Resolution resolution	2.731 Å
Low-resolution limit resolution_low	40.003 Å
R factor r_factor	—
R_work r_work	0.2287
R_free r_free	0.2937

Description description	Eukaryotic initiation factor 4A-I
Molecular weight formula_weight	19858.5 kDa
EC 编号 ec_number	3.6.4.13
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3775

Crystal structure of apoform human eIF4A1 C-terminal domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic initiation factor 4A-I

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

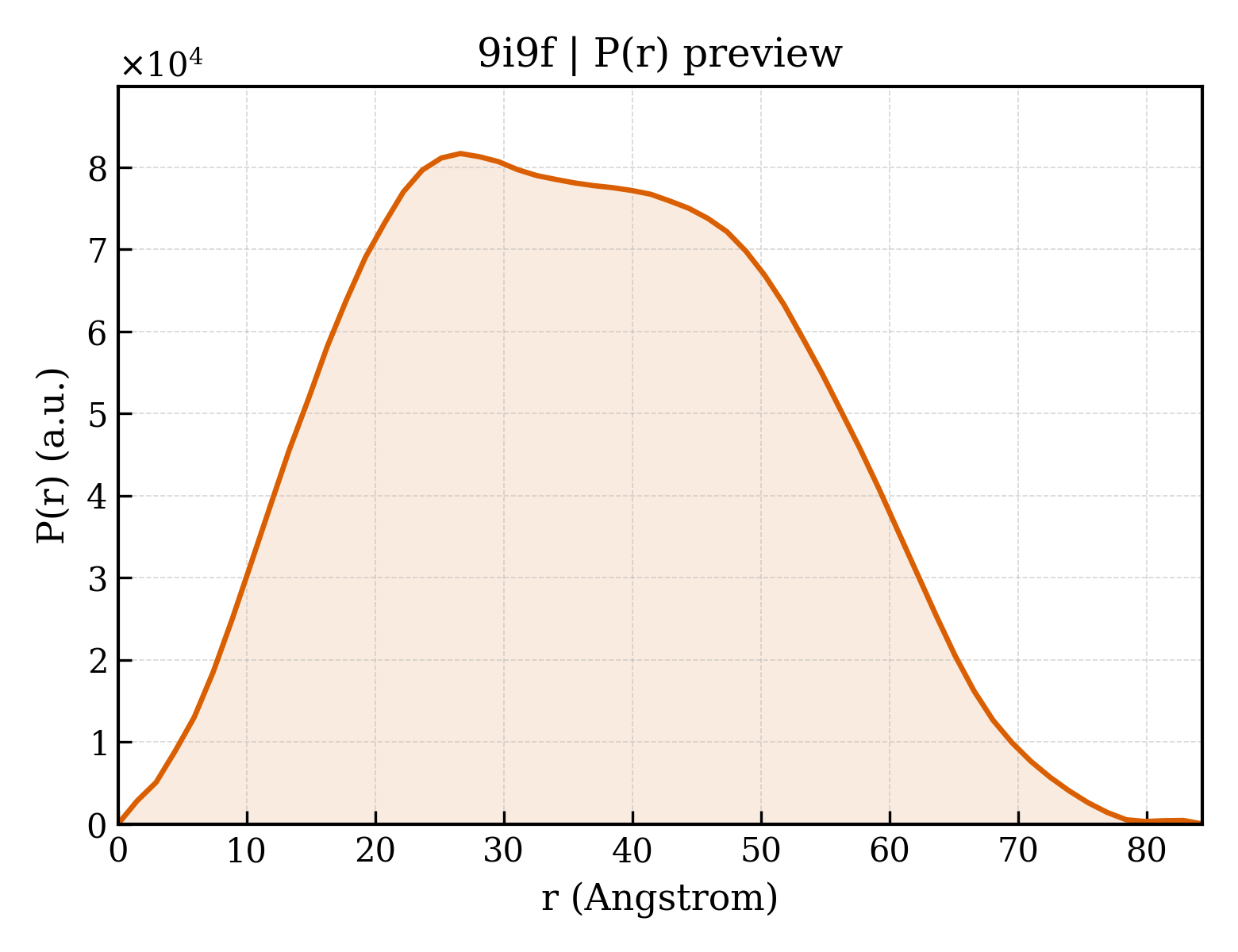

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	43

fit	/app/data/saxs_computation/i9/9i9f/9i9f.fit
pddf	/app/data/pr_computation/i9/9i9f/9i9f.pr.out
profile	/app/data/saxs_computation/i9/9i9f/9i9f.dat
