9il7

Crystal Structure of SME E166A in Complex with Ceftaroline Fosamil

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

beta-lactamase

Serratia marcescens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;(2~{R})-2-[(1~{R})-1-[[(2~{Z})-2-ethoxyimino-2-[5-(phosphonoamino)-1,2,4-thiadiazol-3-yl]ethanoyl]amino]-2-oxidanylidene-ethyl]-5-[[4-(1-methylpyridin-4-yl)-1,3-thiazol-2-yl]sulfanyl]-3,6-dihydro-2~{H}-1,3-thiazine-4-carboxylic acid ; × 2 DI(HYDROXYETHYL)ETHER × 6 CHLORIDE ION × 16 PHOSPHATE ION × 5 TETRAETHYLENE GLYCOL × 1 IODIDE ION × 1 SODIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q54488_SERMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–269； UniProt 28–294 Author chain B； PDBConstruct 3–269； UniProt 28–294

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9il7
Deposition date deposition_date	2024-06-29
Last revision last_revision	2025-07-02
Structure title title	Crystal Structure of SME E166A in Complex with Ceftaroline Fosamil
Keywords keywords	5th Generation Cephalosporin, Carbapenemase, Complex, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9il7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9il7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

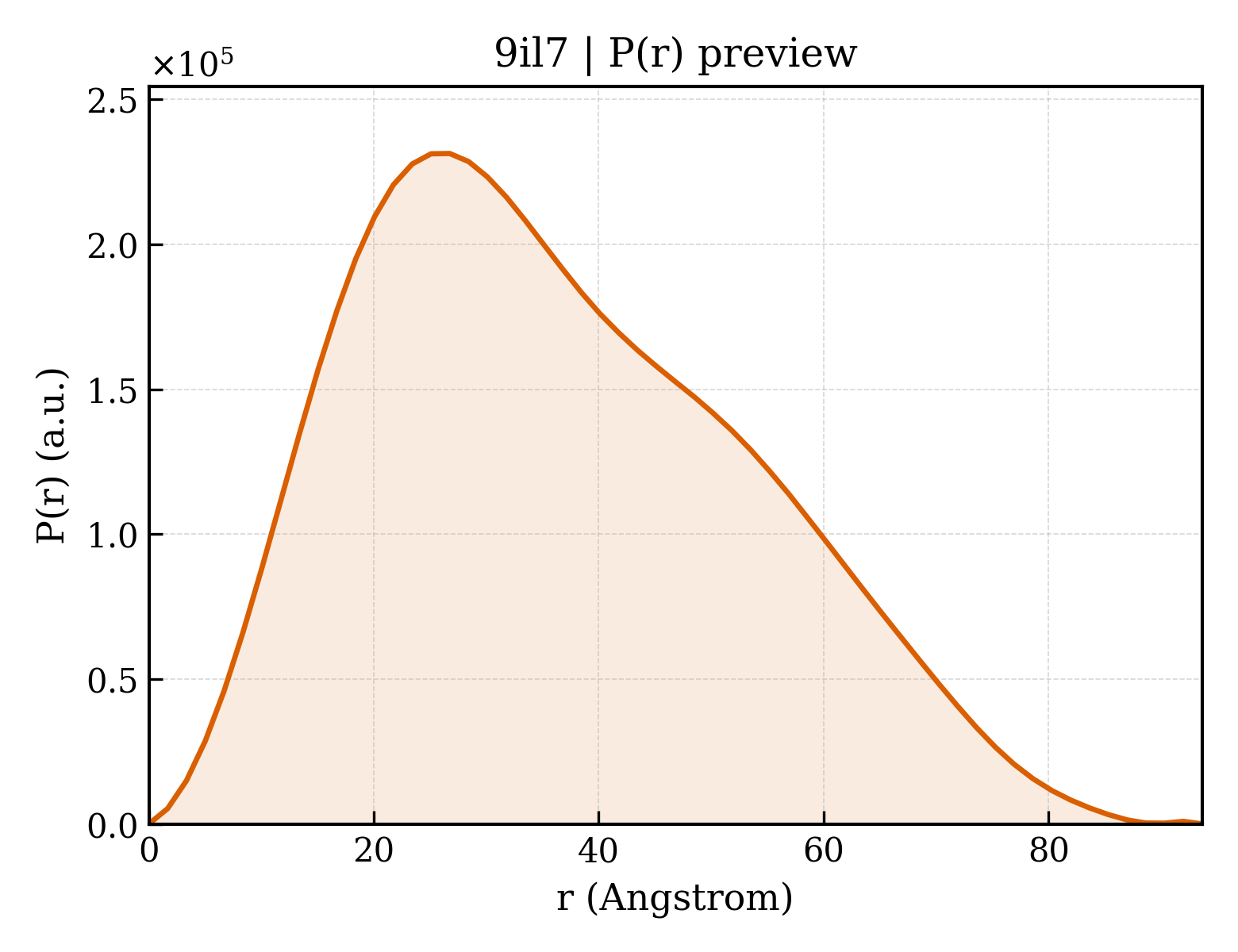

9il7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.47 Å
Rg (electron density)	27.71 Å
Total Rg	28.44 Å
Atom count	4274
Residues	534
Excluded volume	75323 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9il7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	beta-lactamase
Molecular weight formula_weight	30345.3 kDa
EC 编号 ec_number	3.5.2.6
Mutation mutation	E166A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4425

MGNKSDAAAKQIKKLEEDFDGRIGVFAIDTGSGNTFGYRSDERFPLCSSFKGFLAAAVLERVQQKKLDINQKVKYESRDLEYHSPITTKYKGSGMTLGDMASAALQYSDNGATNIIMERFLGGPEGMTKFMRSIGDNEFRLDRWALELNTAIPGDKRDTSTPKAVANSLNKLALGNVLNAKVKAIYQNWLKGNTTGDARIRASVPADWVVGDKTGSCGAYGTANDYAVIWPKNRAPLIVSIYTTRKSKDDKHSDKTIAEASRIAIQAIDHHHHHH

Source Source

Source organism organism	Serratia marcescens
NCBI taxonomy ID ncbi_taxonomy_id	615
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	;(2~{R})-2-[(1~{R})-1-[[(2~{Z})-2-ethoxyimino-2-[5-(phosphonoamino)-1,2,4-thiadiazol-3-yl]ethanoyl]amino]-2-oxidanylidene-ethyl]-5-[[4-(1-methylpyridin-4-yl)-1,3-thiazol-2-yl]sulfanyl]-3,6-dihydro-2~{H}-1,3-thiazine-4-carboxylic acid ;
Molecular weight formula_weight	687.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 5 Entity 5 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 6 Entity 6 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	IODIDE ION
Molecular weight formula_weight	126.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▶

Unit-cell length a length_a	35.621 Å
Unit-cell length b length_b	51.076 Å
Unit-cell length c length_c	129.792 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.12 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	21.741 Å
R factor r_factor	—
R_work r_work	0.1904
R_free r_free	0.2604
