9jns

50S precursor - Erm complex (C-II)

Method: ELECTRON MICROSCOPY D_max: 213.5 Å Quality: GOOD

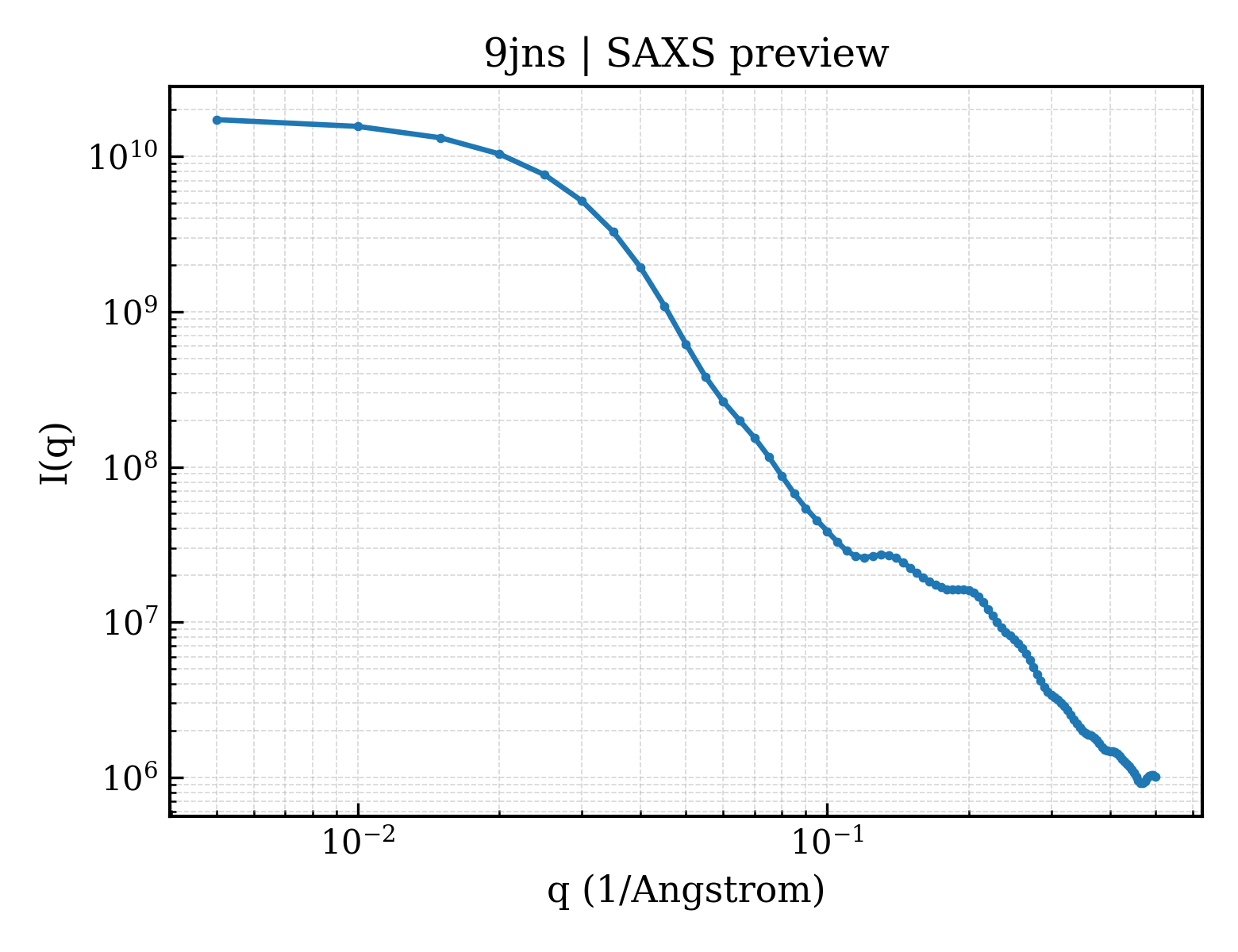

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9jns
沉积日期 deposition_date	2024-09-23
结构标题 title	50S precursor - Erm complex (C-II)
关键词 keywords	50S precursor, Erm, methyltransferase, antibiotic resistance, ribosome-protein complex, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	63.53 Å
回转半径 Rg (电子) rg_electron	63.77 Å
零角强度 I(0) i0	17872500000.00
分子量 molecular_weight	733380.0 kDa
排除体积 excluded_volume	752460 Å³
包络体积 envelope_volume	1420100 Å³
水化壳体积 shell_volume	175780 Å³
包络直径 envelope_diameter	211.6 Å
壳层 Rg shell_rg	71.96 Å
包络 Rg envelope_rg	62.38 Å
形状 Rg shape_rg	63.77 Å
总 Rg total_rg	63.86 Å
总原子数 total_atoms	49329
残基数 n_residues	3497
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	213.5 Å
Rg (实空间) rg_real	63.25 Å
Rg 误差 (实空间) rg_real_error	1.69 Å
I(0) (实空间) i0_real	1.7870e+10
I(0) 误差 (实空间) i0_real_error	3.8860e+08
Rg (倒空间) rg_reciprocal	63.74 Å
I(0) (倒空间) i0_reciprocal	17890000000.0000
解质量估计 total_estimate	0.8699
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	76.8 Å
偏度 Skewness skewness	0.223
峰度 Kurtosis kurtosis	-0.467
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0004
最高正则化参数 α highest_alpha	2516000000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.834; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.844

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (18)

Entity 1 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6463.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0
原子数 atom_count	49329

MAVQQNKPTRSKRGMRRSHDALTAVTSLSVDKTSGEKHLRHHITADGYYRGRKVIAK

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 2 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	5397.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MKRTFQPSVLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVSK

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 3 polymer

描述 description	23S ribosomal RNA
分子量 formula_weight	941612.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

GGUUAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGACACGUGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUACCUUUUGUAUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCAUGGGCAGGUUGAAGGUUGGGUAACACUAACUGGAGGACCGAACCGACUAAUGUUGAAAAAUUAGCGGAUGACUUGUGGCUGGGGGUGAAAGGCCAAUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCUCCGGGGGUAGAGCACUGUUUCGGCAAGGGGGUCAUCCCGACUUACCAACCCGAUGCAAACUGCGAAUACCGGAGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGAUGUGGGAAGGCCCAGACAGCCAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAAAGCGUAAUAGCUCACUGGUCGAGUCGGCCUGCGCGGAAGAUGUAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUAACUUCGGGAGAAGGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGCAACUGUUUAUUAAAAACACAGCACUGUGCAAACACGAAAGUGGACGUAUACGGUGUGACGCCUGCCCGGUGCCGGAAGGUUAAUUGAUGGGGUUAGCGCAAGCGAAGCUCUUGAUCGAAGCCCCGGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAAUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGAAAUUGAACUCGCUGUGAAGAUGCAGUGUACCCGCGGCAAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGACACUGAACAUUGAGCCUUGAUGUGUAGGAUAGGUGGGAGGCUUUGAAGUGUGGACGCCAGUCUGCAUGGAGCCGACCUUGAAAUACCACCCUUUAAUGUUUGAUGUUCUAACGUUGACCCGUAAUCCGGGUUGCGGACAGUGUCUGGUGGGUAGUUUGACUGGGGCGGUCUCCUCCUAAAGAGUAACGGAGGAGCACGAAGGUUGGCUAAUCCUGGUCGGACAUCAGGAGGUUAGUGCAAUGGCAUAAGCCAGCUUGACUGCGAGCGUGACGGCGCGAGCAGGUGCGAAAGCAGGUCAUAGUGAUCCGGUGGUUCUGAAUGGAAGGGCCAUCGCUCAACGGAUAAAAGGUACUCCGGGGAUAACAGGCUGAUACCGCCCAAGAGUUCAUAUCGACGGCGGUGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGAAGUAGGUCCCAAGGGUAUGGCUGUUCGCCAUUUAAAGUGGUACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGCGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGUGCUGAAAGCAUCUAAGCACGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGGCUUAACCUU

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 4 polymer

描述 description	rRNA adenine N-6-methyltransferase
分子量 formula_weight	28955.5 kDa
EC 编号 ec_number	2.1.1.184
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MNEKNIKHSQNFITSKHNIDKIMTNIRLNEHDNIFEIGSGKGHFTLELVQRCNFVTAIEIDHKLCKTTENKLVDHDNFQVLNKDILQFKFPKNQSYKIFGNIPYNISTDIIRKIVFDSIADEIYLIVEYGFAKRLLNTKRSLALFLMAEVDISILSMVPREYFHPKPKVNSSLIRLNRKKSRISHKDKQKYNYFVMKWVNKEYKKIFTKNQFNNSLKHAGIDDLNNISFEQFLSLFNSYKLFNK

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli K-12

Entity 5 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	22277.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MIGLVGKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 6 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22121.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 7 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16050.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 8 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13565.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MIQEQTMLNVADNSGARRVMCIKVLGGSHRRYAGVGDIIKITIKEAIPRGKVKKGDVLKAVVVRTKKGVRRPDGSVIRFDGNACVLLNNNSEQPIGTRIFGPVTRELRSEKFMKIISLAPEVL

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 9 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15008.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MRLNTLSPAEGSKKAGKRLGRGIGSGLGKTGGRGHKGQKSRSGGGVRRGFEGGQMPLYRRLPKFGFTSRKAAITAEIRLSDLAKVEGGVVDLNTLKAANIIGIQIEFAKVILAGEVTTPVTVRGLRVTKGARAAIEAAGGKIEE

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 10 polymer

描述 description	50S ribosomal protein L17
分子量 formula_weight	14393.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MRHRKSGRQLNRNSSHRQAMFRNMAGSLVRHEIIKTTLPKAKELRRVVEPLITLAKTDSVANRRLAFARTRDNEIVAKLFNELGPRFASRAGGYTRILKCGFRAGDNAPMAYIELVDRSEKAEAAAE

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 11 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13159.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MSNIIKQLEQEQMKQDVPSFRPGDTVEVKVWVVEGSKKRLQAFEGVVIAIRNRGLHSAFTVRKISNGEGVERVFQTHSPVVDSISVKRRGAVRKAKLYYLRERTGKAARIKERLN

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 12 polymer

描述 description	50S ribosomal protein L20
分子量 formula_weight	13528.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MARVKRGVIARARHKKILKQAKGYYGARSRVYRVAFQAVIKAGQYAYRDRRQRKRQFRQLWIARINAAARQNGISYSKFINGLKKASVEIDRKILADIAVFDKVAFTALVEKAKAALA

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 13 polymer

描述 description	50S ribosomal protein L21
分子量 formula_weight	11586.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MYAVFQSGGKQHRVSEGQTVRLEKLDIATGETVEFAEVLMIANGEEVKIGVPFVDGGVIKAEVVAHGRGEKVKIVKFRRRKHYRKQQGHRQWFTDVKITGISA

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 14 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	12253.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 15 polymer

描述 description	50S ribosomal protein L23
分子量 formula_weight	11222.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MIREERLLKVLRAPHVSEKASTAMEKSNTIVLKVAKDATKAEIKAAVQKLFEVEVEVVNTLVVKGKVKRHGQRIGRRSDWKKAYVTLKEGQNLDFVGGAE

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 16 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11339.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MAAKIRRDDEVIVLTGKDKGKRGKVKNVLSSGKVIVEGINLVKKHQKPVPALNQPGGIVEKEAAIQVSNVAIFNAATGKADRVGFRFEDGKKVRFFKSNSETIK

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 17 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	7286.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MKAKELREKSVEELNTELLNLLREQFNLRMQAASGQLQQSHLLKQVRRDVARVKTLLNEKAGA

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

Entity 18 polymer

描述 description	50S ribosomal protein L30
分子量 formula_weight	6554.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAKTIKITQTRSAIGRLPKHKATLLGLGLRRIGHTVEREDTPAIRGMINAVSFMVKVEE

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli K-12

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	55608

fit	/app/data/saxs_computation/jn/9jns/9jns.fit
pddf	/app/data/pr_computation/jn/9jns/9jns.pr.out
profile	/app/data/saxs_computation/jn/9jns/9jns.dat
