SAXSdb — 9k46

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.3

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H4 × 2 （P59259） Probable histone H2A.7 × 2 （Q9FJE8） Histone H2B.1 × 2 （Q9LQQ4） 15.2.2 DNA (147-MER) × 1 15.2.2 DNA (147-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H33_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136

Histone H4

Arabidopsis thaliana

UniProt P59259

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.3 × 2 （P59169） Probable histone H2A.7 × 2 （Q9FJE8） Histone H2B.1 × 2 （Q9LQQ4） 15.2.2 DNA (147-MER) × 1 15.2.2 DNA (147-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_ARATH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Probable histone H2A.7

Arabidopsis thaliana

UniProt Q9FJE8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.3 × 2 （P59169） Histone H4 × 2 （P59259） Histone H2B.1 × 2 （Q9LQQ4） 15.2.2 DNA (147-MER) × 1 15.2.2 DNA (147-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A7_ARATH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–150； UniProt 1–150 Author chain G； PDBConstruct 1–150； UniProt 1–150

Histone H2B.1

Arabidopsis thaliana

UniProt Q9LQQ4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.3 × 2 （P59169） Histone H4 × 2 （P59259） Probable histone H2A.7 × 2 （Q9FJE8） 15.2.2 DNA (147-MER) × 1 15.2.2 DNA (147-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1_ARATH
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–148； UniProt 1–148 Author chain H； PDBConstruct 1–148； UniProt 1–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9k46
Deposition date deposition_date	2024-10-21
Structure title title	Cryo-EM structure of Arabidopsis thaliana H2A.W-H3.3-nucleosome with Arabidopsis native 147bp DNA 15.2.2 (C2 symmetry)
Keywords keywords	nucleosome, histone, H2A.W, H3.3, Arabidopsis, NUCLEAR PROTEIN/DNA, NUCLEAR PROTEIN-DNA complex; NUCLEAR PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9k46__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9k46__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

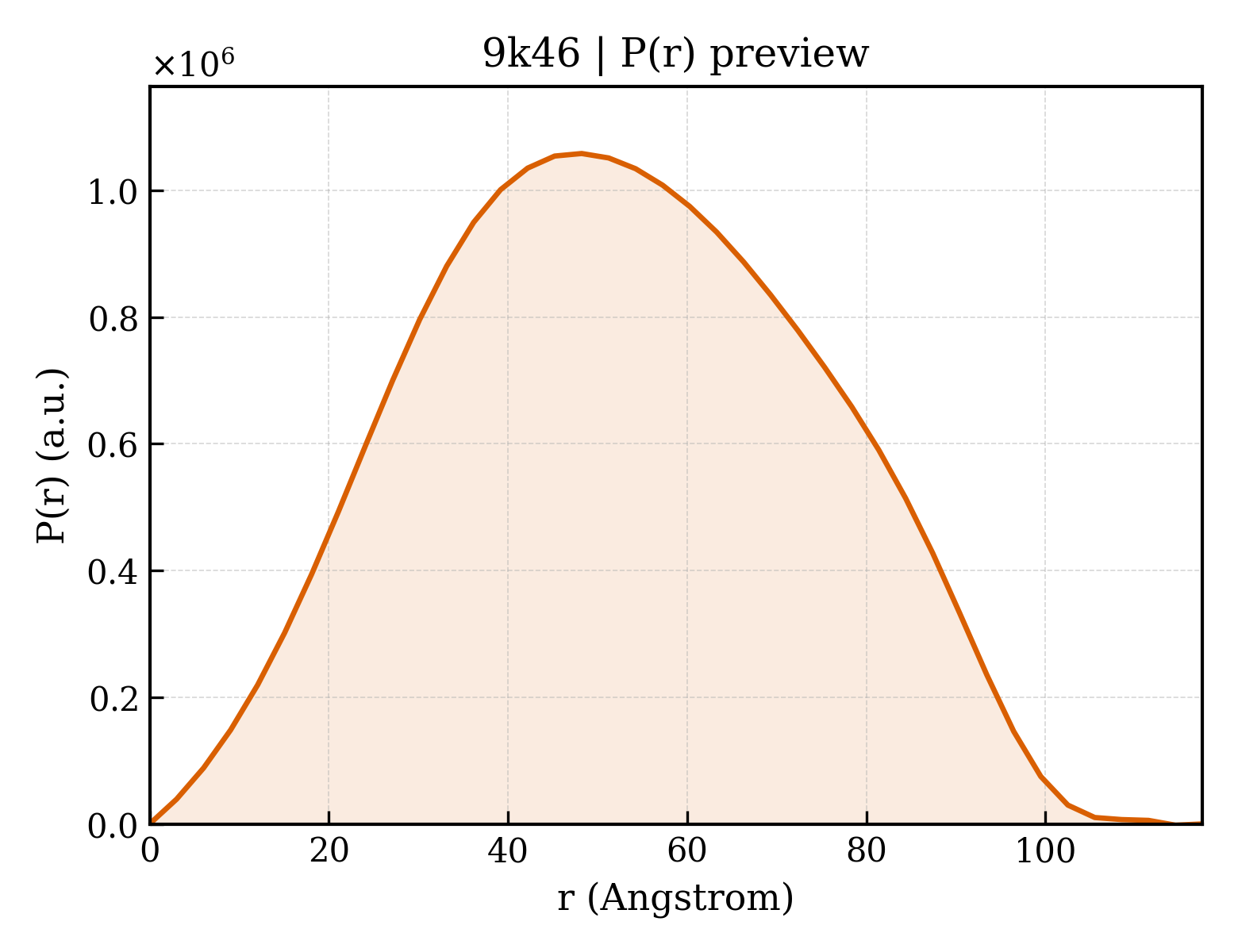

9k46__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.14 Å
Rg (electron density)	37.34 Å
Total Rg	38.07 Å
Atom count	11844
Residues	1036
Excluded volume	193390 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9k46__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone H3.3
Molecular weight formula_weight	15440.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	11844

MARTKQTARKSTGGKAPRKQLATKAARKSAPTTGGVKKPHRYRPGTVALREIRKYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSHAVLALQEAAEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11436.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKIFLENVIRDAVTYTEHARRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Probable histone H2A.7
Molecular weight formula_weight	15997.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MESTGKVKKAFGGRKPPGAPKTKSVSKSMKAGLQFPVGRITRFLKKGRYAQRLGGGAPVYMAAVLEYLAAEVLELAGNAARDNKKSRIIPRHLLLAIRNDEELGKLLSGVTIAHGGVLPNINSVLLPKKSATKPAEEKATKSPVKSPKKA

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B.1
Molecular weight formula_weight	16439.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MAPRAEKKPAEKKTAAERPVEENKAAEKAPAEKKPKAGKKLPPKEAGDKKKKRSKKNVETYKIYIFKVLKQVHPDIGISSKAMGIMNSFINDIFEKLAQESSKLARYNKKPTITSREIQTAVRLVLPGELAKHAVSEGTKAVTKFTSS

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	15.2.2 DNA (147-MER)
Molecular weight formula_weight	45071.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ACCTTTATTGACTCCATAATTGACCAATTGAGCGGCTCGATTCAACTGTCAATAACTTCAAATGAAGCAAGAGCCTTATCGTATTCTCCGCACGATGGTGCTTTAATCCACCGCAACTTTCCTCTTTAATAAAGGCACAAGCATTAA

Entity 6 Entity 6 polymer

Description description	15.2.2 DNA (147-MER)
Molecular weight formula_weight	45654.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

TTAATGCTTGTGCCTTTATTAAAGAGGAAAGTTGCGGTGGATTAAAGCACCATCGTGCGGAGAATACGATAAGGCTCTTGCTTCATTTGAAGTTATTGACAGTTGAATCGAGCCGCTCAATTGGTCAATTATGGAGTCAATAAAGGT

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.85 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	165777

Cryo-EM structure of Arabidopsis thaliana H2A.W-H3.3-nucleosome with Arabidopsis native 147bp DNA 15.2.2 (C2 symmetry)
