1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 5

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	CALCIUM ION × 3 CHOLESTEROL HEMISUCCINATE × 3 (2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 47–412； UniProt 27–392 Author chain C； PDBConstruct 47–412； UniProt 27–392 Author chain D； PDBConstruct 47–412； UniProt 27–392 Author chain B； PDBConstruct 19–384； UniProt 27–392

Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 5

Mus musculus

UniProt Q9QX29

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 1,Extended tegument protein pp150 × 1 （A0A076JQ90,P0AEX9,P48995） CALCIUM ION × 3 CHOLESTEROL HEMISUCCINATE × 3 (2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPC5_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 439–1203； UniProt 1–765 Author chain C； PDBConstruct 439–1203； UniProt 1–765 Author chain D； PDBConstruct 439–1203； UniProt 1–765

Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 1,Extended tegument protein pp150

Human betaherpesvirus 5

UniProt A0A076JQ90

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 5 × 3 （P0AEX9,Q9QX29） CALCIUM ION × 3 CHOLESTEROL HEMISUCCINATE × 3 (2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A076JQ90_HCMV
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1223–1467； UniProt 1050–1294

Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 1,Extended tegument protein pp150

Human betaherpesvirus 5

UniProt P48995

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 5 × 3 （P0AEX9,Q9QX29） CALCIUM ION × 3 CHOLESTEROL HEMISUCCINATE × 3 (2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPC1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 411–1203； UniProt 1–793

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9k4i
Deposition date deposition_date	2024-10-21
Structure title title	Cryo-EM structure of the human TRPC1/C5 heteromer
Keywords keywords	Short transient receptor potential channel 1;Short transient receptor potential channel 5, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9k4i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9k4i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

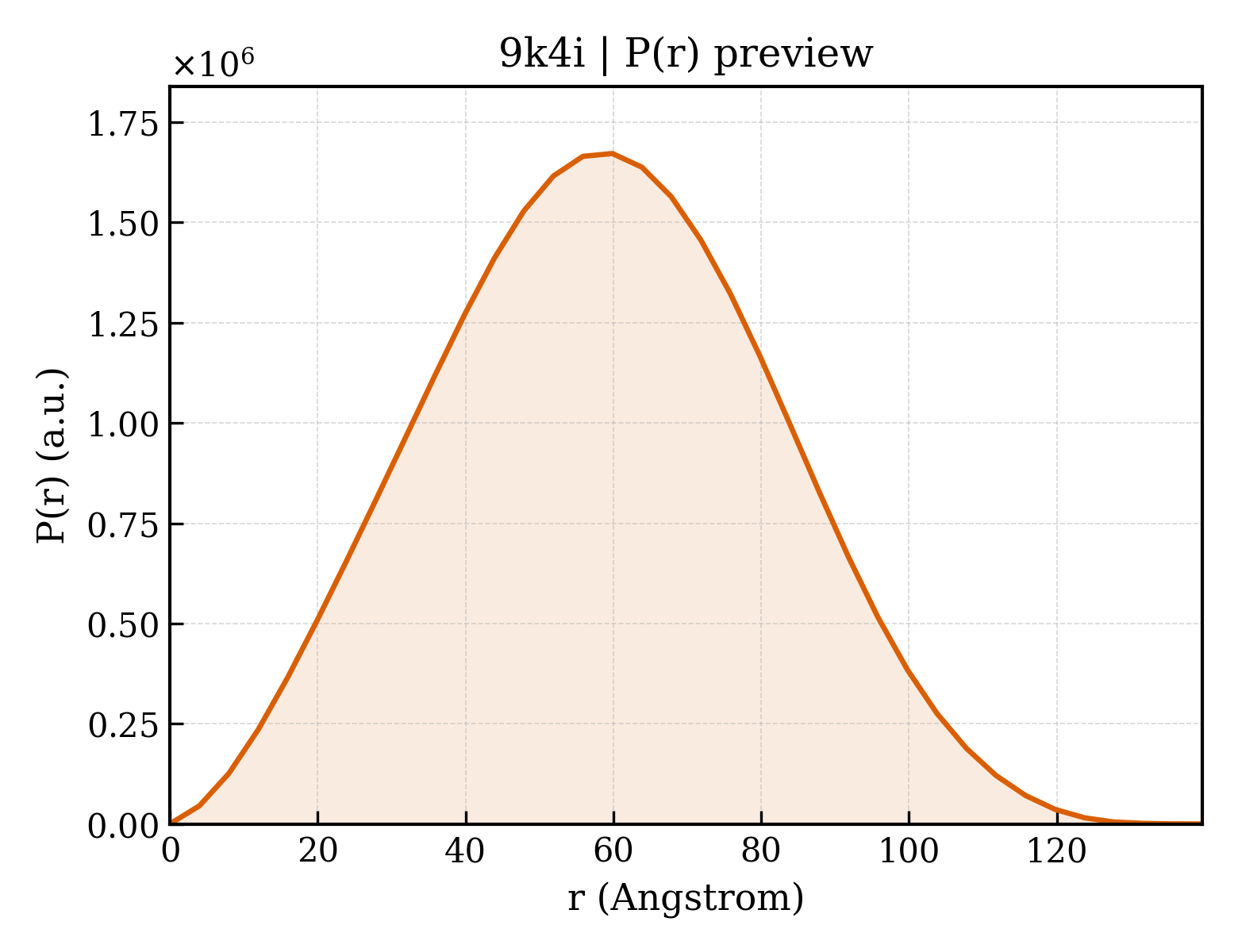

9k4i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.84 Å
Rg (electron density)	43.87 Å
Total Rg	44.19 Å
Atom count	22192
Residues	2709
Excluded volume	401840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9k4i__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 5
Molecular weight formula_weight	136984.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,D
Atom count atom_count	22192

MGSAGDYKDHDGDYKDHDIDYKDDDDKGSAAAMGSSHHHHHHGSSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIELEVLFQGPMAQLYYKKVNYSPYRDRIPLQIVRAETELSAEEKAFLSAVEKGDYATVKQALQEAEIYYNVNINCMDPLGRSALLIAIENENLEIMELLLNHSVYVGDALLYAIRKEVVGAVELLLSYRKPSGEKQVPTLMMDTQFSEFTPDITPIMLAAHTNNYEIIKLLVQKRVTIPRPHQIRCNCVECVSSSEVDSLRHSRSRLNIYKALASPSLIALSSEDPILTAFRLGWELKELSKVENEFKAEYEELSQQCKLFAKDLLDQARSSRELEIILNHRDDHSEELDPQKYHDLAKLKVAIKYHQKEFVAQPNCQQLLATLWYDGFPGWRRKHWVVKLLTCMTIGFLFPMLSIAYLISPRSNLGLFIKKPFIKFICHTASYLTFLFMLLLASQHIVRTDLHVQGPPPTVVEWMILPWVLGFIWGEIKEMWDGGFTEYIHDWWNLMDFAMNSLYLATISLKIVAYVKYNGSRPREEWEMWHPTLIAEALFAISNILSSLRLISLFTANSHLGPLQISLGRMLLDILKFLFIYCLVLLAFANGLNQLYFYYETRAIDEPNNCKGIRCEKQNNAFSTLFETLQSLFWSVFGLLNLYVTNVKARHEFTEFVGATMFGTYNVISLVVLLNMLIAMMNNSYQLIADHADIEWKFARTKLWMSYFDEGGTLPPPFNIIPSPKSFLYLGNWFNNTFCPKRDPDGRRRRHNLRSFTERHADSLIQNQHYQEVIRNLVKRYVAAMIRNSKTNEGLTEENFKELKQDISSFRYEVLDLLGNRK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,Short transient receptor potential channel 1,Extended tegument protein pp150
Molecular weight formula_weight	168800.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ATMGMGSSHHHHHHGSSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIELEVLFQGPMMAALYPSTDLSGASSSSLPSSPSSSSPNEVMALKDVREVKEENTLNEKLFLLACDKGDYYMVKKILEENSSGDLNINCVDVLGRNAVTITIENENLDILQLLLDYGCQSADALLVAIDSEVVGAVDILLNHRPKRSSRPTIVKLMERIQNPEYSTTMDVAPVILAAHRNNYEILTMLLKQDVSLPKPHAVGCECTLCSAKNKKDSLRHSRFRLDIYRCLASPALIMLTEEDPILRAFELSADLKELSLVEVEFRNDYEELARQCKMFAKDLLAQARNSRELEVILNHTSSDEPLDKRGLLEERMNLSRLKLAIKYNQKEFVSQSNCQQFLNTVWFGQMSGYRRKPTCKKIMTVLTVGIFWPVLSLCYLIAPKSQFGRIIHTPFMKFIIHGASYFTFLLLLNLYSLVYNEDKKNTMGPALERIDYLLILWIIGMIWSDIKRLWYEGLEDFLEESRNQLSFVMNSLYLATFALKVVAHNKFHDFADRKDWDAFHPTLVAEGLFAFANVLSYLRLFFMYTTSSILGPLQISMGQMLQDFGKFLGMFLLVLFSFTIGLTQLYDKGYTSKEQKDCVGIFCEQQSNDTFHSFIGTCFALFWYIFSLAHVAIFVTRFSYGEELQSFVGAVIVGTYNVVVVIVLTKLLVAMLHKSFQLIANHEDKEWKFARAKLWLSYFDDKCTLPPPFNIIPSPKTICYMISSLSKWICSHTSKGKVKRQNSLKEWRNLKQKRDENYQKVMCCLVHRYLTSMRQKMQSTDQATVENLNELRQDLSKFRNEIRDLLGFRTSKYAMFYPRNGGGSGGGSGGGSENLYFQGGSAGSAMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITLGMDELYKGSAGSAGSAWSHPQFEKGGGSGGGSGGGSWSHPQFEK

Source Source

Source organism organism	Human betaherpesvirus 5
NCBI taxonomy ID ncbi_taxonomy_id	10359
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CHOLESTEROL HEMISUCCINATE
Molecular weight formula_weight	486.7 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	(2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	594.9 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Resolution resolution	2.84 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	143788
