Arabidopsis thaliana
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | F-box protein × 1 （T1RVG4） | Consistent with protein count |
| UniProt name | SKP1A_ARATH |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–160； UniProt 1–160 |
Striga hermonthica
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | SKP1-like protein 1A × 1 （Q39255） | Consistent with protein count |
| UniProt name | T1RVG4_STRHE |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain C； PDBConstruct 39–765； UniProt 2–728 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 9kll |
| Deposition date deposition_date | 2024-11-14 |
| Structure title title | Striga MAX2-ASK1 complex |
| Keywords keywords | Strigolactone, SCF, Ubiquitination, SIGNALING PROTEIN; SIGNALING PROTEIN |
| Experimental Method method | ELECTRON MICROSCOPY |

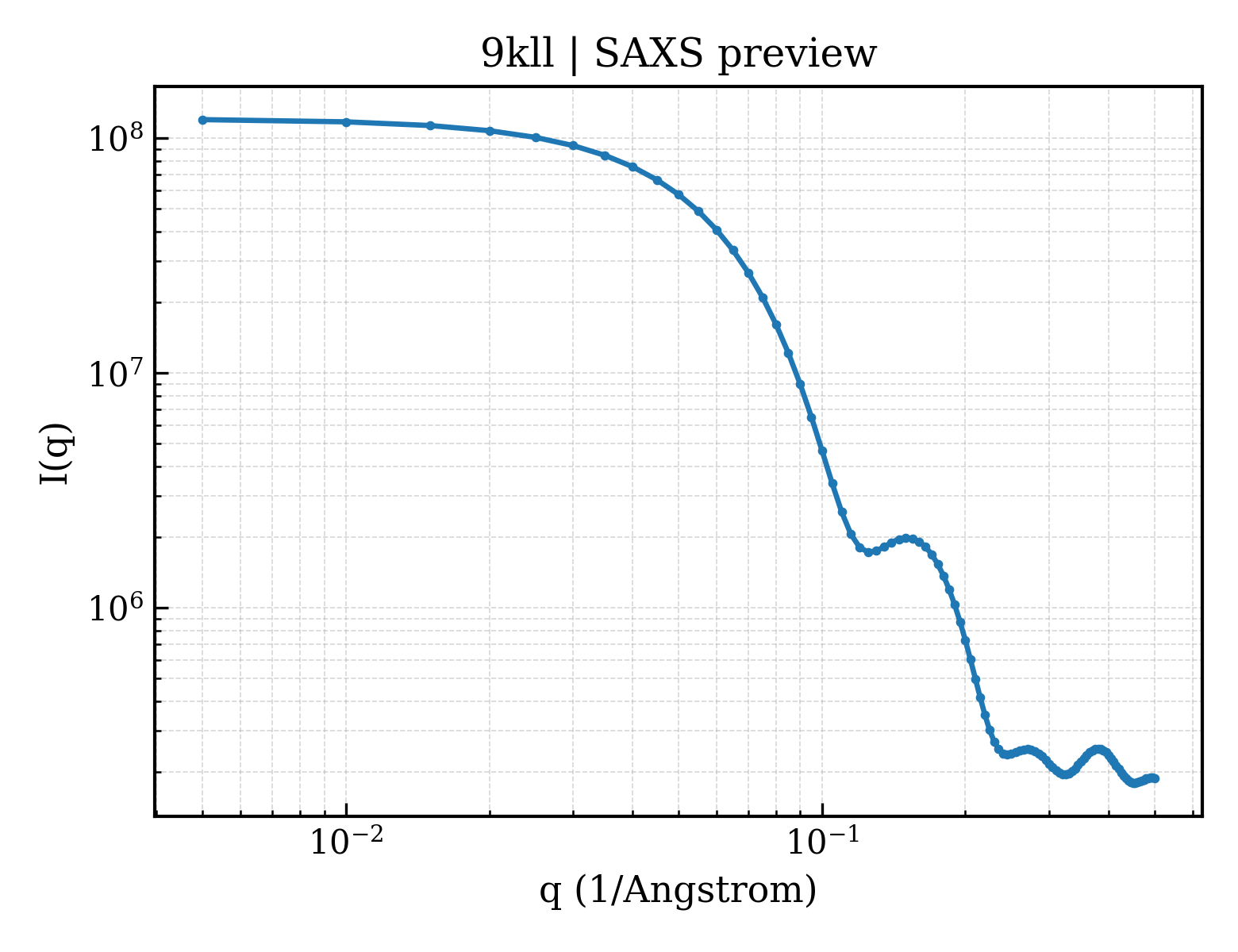

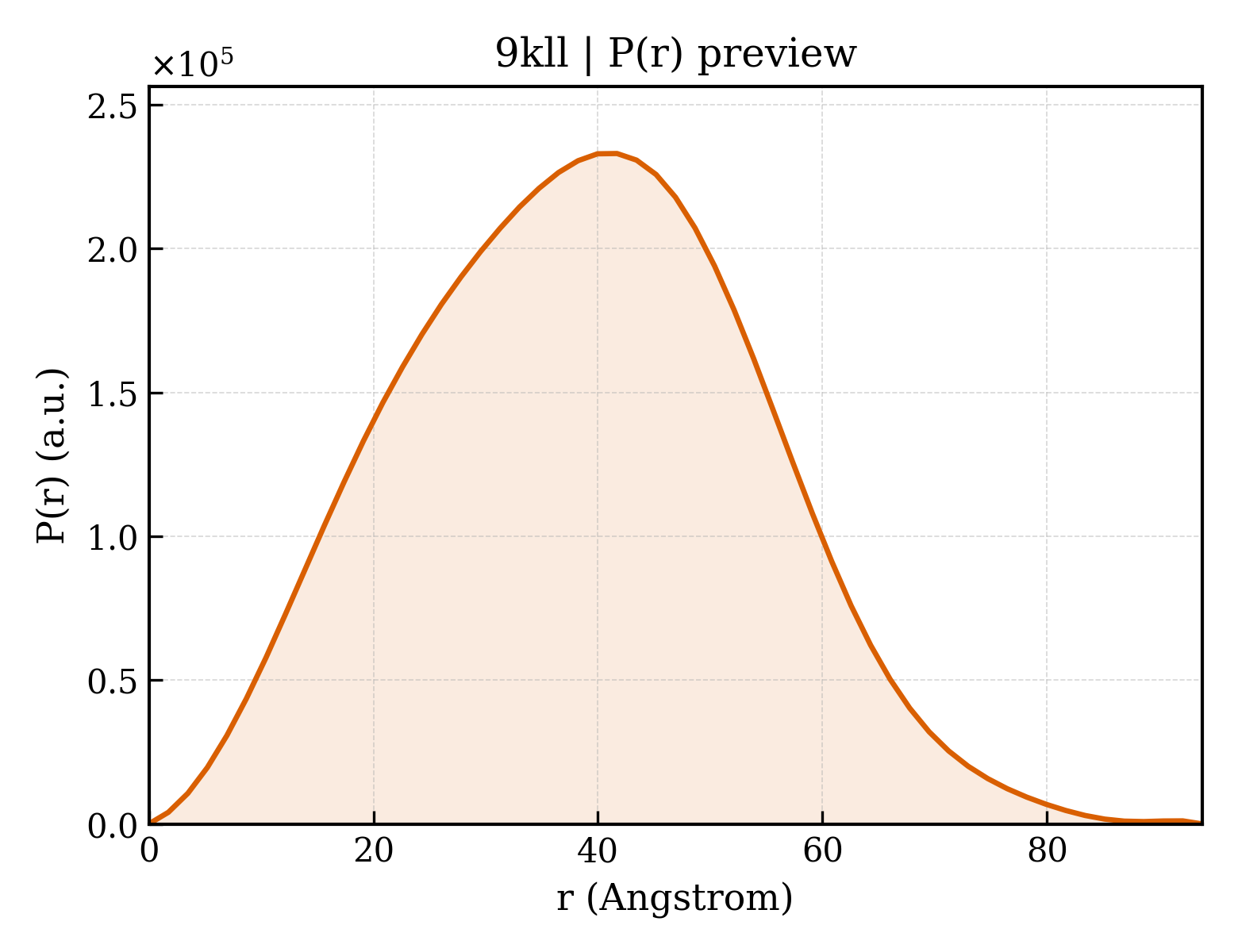

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 29.52 Å |
| Rg (electron density) | 28.53 Å |
| Total Rg | 29.32 Å |
| Atom count | 6081 |
| Residues | 779 |
| Excluded volume | 108440 ų |
| Maximum q | 0.500 Å⁻¹ |
