SAXSdb — 9lcp

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lcp
沉积日期 deposition_date	2025-01-05
结构标题 title	PvdL-E2-C3-A3 in complex with MLP (NRPS cross-module)
关键词 keywords	Nonribosomal peptide synthetase, LIGASE; LIGASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.25 Å
回转半径 Rg (电子) rg_electron	51.56 Å
零角强度 I(0) i0	363047000.00
分子量 molecular_weight	156300.0 kDa
排除体积 excluded_volume	195160 Å³
包络体积 envelope_volume	282820 Å³
水化壳体积 shell_volume	51016 Å³
包络直径 envelope_diameter	171.8 Å
壳层 Rg shell_rg	47.74 Å
包络 Rg envelope_rg	49.73 Å
形状 Rg shape_rg	51.54 Å
总 Rg total_rg	51.45 Å
总原子数 total_atoms	21872
残基数 n_residues	1393
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.2 Å
Rg (实空间) rg_real	51.66 Å
Rg 误差 (实空间) rg_real_error	1.75 Å
I(0) (实空间) i0_real	3.6300e+08
I(0) 误差 (实空间) i0_real_error	6.8010e+06
Rg (倒空间) rg_reciprocal	50.88 Å
I(0) (倒空间) i0_reciprocal	362700000.0000
解质量估计 total_estimate	0.7687
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.2 Å
偏度 Skewness skewness	0.454
峰度 Kurtosis kurtosis	-0.665
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	35300000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.793; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.612; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	PvdL
分子量 formula_weight	185112.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	21872

MGSSHHHHHHSSGAPRSVLEQQLAGVWREVLNVERVGLGDNFFELGGDSILSIQVVSRARQLGIHFSPRDLFQHQTVQSLAAVARHSQASQAEQGPVQGDSALTPIQHWFFDLPLARREHWNQALLLQPRQAIDLGLLRKSLQRLVEQHDALRLAFRQVDGEWLAQHRPLREQELLWHVPVQSFDECAELFAKAQRSLDLEQGPLLRAVLVDGPAGEQRLLLAIHHLVVDGVSWRVLLEDLQQVYRQFAEGAEPALPAKTSAFRDWAGRLQAYAGSESLREELGWWQARLGGQPVEWPCDRPQGDNREALAESVSLRLDPQRTRQLLQQAPAAYRTQVNDLLLTALARVLCRWSGQPSTLVQLEGHGREALFDDIDLTRSVGWFTSAYPLRLTPAQSPGESIKAIKEQLRAVPHKGLGYGVLRYLADPAVRQAMAALPTAPITFNYLGQFDQSFADALFQPLDQPTGPIHDEQAPLPNELSVDGQVYGGELVLRWTYSRERYDARTVNELAQAYLAELQALIEHCLEDGAGGLTPSDFPLAQLSQAQLDALAVPAGEIEDVYPLTPMQEGLLLHTLLEPGTGIYYMQDRYRIDSPLDPERFAAAWQAVVARHEALRASFVWNAGETMLQVIHKPGRTRIEFLDWSELPEDGHEERLQALHKREREAGFDLLEQPPFHLRLIRLGEARYWFMMSNHHILIDAWCRGLLMNDFFEIYSALGESRPANLPTPPRYRDYIAWLQRQDLEQSRRWWSESLRGFERPTLVPSDRPFLREHAGESGGMIVGDRYTRLDAADGARLRELAQRYQLTVNTFAQAAWALTLRRFSGERDVLFGVTVAGRPVGMPEMQRTVGLFINSIPLRVQMPAAGQRCTVREWLNRLFERNLELREHEHLPLVAIQESSELPKGQPLFDSLFVFENAPVEVSVLDRAQSLNASSDSGRTHTNFPLTVVCYPGDDLGLHLSYDQRYFEAPTVERLLGEFKRLLLALADGFHGELEALPLLGEDERDFLLDGCNRSARDYPLEQGYVRLFEAQVAAHPQRIAASCLEQRWSYAELNRRANRLGHALRAAGVGIDQPVALLAERGLDLLGMIVGSFKAGAGYLPLDPGHPTQRLTRIVELSRTLVLVCTQACREQALALFDELGCVDRPRLLVWDEIQQGEGAEHDPQVYSGPQNLAYVIYTSGSTGLPKGVMVEQAGMLNNQLSKVPYLELDENDVIAQTASQSFDISVWQFLAAPLFGARVAIVPNAVAHDPQGLLAHVGEQGITVLESVPSLIQGMLAEERQALDGLRWMLPTGEAMPPELARQWLKRYPRIGLVNAYGPAECSDDVAFFRVDLASTESTYLPIGSPTDNNRLYLLGAGADDAFELVPLGAVGELCVAGTGVGRGYVGDPLRTAQAFVPHPFGAPGERLYRTGDLARRRADGVLEYVGRIDHQVKIRGFRIELGEIEARLHERADVREAAVAVQEGANGKYLVGYLVPGETPRSSADSPAGLMVEQGAWFERIKQQLRADLPDYMVPLHWLVLDRMPLNANGKLDRKALPALDIGQMQNQAYQAPRNELEETLARIWAEVLKVERVGVFDNFFELGGHSLLATQIASRVQKALQRNVPLRAMFECTTVEELASYIESLAPSEISEQKAERLNDLMSKLEML

来源 Source

来源生物 organism	Pseudomonas aeruginosa PAO1
NCBI 分类编号 ncbi_taxonomy_id	208964
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	MbtH-like domain-containing protein
分子量 formula_weight	9856.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MTSVFDRDDIQFQVVVNHEEQYSIWPEYKEIPQGWRAAGKSGLKKDCLAYIEEVWTDMRPLSLRQHMDKAAGSTGNWSHPQFEK

来源 Source

来源生物 organism	Pseudomonas aeruginosa PAO1
NCBI 分类编号 ncbi_taxonomy_id	208964
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.76 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	180174

fit	/app/data/saxs_computation/lc/9lcp/9lcp.fit
pddf	/app/data/pr_computation/lc/9lcp/9lcp.pr.out
profile	/app/data/saxs_computation/lc/9lcp/9lcp.dat

PvdL-E2-C3-A3 in complex with MLP (NRPS cross-module)

SAXS 散射曲线 SAXS Profile

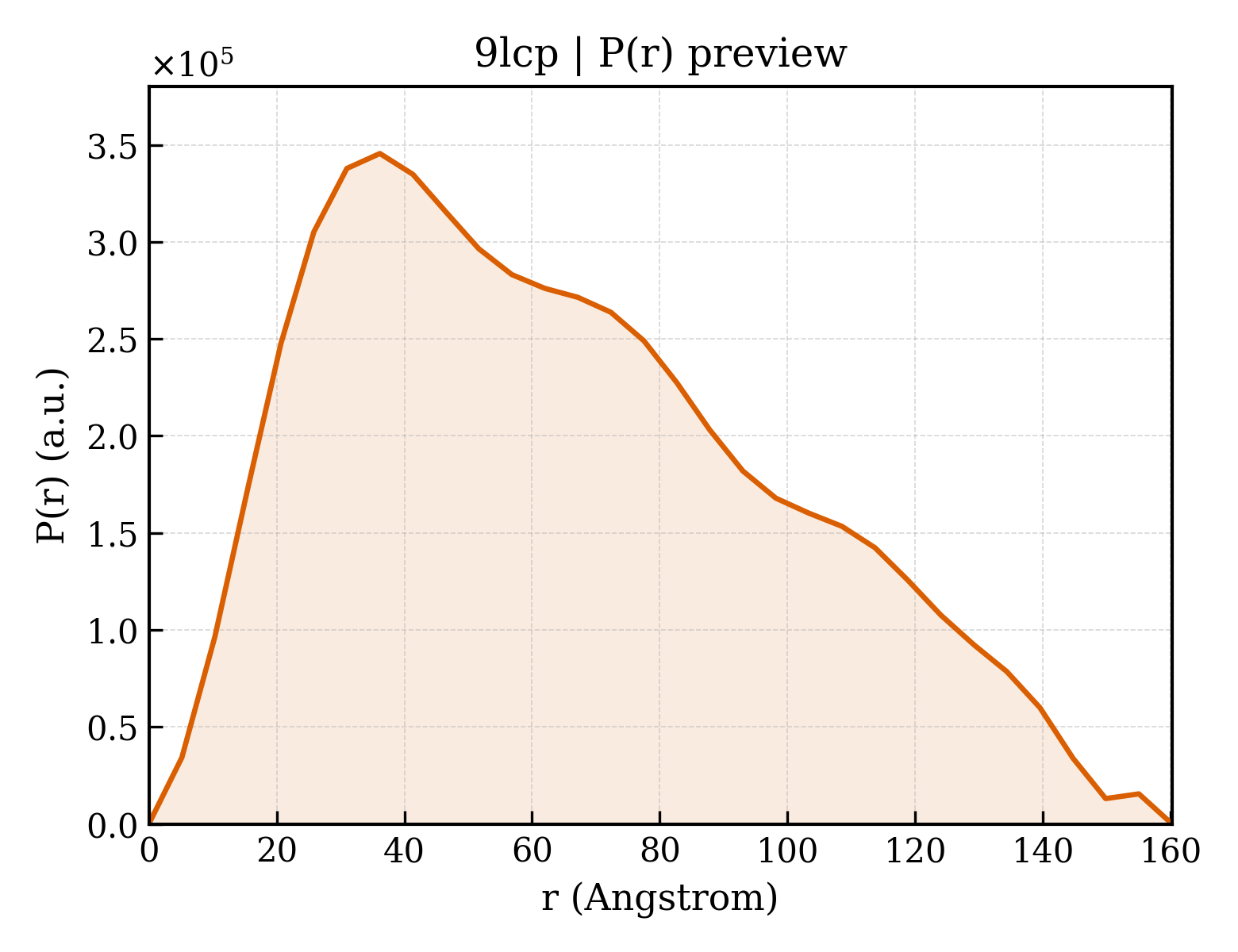

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
