SAXSdb — 9up2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PvdL

Pseudomonas aeruginosa PAO1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	MbtH-like domain-containing protein × 1 （Q9I169） 2,4-DIAMINOBUTYRIC ACID × 2 ADENOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9I157_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1536； UniProt 2789–4324

MbtH-like domain-containing protein

Pseudomonas aeruginosa PAO1

UniProt Q9I169

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PvdL × 1 （Q9I157） 2,4-DIAMINOBUTYRIC ACID × 2 ADENOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9I169_PSEAE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–61； UniProt 8–68

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9up2
Deposition date deposition_date	2025-04-27
Structure title title	PvdL-E2-C3-A3-PCP3 in complex with MLP (NRPS cross-module)
Keywords keywords	Nonribosomal peptide synthetase, LIGASE, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9up2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9up2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

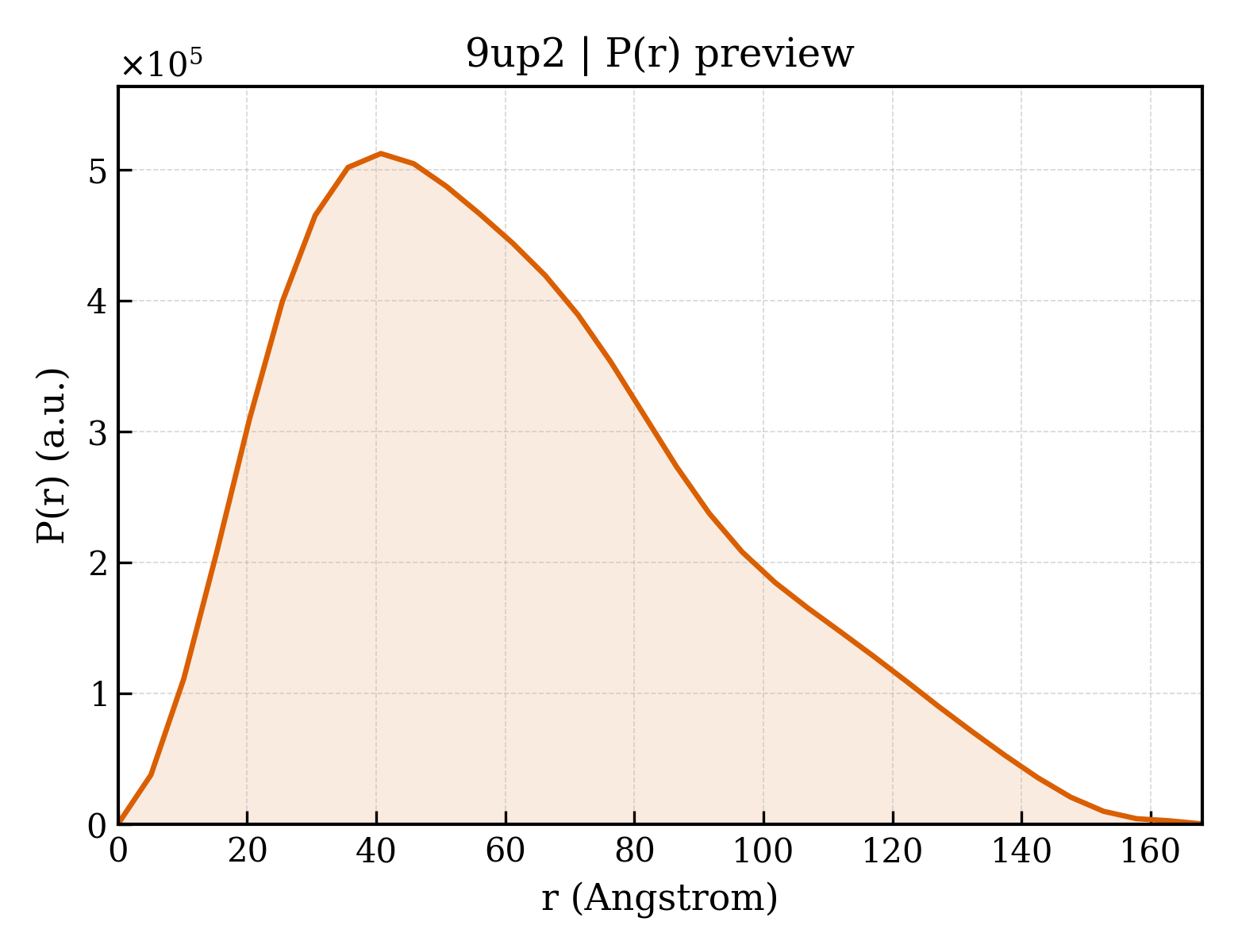

9up2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.85 Å
Rg (electron density)	48.28 Å
Total Rg	48.20 Å
Atom count	25216
Residues	1596
Excluded volume	224830 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9up2__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PvdL
Molecular weight formula_weight	172528.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	25216

DSALTPIQHWFFDLPLARREHWNQALLLQPRQAIDLGLLRKSLQRLVEQHDALRLAFRQVDGEWLAQHRPLREQELLWHVPVQSFDECAELFAKAQRSLDLEQGPLLRAVLVDGPAGEQRLLLAIHHLVVDGVSWRVLLEDLQQVYRQFAEGAEPALPAKTSAFRDWAGRLQAYAGSESLREELGWWQARLGGQPVEWPCDRPQGDNREALAESVSLRLDPQRTRQLLQQAPAAYRTQVNDLLLTALARVLCRWSGQPSTLVQLEGHGREALFDDIDLTRSVGWFTSAYPLRLTPAQSPGESIKAIKEQLRAVPHKGLGYGVLRYLADPAVRQAMAALPTAPITFNYLGQFDQSFADALFQPLDQPTGPIHDEQAPLPNELSVDGQVYGGELVLRWTYSRERYDARTVNELAQAYLAELQALIEHCLEDGAGGLTPSDFPLAQLSQAQLDALAVPAGEIEDVYPLTPMQEGLLLHTLLEPGTGIYYMQDRYRIDSPLDPERFAAAWQAVVARHEALRASFVWNAGETMLQVIHKPGRTRIEFLDWSELPEDGHEERLQALHKREREAGFDLLEQPPFHLRLIRLGEARYWFMMSNHHILIDAWCRGLLMNDFFEIYSALGESRPANLPTPPRYRDYIAWLQRQDLEQSRRWWSESLRGFERPTLVPSDRPFLREHAGESGGMIVGDRYTRLDAADGARLRELAQRYQLTVNTFAQAAWALTLRRFSGERDVLFGVTVAGRPVGMPEMQRTVGLFINSIPLRVQMPAAGQRCTVREWLNRLFERNLELREHEHLPLVAIQESSELPKGQPLFDSLFVFENAPVEVSVLDRAQSLNASSDSGRTHTNFPLTVVCYPGDDLGLHLSYDQRYFEAPTVERLLGEFKRLLLALADGFHGELEALPLLGEDERDFLLDGCNRSARDYPLEQGYVRLFEAQVAAHPQRIAASCLEQRWSYAELNRRANRLGHALRAAGVGIDQPVALLAERGLDLLGMIVGSFKAGAGYLPLDPGHPTQRLTRIVELSRTLVLVCTQACREQALALFDELGCVDRPRLLVWDEIQQGEGAEHDPQVYSGPQNLAYVIYTSGSTGLPKGVMVEQAGMLNNQLSKVPYLELDENDVIAQTASQSFDISVWQFLAAPLFGARVAIVPNAVAHDPQGLLAHVGEQGITVLESVPSLIQGMLAEERQALDGLRWMLPTGEAMPPELARQWLKRYPRIGLVNAYGPAECSDDVAFFRVDLASTESTYLPIGSPTDNNRLYLLGAGADDAFELVPLGAVGELCVAGTGVGRGYVGDPLRTAQAFVPHPFGAPGERLYRTGDLARRRADGVLEYVGRIDHQVKIRGFRIELGEIEARLHERADVREAAVAVQEGANGKYLVGYLVPGETPRSSADSPAGLMVEQGAWFERIKQQLRADLPDYMVPLHWLVLDRMPLNANGKLDRKALPALDIGQMQNQAYQAPRNELEETLARIWAEVLKVERVGVFDNFFELGGHXLLATQIASRVQKALQRNVPLRAMFECTTVEELASYIESLAPSEI

Source Source

Source organism organism	Pseudomonas aeruginosa PAO1
NCBI taxonomy ID ncbi_taxonomy_id	208964
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	MbtH-like domain-containing protein
Molecular weight formula_weight	7288.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DDIQFQVVVNHEEQYSIWPEYKEIPQGWRAAGKSGLKKDCLAYIEEVWTDMRPLSLRQHMD

Source Source

Source organism organism	Pseudomonas aeruginosa PAO1
NCBI taxonomy ID ncbi_taxonomy_id	208964
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	2,4-DIAMINOBUTYRIC ACID
Molecular weight formula_weight	118.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.33 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	165245
