1. Protein Identity and Related Structures Protein Identity & Related Structures

Potassium voltage-gated channel subfamily KQT member 5

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 90–698 Chain B； UniProt 90–698 Chain D； UniProt 90–698 Chain G； UniProt 90–698	Not recorded	Calmodulin-3 × 4 （P0DP25） PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9LIZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6B8Q Crystal Structure of the Mg2+/CaM:Kv7.5 (KCNQ5) AB domain complex Deposited 2017-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 361–394（34 aa） Chain A 530–564（35 aa）	Not recorded	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2M magnesium formate, 20% PEG 3350	Resolution 2.60 Å R-free 0.270
6B8Q Crystal Structure of the Mg2+/CaM:Kv7.5 (KCNQ5) AB domain complex Deposited 2017-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 361–394（34 aa） Chain C 530–564（35 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2M magnesium formate, 20% PEG 3350	Resolution 2.60 Å R-free 0.270
6B8Q Crystal Structure of the Mg2+/CaM:Kv7.5 (KCNQ5) AB domain complex Deposited 2017-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 361–394（34 aa） Chain E 530–564（35 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2M magnesium formate, 20% PEG 3350	Resolution 2.60 Å R-free 0.270
6B8Q Crystal Structure of the Mg2+/CaM:Kv7.5 (KCNQ5) AB domain complex Deposited 2017-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 361–394（34 aa） Chain G 530–564（35 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2M magnesium formate, 20% PEG 3350	Resolution 2.60 Å R-free 0.270
9J38 human KCNQ5-CaM in apo state Deposited 2024-08-08	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 90–698（609 aa） Chain B 90–698（609 aa） Chain C 90–698（609 aa） Chain D 90–698（609 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9LJ1 Human KCNQ5-CaM-PIP2-HN37 complex in a closed conformation. Deposited 2025-01-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 90–698（609 aa） Chain B 90–698（609 aa） Chain D 90–698（609 aa） Chain G 90–698（609 aa）	Not recorded	9MF methyl N-[4-[(4-fluorophenyl)methyl-prop-2-ynyl-amino]-2,6-dimethyl-phenyl]carbamate × 4 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LJ5 Human KCNQ5-CaM-PIP2-HN37 complex in an open conformation. Deposited 2025-01-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 90–698（609 aa） Chain B 90–698（609 aa） Chain D 90–698（609 aa） Chain G 90–698（609 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 8 9MF methyl N-[4-[(4-fluorophenyl)methyl-prop-2-ynyl-amino]-2,6-dimethyl-phenyl]carbamate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

4 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCNQ5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–610； UniProt 90–698 Author chain B； PDBConstruct 2–610； UniProt 90–698 Author chain D； PDBConstruct 2–610； UniProt 90–698 Author chain G； PDBConstruct 2–610； UniProt 90–698

Calmodulin-3

Homo sapiens

UniProt P0DP25

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain C； UniProt 1–149 Chain E； UniProt 1–149 Chain F； UniProt 1–149 Chain H； UniProt 1–149	Not recorded	Potassium voltage-gated channel subfamily KQT member 5 × 4 （Q9NR82） PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9LIZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7BYL Cryo-EM structure of human KCNQ4 Deposited 2020-04-23	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	PT5 [(2R)-1-octadecanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phospho ryl]oxy-propan-2-yl] (8Z)-icosa-5,8,11,14-tetraenoate × 4 K POTASSIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
7BYM Cryo-EM structure of human KCNQ4 with retigabine Deposited 2020-04-23	Different oligomeric state Different ligand/ion	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	PT5 [(2R)-1-octadecanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phospho ryl]oxy-propan-2-yl] (8Z)-icosa-5,8,11,14-tetraenoate × 4 FBX ethyl N-[2-azanyl-4-[(4-fluorophenyl)methylamino]phenyl]carbamate × 4 K POTASSIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7BYN Cryo-EM structure of human KCNQ4 with linopirdine Deposited 2020-04-23	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	PT5 [(2R)-1-octadecanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phospho ryl]oxy-propan-2-yl] (8Z)-icosa-5,8,11,14-tetraenoate × 4 K POTASSIUM ION × 3 FCC 1-phenyl-3,3-bis(pyridin-4-ylmethyl)indol-2-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7CR3 human KCNQ2-CaM in apo state Deposited 2020-08-12	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–149（149 aa） Chain E 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7CR4 human KCNQ2-CaM in complex with ztz240 Deposited 2020-08-12	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–149（149 aa） Chain E 1–149（149 aa） Chain G 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	GB9 N-(6-chloranylpyridin-3-yl)-4-fluoranyl-benzamide × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7CR7 human KCNQ2-CaM in complex with retigabine Deposited 2020-08-12	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–149（149 aa） Chain E 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	FBX ethyl N-[2-azanyl-4-[(4-fluorophenyl)methylamino]phenyl]carbamate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7VNP Structure of human KCNQ4-ML213 complex with PIP2 Deposited 2021-10-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	PT5 [(2R)-1-octadecanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phospho ryl]oxy-propan-2-yl] (8Z)-icosa-5,8,11,14-tetraenoate × 8 K POTASSIUM ION × 4 7YV (1S,2S,4R)-N-(2,4,6-trimethylphenyl)bicyclo[2.2.1]heptane-2-carboxamid × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å
7VNQ Structure of human KCNQ4-ML213 complex in nanodisc Deposited 2021-10-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	7YV (1S,2S,4R)-N-(2,4,6-trimethylphenyl)bicyclo[2.2.1]heptane-2-carboxamid × 4 K POTASSIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å
7VNR Structure of human KCNQ4-ML213 complex in digitonin Deposited 2021-10-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	7YV (1S,2S,4R)-N-(2,4,6-trimethylphenyl)bicyclo[2.2.1]heptane-2-carboxamid × 4 K POTASSIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7XNI human KCNQ1-CaM in apo state Deposited 2022-04-28	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–149（149 aa） Chain E 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7XNK human KCNQ1-CaM in complex with ML277 Deposited 2022-04-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	K POTASSIUM ION × 4 I0S (2R)-N-[4-(4-methoxyphenyl)-1,3-thiazol-2-yl]-1-(4-methylbenzene-1-sulfonyl)piperidine-2-carboxamide × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
7XNL human KCNQ1-CaM-ML277-PIP2 complex in state A Deposited 2022-04-29	Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	K POTASSIUM ION × 4 I0S (2R)-N-[4-(4-methoxyphenyl)-1,3-thiazol-2-yl]-1-(4-methylbenzene-1-sulfonyl)piperidine-2-carboxamide × 4 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7XNN human KCNQ1-CaM-ML277-PIP2 complex in state B Deposited 2022-04-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–149（149 aa） Chain D 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	K POTASSIUM ION × 4 I0S (2R)-N-[4-(4-methoxyphenyl)-1,3-thiazol-2-yl]-1-(4-methylbenzene-1-sulfonyl)piperidine-2-carboxamide × 4 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
8BD2 Calcium-bound Calmodulin variant G113R Deposited 2022-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 6.69；298.1 K；Ionic strength (raw mmCIF value) 127；Pressure 1 NMR sample composition 100 mM potassium chloride, 5 mM calcium chloride, 2 mM sodium azide, 20 mM HEPES, 0.1 mM 2,2,3,3-tetradeutero TSP-d4, 1 mM (Ser81-Lys148-U-15N,13C) Calmodulin G113R, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
8Z5M human phosphorylase kinase alpha/gamma/delta subcomplex - inactive state Deposited 2024-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–149（149 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.66 Å
8Z5P human phosphorylase kinase - inactive state Deposited 2024-04-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
8Z5Q human phosphorylase kinase - inactive state Deposited 2024-04-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain D 1–149（149 aa） Chain H 1–149（149 aa） Chain L 1–149（149 aa） Chain P 1–149（149 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.24 Å
8Z5R human phosphorylase kinase alpha/gamma/delta subcomplex - phosphorylation and Ca2+ bound state Deposited 2024-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–149（149 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
8Z5T human phosphorylase kinase - phosphorylation and Ca2+ bound state Deposited 2024-04-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain D 1–149（149 aa） Chain H 1–149（149 aa） Chain L 1–149（149 aa） Chain P 1–149（149 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å
9IXY Human KCNQ2-CaM-Ebio2 Complex in the Presence of PIP2 Deposited 2024-07-29	Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–149（149 aa） Chain F 1–149（149 aa） Chain G 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	A1L3C ~{N}-[7-[bis(fluoranyl)methoxy]-1-prop-2-ynyl-indazol-3-yl]-3,3-dimethyl-butanamide × 4 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9LJ1 Human KCNQ5-CaM-PIP2-HN37 complex in a closed conformation. Deposited 2025-01-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–149（149 aa） Chain E 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	9MF methyl N-[4-[(4-fluorophenyl)methyl-prop-2-ynyl-amino]-2,6-dimethyl-phenyl]carbamate × 4 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LJ5 Human KCNQ5-CaM-PIP2-HN37 complex in an open conformation. Deposited 2025-01-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–149（149 aa） Chain E 1–149（149 aa） Chain F 1–149（149 aa） Chain H 1–149（149 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 8 9MF methyl N-[4-[(4-fluorophenyl)methyl-prop-2-ynyl-amino]-2,6-dimethyl-phenyl]carbamate × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

22 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–149； UniProt 1–149 Author chain E； PDBConstruct 1–149； UniProt 1–149 Author chain F； PDBConstruct 1–149； UniProt 1–149 Author chain H； PDBConstruct 1–149； UniProt 1–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9liz
Deposition date deposition_date	2025-01-14
Structure title title	Human KCNQ5-CaM in complex with PIP2
Keywords keywords	voltage-gated potassium channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.82 Å
Radius of gyration Rg (electron density) rg_electron	41.30 Å
Forward intensity I(0) i0	697676000.00
Molecular weight molecular_weight	224370.0 kDa
Excluded volume excluded_volume	283910 Å³
Envelope volume envelope_volume	396800 Å³
Hydration-shell volume shell_volume	77263 Å³
Envelope diameter envelope_diameter	129.7 Å
Shell Rg shell_rg	49.33 Å
Envelope Rg envelope_rg	40.41 Å
Shape Rg shape_rg	41.28 Å
Total Rg total_rg	41.77 Å
Total atoms total_atoms	31648
Residues n_residues	1952
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	125.3 Å
Rg (real space) rg_real	41.54 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	6.9770e+08
I(0) uncertainty (real space) i0_real_error	1.0970e+07
Rg (reciprocal space) rg_reciprocal	41.81 Å
I(0) (reciprocal space) i0_reciprocal	697900000.0000
Solution quality estimate total_estimate	0.8963
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	52.7 Å
Skewness Skewness skewness	0.036
Kurtosis Kurtosis kurtosis	-0.497
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	51810000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.909

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Potassium voltage-gated channel subfamily KQT member 5
Molecular weight formula_weight	70463.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,G
Atom count atom_count	31648

MLGKPLSYTSSQSCRRNVKYRRVQNYLYNVLERPRGWAFIYHAFVFLLVFGCLILSVFSTIPEHTKLASSCLLILEFVMIVVFGLEFIIRIWSAGCCCRYRGWQGRLRFARKPFCVIDTIVLIASIAVVSAKTQGNIFATSALRSLRFLQILRMVRMDRRGGTWKLLGSVVYAHSKELITAWYIGFLVLIFSSFLVYLVEKDANKEFSTYADALWWGTITLTTIGYGDKTPLTWLGRLLSAGFALLGISFFALPAGILGSGFALKVQEQHRQKHFEKRRNPAANLIQCVWRSYAADEKSVSIATWKPHLKALHTCSPTKKEQGEASSSQKLSFKERVRMASPRGQSIKSRQASVGDRRSPSTDITAEGSPTKVQKSWSFNDRTRFRPSLRLKSSQPKPVIDADTALGTDDVYDEKGCQCDVSVEDLTPPLKTVIRAIRIMKFHVAKRKFKETLRPYDVKDVIEQYSAGHLDMLCRIKSLQTRVDQILGKGQITSDKKSREKITAEHETTDDLSMLGRVVKVEKQVQSIESKLDCLLDIYQQVLRKGSASALALASFQIPPFECEQTSDYQSPVDSKDLSGSAQNSGCLSRSTSANISRGLQFILTPNEFSLEGGSSGGWSHPQFEK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Calmodulin-3
Molecular weight formula_weight	19615.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,C,F,H

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAKLEGGSSGGLVPRGSGGSSGGHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	;[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate ;
Molecular weight formula_weight	746.6 kDa
Source method src_method	syn
Copy count entity_count	4

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	69771

fit	/app/data/saxs_computation/li/9liz/9liz.fit
pddf	/app/data/pr_computation/li/9liz/9liz.pr.out
profile	/app/data/saxs_computation/li/9liz/9liz.dat

Human KCNQ5-CaM in complex with PIP2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Potassium voltage-gated channel subfamily KQT member 5

State in the Current Structure

Other States of the Same Protein in the Database

Calmodulin-3

State in the Current Structure

Other States of the Same Protein in the Database

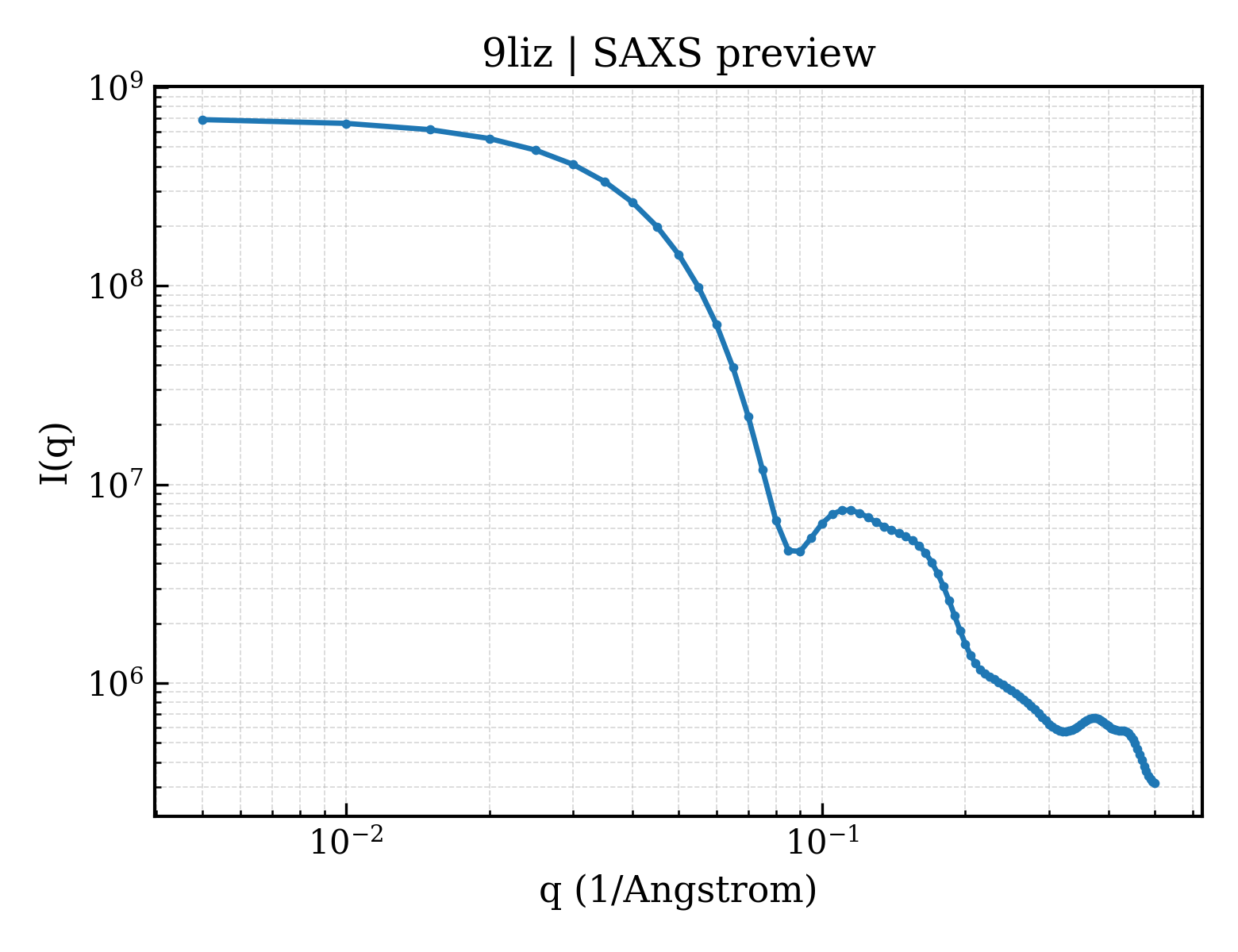

SAXS scattering curve SAXS Profile
