SAXSdb — 9ljx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aryl hydrocarbon receptor nuclear translocator

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Endothelial PAS domain-containing protein 1 × 1 （P97481） 4-fluoranyl-~{N}-(3-fluoranyl-2-pyrrolidin-1-yl-phenyl)-1,1-bis(oxidanylidene)-1,2-benzothiazol-3-amine × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARNT_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–384； UniProt 82–464

Endothelial PAS domain-containing protein 1

Mus musculus

UniProt P97481

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Aryl hydrocarbon receptor nuclear translocator × 1 （P53762） 4-fluoranyl-~{N}-(3-fluoranyl-2-pyrrolidin-1-yl-phenyl)-1,1-bis(oxidanylidene)-1,2-benzothiazol-3-amine × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EPAS1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–361； UniProt 3–362

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ljx
Deposition date deposition_date	2025-01-15
Structure title title	Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-26
Keywords keywords	hypoxia-inducible factor (HIF)-2, transcriptor, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ljx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ljx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

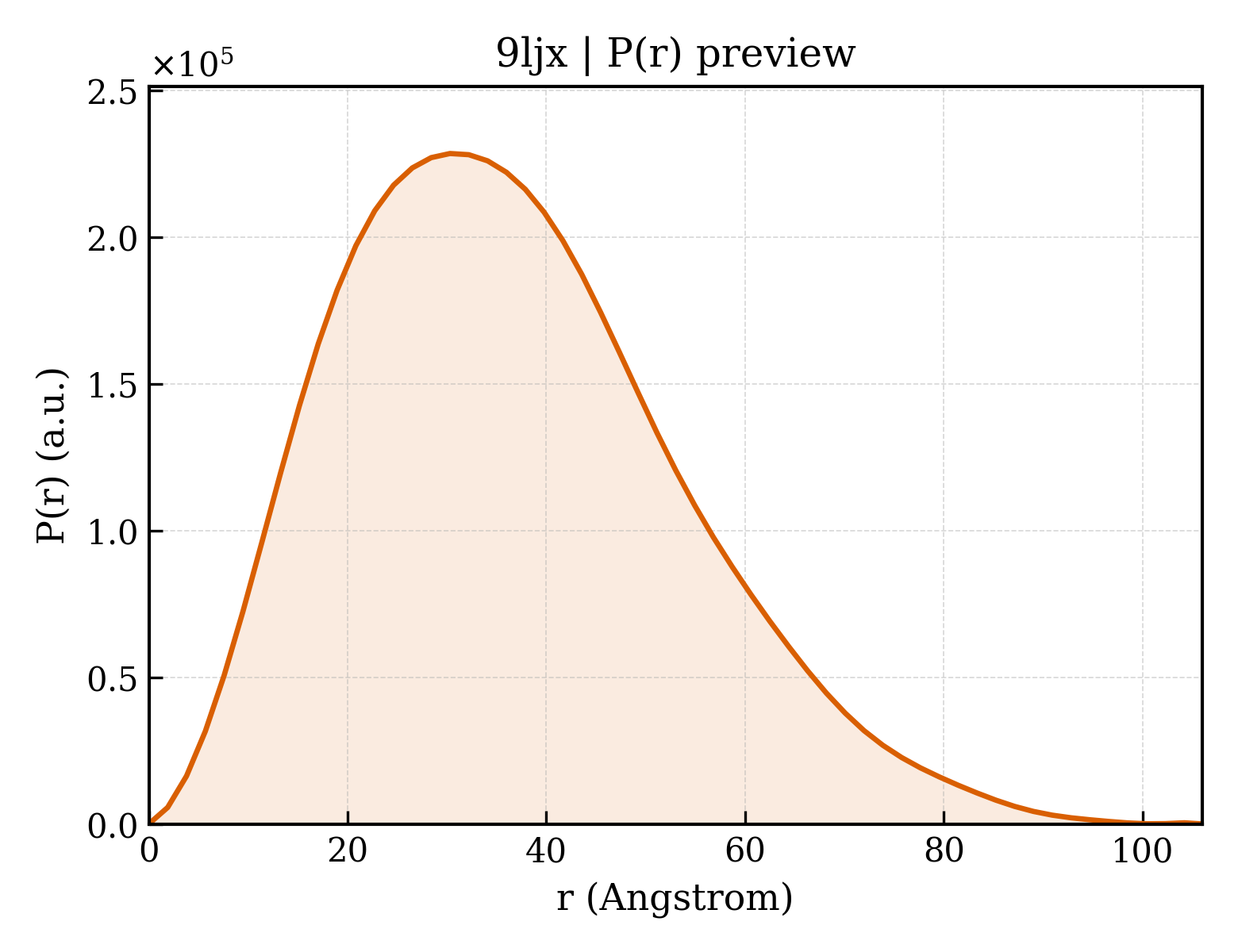

9ljx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.21 Å
Rg (electron density)	27.87 Å
Total Rg	28.49 Å
Atom count	4412
Residues	544
Excluded volume	78548 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ljx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Aryl hydrocarbon receptor nuclear translocator
Molecular weight formula_weight	43437.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4458

MSSADKERLARENHSEIERRRRNKMTAYITELSDMVPTCSALARKPDKLTILRMAVSHMKSLRGTGNTSTDGSYKPSFLTDQELKHLILEAADGFLFIVSCETGRVVYVSDSVTPVLNQPQSEWFGSTLYDQVHPDDVDKLREQLSTSENALTGRVLDLKTGTVKKEGQQSSMRMCMGSRRSFICRMRCGTSSVDPVSMNRLSFLRNRCRNGLGSVKEGEPHFVVVHCTGYIKAWPPAGVSLPDDDPEAGQGSKFCLVAIGRLQVTSSPNCTDMSNICQPTEFISRHNIEGIFTFVDHRCVATVGYQPQELLGKNIVEFCHPEDQQLLRDSFQQVVKLKGQVLSVMFRFRSKTREWLWMRTSSFTFQNPYSDEIEYIICTNTNV

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Endothelial PAS domain-containing protein 1
Molecular weight formula_weight	42272.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MADKEKKRSSSELRKEKSRDAARCRRSKETEVFYELAHELPLPHSVSSHLDKASIMRLAISFLRTHKLLSSVCSENESEAEADQQMDNLYLKALEGFIAVVTQDGDMIFLSENISKFMGLTQVELTGHSIFDFTHPCDHEEIRENLTLKNGSGFGKKSKDVSTERDFFMRMKCTVTNRGRTVNLKSATWKVLHCTGQVRVYNNCPPHSSLCGSKEPLLSCLIIMCEPIQHPSHMDIPLDSKTFLSRHSMDMKFTYCDDRILELIGYHPEELLGRSAYEFYHALDSENMTKSHQNLCTKGQVVSGQYRMLAKHGGYVWLETQGTVIYNPRNLQPQCIMCVNYVLSEIEKNDVVFSMDQTESLEHHHHHH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 non-polymer

Description description	4-fluoranyl-~{N}-(3-fluoranyl-2-pyrrolidin-1-yl-phenyl)-1,1-bis(oxidanylidene)-1,2-benzothiazol-3-amine
Molecular weight formula_weight	363.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	46

▶

Unit-cell length a length_a	49.050 Å
Unit-cell length b length_b	97.634 Å
Unit-cell length c length_c	76.994 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.98 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	28.540 Å
R factor r_factor	0.2259
R_work r_work	0.2236
R_free r_free	0.2683

Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-26
