SAXSdb — 8vhg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endothelial PAS domain-containing protein 1

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 3–361	Not recorded	Basic helix-loop-helix ARNT-like protein 1 × 1 （Q9WTL8） Reverse strand DNA containing HRE motif × 1 Forward strand DNA containing HRE motif × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VHG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4ZP4 Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex Deposited 2015-05-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.35 Å R-free 0.232
4ZP4 Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex Deposited 2015-05-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.35 Å R-free 0.232
4ZPH Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with Proflavine Deposited 2015-05-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	PRL PROFLAVIN × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.80 Å R-free 0.221
4ZPH Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with Proflavine Deposited 2015-05-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.80 Å R-free 0.221
4ZPK Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with HRE DNA Deposited 2015-05-08	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain B 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4% Tacsimate, pH 6.0, 10% PEG3350	Resolution 3.60 Å R-free 0.321
4ZQD Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with the Benzoxadiazole Antagonist 0X3 Deposited 2015-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	0X3 N-(3-chloro-5-fluorophenyl)-4-nitro-2,1,3-benzoxadiazol-5-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.87 Å R-free 0.254
4ZQD Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with the Benzoxadiazole Antagonist 0X3 Deposited 2015-05-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 3–361（359 aa） Fragment：UNP residues 3-361	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.87 Å R-free 0.254
6E3S Crystal Structure of the Heterodimeric HIF-2 Complex with Antagonist PT2385 Deposited 2018-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–362（360 aa）	Mutation：W318A	79A 3-{[(1S)-2,2-difluoro-1-hydroxy-7-(methylsulfonyl)-2,3-dihydro-1H-inden-4-yl]oxy}-5-fluorobenzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 3.00 Å R-free 0.249
6E3T Crystal Structure of the Heterodimeric HIF-2 Complex with Antagonist T1001 Deposited 2018-07-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–362（360 aa）	Not recorded	HO7 (6S)-6-(4-bromophenyl)-2,3,5,6-tetrahydroimidazo[2,1-b][1,3]thiazole × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 3.00 Å R-free 0.306
6E3U Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist M1001 Deposited 2018-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–362（360 aa）	Mutation：W318A	HNJ 3-{[2-(pyrrolidin-1-yl)phenyl]amino}-1H-1lambda~6~,2-benzothiazole-1,1-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 2.85 Å R-free 0.258
7W80 Crystal Structure of the Heterodimeric HIF-2 in Complex with Antagonist Belzutifan Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–361（359 aa）	Not recorded	72Q 3-{[(1S,2S,3R)-2,3-difluoro-1-hydroxy-7-(methylsulfonyl)-2,3-dihydro-1H-inden-4-yl]oxy}-5-fluorobenzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；Tacsimate, PEG3350	Resolution 2.75 Å R-free 0.274
9LJX Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-26 Deposited 2025-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–362（360 aa）	Not recorded	A1EKB 4-fluoranyl-~{N}-(3-fluoranyl-2-pyrrolidin-1-yl-phenyl)-1,1-bis(oxidanylidene)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 2.80 Å R-free 0.268
9LJY Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-14 Deposited 2025-01-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–361（359 aa）	Not recorded	A1EJ9 4-chloranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 3.20 Å R-free 0.248
9LOH Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-10 Deposited 2025-01-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–362（360 aa）	Not recorded	A1EJ8 4-fluoranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 3.02 Å R-free 0.262
9LOI Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-16 Deposited 2025-01-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–362（360 aa）	Not recorded	A1EKA 6-chloranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 2.78 Å R-free 0.275

12 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EPAS1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–380； UniProt 3–361

Basic helix-loop-helix ARNT-like protein 1

Mus musculus

UniProt Q9WTL8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain B； UniProt 75–494	Not recorded	Endothelial PAS domain-containing protein 1 × 1 （P97481） Reverse strand DNA containing HRE motif × 1 Forward strand DNA containing HRE motif × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VHG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8OSJ Cryo-EM structure of CLOCK-BMAL1 bound to a nucleosomal E-box at position SHL-6.2 (DNA conformation 1) Deposited 2023-04-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain N 69–447（379 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8OSK Cryo-EM structure of CLOCK-BMAL1 bound to a nucleosomal E-box at position SHL+5.8 (composite map) Deposited 2023-04-19	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain N 69–447（379 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8OSL Cryo-EM structure of CLOCK-BMAL1 bound to the native Por enhancer nucleosome (map 2, additional 3D classification and flexible refinement) Deposited 2023-04-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain N 69–447（379 aa） Chain P 69–447（379 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BMAL1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–421； UniProt 75–494

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8vhg
Deposition date deposition_date	2024-01-01
Structure title title	Structure of the BMAL1/HIF2A heterodimer in Complex with DNA
Keywords keywords	Transcriptional factors, heterodimer, DNA recognition, Circadian-dependent cardioprotection, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.15 Å
Radius of gyration Rg (electron density) rg_electron	33.73 Å
Forward intensity I(0) i0	91855900.00
Molecular weight molecular_weight	67761.0 kDa
Excluded volume excluded_volume	81451 Å³
Envelope volume envelope_volume	125970 Å³
Hydration-shell volume shell_volume	33916 Å³
Envelope diameter envelope_diameter	119.0 Å
Shell Rg shell_rg	37.20 Å
Envelope Rg envelope_rg	33.59 Å
Shape Rg shape_rg	33.68 Å
Total Rg total_rg	34.16 Å
Total atoms total_atoms	4719
Residues n_residues	548
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

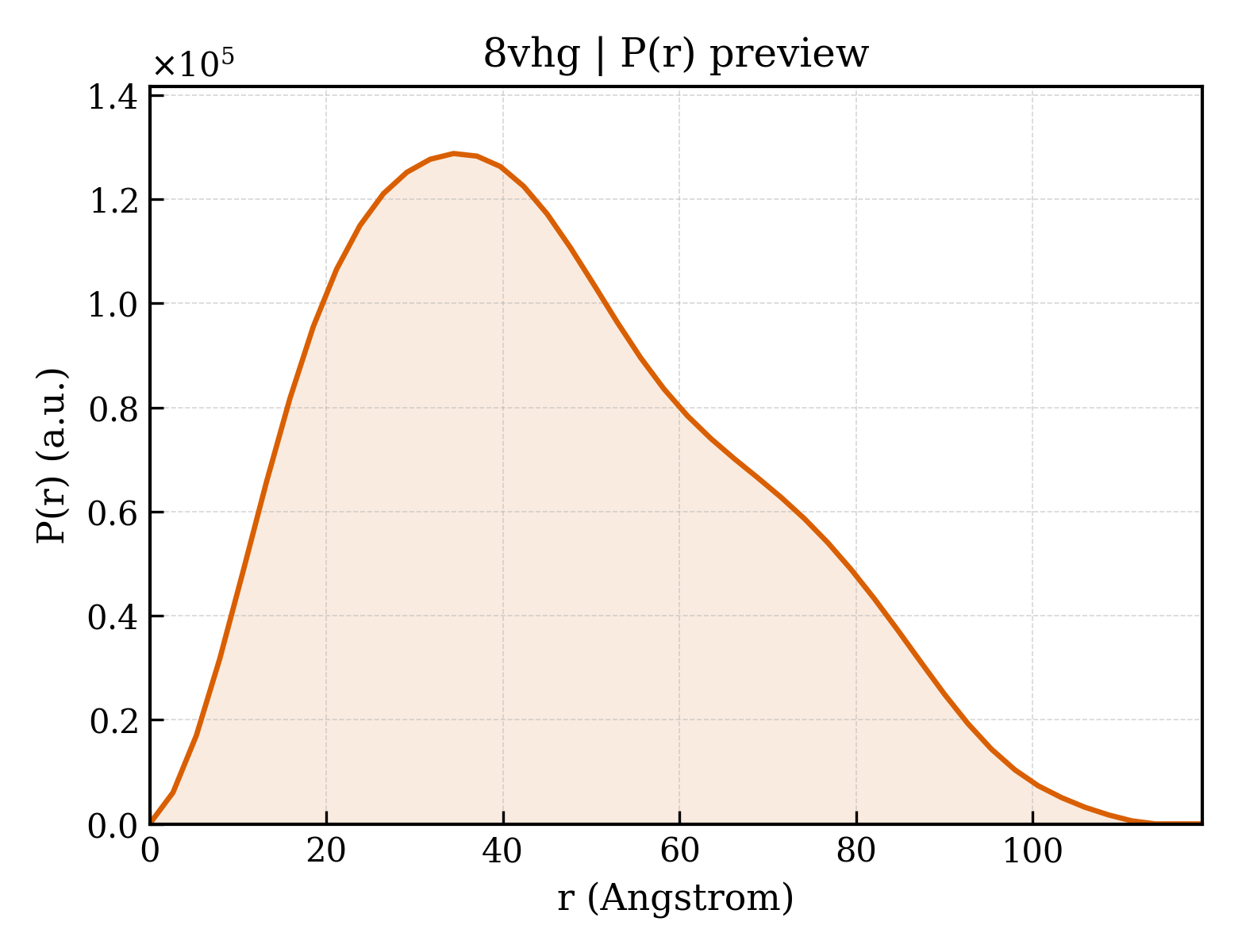

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	119.2 Å
Rg (real space) rg_real	35.36 Å
Rg uncertainty (real space) rg_real_error	1.20 Å
I(0) (real space) i0_real	9.1860e+07
I(0) uncertainty (real space) i0_real_error	1.6910e+06
Rg (reciprocal space) rg_reciprocal	35.23 Å
I(0) (reciprocal space) i0_reciprocal	91840000.0000
Solution quality estimate total_estimate	0.8564
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.4 Å
Skewness Skewness skewness	0.419
Kurtosis Kurtosis kurtosis	-0.545
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8398000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.799

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Endothelial PAS domain-containing protein 1
Molecular weight formula_weight	43372.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4719

MGSSHHHHHHSSGLVPRGSHMADKEKKRSSSELRKEKSRDAARCRRSKETEVFYELAHELPLPHSVSSHLDKASIMRLAISFLRTHKLLSSVCSENESEAEADQQMDNLYLKALEGFIAVVTQDGDMIFLSENISKFMGLTQVELTGHSIFDFTHPCDHEEIRENLTLKNGSGFGKKSKDVSTERDFFMRMKCTVTNRGRTVNLKSATWKVLHCTGQVRVYNNCPPHSSLCGSKEPLLSCLIIMCEPIQHPSHMDIPLDSKTFLSRHSMDMKFTYCDDRILELIGYHPEELLGRSAYEFYHALDSENMTKSHQNLCTKGQVVSGQYRMLAKHGGYVWLETQGTVIYNPRNLQPQCIMCVNYVLSEIEKNDVVFSMDQTES

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Basic helix-loop-helix ARNT-like protein 1
Molecular weight formula_weight	49248.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GRIKNAREAHSQIEKRRRDKMNSFIDELASLVPTCNAMSRKLDKLTVLRMAVQHMKTLRGATNPYTEANYKPTFLSDDELKHLILRAADGFLFVVGCDRGKILFVSESVFKILNYSQNDLIGQSLFDYLHPKDIAKVKEQLSSSDTAPRERLIDAKTGLPVKTDITPGPSRLCSGARRSFFCRMKCNRPSVKVEDKDFASTCSKKKADRKSFCTIHSTGYLKSWPPTKMGLDEDNEPDNEGCNLSCLVAIGRLHSHMVPQPANGEIRVKSMEYVSRHAIDGKFVFVDQRATAILAYLPQELLGTSCYEYFHQDDIGHLAECHRQVLQTREKITTNCYKFKIKDGSFITLRSRWFSFMNPWTKEVEYIVSTNTVVLANVLEGGDPTFPQLTAPPHSMDSMLPSGEGGPKRTHPTVPGIPGGTENLYFQSDYKDDDDK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Reverse strand DNA containing HRE motif
Molecular weight formula_weight	7245.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

CACGACCCGCACGTACGCAGCTCC

Entity 4 Entity 4 polymer

Description description	Forward strand DNA containing HRE motif
Molecular weight formula_weight	7498.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

GGAGCTGCGTACGTGCGGGTCGTG

▶

8. Citations (1)

▶

Resolution resolution	3.600 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.60 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	41991

fit	/app/data/saxs_computation/vh/8vhg/8vhg.fit
pddf	/app/data/pr_computation/vh/8vhg/8vhg.pr.out
profile	/app/data/saxs_computation/vh/8vhg/8vhg.dat
