SAXSdb — 5nj8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aryl hydrocarbon receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 23–273	Not recorded	Aryl hydrocarbon receptor nuclear translocator × 1 （P53762） ;DNA (5'-D(GPGPTPCPAPCPGPCPAPAPCPC)-3') ; × 1 ;DNA (5'-D(GPGPTPTPGPCPGPTPGPAPCPC)-3') ; × 1 ER3 ERBIUM (III) ION × 7 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10 mM HEPES/NaOH pH 6.8, 18% PEG3350, 200 mM ammonium formate	Resolution 3.30 Å R-free 0.333
2	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain C； UniProt 23–273	Not recorded	Aryl hydrocarbon receptor nuclear translocator × 1 （P53762） ;DNA (5'-D(GPGPTPCPAPCPGPCPAPAPCPC)-3') ; × 1 ;DNA (5'-D(GPGPTPTPGPCPGPTPGPAPCPC)-3') ; × 1 ER3 ERBIUM (III) ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10 mM HEPES/NaOH pH 6.8, 18% PEG3350, 200 mM ammonium formate	Resolution 3.30 Å R-free 0.333

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5NJ8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7ZUB Cryo-EM structure of the indirubin-bound Hsp90-XAP2-AHR complex Deposited 2022-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–437（437 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 MOO MOLYBDATE ION × 2 JY6 (3~{Z})-3-(3-oxidanylidene-1~{H}-indol-2-ylidene)-1~{H}-indol-2-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.85 Å
8QMO Cryo-EM structure of the benzo[a]pyrene-bound Hsp90-XAP2-AHR complex Deposited 2023-09-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 2–437（436 aa）	Not recorded	MOO MOLYBDATE ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 W62 benzo[a]pyrene × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AHR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–254； UniProt 23–273 Author chain C； PDBConstruct 4–254； UniProt 23–273

Aryl hydrocarbon receptor nuclear translocator

Mus musculus

UniProt P53762

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain B； UniProt 85–345	Mutation：C256S	Aryl hydrocarbon receptor × 1 （P35869） ;DNA (5'-D(GPGPTPCPAPCPGPCPAPAPCPC)-3') ; × 1 ;DNA (5'-D(GPGPTPTPGPCPGPTPGPAPCPC)-3') ; × 1 ER3 ERBIUM (III) ION × 7 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10 mM HEPES/NaOH pH 6.8, 18% PEG3350, 200 mM ammonium formate	Resolution 3.30 Å R-free 0.333
2	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain D； UniProt 85–345	Mutation：C256S	Aryl hydrocarbon receptor × 1 （P35869） ;DNA (5'-D(GPGPTPCPAPCPGPCPAPAPCPC)-3') ; × 1 ;DNA (5'-D(GPGPTPTPGPCPGPTPGPAPCPC)-3') ; × 1 ER3 ERBIUM (III) ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10 mM HEPES/NaOH pH 6.8, 18% PEG3350, 200 mM ammonium formate	Resolution 3.30 Å R-free 0.333

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5NJ8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4ZP4 Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex Deposited 2015-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.35 Å R-free 0.232
4ZP4 Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex Deposited 2015-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.35 Å R-free 0.232
4ZPH Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with Proflavine Deposited 2015-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	PRL PROFLAVIN × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.80 Å R-free 0.221
4ZPH Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with Proflavine Deposited 2015-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.80 Å R-free 0.221
4ZPK Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with HRE DNA Deposited 2015-05-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4% Tacsimate, pH 6.0, 10% PEG3350	Resolution 3.60 Å R-free 0.321
4ZPR Crystal Structure of the Heterodimeric HIF-1a:ARNT Complex with HRE DNA Deposited 2015-05-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；100 mM MES, pH 6.0, 100 mM calcium acetate, 15% PEG400	Resolution 3.90 Å R-free 0.341
4ZQD Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with the Benzoxadiazole Antagonist 0X3 Deposited 2015-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	0X3 N-(3-chloro-5-fluorophenyl)-4-nitro-2,1,3-benzoxadiazol-5-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.87 Å R-free 0.254
4ZQD Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with the Benzoxadiazole Antagonist 0X3 Deposited 2015-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.87 Å R-free 0.254
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 82–464（383 aa） Fragment：unp residues 82-464 Chain C 82–464（383 aa） Fragment：unp residues 82-464 Chain E 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY7 Crystal Structure of the Heterodimeric NPAS3-ARNT Complex with HRE DNA Deposited 2016-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；100 mM NH4F, 9% PEG 3350	Resolution 4.20 Å R-free 0.361
6E3S Crystal Structure of the Heterodimeric HIF-2 Complex with Antagonist PT2385 Deposited 2018-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	79A 3-{[(1S)-2,2-difluoro-1-hydroxy-7-(methylsulfonyl)-2,3-dihydro-1H-inden-4-yl]oxy}-5-fluorobenzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 3.00 Å R-free 0.249
6E3T Crystal Structure of the Heterodimeric HIF-2 Complex with Antagonist T1001 Deposited 2018-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	HO7 (6S)-6-(4-bromophenyl)-2,3,5,6-tetrahydroimidazo[2,1-b][1,3]thiazole × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 3.00 Å R-free 0.306
6E3U Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist M1001 Deposited 2018-07-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	HNJ 3-{[2-(pyrrolidin-1-yl)phenyl]amino}-1H-1lambda~6~,2-benzothiazole-1,1-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 2.85 Å R-free 0.258
7V7L Crystal Structure of the Heterodimeric HIF-3a:ARNT Complex Deposited 2021-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Sodium citrate tribasic dihydrate, 2-Propanol, PEG 4000	Resolution 2.30 Å R-free 0.245
7V7W Crystal Structure of the Heterodimeric HIF-3a:ARNT Complex with oleoylethanolamide (OEA) Deposited 2021-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：Hydrocarbon receptor nuclear translocator ARNT	Not recorded	5YM (Z)-N-(2-hydroxyethyl)octadec-9-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Sodium citrate tribasic dihydrate, 2-Propanol, PEG 4000	Resolution 2.51 Å R-free 0.260
7VNI AHR-ARNT PAS-B heterodimer Deposited 2021-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 358–466（109 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium arsenate (pH 6.5), 0.2 M MgCl2, 2 M (NH4)2SO4	Resolution 2.00 Å R-free 0.219
7VNI AHR-ARNT PAS-B heterodimer Deposited 2021-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 358–466（109 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium arsenate (pH 6.5), 0.2 M MgCl2, 2 M (NH4)2SO4	Resolution 2.00 Å R-free 0.219
7W80 Crystal Structure of the Heterodimeric HIF-2 in Complex with Antagonist Belzutifan Deposited 2021-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	72Q 3-{[(1S,2S,3R)-2,3-difluoro-1-hydroxy-7-(methylsulfonyl)-2,3-dihydro-1H-inden-4-yl]oxy}-5-fluorobenzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；Tacsimate, PEG3350	Resolution 2.75 Å R-free 0.274
7XHV Crystal Structure of the NPAS4-ARNT heterodimer in complex with DNA Deposited 2022-04-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–360（279 aa） Fragment：ARNT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；289 K；ammonium tartrate dibasic, PEG3350	Resolution 4.00 Å R-free 0.331
7XI4 Crystal Structure of the NPAS4-ARNT heterodimer in complex with DNA Deposited 2022-04-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa） Fragment：ARNT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；289 K；ammonium tartrate dibasic, PEG3350	Resolution 4.71 Å R-free 0.351
9LJX Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-26 Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EKB 4-fluoranyl-~{N}-(3-fluoranyl-2-pyrrolidin-1-yl-phenyl)-1,1-bis(oxidanylidene)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 2.80 Å R-free 0.268
9LJY Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-14 Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EJ9 4-chloranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 3.20 Å R-free 0.248
9LOH Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-10 Deposited 2025-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EJ8 4-fluoranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 3.02 Å R-free 0.262
9LOI Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-16 Deposited 2025-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EKA 6-chloranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 2.78 Å R-free 0.275

20 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARNT_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 7–239； UniProt 85–345 Author chain D； PDBConstruct 7–239； UniProt 85–345

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5nj8
Deposition date deposition_date	2017-03-28
Structure title title	Structural basis for aryl hydrocarbon receptor mediated gene activation
Keywords keywords	basic helix loop helix PAS domain transcription factor, transcription; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

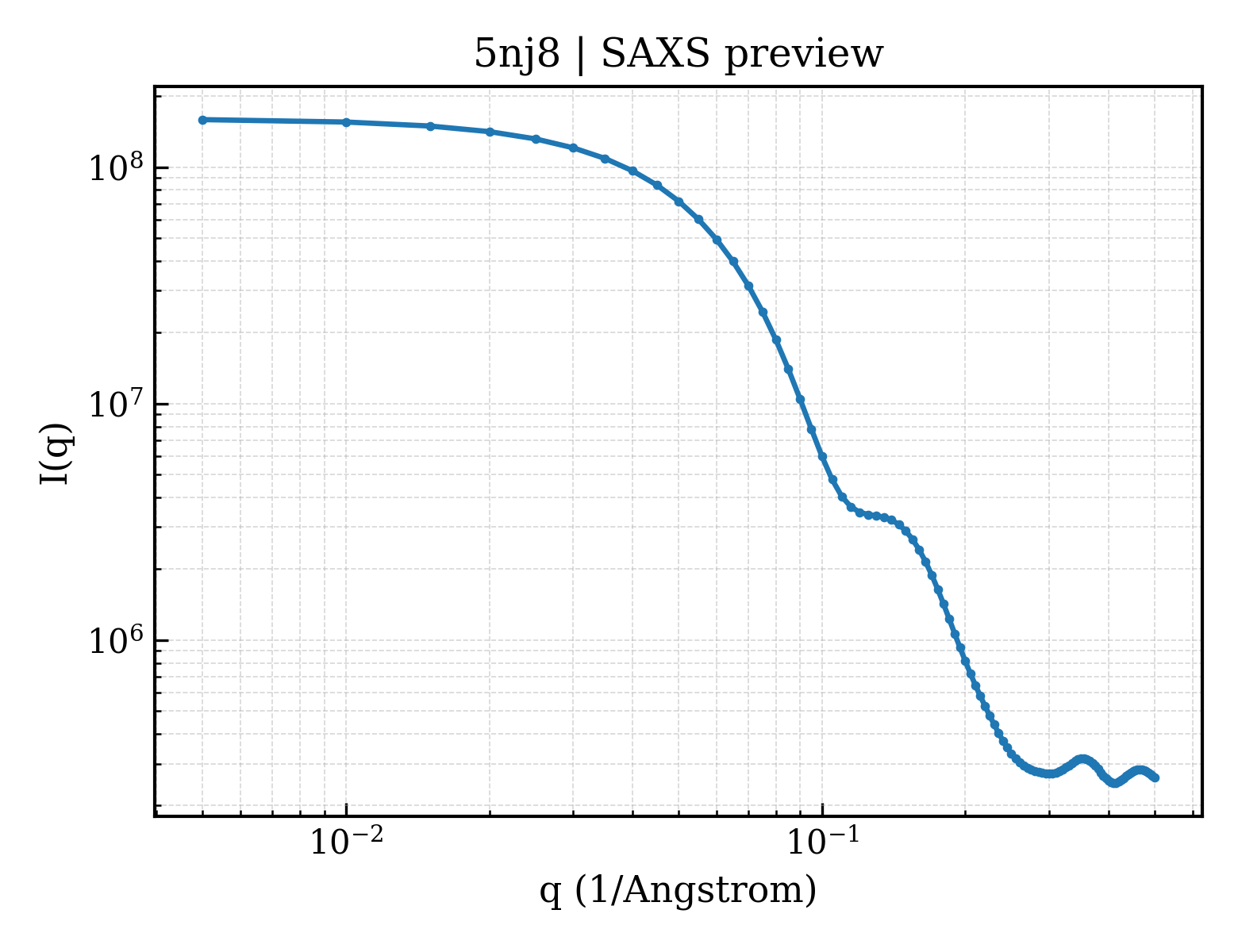

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.66 Å
Radius of gyration Rg (electron density) rg_electron	29.25 Å
Forward intensity I(0) i0	159944000.00
Molecular weight molecular_weight	85653.0 kDa
Excluded volume excluded_volume	100490 Å³
Envelope volume envelope_volume	141520 Å³
Hydration-shell volume shell_volume	39893 Å³
Envelope diameter envelope_diameter	91.7 Å
Shell Rg shell_rg	36.74 Å
Envelope Rg envelope_rg	28.99 Å
Shape Rg shape_rg	29.18 Å
Total Rg total_rg	30.05 Å
Total atoms total_atoms	10871
Residues n_residues	708
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

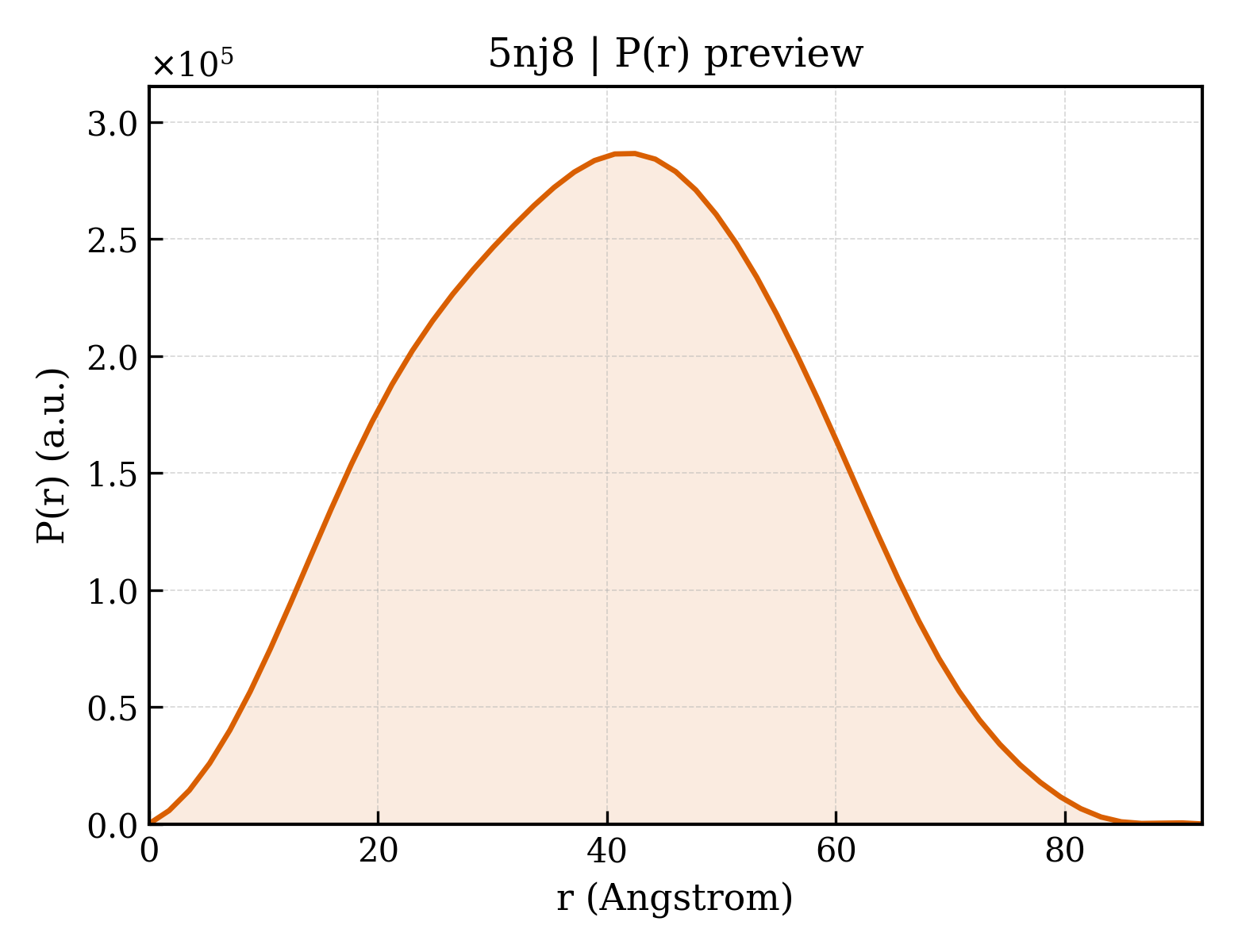

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.0 Å
Rg (real space) rg_real	30.46 Å
Rg uncertainty (real space) rg_real_error	0.45 Å
I(0) (real space) i0_real	1.5990e+08
I(0) uncertainty (real space) i0_real_error	2.2020e+06
Rg (reciprocal space) rg_reciprocal	30.55 Å
I(0) (reciprocal space) i0_reciprocal	160000000.0000
Solution quality estimate total_estimate	0.9121
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.5 Å
Skewness Skewness skewness	0.048
Kurtosis Kurtosis kurtosis	-0.611
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	24570000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.972

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Aryl hydrocarbon receptor
Molecular weight formula_weight	28423.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	10871

GPMVKPIPAEGIKSNPSKRHRDRLNTELDRLASLLPFPQDVINKLDKLSVLRLSVSYLRAKSFFDVALKSSPTERNGGQDNCRAANFREGLNLQEGEFLLQALNGFVLVVTTDALVFYASSTIQDYLGFQQSDVIHQSVYELIHTEDRAEFQRQLHWALNPSQCTESGQGIEEATGLPQTVVCYNPDQIPPENSPLMERCFICRLRCLLDNSSGFLAMNFQGKLKYLHGQKKKGKDGSILPPQLALFAIATPLQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Aryl hydrocarbon receptor nuclear translocator
Molecular weight formula_weight	26467.1 kDa
Mutation mutation	C256S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GPGSDADKERLARENHSEIERRRRNKMTAYITELSDMVPTCSALARKPDKLTILRMAVSHMKSLRGTGNTSTDGSYKPSFLTDQELKHLILEAADGFLFIVSCETGRVVYVSDSVTPVLNQPQSEWFGSTLYDQVHPDDVDKLREQLSTSENALTGRVLDLKTGTVKKEGQQSSMRMSMGSRRSFICRMRCGTSSHFVVVHCTGYIKAWPPAGVSLPDDDPEAGQGSKFCLVAIGRLQV

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(GPGPTPCPAPCPGPCPAPAPCPC)-3') ;
Molecular weight formula_weight	3632.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E,G

GGTCACGCAACC

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(GPGPTPTPGPCPGPTPGPAPCPC)-3') ;
Molecular weight formula_weight	3694.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F,H

GGTTGCGTGACC

Entity 5 Entity 5 non-polymer

Description description	ERBIUM (III) ION
Molecular weight formula_weight	167.3 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 6 Entity 6 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5nj8A01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

Domain ID domain_id	5nj8B01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

Domain ID domain_id	5nj8B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	5nj8D01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	280 — MYOD Basic-Helix-Loop-Helix Domain, subunit B
Homologous superfamily homologous superfamily	10 — Helix-loop-helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	91.321 Å
Unit-cell length b length_b	91.321 Å
Unit-cell length c length_c	464.914 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	46.830 Å
R factor r_factor	0.2942
R_work r_work	0.2921
R_free r_free	0.3327

fit	/app/data/saxs_computation/nj/5nj8/5nj8.fit
pddf	/app/data/pr_computation/nj/5nj8/5nj8.pr.out
profile	/app/data/saxs_computation/nj/5nj8/5nj8.dat
