5sy7

Crystal Structure of the Heterodimeric NPAS3-ARNT Complex with HRE DNA

Method: X-RAY DIFFRACTION D_max: 118.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aryl hydrocarbon receptor nuclear translocator

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 82–464	Not recorded	Neuronal PAS domain-containing protein 3 × 1 （Q9QZQ0） ;DNA (5'-D(GPGPCPTPGPCPGPTPAPCPGPTPGPCPGPGPGPTPCPGPT)-3') ; × 1 ;DNA (5'-D(CPAPCPGPAPCPCPCPGPCPAPCPGPTPAPCPGPCPAPGPC)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；100 mM NH4F, 9% PEG 3350	Resolution 4.20 Å R-free 0.361

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5SY7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4ZP4 Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex Deposited 2015-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.35 Å R-free 0.232
4ZP4 Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex Deposited 2015-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.35 Å R-free 0.232
4ZPH Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with Proflavine Deposited 2015-05-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	PRL PROFLAVIN × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.80 Å R-free 0.221
4ZPH Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with Proflavine Deposited 2015-05-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.80 Å R-free 0.221
4ZPK Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with HRE DNA Deposited 2015-05-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4% Tacsimate, pH 6.0, 10% PEG3350	Resolution 3.60 Å R-free 0.321
4ZPR Crystal Structure of the Heterodimeric HIF-1a:ARNT Complex with HRE DNA Deposited 2015-05-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；100 mM MES, pH 6.0, 100 mM calcium acetate, 15% PEG400	Resolution 3.90 Å R-free 0.341
4ZQD Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with the Benzoxadiazole Antagonist 0X3 Deposited 2015-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	0X3 N-(3-chloro-5-fluorophenyl)-4-nitro-2,1,3-benzoxadiazol-5-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.87 Å R-free 0.254
4ZQD Crystal Structure of the Heterodimeric HIF-2a:ARNT Complex with the Benzoxadiazole Antagonist 0X3 Deposited 2015-05-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：UNP residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate, pH 7.0, 6% PEG3350	Resolution 2.87 Å R-free 0.254
5NJ8 Structural basis for aryl hydrocarbon receptor mediated gene activation Deposited 2017-03-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain B 85–345（261 aa）	Mutation：C256S	ER3 ERBIUM (III) ION × 7 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10 mM HEPES/NaOH pH 6.8, 18% PEG3350, 200 mM ammonium formate	Resolution 3.30 Å R-free 0.333
5NJ8 Structural basis for aryl hydrocarbon receptor mediated gene activation Deposited 2017-03-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain D 85–345（261 aa）	Mutation：C256S	ER3 ERBIUM (III) ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10 mM HEPES/NaOH pH 6.8, 18% PEG3350, 200 mM ammonium formate	Resolution 3.30 Å R-free 0.333
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
5SY5 Crystal Structure of the Heterodimeric NPAS1-ARNT Complex Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 82–464（383 aa） Fragment：unp residues 82-464 Chain C 82–464（383 aa） Fragment：unp residues 82-464 Chain E 82–464（383 aa） Fragment：unp residues 82-464	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% Tacsimate pH 7.0, 3% PEG3350	Resolution 3.20 Å R-free 0.247
6E3S Crystal Structure of the Heterodimeric HIF-2 Complex with Antagonist PT2385 Deposited 2018-07-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	79A 3-{[(1S)-2,2-difluoro-1-hydroxy-7-(methylsulfonyl)-2,3-dihydro-1H-inden-4-yl]oxy}-5-fluorobenzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 3.00 Å R-free 0.249
6E3T Crystal Structure of the Heterodimeric HIF-2 Complex with Antagonist T1001 Deposited 2018-07-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	HO7 (6S)-6-(4-bromophenyl)-2,3,5,6-tetrahydroimidazo[2,1-b][1,3]thiazole × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 3.00 Å R-free 0.306
6E3U Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist M1001 Deposited 2018-07-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	HNJ 3-{[2-(pyrrolidin-1-yl)phenyl]amino}-1H-1lambda~6~,2-benzothiazole-1,1-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2% TACSIMATE, PH 7.0, 6% PEG3350	Resolution 2.85 Å R-free 0.258
7V7L Crystal Structure of the Heterodimeric HIF-3a:ARNT Complex Deposited 2021-08-21	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Sodium citrate tribasic dihydrate, 2-Propanol, PEG 4000	Resolution 2.30 Å R-free 0.245
7V7W Crystal Structure of the Heterodimeric HIF-3a:ARNT Complex with oleoylethanolamide (OEA) Deposited 2021-08-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa） Fragment：Hydrocarbon receptor nuclear translocator ARNT	Not recorded	5YM (Z)-N-(2-hydroxyethyl)octadec-9-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；Sodium citrate tribasic dihydrate, 2-Propanol, PEG 4000	Resolution 2.51 Å R-free 0.260
7VNI AHR-ARNT PAS-B heterodimer Deposited 2021-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 358–466（109 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium arsenate (pH 6.5), 0.2 M MgCl2, 2 M (NH4)2SO4	Resolution 2.00 Å R-free 0.219
7VNI AHR-ARNT PAS-B heterodimer Deposited 2021-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 358–466（109 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium arsenate (pH 6.5), 0.2 M MgCl2, 2 M (NH4)2SO4	Resolution 2.00 Å R-free 0.219
7W80 Crystal Structure of the Heterodimeric HIF-2 in Complex with Antagonist Belzutifan Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	72Q 3-{[(1S,2S,3R)-2,3-difluoro-1-hydroxy-7-(methylsulfonyl)-2,3-dihydro-1H-inden-4-yl]oxy}-5-fluorobenzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；Tacsimate, PEG3350	Resolution 2.75 Å R-free 0.274
7XHV Crystal Structure of the NPAS4-ARNT heterodimer in complex with DNA Deposited 2022-04-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–360（279 aa） Fragment：ARNT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；289 K；ammonium tartrate dibasic, PEG3350	Resolution 4.00 Å R-free 0.331
7XI4 Crystal Structure of the NPAS4-ARNT heterodimer in complex with DNA Deposited 2022-04-12	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 82–464（383 aa） Fragment：ARNT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；289 K；ammonium tartrate dibasic, PEG3350	Resolution 4.71 Å R-free 0.351
9LJX Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-26 Deposited 2025-01-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EKB 4-fluoranyl-~{N}-(3-fluoranyl-2-pyrrolidin-1-yl-phenyl)-1,1-bis(oxidanylidene)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 2.80 Å R-free 0.268
9LJY Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-14 Deposited 2025-01-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EJ9 4-chloranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 3.20 Å R-free 0.248
9LOH Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-10 Deposited 2025-01-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EJ8 4-fluoranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 3.02 Å R-free 0.262
9LOI Crystal Structure of the Heterodimeric HIF-2 Complex with Agonist SD-16 Deposited 2025-01-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 82–464（383 aa）	Not recorded	A1EKA 6-chloranyl-1,1-bis(oxidanylidene)-~{N}-(2-pyrrolidin-1-ylphenyl)-1,2-benzothiazol-3-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；PEG 3350, Succinic Acid pH 7.0	Resolution 2.78 Å R-free 0.275

20 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARNT_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–384； UniProt 82–464

Neuronal PAS domain-containing protein 3

Mus musculus

UniProt Q9QZQ0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain B； UniProt 56–455	Not recorded	Aryl hydrocarbon receptor nuclear translocator × 1 （P53762） ;DNA (5'-D(GPGPCPTPGPCPGPTPAPCPGPTPGPCPGPGPGPTPCPGPT)-3') ; × 1 ;DNA (5'-D(CPAPCPGPAPCPCPCPGPCPAPCPGPTPAPCPGPCPAPGPC)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；100 mM NH4F, 9% PEG 3350	Resolution 4.20 Å R-free 0.361

Other States of the Same Protein in the Database

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	NPAS3_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–402； UniProt 56–455

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

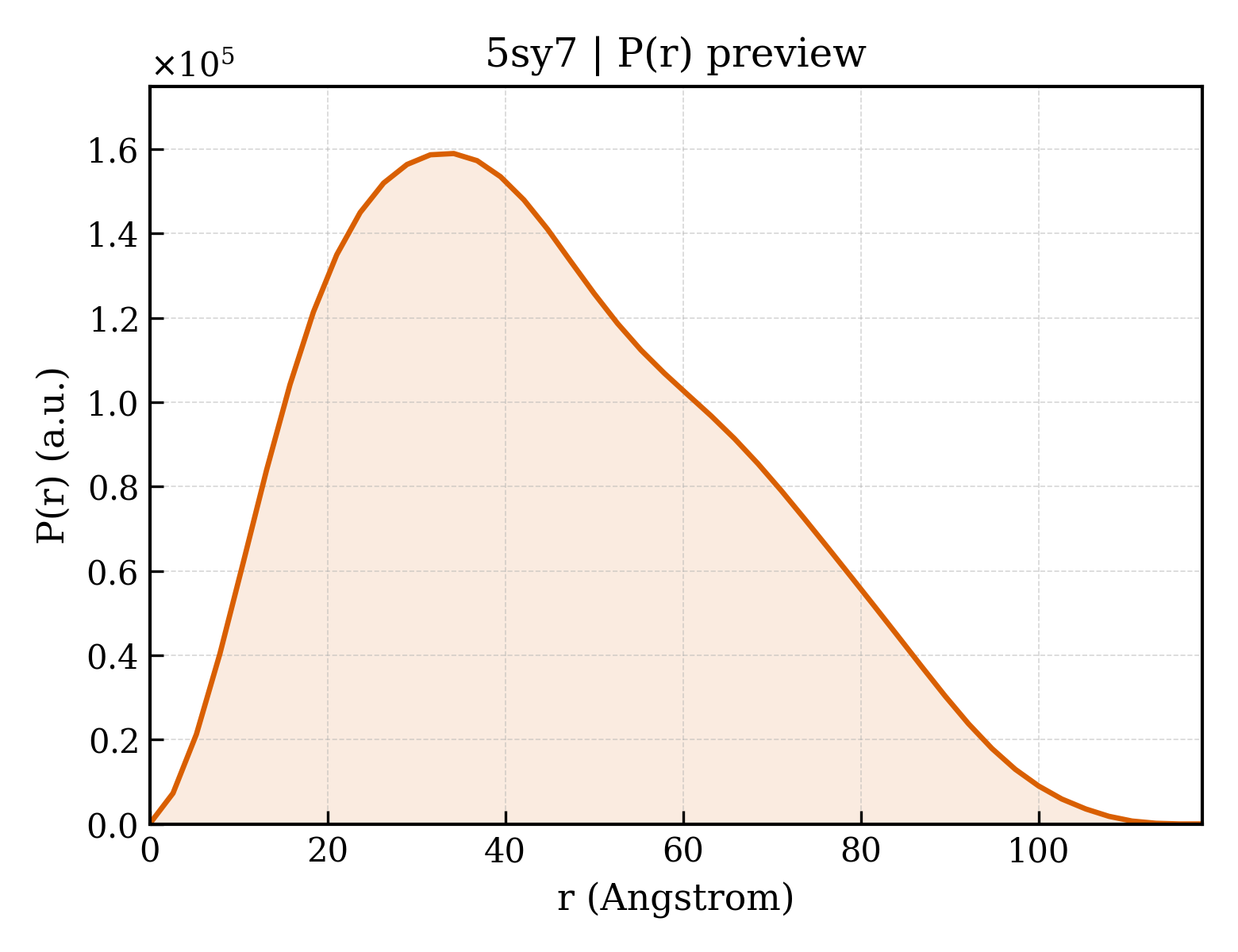

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5sy7
Deposition date deposition_date	2016-08-10
Structure title title	Crystal Structure of the Heterodimeric NPAS3-ARNT Complex with HRE DNA
Keywords keywords	bHLH-PAS protein, transcription factor, heterodimeric complex, transcription-DNA complex; transcription/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.84 Å
Radius of gyration Rg (electron density) rg_electron	33.42 Å
Forward intensity I(0) i0	113548000.00
Molecular weight molecular_weight	76295.0 kDa
Excluded volume excluded_volume	91896 Å³
Envelope volume envelope_volume	126780 Å³
Hydration-shell volume shell_volume	34019 Å³
Envelope diameter envelope_diameter	118.2 Å
Shell Rg shell_rg	37.42 Å
Envelope Rg envelope_rg	33.38 Å
Shape Rg shape_rg	33.34 Å
Total Rg total_rg	33.95 Å
Total atoms total_atoms	5313
Residues n_residues	594
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	118.4 Å
Rg (real space) rg_real	35.05 Å
Rg uncertainty (real space) rg_real_error	1.35 Å
I(0) (real space) i0_real	1.1350e+08
I(0) uncertainty (real space) i0_real_error	2.1020e+06
Rg (reciprocal space) rg_reciprocal	34.93 Å
I(0) (reciprocal space) i0_reciprocal	113500000.0000
Solution quality estimate total_estimate	0.8570
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.2 Å
Skewness Skewness skewness	0.411
Kurtosis Kurtosis kurtosis	-0.563
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8029000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.796; Smooth: 0.843

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Aryl hydrocarbon receptor nuclear translocator
Molecular weight formula_weight	43437.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5313

MSSADKERLARENHSEIERRRRNKMTAYITELSDMVPTCSALARKPDKLTILRMAVSHMKSLRGTGNTSTDGSYKPSFLTDQELKHLILEAADGFLFIVSCETGRVVYVSDSVTPVLNQPQSEWFGSTLYDQVHPDDVDKLREQLSTSENALTGRVLDLKTGTVKKEGQQSSMRMCMGSRRSFICRMRCGTSSVDPVSMNRLSFLRNRCRNGLGSVKEGEPHFVVVHCTGYIKAWPPAGVSLPDDDPEAGQGSKFCLVAIGRLQVTSSPNCTDMSNICQPTEFISRHNIEGIFTFVDHRCVATVGYQPQELLGKNIVEFCHPEDQQLLRDSFQQVVKLKGQVLSVMFRFRSKTREWLWMRTSSFTFQNPYSDEIEYIICTNTNV

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Neuronal PAS domain-containing protein 3
Molecular weight formula_weight	46225.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MIQALRKEKSRDAARSRRGKENFEFYELAKLLPLPAAITSQLDKASIIRLTISYLKMRDFANQGDPPWNLRMEGPPPNTSVKGAQRRRSPSALAIEVFEAHLGSHILQSLDGFVFALNQEGKFLYISETVSIYLGLSQVELTGSSVFDYVHPGDHVEMAEQLGMKLPPGRGLLSQGTTEDAASSASSSSQSETPEPVETTSPSLLTTDNTLERSFFIRMKSTLTKRGVHIKSSGYKVIHITGRLRLRVSLSHGRTVPSQIMGLVVVAHALPPPTINEVRIDCHMFVTRVNMDLNIIYCENRISDYMDLTPVDIVGKRCYHFIHAEDVEGIRHSHLDLLNKGQCVTKYYRWMQKNGGYIWIQSSATIAINAKNANEKNIIWVNYLLSNPEYKDTPMDIAQLPHVEHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(GPGPCPTPGPCPGPTPAPCPGPTPGPCPGPGPGPTPCPGP*T)-3') ;
Molecular weight formula_weight	6527.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GGCTGCGTACGTGCGGGTCGT

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(CPAPCPGPAPCPCPCPGPCPAPCPGPTPAPCPGPCPAPGP*C)-3') ;
Molecular weight formula_weight	6363.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

CACGACCCGCACGTACGCAGC

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.831 Å
Unit-cell length b length_b	64.831 Å
Unit-cell length c length_c	249.102 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 43
Space-group number int_tables_number	78
Crystal system crystal_system	—

Resolution resolution	4.200 Å
Low-resolution limit resolution_low	45.842 Å
R factor r_factor	0.2763
R_work r_work	0.2719
R_free r_free	0.3614

fit	/app/data/saxs_computation/sy/5sy7/5sy7.fit
pddf	/app/data/pr_computation/sy/5sy7/5sy7.pr.out
profile	/app/data/saxs_computation/sy/5sy7/5sy7.dat
