9lnw

Crystal structure of T2R-TTL-YQVB8 Complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Detyrosinated tubulin alpha-1B chain

Sus scrofa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Tubulin beta chain × 2 （A0A8D1UIR5） Stathmin-4 × 1 （P63042） Tubulin tyrosine ligase × 1 （A0A8V0Z8P0） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2 CALCIUM ION × 2 GUANOSINE-5'-DIPHOSPHATE × 2 10'-bromovinblastine × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA1B_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–450； UniProt 1–450 Author chain C； PDBConstruct 1–450； UniProt 1–450

Tubulin beta chain

Sus scrofa

UniProt A0A8D1UIR5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Detyrosinated tubulin alpha-1B chain × 2 （Q2XVP4） Stathmin-4 × 1 （P63042） Tubulin tyrosine ligase × 1 （A0A8V0Z8P0） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2 CALCIUM ION × 2 GUANOSINE-5'-DIPHOSPHATE × 2 10'-bromovinblastine × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8D1UIR5_PIG
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–445； UniProt 1–445 Author chain D； PDBConstruct 1–445； UniProt 1–445

Stathmin-4

Mus musculus

UniProt P63042

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Detyrosinated tubulin alpha-1B chain × 2 （Q2XVP4） Tubulin beta chain × 2 （A0A8D1UIR5） Tubulin tyrosine ligase × 1 （A0A8V0Z8P0） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2 CALCIUM ION × 2 GUANOSINE-5'-DIPHOSPHATE × 2 10'-bromovinblastine × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STMN4_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 3–143； UniProt 49–189

Tubulin tyrosine ligase

Gallus gallus

UniProt A0A8V0Z8P0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Detyrosinated tubulin alpha-1B chain × 2 （Q2XVP4） Tubulin beta chain × 2 （A0A8D1UIR5） Stathmin-4 × 1 （P63042） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2 CALCIUM ION × 2 GUANOSINE-5'-DIPHOSPHATE × 2 10'-bromovinblastine × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8V0Z8P0_CHICK
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 1–378； UniProt 1–411

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lnw
Deposition date deposition_date	2025-01-22
Last revision last_revision	2025-05-07
Structure title title	Crystal structure of T2R-TTL-YQVB8 Complex
Keywords keywords	tubule inhibitor, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9lnw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9lnw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

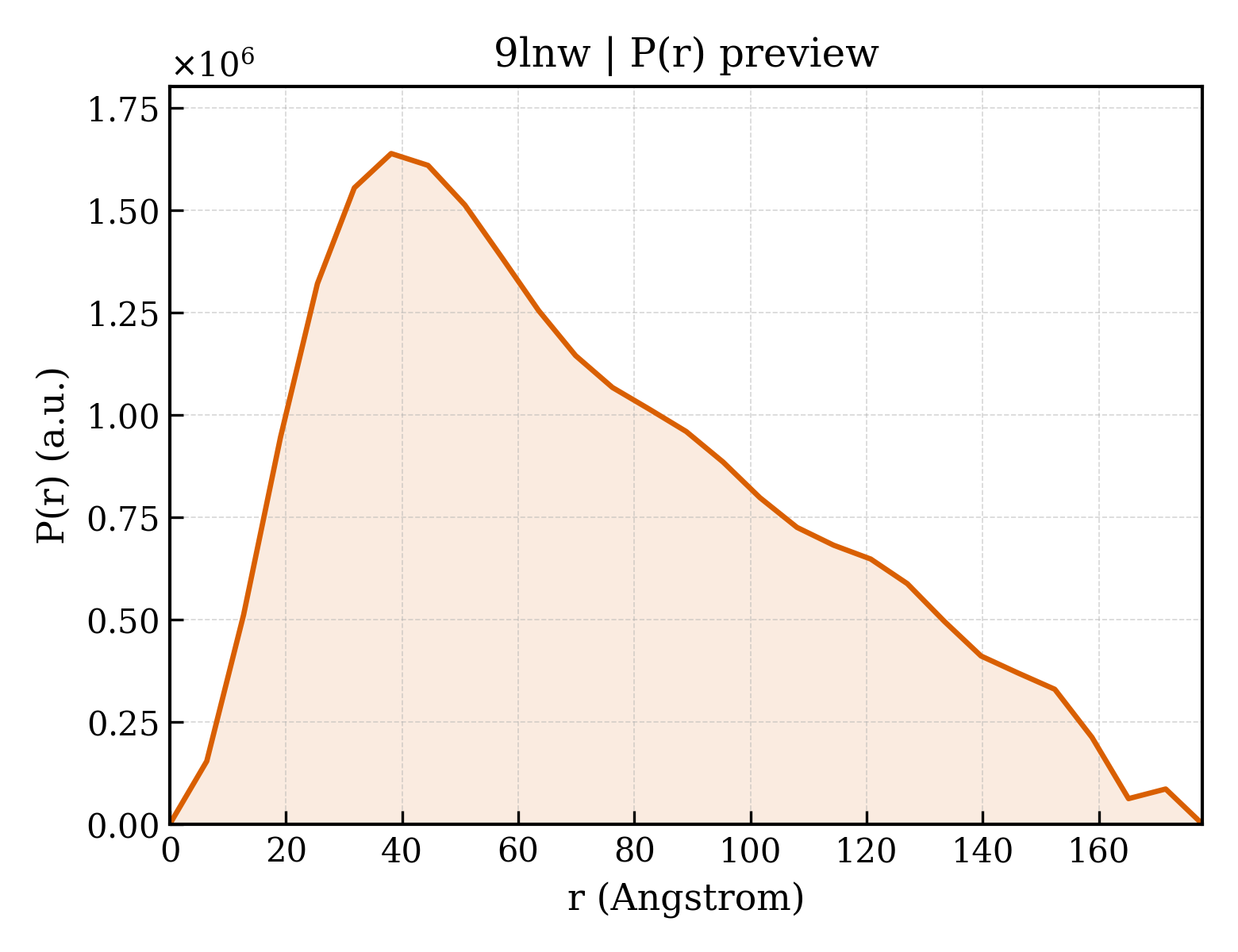

9lnw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.62 Å
Rg (electron density)	56.59 Å
Total Rg	56.43 Å
Atom count	17498
Residues	2182
Excluded volume	308410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9lnw__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Detyrosinated tubulin alpha-1B chain
Molecular weight formula_weight	50041.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17615

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLISQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRSIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEE

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	49999.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,B

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEATGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVMPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDSKNMMAACDPRHGRYLTVAAIFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEEGEDEA

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Stathmin-4
Molecular weight formula_weight	16844.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MADMEVIELNKCTSGQSFEVILKPPSFDGVPEFNASLPRRRDPSLEEIQKKLEAAEERRKYQEAELLKHLAEKREHEREVIQKAIEENNNFIKMAKEKLAQKMESNKENREAHLAAMLERLQEKDKHAEEVRKNKELKEEASR

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Tubulin tyrosine ligase
Molecular weight formula_weight	44378.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MYTFVVRDENSSVYAEVSRLLLATGQWKRLRKDNPRFNLMLGERNRLPFGRLGHEPGLVQLVNYYRGADKLCRKASLVKLIKTSPELSESCTWFPESYVIYPTNLKTPVAPAQNGIRHLINNTRTDEREVFLAAYNRRREGREGNVWIAKSSAGAKGEGILISSEASELLDFIDEQGQVHVIQKYLEKPLLLEPGHRKFDIRSWVLVDHLYNIYLYREGVLRTSSEPYNSANFQDKTCHLTNHCIQKEYSKNYGRYEEGNEMFFEEFNQYLMDALNTTLENSILLQIKHIIRSCLMCIEPAISTKHLHYQSFQLFGFDFMVDEELKVWLIEVNGAPACAQKLYAELCQGIVDVAISSVFPLADTGQKTSQPTSIFIKLHHHHHH

Source Source

Source organism organism	Gallus gallus
Common name common_name	chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	10'-bromovinblastine
Molecular weight formula_weight	889.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	9

▶

Unit-cell length a length_a	104.823 Å
Unit-cell length b length_b	155.758 Å
Unit-cell length c length_c	185.088 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.550 Å
Low-resolution limit resolution_low	91.210 Å
R factor r_factor	0.2286
R_work r_work	0.2252
R_free r_free	0.2919
