SAXSdb — 9lq4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 3 of NACHT, LRR and PYD domains-containing protein 7

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	T-cell leukemia/lymphoma protein 1A × 2 （P56279）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NALP7_HUMAN
Isoform	Q8WX94-3
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1037； UniProt 1–1037

T-cell leukemia/lymphoma protein 1A

Homo sapiens

UniProt P56279

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Isoform 3 of NACHT, LRR and PYD domains-containing protein 7 × 1 （Q8WX94）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCL1A_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–106； UniProt 9–114 Author chain G； PDBConstruct 1–106； UniProt 9–114

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lq4
Deposition date deposition_date	2025-01-27
Structure title title	Structure of the human monomeric NLRP7-TCL1A complex
Keywords keywords	subcortical maternal complex, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9lq4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9lq4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

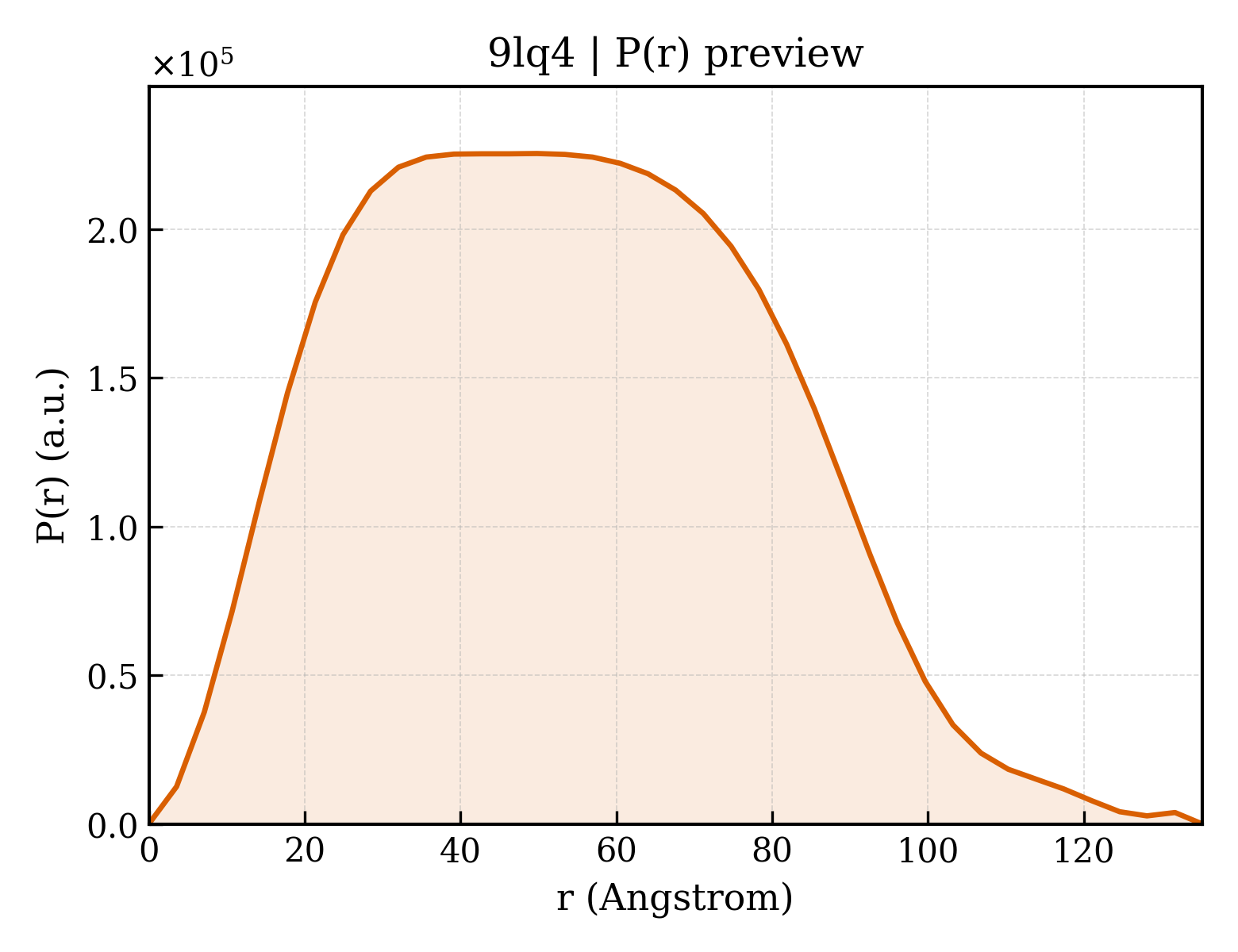

9lq4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.61 Å
Rg (electron density)	41.44 Å
Total Rg	41.59 Å
Atom count	8494
Residues	1061
Excluded volume	152560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9lq4__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Isoform 3 of NACHT, LRR and PYD domains-containing protein 7
Molecular weight formula_weight	118448.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8494

MTSPQLEWTLQTLLEQLNEDELKSFKSLLWAFPLEDVLQKTPWSEVEEADGKKLAEILVNTSSENWIRNATVNILEEMNLTELCKMAKAEMMEDGQVQEIDNPELGDAEEDSELAKPGEKEGWRNSMEKQSLVWKNTFWQGDIDNFHDDVTLRNQRFIPFLNPRTPRKLTPYTVVLHGPAGVGKTTLAKKCMLDWTDCNLSPTLRYAFYLSCKELSRMGPCSFAELISKDWPELQDDIPSILAQAQRILFVVDGLDELKVPPGALIQDICGDWEKKKPVPVLLGSLLKRKMLPRAALLVTTRPRALRDLQLLAQQPIYVRVEGFLEEDRRAYFLRHFGDEDQAMRAFELMRSNAALFQLGSAPAVCWIVCTTLKLQMEKGEDPVPTCLTRTGLFLRFLCSRFPQGAQLRGALRTLSLLAAQGLWAQMSVFHREDLERLGVQESDLRLFLDGDILRQDRVSKGCYSFIHLSFQQFLTALFYALEKEEGEDRDGHAWDIGDVQKLLSGEERLKNPDLIQVGHFLFGLANEKRAKELEATFGCRMSPDIKQELLQCKAHLHANKPLSVTDLKEVLGCLYESQEEELAKVVVAPFKEISIHLTNTSEVMHCSFSLKHCQDLQKLSLQVAKGVFLENYMDFELDIEFERCTYLTIPNWARQDLRSLRLWTDFCSLFSSNSNLKFLEVKQSFLSDSSVRILCDHVTRSTCHLQKVEIKNVTPDTAYRDFCLAFIGKKTLTHLTLAGHIEWERTMMLMLCDLLRNHKCNLQYLRLGGHCATPEQWAEFFYVLKANQSLKHLRLSANVLLDEGAMLLYKTMTRPKHFLQMLSLENCRLTEASCKDLAAVLVVSKKLTHLCLAKNPIGDTGVKFLCEGLSYPDCKLQTLVLQQCSITKLGCRYLSEALQEACSLTNLDLSINQIARGLWILCQALENPNCNLKHLRLWSCSLMPFYCQHLGSALLSNQKLETLDLGQNHLWKSGIIKLFGVLRQRTGSLKILRLKTYETNLEIKKLLEEVKEKNPKLTIDCNASGATAPPCCDFFC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	T-cell leukemia/lymphoma protein 1A
Molecular weight formula_weight	12672.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G

EAVTDHPDRLWAWEKFVYLDEKQHAWLPLTIEIKDRLQLRVLLRREDVVLGRPMTPTQIGPSLLPIMWQLYPDGRYRSSDSSFWRLVYHIKIDGVEDMLLELLPDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.120 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.12 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	1195156
