SAXSdb — 9m1f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tryptophan--tRNA ligase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	(5~{S},6~{R})-5-methyl-7-thia-2-azatricyclo[6.3.1.0^{4,12}]dodeca-1(12),3,8,10-tetraene-6-carboxylic acid × 2 ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	E2QFN4_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–334； UniProt 1–334 Author chain B； PDBConstruct 1–334； UniProt 1–334

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9m1f
Deposition date deposition_date	2025-02-25
Last revision last_revision	2025-07-23
Structure title title	Crystal structure of E. coli tryptophanyl-tRNA synthetase complexed with chuangxinmycin and ATP in closed-closed state
Keywords keywords	tryptophanyl-tRNA synthetase, aminoacyl-tRNA synthetase, antibiotic, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9m1f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9m1f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

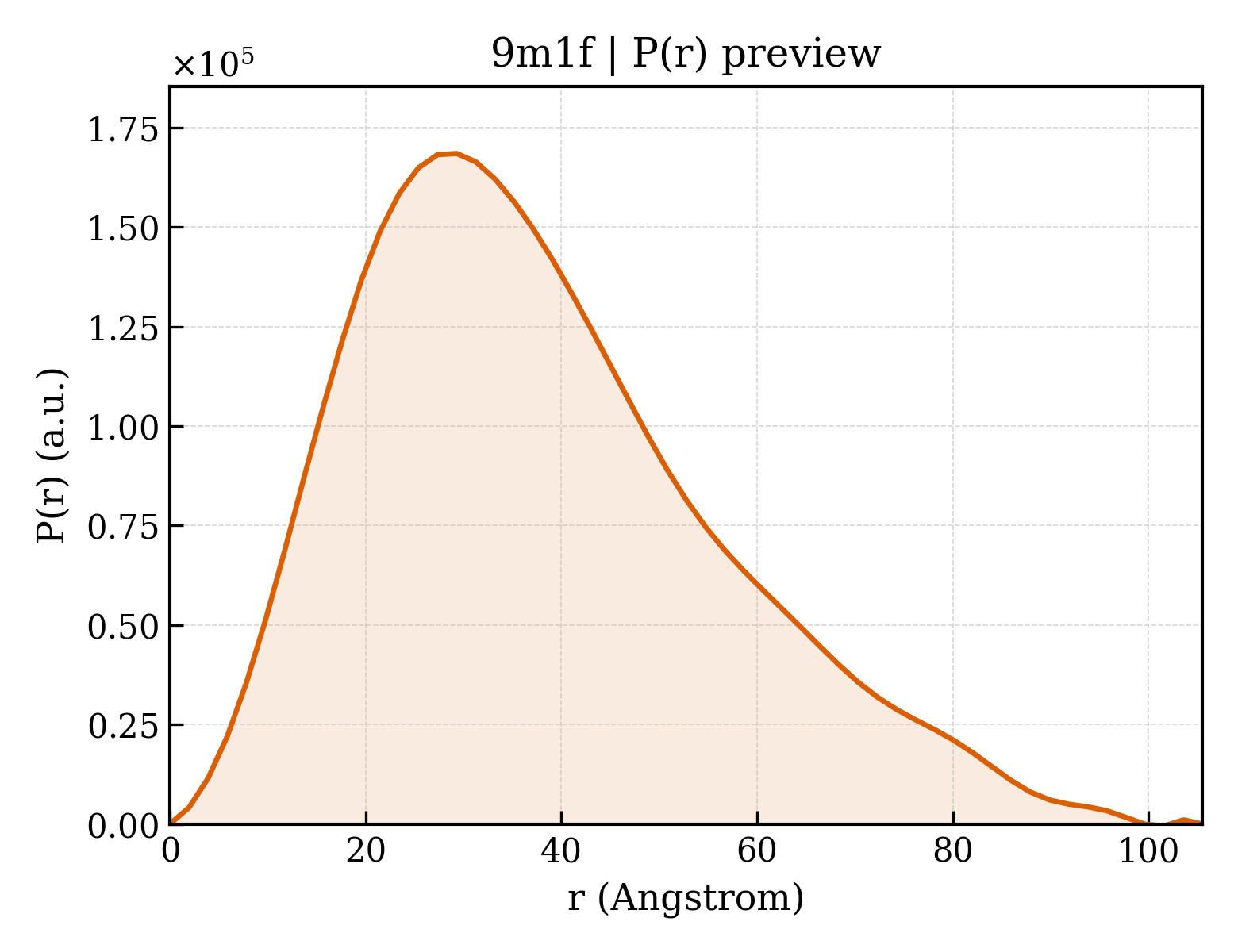

9m1f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.30 Å
Rg (electron density)	29.12 Å
Total Rg	29.67 Å
Atom count	5239
Residues	664
Excluded volume	93050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9m1f__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Tryptophan--tRNA ligase
Molecular weight formula_weight	38313.7 kDa
EC 编号 ec_number	6.1.1.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5824

MTKPIVFSGAQPSGELTIGNYMGALRQWVNMQDDYHCIYCIVDQHAITVRQDAQKLRKATLDTLALYLACGIDPEKSTIFVQSHVPEHAQLGWALNCYTYFGELSRMTQFKDKSARYAENINAGLFDYPVLMAADILLYQTNLVPVGEDQKQHLELSRDIAQRFNALYGEIFKVPEPFIPKSGARVMSLLEPTKKMSKSDDNRNNVIGLLEDPKSVVKKIKRAVTDSDEPPVVRYDVQNKAGVSNLLDILSAVTGQSIPELEKQFEGKMYGHLKGEVADAVSGMLTELQERYHRFRNDEAFLQQVMKDGAEKASAHASRTLKAVYEAIGFVAKPHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(5~{S},6~{R})-5-methyl-7-thia-2-azatricyclo[6.3.1.0^{4,12}]dodeca-1(12),3,8,10-tetraene-6-carboxylic acid
Molecular weight formula_weight	233.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	558

▶

Unit-cell length a length_a	63.390 Å
Unit-cell length b length_b	95.280 Å
Unit-cell length c length_c	64.543 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.35 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	1.920 Å
Low-resolution limit resolution_low	30.450 Å
R factor r_factor	0.1826
R_work r_work	0.1816
R_free r_free	0.2090

Crystal structure of E. coli tryptophanyl-tRNA synthetase complexed with chuangxinmycin and ATP in closed-closed state
