SAXSdb — 9ma7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein GP350

human gammaherpesvirus 4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count	Chain A； UniProt 1–470	Not recorded	1H5 heavy chain no-CH2CH3 × 1 1H5 light chain × 1 1A12 heavy chain no-CH2CH3 × 1 1A12 light chain × 1 2E9 heavy chain no-CH2CH3 × 1 2E9 light chain × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8 cryo-EM vitrification conditions：Cryogen NITROGEN	Resolution 3.14 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9MA7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8SGN Crystal structure of Epstein-Barr virus glycoprotein 350 (gp350) in complex with Cy651H02, a monoclonal antibody isolated from macaques immunized with a gp350 nanoparticle vaccine Deposited 2023-04-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–425（425 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 23 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；1.72M ammonium sulfate, 0.1M Tris pH 8.0	Resolution 2.20 Å R-free 0.237
8SIC Crystal structure of Epstein-Barr virus glycoprotein 350 (gp350) in complex with Cy137C02, a monoclonal antibody isolated from macaques immunized with a gp350 nanoparticle vaccine Deposited 2023-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–425（425 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；18% PEG 8000, 0.22 M sodium acetate, 0.1 M sodium cacodylate pH 6.5	Resolution 2.76 Å R-free 0.295
8SIC Crystal structure of Epstein-Barr virus glycoprotein 350 (gp350) in complex with Cy137C02, a monoclonal antibody isolated from macaques immunized with a gp350 nanoparticle vaccine Deposited 2023-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–425（425 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；18% PEG 8000, 0.22 M sodium acetate, 0.1 M sodium cacodylate pH 6.5	Resolution 2.76 Å R-free 0.295
8SM0 Crystal structure of human complement receptor 2 (CD21) in complex with Epstein-Barr virus major glycoprotein gp350 Deposited 2023-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–425（425 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；1.60M AMMONIUM SULFATE, 2% PEG 400, 0.5% GLYCEROL, 0.1M SODIUM ACETATE PH5.5	Resolution 1.68 Å R-free 0.241
8SM1 CRYSTAL STRUCTURE OF HUMAN ANTIBODY 769A9 IN COMPLEX WITH EPSTEIN-BARR VIRUS MAJOR GLYCOPROTEIN GP350 Deposited 2023-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–425（425 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；1.60M AMMONIUM SULFATE, 2% PEG 400, 0.5% GLYCEROL, 0.1M SODIUM ACETATE PH5.5	Resolution 3.29 Å R-free 0.298
9MA0 Cryo-EM structure of EBV gp350 D123 in complex with neutralizing antibody 4A11 Deposited 2025-03-13	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–470（470 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.33 Å

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GP350_EBVB9
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–470； UniProt 1–470

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ma7
Deposition date deposition_date	2025-03-14
Structure title title	Cryo-EM structure of EBV gp350 D123 in complex with neutralizing antibody 1A12 and 1H5 and non-neutralizing antibody 2E9
Keywords keywords	;Envelope glycoprotein GP350, Membrane antigen (MA), neutralizing antibody, 1A22, 1E5, 2E9, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex ;; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.24 Å
Radius of gyration Rg (electron density) rg_electron	40.11 Å
Forward intensity I(0) i0	225051000.00
Molecular weight molecular_weight	119750.0 kDa
Excluded volume excluded_volume	148770 Å³
Envelope volume envelope_volume	206030 Å³
Hydration-shell volume shell_volume	44957 Å³
Envelope diameter envelope_diameter	135.3 Å
Shell Rg shell_rg	43.44 Å
Envelope Rg envelope_rg	39.42 Å
Shape Rg shape_rg	40.08 Å
Total Rg total_rg	40.40 Å
Total atoms total_atoms	8435
Residues n_residues	1111
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

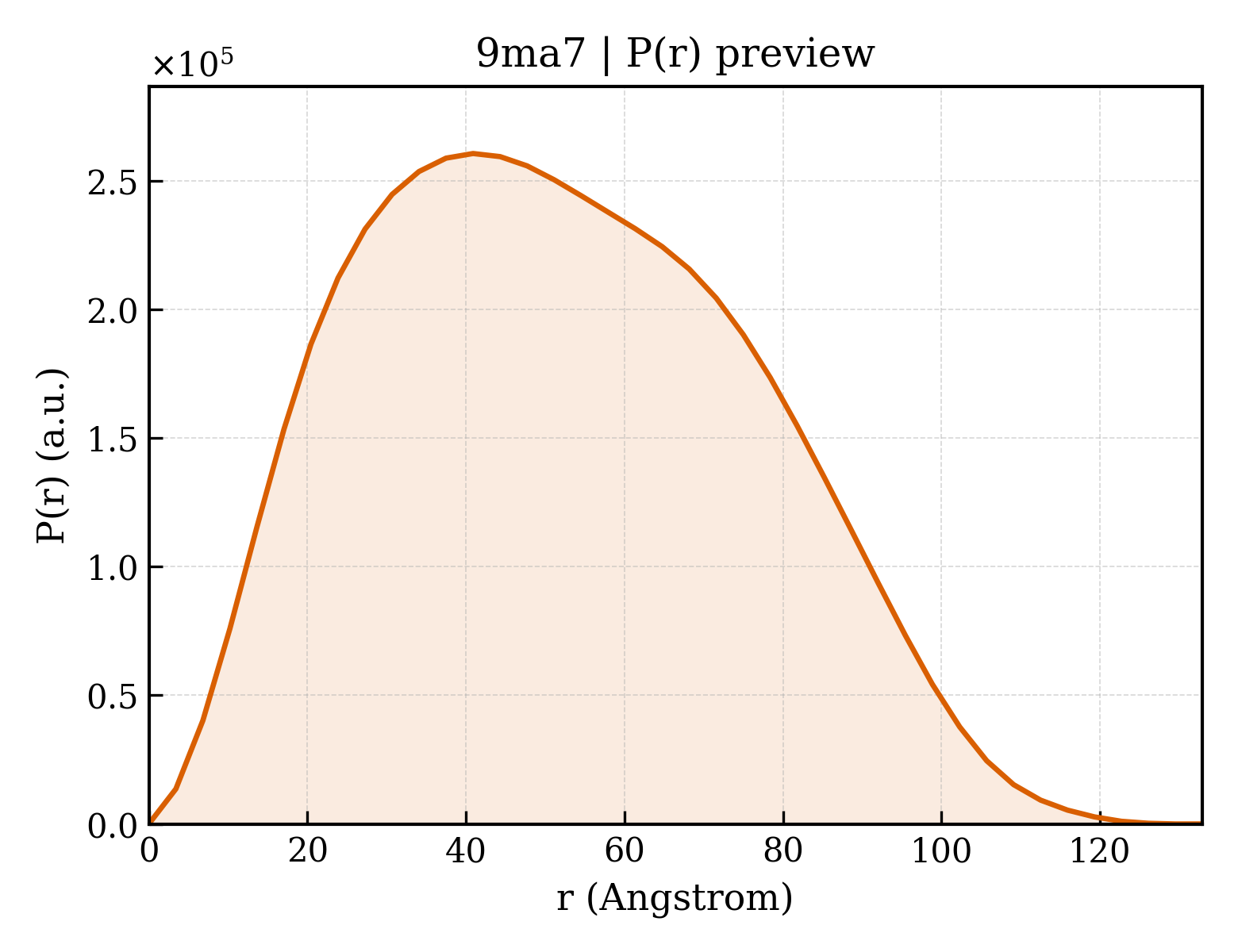

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	132.9 Å
Rg (real space) rg_real	40.27 Å
Rg uncertainty (real space) rg_real_error	1.34 Å
I(0) (real space) i0_real	2.2510e+08
I(0) uncertainty (real space) i0_real_error	4.0270e+06
Rg (reciprocal space) rg_reciprocal	40.24 Å
I(0) (reciprocal space) i0_reciprocal	225000000.0000
Solution quality estimate total_estimate	0.8893
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	40.9 Å
Skewness Skewness skewness	0.229
Kurtosis Kurtosis kurtosis	-0.707
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20260000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.909; Smooth: 0.897

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein GP350
Molecular weight formula_weight	51454.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8435

MEAALLVCQYTIQSLIHLTGEDPGFFNVEIPEFPFYPTCNVCTADVNVTINFDVGGKKHQLDLDFGQLTPHTKAVYQPRGAFGGSENATNLFLLELLGAGELALTMRSKKLPINVTTGEEQQVSLESVDVYFQDVFGTMWCHHAEMQNPVYLIPETVPYIKWDNCNSTNITAVVRAQGLDVTLPLSLPTSAQDSNFSVKTQMLGNEIDIECIMEDGEISQVLPGDNKFNITCSGYESHVPSGGILTSTSPVATPIPGTGYAYSLRLTPRPVSRFLGNNSILYVFYSGNGPKASGGDYCIQSNIVFSDEIPASQDMPTNTTDITYVGDNATYSVPMVTSEDANSPNVTVTAFWAWPNNTETDFKCKWTLTSGTPSGCENISGAFASNRTFDITVSGLGTAPKTLIITRTATNATTTTHKVIFSKAPESTTTSPTLNTTGFADPNTTTGLPSSTHVPTNLTAPASTGPTVSTGSHHHHHH

来源 Source

来源生物 organism	human gammaherpesvirus 4
通用名 common_name	Epstein-Barr virus
NCBI Class编号 ncbi_taxonomy_id	10376
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 2 Entity 2 polymer

Description description	1H5 heavy chain no-CH2CH3
Molecular weight formula_weight	26271.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGWSCIILFLVATATGVHSQVQLVQSGAEVRKPGSSVKVSCEFSGGPFKNSAFSWVRQAPGQGPEWMGGIIPPFVRGKYAQGFQGRVTITADEHLSTTYMELTGLRSDDTAVYYCARGPSSGNYNYYYGMDVWGQGTPVSVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDK

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 3 Entity 3 polymer

Description description	1H5 light chain
Molecular weight formula_weight	24930.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGWSCIILFLVATATGSWAQSVLTQPPSASGTPGQRVTISCSGSSSNIGSNYVYWYQQLPGTAPKLLIYRNNQRPSGVPDRFSGSKSGTSASLAISGLRSEDEADYYCAAWDDSLSGWVFGGGTQLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 4 Entity 4 polymer

Description description	1A12 heavy chain no-CH2CH3
Molecular weight formula_weight	26621.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MGWSCIILFLVATATGVHSQVQLVQSGAEVKKPGASMKVSCKASGYTFAGYYIHWVRQAPGQGLEWMGSINPNSGKATYAQRFHGRVTLTREMSINTAYMELTRLTSDDTAIYYCARDATYSTSFSPRWFDPWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDK

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 5 Entity 5 polymer

Description description	1A12 light chain
Molecular weight formula_weight	24901.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MGWSCIILFLVATATGSWAEIVLTQSPGTLSLSPGERATLSCRASQSISSNSLAWYQQRPGQAPRLLIYGASSRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQYGSSPRTFGPGTKVDIKGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 6 Entity 6 polymer

Description description	2E9 heavy chain no-CH2CH3
Molecular weight formula_weight	25906.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MGWSCIILFLVATATGVHSQVQLQESGPGLVKPSETLSLICTVSGYSISSGYNWGWIRQPPGKGLEWIGSINHSGSTYYNPSLKSRVTTSVDTSTNQFSLKLSSVTAADTAVYYCARDSIMIGYRGLDYWGQGTLVSVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDK

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 7 Entity 7 polymer

Description description	2E9 light chain
Molecular weight formula_weight	24774.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MGWSCIILFLVATATGSWAQSVVTQPPSVSAAPGQKVTISCSGSSSNIGNNYVSWYQQLPGTAPKLLIYDNNKRPSGIPDRFSGSKSGTSATLGITGLQTGDEADYYCGTWDSSLSAYVFGTGTQLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.140 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.14 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	673171

fit	/app/data/saxs_computation/ma/9ma7/9ma7.fit
pddf	/app/data/pr_computation/ma/9ma7/9ma7.pr.out
profile	/app/data/saxs_computation/ma/9ma7/9ma7.dat
