SAXSdb — 9mfw

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mfw
沉积日期 deposition_date	2024-12-10
结构标题 title	Motor domain with ADP AAA1 and ADP AAA3 from yeast full-length dynein-1 in 0.1 mM ATP condition
关键词 keywords	dynein, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.21 Å
回转半径 Rg (电子) rg_electron	48.69 Å
零角强度 I(0) i0	1216450000.00
分子量 molecular_weight	298880.0 kDa
排除体积 excluded_volume	377380 Å³
包络体积 envelope_volume	537860 Å³
水化壳体积 shell_volume	89112 Å³
包络直径 envelope_diameter	167.1 Å
壳层 Rg shell_rg	56.26 Å
包络 Rg envelope_rg	47.30 Å
形状 Rg shape_rg	48.69 Å
总 Rg total_rg	48.97 Å
总原子数 total_atoms	21037
残基数 n_residues	2583
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.8 Å
Rg (实空间) rg_real	48.93 Å
Rg 误差 (实空间) rg_real_error	1.11 Å
I(0) (实空间) i0_real	1.2160e+09
I(0) 误差 (实空间) i0_real_error	2.2710e+07
Rg (倒空间) rg_reciprocal	49.20 Å
I(0) (倒空间) i0_reciprocal	1217000000.0000
解质量估计 total_estimate	0.8838
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.138
峰度 Kurtosis kurtosis	-0.439
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	145600000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.840

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Dynein heavy chain, cytoplasmic
分子量 formula_weight	471918.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	21037

MCKNEARLANELIEFVAATVTGIKNSPKENEQAFIDYLHCQYLERFQFFLGLLDGREFDTLFVFLFEELDRTIVTIDIGEEAIYDANLANKKYSTLLIIKSRSVIVDAEPIATQISAIYLPGPVNAGNLASIITHGVSSVFGQLIKSDTKTYSVETIDKTRRKLDDISKQFQQLHTSIETPDLLAMVPSIIKLAVSKGATSHDYANYLPSNDLESMRFLNILQSIANKWFLVLKQTLAIDRDIKNGSFLDEVEFWSNFYEVLKSLIEQTQSQEFQVCLSVLTNAKRFHNLTNLLNEGSLSDKFKLADKYNQFLSSIPIDEVRQASNLEDLQELFPVLASSLKKFRYSGYPVQRFVVLMDKISQEVMDAILSNLSDLFQLEYGSFLGLYEKSAGMIEEWDDIVQDVNLLIREDLRKRAPQELLIQKLTFTSASVKATLDEILSTRKRFFSLAETIKSISPSTYHEEIQRLYHPFEQIHDISVNFRLKLEQAESEFSKNMLDLEKKLQNTLASFMDSDHCPTEKLSYLVKFKPLMELCPRIKVKVLENQQILLLEIKKDIRQLETGLELLPKILHVEALNNIPPISARISYFLNVQSRIDNIVQYLEALFGSNWNDTLEGRSISTSIVQLRKETNPHDVFLHWLGNFPEKATANLLTTPILKLIRNNEDDYELKVNFDFALAAAYSELRSLTYMAFQVPSHIVRIARTYMYLYPRAINLVELIQTFFSLSKSLSYTFYTNIFLKRNVQTVWLLLQQILITPWESLQEESSEMSCSVHSLARLEKSIDGILSDYQILKNSEPQFAKEFSGLKSFDGTADDLHEVEEIISNIQAIFENLFTKGLTNVSDHISTFNNLIISIILEKVRLNLKKMHFPKHVLKLSFNEGRITSSPSLAAMKRSLLKDIEALLNKVVLINFLHDPDHPLSTTLTFNSLVIKLKDDIQNCIEQVQNLHCKINSYVKEWQKMEFLWQITEEAFLEVVDNSTQRCFGILKGLLDSQSKFDLIISRNNFSKNLVLHTEDAQRHIRSKMDSWILYVSKHLLTIYERDARKLHEDMNRDREAVEDMDINFTSLKNITVIIEAVNVNKRHLTERDIQIKLLGSVMRALTKLKVRFPSHFVYIDQLDNDFSSLRQSLSYVEQELQKHRVVIAKSLEEGVENINNLSQSLNESWSVRKPISPTLTPPEALKILEFFNESITKLKKKMHSVAAAAKMLLIPVVLNDQLTHVVEEVKTYDLVWRSIKNLWEDVQRTFETPWCRVDVLLLQSDLANFLRRADELPRAVKQFEMYKSLFSQVNMLTSVNKILVELKDGALKPRHWNMIFRDIGKRQIQKNLLDKLEFSLKDVMVLNLTLNEILLTKIIERAQKEFVIEKSLNRIKKFWKEAQYEVIEHSSGLKLVREWDVLEQACKEDLEELVSMKASNYYKIFEQDCLDLESKLTKLSEIQVNWVEVQFYWLDLYGILGENLDIQNFLPLETSKFKSLTSEYKMITTRAFQLDTTIEVIHIPNFDTTLKLTIDSLKMIKSSLSTFLERQRRQFPRFYFLGNDDLLKIIGSGKHHDQVSKFMKKMFGSIESIIFLEDFITGVRSVEGEVLNLNEKIELKDSIQAQEWLNILDTEIKLSVFTQFRDCLGQLKDGTDIEVVVSKYIFQAILLSAQVMWTELVEKCLQTNQFSKYWKEVDMKIKGLLDKLNKSSDNVKKKIEALLVEYLHFNNVIGQLKNCSTKEEARLLWAKVQKFYQKNDTLDDLNSVFISQSGYLLQYKFEYIGIPERLIYTPLLLIGFATLTDSLHQKYGGCFFGPAGTGKTETVKAFGQNLGRVVVVFNCDDSFDYQVLSRLLVGITQIGAWGCFDEFNRLDEKVLSAVSANIQQIQNGLQVGKSHITLLEEETPLSPHTAVFITLNPGYNGRSELPENLKKSFREFSMKSPQSGTIAEMILQIMGFEDSKSLASKIVHFLELLSSKCSSMNHYHFGLRTLKGVLRNCSPLISEFGEGEKTVVESLKRVILPSLGDTDELVFKDELSKIFDSAGTPLNSKAIVQCLKDAGQRSGFSMSEEFLKKCMQFYYMQKTQQALILVGKAGCGKTATWKTVIDAMAIFDGHANVVYVIDTKVLTKESLYGSMLKATLEWRDGLFTSILRRVNDDITGTFKNSRIWVVFDSDLDPEYVEAMNSVLDDNKILTLPNGERLPIPPNFRILFETDNLDHTTPATITRCGLLWFSTDVCSISSKIDHLLNKSYEALDNKLSMFELDKLKDLISDSFDMASLTNIFTCSNDLVHILGVRTFNKLETAVQLAVHLISSYRQWFQNLDDKSLKDVITLLIKRSLLYALAGDSTGESQRAFIQTINTYFGHDSQELSDYSTIVIANDKLSFSSFCSEIPSVSLEAHEVMRPDIVIPTIDTIKHEKIFYDLLNSKRGIILCGPPGSGKTMIMNNALRNSSLYDVVGINFSKDTTTEHILSALHRHTNYVTTSKGLTLLPKSDIKNLVLFCDEINLPKLDKYGSQNVVLFLRQLMEKQGFWKTPENKWVTIERIHIVGACNPPTDPGRIPMSERFTRHAAILYLGYPSGKSLSQIYEIYYKAIFKLVPEFRSYTEPFARASVHLYNECKARYSTGLQSHYLFSPRELTRLVRGVYTAINTGPRQTLRSLIRLWAYEAWRIFADRLVGVKEKNSFEQLLYETVDKYLPNQDLGNISSTSLLFSGLLSLDFKEVNKTDLVNFIEERFKTFCDEELEVPMVIHESMVDHILRIDRALKQVQGHMMLIGASRTGKTILTRFVAWLNGLKIVQPKIHRHSNLSDFDMILKKAISDCSLKESRTCLIIDESNILETAFLERMNTLLANADIPDLFQGEEYDKLLNNLRNKTRSLGLLLDTEQELYDWFVGEIAKNLHVVFTICDPTNNKSSAMISSPALFNRCIINWMGDWDTKTMSQVANNMVDVIPMEFTDFIVPEVNKELVFTEPIQTIRDAVVNILIHFDRNFYQKMKVGVNPRSPGYFIDGLRALVKLVTAKYQDLQENQRFVNVGLEKLNESVLKVNELNKTLSKKSTELTEKEKEARSTLDKMLMEQNESERKQEATEEIKKILKVQEEDIRKRKEVVMKSIQDIEPTILEAQRGVKNIKKQQLTEIRSMVNPPSGVKIVMEAVCAILGYQFSNWRDIQQFIRKDDFIHNIVHYDTTLHMKPQIRKYMEEEFLSDPNFTYETINRASKACGPLYQWVNAQINFSKVLENVDPLRQEMKRIEFESLKTKANLLAAEEMTQDLEASIEVSKRKYSLLIRDVEAIKTEMSNVQANLDRSISLVKSLTFEKERWLNTTKQFSKTSQELIGNCIISSIYETYFGHLNERERADMLVILKRLLGKFAVKYDVNYRFIDYLVTLDEKMKWLECGLDKNDYFLENMSIVMNSQDAVPFLLDPSSHMITVISNYYGNKTVLLSFLEEGFVKRLENAIRFGSVVIIQDGEFFDPIISRLISREFNHAGNRVTVEIGDHEVDVSGDFKLFIHSCDPSGDIPIFLRSRVRLVHFVTNKESIETRIFDITLTEENAEMQRKREDLIKLNTEYKLKLKNLEKRLLEELNNSQGNMLENDELMVTLNNLKKEAMNIEKKLSESEEFFPQFDNLVEEYSIIGKHSVKIFSMLEKFGQFHWFYGISIGQFLSCFKRVFIKKSRETRAARTRVDEILWLLYQEVYCQFSTALDKKFKMIMAMTMFCLYKFDIESEQYKEAVLTMIGVLSESSDGVPKLTVDTNNDLRYLWDYVTTKSYISALNWFKNEFFVDEWNIADVVANSENNYFTMASERDVDGTFKLIELAKASKESLKIIPLGSIENLNYAQEEISKSKIEGGWILLQNIQMSLSWVKTYLHKHVEETKAAEEHEKFKMFMTCHLTGDKLPAPLLQRTDRFVYEDIPGILDTVKDLWGSQFFTGKISGVWSVYCTFLLSWFHALITARTRLVPHGFSKKYYFNDCDFQFASVYLENVLATNSTNNIPWAQVRDHIATIVYGGKIDEEKDLEVVAKLCAHVFCGSDNLQIVPGVRIPQPLLQQSEEEERARLTAILSNTIEPADSLSSWLQLPRESILNYERLQAKEVASSTEQLLQEM

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (2)

▶

分辨率 resolution	4.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	53499

fit	/app/data/saxs_computation/mf/9mfw/9mfw.fit
pddf	/app/data/pr_computation/mf/9mfw/9mfw.pr.out
profile	/app/data/saxs_computation/mf/9mfw/9mfw.dat

Motor domain with ADP AAA1 and ADP AAA3 from yeast full-length dynein-1 in 0.1 mM ATP condition

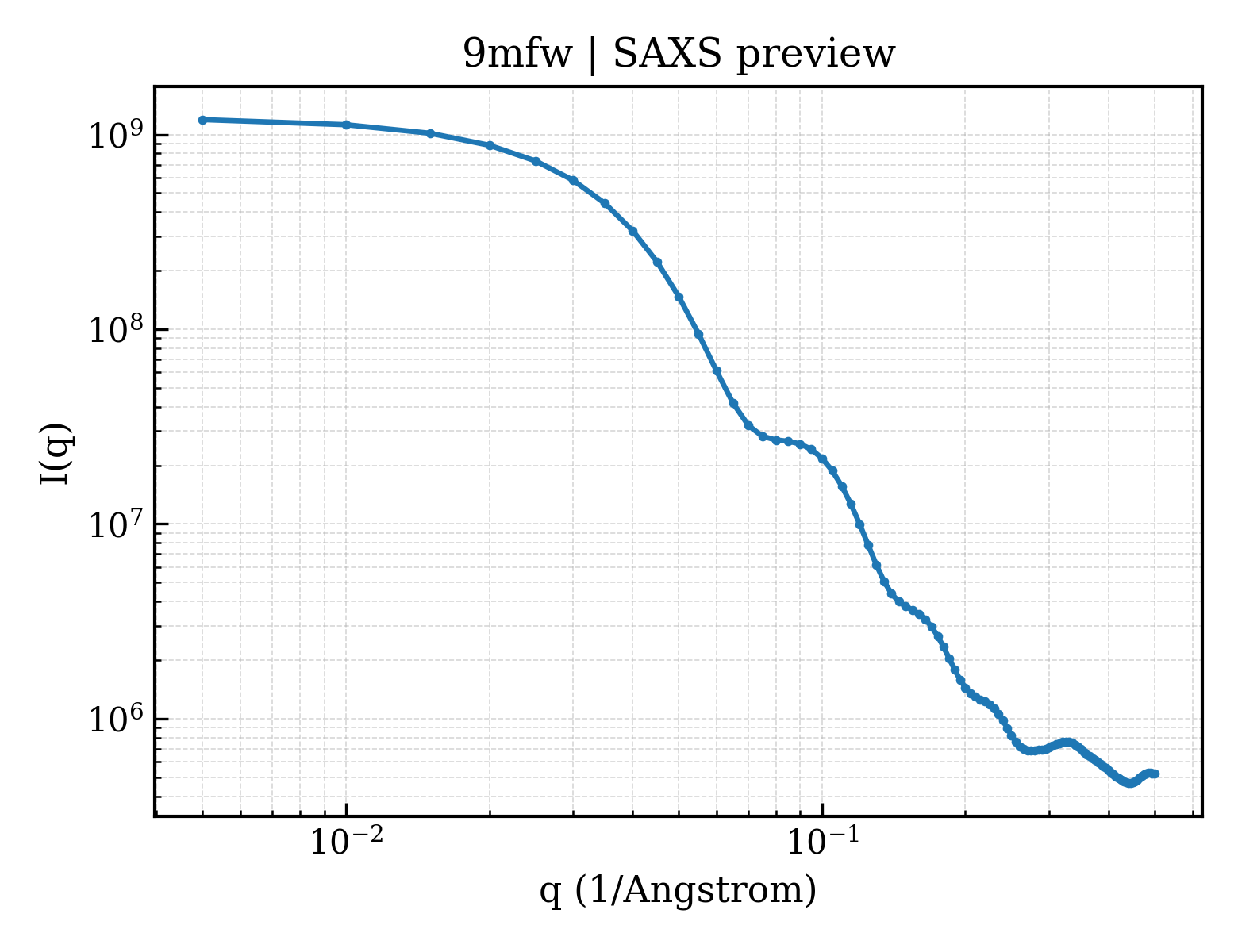

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
