SAXSdb — 9mfy

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mfy
沉积日期 deposition_date	2024-12-10
结构标题 title	Motor domain-Pac1 complex with ADP AAA1 and Apo AAA3 from yeast full-length dynein-1 and Pac1 in 0.1 mM ATP condition
关键词 keywords	dynein, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	52.71 Å
回转半径 Rg (电子) rg_electron	52.43 Å
零角强度 I(0) i0	1558550000.00
分子量 molecular_weight	339350.0 kDa
排除体积 excluded_volume	428350 Å³
包络体积 envelope_volume	615130 Å³
水化壳体积 shell_volume	95924 Å³
包络直径 envelope_diameter	178.2 Å
壳层 Rg shell_rg	58.30 Å
包络 Rg envelope_rg	50.67 Å
形状 Rg shape_rg	52.44 Å
总 Rg total_rg	52.60 Å
总原子数 total_atoms	23892
残基数 n_residues	2939
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	171.3 Å
Rg (实空间) rg_real	52.61 Å
Rg 误差 (实空间) rg_real_error	1.41 Å
I(0) (实空间) i0_real	1.5590e+09
I(0) 误差 (实空间) i0_real_error	3.3600e+07
Rg (倒空间) rg_reciprocal	52.78 Å
I(0) (倒空间) i0_reciprocal	1559000000.0000
解质量估计 total_estimate	0.8731
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	68.5 Å
偏度 Skewness skewness	0.229
峰度 Kurtosis kurtosis	-0.421
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	134300000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.613

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Nuclear distribution protein PAC1
分子量 formula_weight	56973.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	23892

MTNWQQQLPLTDTQKNELDKSVLRYLNWNYKQTVRHEHAQDYESVRHAIVTLSGFLLQESVDRQEFISNNDTSNESMVDIDELLLPKKWNSIVRLQKKIIELEQNTETLVSQIKDLNTQVSELAQFKPTTSNGTSAHNVLKWIPRNLPSCLINVESSVTSVKLHPNLPIVFVATDHGKLYAFDLFNYTIPLASLQSHTKAITSMDVLFTNYTNSSKKNYLVIVTASKDLQIHVFKWVSEECKFQQIRSLLGHEHIVSAVKIWQKNNDVHIASCSRDQTVKIWDFHNGWSLKTFQPHSQWVRSIDVLGDYIISGSHDTTLRLTHWPSGNGLSVGTGHEFPIEKVKFIHFIEDSPEIRFRTPSTDRYKNWGMQYCVSASRDRTIKIWEIPLPTLMAHRAPIPNPTDSNFRCVLTLKGHLSWVRDISIRGQYLFSCADDKSVRCWDLNTGQCLHVWEKLHTGFVNCLDLDVDFDSNVTPRQMMVTGGLDCKSNVFMR

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 polymer

描述 description	Dynein heavy chain, cytoplasmic
分子量 formula_weight	471918.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MCKNEARLANELIEFVAATVTGIKNSPKENEQAFIDYLHCQYLERFQFFLGLLDGREFDTLFVFLFEELDRTIVTIDIGEEAIYDANLANKKYSTLLIIKSRSVIVDAEPIATQISAIYLPGPVNAGNLASIITHGVSSVFGQLIKSDTKTYSVETIDKTRRKLDDISKQFQQLHTSIETPDLLAMVPSIIKLAVSKGATSHDYANYLPSNDLESMRFLNILQSIANKWFLVLKQTLAIDRDIKNGSFLDEVEFWSNFYEVLKSLIEQTQSQEFQVCLSVLTNAKRFHNLTNLLNEGSLSDKFKLADKYNQFLSSIPIDEVRQASNLEDLQELFPVLASSLKKFRYSGYPVQRFVVLMDKISQEVMDAILSNLSDLFQLEYGSFLGLYEKSAGMIEEWDDIVQDVNLLIREDLRKRAPQELLIQKLTFTSASVKATLDEILSTRKRFFSLAETIKSISPSTYHEEIQRLYHPFEQIHDISVNFRLKLEQAESEFSKNMLDLEKKLQNTLASFMDSDHCPTEKLSYLVKFKPLMELCPRIKVKVLENQQILLLEIKKDIRQLETGLELLPKILHVEALNNIPPISARISYFLNVQSRIDNIVQYLEALFGSNWNDTLEGRSISTSIVQLRKETNPHDVFLHWLGNFPEKATANLLTTPILKLIRNNEDDYELKVNFDFALAAAYSELRSLTYMAFQVPSHIVRIARTYMYLYPRAINLVELIQTFFSLSKSLSYTFYTNIFLKRNVQTVWLLLQQILITPWESLQEESSEMSCSVHSLARLEKSIDGILSDYQILKNSEPQFAKEFSGLKSFDGTADDLHEVEEIISNIQAIFENLFTKGLTNVSDHISTFNNLIISIILEKVRLNLKKMHFPKHVLKLSFNEGRITSSPSLAAMKRSLLKDIEALLNKVVLINFLHDPDHPLSTTLTFNSLVIKLKDDIQNCIEQVQNLHCKINSYVKEWQKMEFLWQITEEAFLEVVDNSTQRCFGILKGLLDSQSKFDLIISRNNFSKNLVLHTEDAQRHIRSKMDSWILYVSKHLLTIYERDARKLHEDMNRDREAVEDMDINFTSLKNITVIIEAVNVNKRHLTERDIQIKLLGSVMRALTKLKVRFPSHFVYIDQLDNDFSSLRQSLSYVEQELQKHRVVIAKSLEEGVENINNLSQSLNESWSVRKPISPTLTPPEALKILEFFNESITKLKKKMHSVAAAAKMLLIPVVLNDQLTHVVEEVKTYDLVWRSIKNLWEDVQRTFETPWCRVDVLLLQSDLANFLRRADELPRAVKQFEMYKSLFSQVNMLTSVNKILVELKDGALKPRHWNMIFRDIGKRQIQKNLLDKLEFSLKDVMVLNLTLNEILLTKIIERAQKEFVIEKSLNRIKKFWKEAQYEVIEHSSGLKLVREWDVLEQACKEDLEELVSMKASNYYKIFEQDCLDLESKLTKLSEIQVNWVEVQFYWLDLYGILGENLDIQNFLPLETSKFKSLTSEYKMITTRAFQLDTTIEVIHIPNFDTTLKLTIDSLKMIKSSLSTFLERQRRQFPRFYFLGNDDLLKIIGSGKHHDQVSKFMKKMFGSIESIIFLEDFITGVRSVEGEVLNLNEKIELKDSIQAQEWLNILDTEIKLSVFTQFRDCLGQLKDGTDIEVVVSKYIFQAILLSAQVMWTELVEKCLQTNQFSKYWKEVDMKIKGLLDKLNKSSDNVKKKIEALLVEYLHFNNVIGQLKNCSTKEEARLLWAKVQKFYQKNDTLDDLNSVFISQSGYLLQYKFEYIGIPERLIYTPLLLIGFATLTDSLHQKYGGCFFGPAGTGKTETVKAFGQNLGRVVVVFNCDDSFDYQVLSRLLVGITQIGAWGCFDEFNRLDEKVLSAVSANIQQIQNGLQVGKSHITLLEEETPLSPHTAVFITLNPGYNGRSELPENLKKSFREFSMKSPQSGTIAEMILQIMGFEDSKSLASKIVHFLELLSSKCSSMNHYHFGLRTLKGVLRNCSPLISEFGEGEKTVVESLKRVILPSLGDTDELVFKDELSKIFDSAGTPLNSKAIVQCLKDAGQRSGFSMSEEFLKKCMQFYYMQKTQQALILVGKAGCGKTATWKTVIDAMAIFDGHANVVYVIDTKVLTKESLYGSMLKATLEWRDGLFTSILRRVNDDITGTFKNSRIWVVFDSDLDPEYVEAMNSVLDDNKILTLPNGERLPIPPNFRILFETDNLDHTTPATITRCGLLWFSTDVCSISSKIDHLLNKSYEALDNKLSMFELDKLKDLISDSFDMASLTNIFTCSNDLVHILGVRTFNKLETAVQLAVHLISSYRQWFQNLDDKSLKDVITLLIKRSLLYALAGDSTGESQRAFIQTINTYFGHDSQELSDYSTIVIANDKLSFSSFCSEIPSVSLEAHEVMRPDIVIPTIDTIKHEKIFYDLLNSKRGIILCGPPGSGKTMIMNNALRNSSLYDVVGINFSKDTTTEHILSALHRHTNYVTTSKGLTLLPKSDIKNLVLFCDEINLPKLDKYGSQNVVLFLRQLMEKQGFWKTPENKWVTIERIHIVGACNPPTDPGRIPMSERFTRHAAILYLGYPSGKSLSQIYEIYYKAIFKLVPEFRSYTEPFARASVHLYNECKARYSTGLQSHYLFSPRELTRLVRGVYTAINTGPRQTLRSLIRLWAYEAWRIFADRLVGVKEKNSFEQLLYETVDKYLPNQDLGNISSTSLLFSGLLSLDFKEVNKTDLVNFIEERFKTFCDEELEVPMVIHESMVDHILRIDRALKQVQGHMMLIGASRTGKTILTRFVAWLNGLKIVQPKIHRHSNLSDFDMILKKAISDCSLKESRTCLIIDESNILETAFLERMNTLLANADIPDLFQGEEYDKLLNNLRNKTRSLGLLLDTEQELYDWFVGEIAKNLHVVFTICDPTNNKSSAMISSPALFNRCIINWMGDWDTKTMSQVANNMVDVIPMEFTDFIVPEVNKELVFTEPIQTIRDAVVNILIHFDRNFYQKMKVGVNPRSPGYFIDGLRALVKLVTAKYQDLQENQRFVNVGLEKLNESVLKVNELNKTLSKKSTELTEKEKEARSTLDKMLMEQNESERKQEATEEIKKILKVQEEDIRKRKEVVMKSIQDIEPTILEAQRGVKNIKKQQLTEIRSMVNPPSGVKIVMEAVCAILGYQFSNWRDIQQFIRKDDFIHNIVHYDTTLHMKPQIRKYMEEEFLSDPNFTYETINRASKACGPLYQWVNAQINFSKVLENVDPLRQEMKRIEFESLKTKANLLAAEEMTQDLEASIEVSKRKYSLLIRDVEAIKTEMSNVQANLDRSISLVKSLTFEKERWLNTTKQFSKTSQELIGNCIISSIYETYFGHLNERERADMLVILKRLLGKFAVKYDVNYRFIDYLVTLDEKMKWLECGLDKNDYFLENMSIVMNSQDAVPFLLDPSSHMITVISNYYGNKTVLLSFLEEGFVKRLENAIRFGSVVIIQDGEFFDPIISRLISREFNHAGNRVTVEIGDHEVDVSGDFKLFIHSCDPSGDIPIFLRSRVRLVHFVTNKESIETRIFDITLTEENAEMQRKREDLIKLNTEYKLKLKNLEKRLLEELNNSQGNMLENDELMVTLNNLKKEAMNIEKKLSESEEFFPQFDNLVEEYSIIGKHSVKIFSMLEKFGQFHWFYGISIGQFLSCFKRVFIKKSRETRAARTRVDEILWLLYQEVYCQFSTALDKKFKMIMAMTMFCLYKFDIESEQYKEAVLTMIGVLSESSDGVPKLTVDTNNDLRYLWDYVTTKSYISALNWFKNEFFVDEWNIADVVANSENNYFTMASERDVDGTFKLIELAKASKESLKIIPLGSIENLNYAQEEISKSKIEGGWILLQNIQMSLSWVKTYLHKHVEETKAAEEHEKFKMFMTCHLTGDKLPAPLLQRTDRFVYEDIPGILDTVKDLWGSQFFTGKISGVWSVYCTFLLSWFHALITARTRLVPHGFSKKYYFNDCDFQFASVYLENVLATNSTNNIPWAQVRDHIATIVYGGKIDEEKDLEVVAKLCAHVFCGSDNLQIVPGVRIPQPLLQQSEEEERARLTAILSNTIEPADSLSSWLQLPRESILNYERLQAKEVASSTEQLLQEM

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	178195

fit	/app/data/saxs_computation/mf/9mfy/9mfy.fit
pddf	/app/data/pr_computation/mf/9mfy/9mfy.pr.out
profile	/app/data/saxs_computation/mf/9mfy/9mfy.dat

Motor domain-Pac1 complex with ADP AAA1 and Apo AAA3 from yeast full-length dynein-1 and Pac1 in 0.1 mM ATP condition

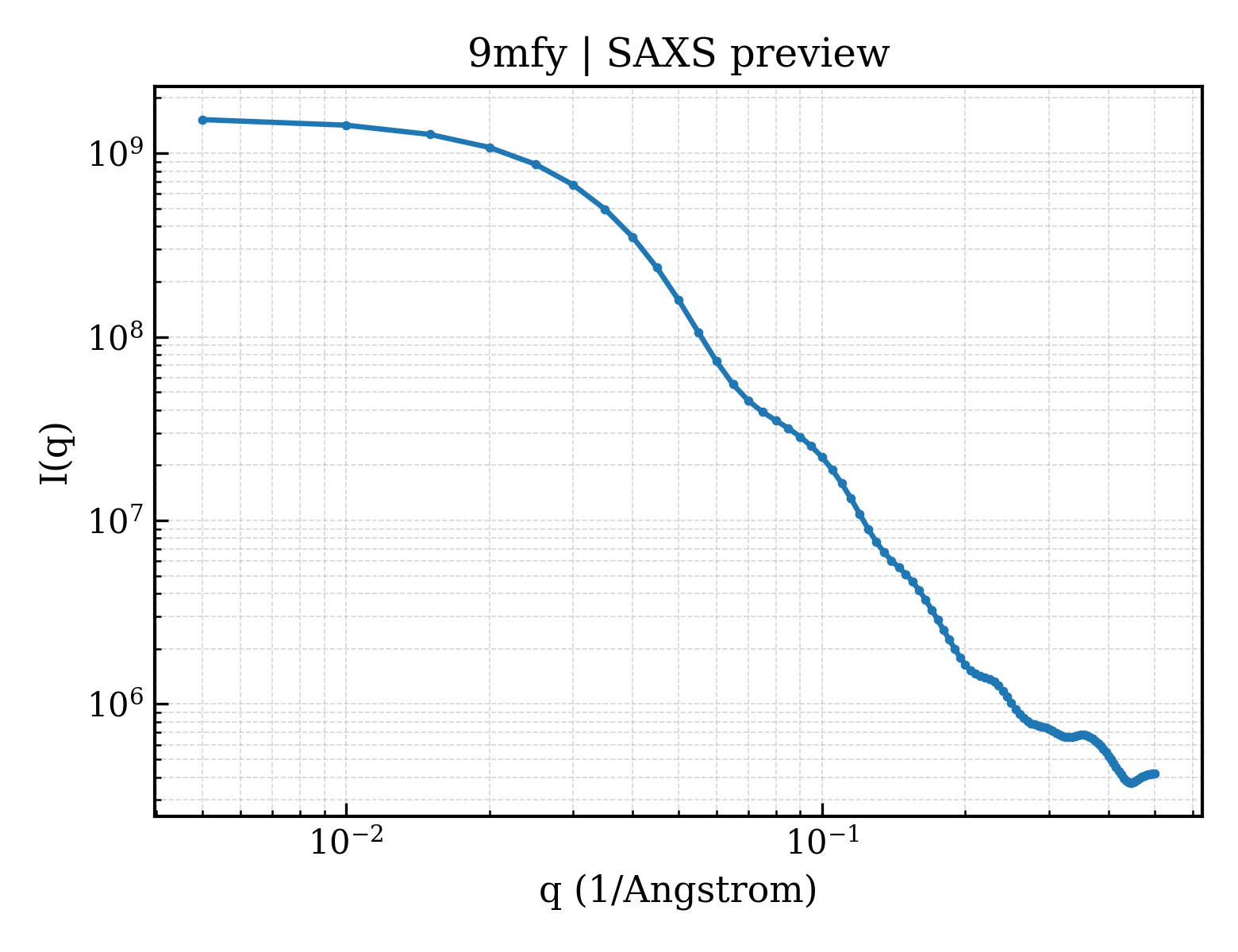

SAXS 散射曲线 SAXS Profile

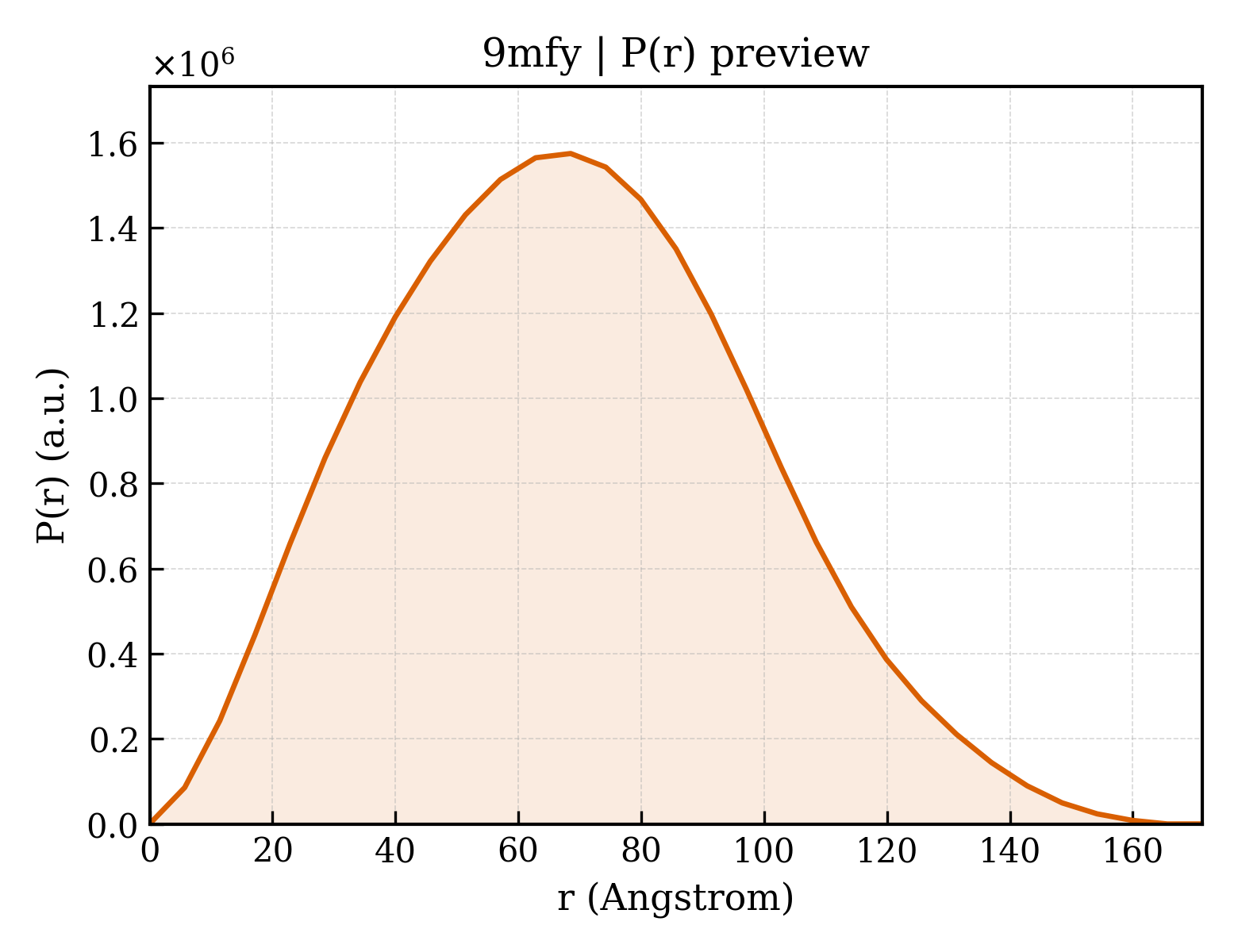

P(r) 距离分布 P(r) Distribution
