9mj4

Yeast V-ATPase Vo proton channel bound to nanobody 2WVA149

Method: ELECTRON MICROSCOPY D_max: 141.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

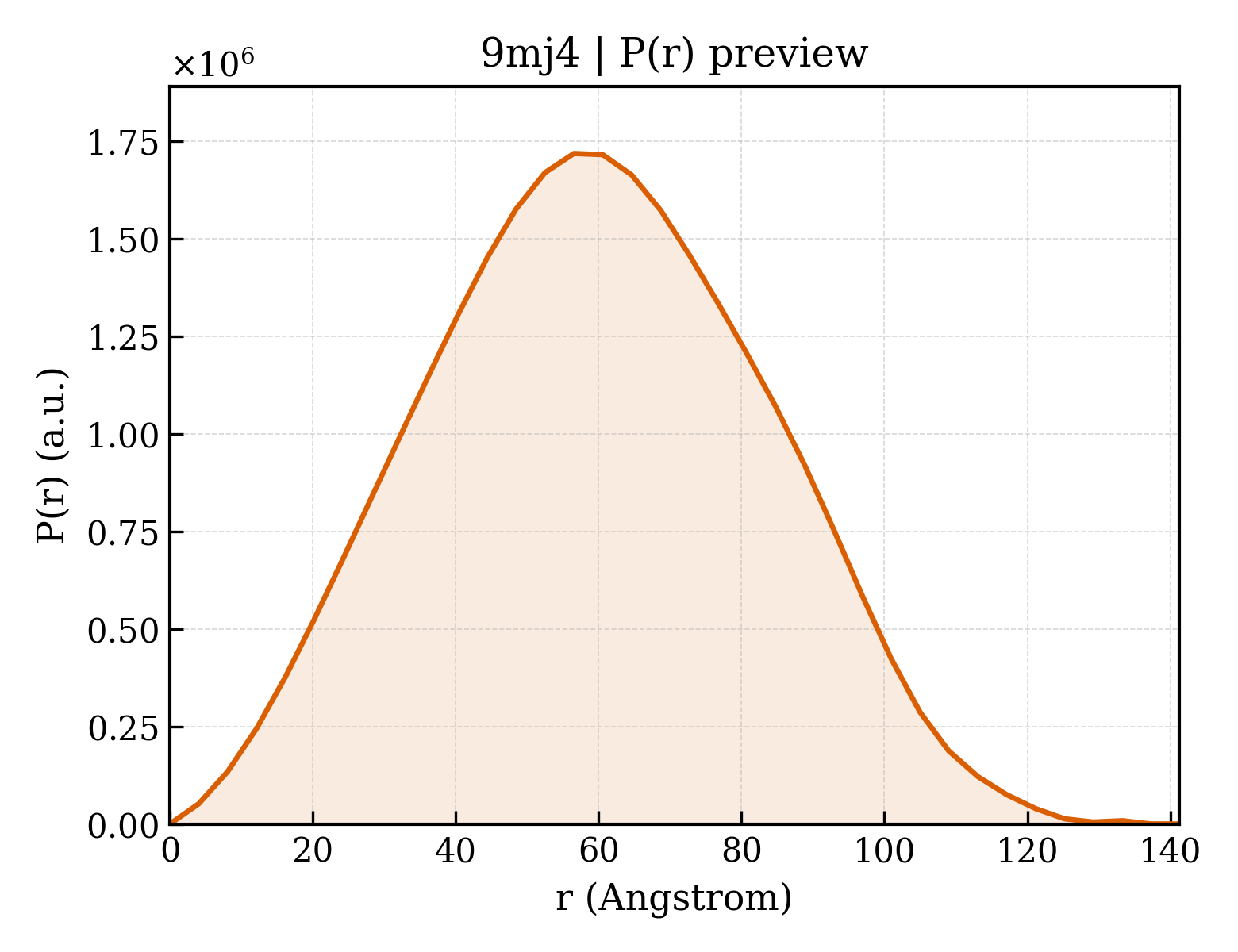

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mj4
沉积日期 deposition_date	2024-12-13
结构标题 title	Yeast V-ATPase Vo proton channel bound to nanobody 2WVA149
关键词 keywords	Vacuolar ATPase, Vo proton channel, lipid nanodisc, nanobody, PROTON TRANSPORT; PROTON TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.58 Å
回转半径 Rg (电子) rg_electron	44.68 Å
零角强度 I(0) i0	1327900000.00
分子量 molecular_weight	326890.0 kDa
排除体积 excluded_volume	419180 Å³
包络体积 envelope_volume	579730 Å³
水化壳体积 shell_volume	102810 Å³
包络直径 envelope_diameter	146.9 Å
壳层 Rg shell_rg	53.82 Å
包络 Rg envelope_rg	43.51 Å
形状 Rg shape_rg	44.69 Å
总 Rg total_rg	45.03 Å
总原子数 total_atoms	46607
残基数 n_residues	3035
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	141.3 Å
Rg (实空间) rg_real	45.24 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	1.3280e+09
I(0) 误差 (实空间) i0_real_error	2.5170e+07
Rg (倒空间) rg_reciprocal	45.58 Å
I(0) (倒空间) i0_reciprocal	1328000000.0000
解质量估计 total_estimate	0.8901
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	56.5 Å
偏度 Skewness skewness	0.072
峰度 Kurtosis kurtosis	-0.484
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	108700000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.963; Smooth: 0.924

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	;V-type proton ATPase subunit c' ;
分子量 formula_weight	17046.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D
原子数 atom_count	46607

MSTQLASNIYAPLYAPFFGFAGCAAAMVLSCLGAAIGTAKSGIGIAGIGTFKPELIMKSLIPVVMSGILAIYGLVVAVLIAGNLSPTEDYTLFNGFMHLSCGLCVGFACLSSGYAIGMVGDVGVRKYMHQPRLFVGIVLILIFSEVLGLYGMIVALILNTRGSE

Entity 2 polymer

描述 description	;V-type proton ATPase subunit c'' ;
分子量 formula_weight	22610.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MNKESKDDDMSLGKFSFSHFLYYLVLIVVIVYGLYKLFTGHGSDINFGKFLLRTSPYMWANLGIALCVGLSVVGAAWGIFITGSSMIGAGVRAPRITTKNLISIIFCEVVAIYGLIIAIVFSSKLTVATAENMYSKSNLYTGYSLFWAGITVGASNLICGIAVGITGATAAISDAADSALFVKILVIEIFGSILGLLGLIVGLLMAGKASEFQ

Entity 3 polymer

描述 description	V0 assembly protein 1
分子量 formula_weight	29694.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MVFGQLYALFIFTLSCCISKTVQADSSKESSSFISFDKESNWDTISTISSTADVISSVDSAIAVFEFDNFSLLDNLMIDEEYPFFNRFFANDVSLTVHDDSPLNISQSLSPIMEQFTVDELPESASDLLYEYSLDDKSIVLFKFTSDAYDLKKLDEFIDSCLSFLEDKSGDNLTVVINSLGWAFEDEDGDDEYATEETLSHHDNNKGKEGDDDILSSIWTEGLLMCLIVSALLLFILIVALSWISNLDITYGALEKSTNPIKKNN

Entity 4 polymer

描述 description	V-type proton ATPase subunit e
分子量 formula_weight	8387.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSSFYTVVGVFIVVSAMSVLFWIMAPKNNQAVWRSTVILTLAMMFLMWAITFLCQLHPLVAPRRSDLRPEFAE

Entity 5 polymer

描述 description	V-type proton ATPase subunit c
分子量 formula_weight	16357.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H,I,J,K,L

MTELCPVYAPFFGAIGCASAIIFTSLGAAYGTAKSGVGICATCVLRPDLLFKNIVPVIMAGIIAIYGLVVSVLVCYSLGQKQALYTGFIQLGAGLSVGLSGLAAGFAIGIVGDAGVRGSSQQPRLFVGMILILIFAEVLGLYGLIVALLLNSRATQDVVC

Entity 6 polymer

描述 description	Yeast V-ATPase subunit f
分子量 formula_weight	9369.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MRPVVSTGKAWCCTVLSAFGVVILSVIAHLFNTNHESFVGSINDPEDGPAVAHTVYLAALVYLVFFVFCGFQVYLARRKPSIELR

Entity 7 polymer

描述 description	V-type proton ATPase subunit d
分子量 formula_weight	39822.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MEGVYFNIDNGFIEGVVRGYRNGLLSNNQYINLTQCDTLEDLKLQLSSTDYGNFLSSVSSESLTTSLIQEYASSKLYHEFNYIRDQSSGSTRKFMDYITYGYMIDNVALMITGTIHDRDKGEILQRCHPLGWFDTLPTLSVATDLESLYETVLVDTPLAPYFKNCFDTAEELDDMNIEIIRNKLYKAYLEDFYNFVTEEIPEPAKECMQTLLGFEADRRSINIALNSLQSSDIDPDLKSDLLPNIGKLYPLATFHLAQAQDFEGVRAALANVYEYRGFLETGNLEDHFYQLEMELCRDAFTQQFAISTVWAWMKSKEQEVRNITWIAECIAQNQRERINNYISVY

Entity 8 polymer

描述 description	V-type proton ATPase subunit a, vacuolar isoform
分子量 formula_weight	95625.5 kDa
突变 mutation	C-terminal calmodulin binding peptide
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MAEKEEAIFRSAEMALVQFYIPQEISRDSAYTLGQLGLVQFRDLNSKVRAFQRTFVNEIRRLDNVERQYRYFYSLLKKHDIKLYEGDTDKYLDGSGELYVPPSGSVIDDYVRNASYLEERLIQMEDATDQIEVQKNDLEQYRFILQSGDEFFLKGDNTDSTSYMDEDMIDANGENIAAAIGASVNYVTGVIARDKVATLEQILWRVLRGNLFFKTVEIEQPVYDVKTREYKHKNAFIVFSHGDLIIKRIRKIAESLDANLYDVDSSNEGRSQQLAKVNKNLSDLYTVLKTTSTTLESELYAIAKELDSWFQDVTREKAIFEILNKSNYDTNRKILIAEGWIPRDELATLQARLGEMIARLGIDVPSIIQVLDTNHTPPTFHRTNKFTAGFQSICDCYGIAQYREINAGLPTIVTFPFMFAIMFGDMGHGFLMTLAALSLVLNEKKINKMKRGEIFDMAFTGRYIILLMGVFSMYTGFLYNDIFSKTMTIFKSGWKWPDHWKKGESITATSVGTYPIGLDWAWHGTENALLFSNSYKMKLSILMGFIHMTYSYFFSLANHLYFNSMIDIIGNFIPGLLFMQGIFGYLSVCIVYKWAVDWVKDGKPAPGLLNMLINMFLSPGTIDDELYPHQAKVQVFLLLMALVCIPWLLLVKPLHFKFTHKKKSHEPLPSTEADASSEDLEAQQLISAMDADDAEEEEVGSGSHGEDFGDIMIHQVIHTIEFCLNCVSHTASYLRLWALSLAHAQLSSVLWTMTIQIAFGFRGFVGVFMTVALFAMWFALTCAVLVLMEGTSAMLHSLRLHWVESMSKFFVGEGLPYEPFAFEYKDMEVAVASASSSASS

Entity 9 polymer

描述 description	Nanobody 2WVA149
分子量 formula_weight	15485.1 kDa
突变 mutation	N-terminal pelB sequence
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

QVQLQESGGGLVQAGGSLRLSCAVSGSIFSGNAMDWYRQAPGKQRELVASLTSTGSTNYADSVKGRFTITRDNAKNTVYLQMNSLKPEDTAVYYCHALIYRSRLDLAPGNYWGQGTQVTVSSAAAYPYDVPDYGSHHHHHHX

来源 Source

来源生物 organism	Lama glama
NCBI 分类编号 ncbi_taxonomy_id	9844
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.700 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	118798

fit	/app/data/saxs_computation/mj/9mj4/9mj4.fit
pddf	/app/data/pr_computation/mj/9mj4/9mj4.pr.out
profile	/app/data/saxs_computation/mj/9mj4/9mj4.dat
