9mm5

CGRP Receptor in complex with dC2_049

Method: ELECTRON MICROSCOPY Dmax: 100.5 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Receptor activity-modifying protein 1

Homo sapiens

UniProt O60894

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain E； UniProt 27–148 Not recorded De novo designed minibinder - dC2_049 × 1 Calcitonin gene-related peptide type 1 receptor × 1 （Q16602） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.26 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9MM5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2YX8 Crystal structure of the extracellular domain of human RAMP1 Deposited 2007-04-24 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 27–112（86 aa） Fragment：Extracellular Domain
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；293 K；0.1M tri-Sodium Citrate Dihydrate, 0.15M di-Ammonium Citrate, 25% PEG3350, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.281
2YX8 Crystal structure of the extracellular domain of human RAMP1 Deposited 2007-04-24 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–112（86 aa） Fragment：Extracellular Domain
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；293 K；0.1M tri-Sodium Citrate Dihydrate, 0.15M di-Ammonium Citrate, 25% PEG3350, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.40 Å R-free 0.281
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7R Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded 3N6 N-{(1S)-5-amino-1-[(4-pyridin-4-ylpiperazin-1-yl)carbonyl]pentyl}-3,5-dibromo-Nalpha-{[4-(2-oxo-1,4-dihydroquinazolin-3 (2H)-yl)piperidin-1-yl]carbonyl}-D-tyrosinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein : compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, plus 0.4 M potassium thiocyanate. Telcagepant was soaked into the ligand binding site. The crystal was transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.267
3N7R Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded N7R N-[(3R,6S)-6-(2,3-difluorophenyl)-2-oxo-1-(2,2,2-trifluoroethyl)azepan-3-yl]-4-(2-oxo-2,3-dihydro-1H-imidazo[4,5-b]pyridin-1-yl)piperidine-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein : compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, plus 0.4 M potassium thiocyanate. Telcagepant was soaked into the ligand binding site. The crystal was transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.267
3N7S Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded 3N6 N-{(1S)-5-amino-1-[(4-pyridin-4-ylpiperazin-1-yl)carbonyl]pentyl}-3,5-dibromo-Nalpha-{[4-(2-oxo-1,4-dihydroquinazolin-3 (2H)-yl)piperidin-1-yl]carbonyl}-D-tyrosinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein:compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 0.4 M potassium thiocyanate. The crystals were transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen, hanging drop, temperature 298K
Resolution 2.10 Å R-free 0.226
3N7S Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 26–117（92 aa） Fragment：Extra-cellular domain residues 26-117
Not recorded 3N7 N~4~-(5-cyclopropyl-1H-pyrazol-3-yl)-N~2~-1H-indazol-5-yl-6-methylpyrimidine-2,4-diamine × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein:compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 0.4 M potassium thiocyanate. The crystals were transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen, hanging drop, temperature 298K
Resolution 2.10 Å R-free 0.226
4RWG Crystal structure of the CLR:RAMP1 extracellular domain heterodimer with bound high affinity CGRP analog Deposited 2014-12-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–108（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；16% PEG3350, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.44 Å R-free 0.243
4RWG Crystal structure of the CLR:RAMP1 extracellular domain heterodimer with bound high affinity CGRP analog Deposited 2014-12-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–108（85 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；16% PEG3350, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.44 Å R-free 0.243
4RWG Crystal structure of the CLR:RAMP1 extracellular domain heterodimer with bound high affinity CGRP analog Deposited 2014-12-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–108（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；16% PEG3350, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.44 Å R-free 0.243
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–111（88 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–111（88 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–111（88 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 24–111（88 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–111（88 aa）
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–111（88 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–111（88 aa）
Not recorded NA SODIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6E3Y Cryo-EM structure of the active, Gs-protein complexed, human CGRP receptor Deposited 2018-07-16 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 27–148（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.30 Å
6UMG Crystal structure of erenumab Fab bound to the extracellular domain of CGRP receptor Deposited 2019-10-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 26–117（92 aa） Fragment：extracellular domain (UNP residues 26-117)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.12 M ethylene glycols, 0.1 M HEPES:MOPS, pH 7.5, 37.5% MPD + PEG1000 + PEG3350
Resolution 2.70 Å R-free 0.282
6UMG Crystal structure of erenumab Fab bound to the extracellular domain of CGRP receptor Deposited 2019-10-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain r 26–117（92 aa） Fragment：extracellular domain (UNP residues 26-117)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.12 M ethylene glycols, 0.1 M HEPES:MOPS, pH 7.5, 37.5% MPD + PEG1000 + PEG3350
Resolution 2.70 Å R-free 0.282
6ZHO Crystal structure of a CGRP receptor ectodomain heterodimer with bound high affinity inhibitor Deposited 2020-06-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded QLQ ~{N}-[(2~{R})-3-(7-methyl-2~{H}-indazol-5-yl)-1-oxidanylidene-1-[[(2~{S})-1-oxidanylidene-3-piperidin-4-yl-1-(4-pyridin-4-ylpiperazin-1-yl)propan-2-yl]amino]propan-2-yl]-2-oxidanylidene-spiro[1~{H}-pyrido[2,3-d][1,3]oxazine-4,4'-piperidine]-1'-carboxamide × 1 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 1.60 Å R-free 0.214
6ZIS Crystal structure of a CGRP receptor ectodomain heterodimer with bound high affinity inhibitor Deposited 2020-06-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 3 3N6 N-{(1S)-5-amino-1-[(4-pyridin-4-ylpiperazin-1-yl)carbonyl]pentyl}-3,5-dibromo-Nalpha-{[4-(2-oxo-1,4-dihydroquinazolin-3 (2H)-yl)piperidin-1-yl]carbonyl}-D-tyrosinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 1.73 Å R-free 0.244
7KNT CryoEM structure of the apo-CGRP receptor in a detergent micelle Deposited 2020-11-06 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 27–148（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
7KNU CryoEM structure of the CGRP receptor with bound CGRP peptide in a detergent micelle Deposited 2020-11-06 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 27–148（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.49 Å
7P0F Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0028125 Deposited 2021-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded 7IR (1S,10R,23E)-12-methyl-10-[(7-methyl-1H-indazol-5-yl)methyl]-15,18,21-trioxa-5,9,12,27,29-pentazapentacyclo[23.5.2.11,4.13,7.028,31]tetratriaconta-3(33),4,6,23,25(32),26,28(31)-heptaene-8,11,30-trione × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS PH 5.5, 0.1 M AMMONIUM ACETATE, 15 % PEG 10,000
Resolution 1.85 Å R-free 0.249
7P0I Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor Compound 13 Deposited 2021-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 2 7IU (1S,20E)-10-(benzofuran-3-ylmethyl)-12-methyl-15,18-dioxa-5,9,12,24,26-pentazapentacyclo[20.5.2.11,4.13,7.025,28]hentriaconta-3(30),4,6,20,22(29),23,25(28)-heptaene-8,11,27-trione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 2.30 Å R-free 0.251
7TYF Human Amylin1 Receptor in complex with Gs and rat amylin peptide Deposited 2022-02-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 27–148（122 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PLM PALMITIC ACID × 9 Y01 CHOLESTEROL HEMISUCCINATE × 2 P42 (2S)-2-{[(1R)-1-hydroxyhexadecyl]oxy}-3-{[(1R)-1-hydroxyoctadecyl]oxy}propyl 2-(trimethylammonio)ethyl phosphate × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
7TYW Human Amylin1 Receptor in complex with Gs and salmon calcitonin peptide Deposited 2022-02-14 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 27–148（122 aa）
Not recorded PLM PALMITIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Y01 CHOLESTEROL HEMISUCCINATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8AX5 Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0029881 Deposited 2022-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded OKU (1~{R},10~{R},20~{E})-12-methyl-10-[(7-methyl-2~{H}-indazol-5-yl)methyl]-15,18-dioxa-9,12,24,26-tetrazapentacyclo[20.5.2.1^{1,4}.1^{3,7}.0^{25,28}]hentriaconta-3,5,7(30),20,22,24,28-heptaene-8,11,27-trione × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 2.75 Å R-free 0.277
8AX6 Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0029882 Deposited 2022-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded OP9 (1~{S},10~{R},20~{E})-12-methyl-10-[(7-methyl-2~{H}-indazol-5-yl)methyl]-15,18-dioxa-9,12,24,26-tetrazapentacyclo[20.5.2.1^{1,4}.1^{3,7}.0^{25,28}]hentriaconta-3(30),4,6,20,22,24,28-heptaene-8,11,27-trione × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS PH 5.5, 0.1 M AMMONIUM ACETATE, 15 % PEG 10,000
Resolution 1.90 Å R-free 0.244
8AX7 Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0031448 Deposited 2022-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–111（88 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 1 OL0 (1~{S},10~{R},20~{E})-10-[(1,7-dimethylindazol-5-yl)methyl]-12-methyl-15,18-dioxa-9,12,24,26-tetrazapentacyclo[20.5.2.1^{1,4}.1^{3,7}.0^{25,28}]hentriaconta-3(30),4,6,20,22,24,28-heptaene-8,11,27-trione × 1 ACT ACETATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 1.65 Å R-free 0.251
9AUC Human Amylin1 Receptor in Complex with Gs and human Calcitonin Gene-Related Peptide Deposited 2024-02-28 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 27–148（122 aa）
Not recorded PLM PALMITIC ACID × 5 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 Y01 CHOLESTEROL HEMISUCCINATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9BLW Human amylin1 Receptor in complex with Gs and Cagrilintide backbone (non-acylated) Deposited 2024-05-01 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 27–148（122 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9BP3 Human Amylin1 Receptor in complex with Gs and cagrilintide Deposited 2024-05-06 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 27–148（122 aa）
Not recorded A1B90 icosanedioic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 P42 (2S)-2-{[(1R)-1-hydroxyhexadecyl]oxy}-3-{[(1R)-1-hydroxyoctadecyl]oxy}propyl 2-(trimethylammonio)ethyl phosphate × 1 Y01 CHOLESTEROL HEMISUCCINATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
9MNI CGRP Receptor in complex with dC2_050 Deposited 2024-12-21 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 27–148（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å
9UWQ A combined Cryo_EM structure of Cagrilintide-AMY1R-Gs complex Deposited 2025-05-12 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 27–148（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.04
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å

25 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RAMP1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain E； PDBConstruct 28–149； UniProt 27–148

Calcitonin gene-related peptide type 1 receptor

Homo sapiens

UniProt Q16602

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain R； UniProt 22–461 Not recorded De novo designed minibinder - dC2_049 × 1 Receptor activity-modifying protein 1 × 1 （O60894） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.26 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9MM5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3AQF Crystal structure of the human CRLR/RAMP2 extracellular complex Deposited 2010-10-29 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–136（114 aa） Fragment：N-terminal Domain, UNP residues 23-136
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M bis-Tris, 30 % (v/v) PEG MME 550, 0.05M Calcium Chloride, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.282
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–133（111 aa） Fragment：UNP residues 23-133
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–133（111 aa） Fragment：UNP residues 23-133
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 23–133（111 aa） Fragment：UNP residues 23-133
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7P Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 23–133（111 aa） Fragment：UNP residues 23-133
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 10mM Tris pH8.5 and 200mM sodium nitrate. The crystals were transfered to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.241
3N7R Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–133（111 aa） Fragment：UNP residues 23-133
Not recorded 3N6 N-{(1S)-5-amino-1-[(4-pyridin-4-ylpiperazin-1-yl)carbonyl]pentyl}-3,5-dibromo-Nalpha-{[4-(2-oxo-1,4-dihydroquinazolin-3 (2H)-yl)piperidin-1-yl]carbonyl}-D-tyrosinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein : compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, plus 0.4 M potassium thiocyanate. Telcagepant was soaked into the ligand binding site. The crystal was transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.267
3N7R Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–133（111 aa） Fragment：UNP residues 23-133
Not recorded N7R N-[(3R,6S)-6-(2,3-difluorophenyl)-2-oxo-1-(2,2,2-trifluoroethyl)azepan-3-yl]-4-(2-oxo-2,3-dihydro-1H-imidazo[4,5-b]pyridin-1-yl)piperidine-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein : compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, plus 0.4 M potassium thiocyanate. Telcagepant was soaked into the ligand binding site. The crystal was transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.90 Å R-free 0.267
3N7S Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–133（111 aa） Fragment：UNP residues 23-133
Not recorded 3N6 N-{(1S)-5-amino-1-[(4-pyridin-4-ylpiperazin-1-yl)carbonyl]pentyl}-3,5-dibromo-Nalpha-{[4-(2-oxo-1,4-dihydroquinazolin-3 (2H)-yl)piperidin-1-yl]carbonyl}-D-tyrosinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein:compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 0.4 M potassium thiocyanate. The crystals were transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen, hanging drop, temperature 298K
Resolution 2.10 Å R-free 0.226
3N7S Crystal structure of the ectodomain complex of the CGRP receptor, a Class-B GPCR, reveals the site of drug antagonism Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–133（111 aa） Fragment：UNP residues 23-133
Not recorded 3N7 N~4~-(5-cyclopropyl-1H-pyrazol-3-yl)-N~2~-1H-indazol-5-yl-6-methylpyrimidine-2,4-diamine × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；CLR/RAMP1 complex was mixed with Olcegepant prior to crystallization in a 1:4 (protein:compound) molar ratio. Crystals were obtained by mixing 0.6uL protein with 0.3uL reservoir solution containing 1-1.3M ammonium sulfate, 6-8% dioxane, 60-80mM MES pH 6.5, 0.4 M potassium thiocyanate. The crystals were transferred to 2.1M NaMalonate (pH 7.0) prior to freezing in liquid nitrogen, hanging drop, temperature 298K
Resolution 2.10 Å R-free 0.226
4RWF Crystal structure of the CLR:RAMP2 extracellular domain heterodimer with bound adrenomedullin Deposited 2014-12-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 31–116（86 aa）
Not recorded EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；293 K；19% PEG3350 0.1 M Tris-HCl, pH 8.3 225 mM Sodium Acetate 20% ethylene glycol, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.76 Å R-free 0.200
4RWG Crystal structure of the CLR:RAMP1 extracellular domain heterodimer with bound high affinity CGRP analog Deposited 2014-12-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 31–114（84 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；16% PEG3350, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.44 Å R-free 0.243
4RWG Crystal structure of the CLR:RAMP1 extracellular domain heterodimer with bound high affinity CGRP analog Deposited 2014-12-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 31–114（84 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；16% PEG3350, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.44 Å R-free 0.243
4RWG Crystal structure of the CLR:RAMP1 extracellular domain heterodimer with bound high affinity CGRP analog Deposited 2014-12-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 31–114（84 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；16% PEG3350, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.44 Å R-free 0.243
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 29–144（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 29–144（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 29–144（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 29–144（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 29–144（116 aa）
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 29–144（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 29–144（116 aa）
Not recorded NA SODIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6E3Y Cryo-EM structure of the active, Gs-protein complexed, human CGRP receptor Deposited 2018-07-16 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.30 Å
6UMG Crystal structure of erenumab Fab bound to the extracellular domain of CGRP receptor Deposited 2019-10-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 23–133（111 aa） Fragment：extracellular domain (UNP residues 23-133)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.12 M ethylene glycols, 0.1 M HEPES:MOPS, pH 7.5, 37.5% MPD + PEG1000 + PEG3350
Resolution 2.70 Å R-free 0.282
6UMG Crystal structure of erenumab Fab bound to the extracellular domain of CGRP receptor Deposited 2019-10-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain c 23–133（111 aa） Fragment：extracellular domain (UNP residues 23-133)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.12 M ethylene glycols, 0.1 M HEPES:MOPS, pH 7.5, 37.5% MPD + PEG1000 + PEG3350
Resolution 2.70 Å R-free 0.282
6UUN CryoEM Structure of the active Adrenomedullin 1 receptor G protein complex with adrenomedullin peptide Deposited 2019-10-30 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6UUS CryoEM Structure of the active Adrenomedullin 2 receptor G protein complex with adrenomedullin peptide Deposited 2019-10-31 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
6UVA CryoEM Structure of the active Adrenomedullin 2 receptor G protein complex with adrenomedullin 2 peptide Deposited 2019-11-01 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.30 Å
6V2E Crystal structure of the human CLR:RAMP2 extracellular domain heterodimer with bound high-affinity adrenomedullin S45R/K46L/S48G/Q50W variant Deposited 2019-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 29–144（116 aa）
Mutation：L106R,RAMP2 L106R FMT FORMIC ACID × 3 NH2 AMINO GROUP × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；293 K；20% PEG MME 5000, 0.1 M sodium HEPEs pH 8.2, 150 mM sodium formate, 3% (v/v) dimethyl sulfoxide
Resolution 1.83 Å R-free 0.190
6ZHO Crystal structure of a CGRP receptor ectodomain heterodimer with bound high affinity inhibitor Deposited 2020-06-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded QLQ ~{N}-[(2~{R})-3-(7-methyl-2~{H}-indazol-5-yl)-1-oxidanylidene-1-[[(2~{S})-1-oxidanylidene-3-piperidin-4-yl-1-(4-pyridin-4-ylpiperazin-1-yl)propan-2-yl]amino]propan-2-yl]-2-oxidanylidene-spiro[1~{H}-pyrido[2,3-d][1,3]oxazine-4,4'-piperidine]-1'-carboxamide × 1 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 1.60 Å R-free 0.214
6ZIS Crystal structure of a CGRP receptor ectodomain heterodimer with bound high affinity inhibitor Deposited 2020-06-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 3 3N6 N-{(1S)-5-amino-1-[(4-pyridin-4-ylpiperazin-1-yl)carbonyl]pentyl}-3,5-dibromo-Nalpha-{[4-(2-oxo-1,4-dihydroquinazolin-3 (2H)-yl)piperidin-1-yl]carbonyl}-D-tyrosinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 1.73 Å R-free 0.244
7KNT CryoEM structure of the apo-CGRP receptor in a detergent micelle Deposited 2020-11-06 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
7KNU CryoEM structure of the CGRP receptor with bound CGRP peptide in a detergent micelle Deposited 2020-11-06 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.49 Å
7P0F Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0028125 Deposited 2021-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded 7IR (1S,10R,23E)-12-methyl-10-[(7-methyl-1H-indazol-5-yl)methyl]-15,18,21-trioxa-5,9,12,27,29-pentazapentacyclo[23.5.2.11,4.13,7.028,31]tetratriaconta-3(33),4,6,23,25(32),26,28(31)-heptaene-8,11,30-trione × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS PH 5.5, 0.1 M AMMONIUM ACETATE, 15 % PEG 10,000
Resolution 1.85 Å R-free 0.249
7P0I Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor Compound 13 Deposited 2021-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 2 7IU (1S,20E)-10-(benzofuran-3-ylmethyl)-12-methyl-15,18-dioxa-5,9,12,24,26-pentazapentacyclo[20.5.2.11,4.13,7.025,28]hentriaconta-3(30),4,6,20,22(29),23,25(28)-heptaene-8,11,27-trione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 2.30 Å R-free 0.251
8AX5 Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0029881 Deposited 2022-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded OKU (1~{R},10~{R},20~{E})-12-methyl-10-[(7-methyl-2~{H}-indazol-5-yl)methyl]-15,18-dioxa-9,12,24,26-tetrazapentacyclo[20.5.2.1^{1,4}.1^{3,7}.0^{25,28}]hentriaconta-3,5,7(30),20,22,24,28-heptaene-8,11,27-trione × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 2.75 Å R-free 0.277
8AX6 Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0029882 Deposited 2022-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded OP9 (1~{S},10~{R},20~{E})-12-methyl-10-[(7-methyl-2~{H}-indazol-5-yl)methyl]-15,18-dioxa-9,12,24,26-tetrazapentacyclo[20.5.2.1^{1,4}.1^{3,7}.0^{25,28}]hentriaconta-3(30),4,6,20,22,24,28-heptaene-8,11,27-trione × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS PH 5.5, 0.1 M AMMONIUM ACETATE, 15 % PEG 10,000
Resolution 1.90 Å R-free 0.244
8AX7 Crystal structure of a CGRP receptor ectodomain heterodimer bound to macrocyclic inhibitor HTL0031448 Deposited 2022-08-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–144（116 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 1 OL0 (1~{S},10~{R},20~{E})-10-[(1,7-dimethylindazol-5-yl)methyl]-12-methyl-15,18-dioxa-9,12,24,26-tetrazapentacyclo[20.5.2.1^{1,4}.1^{3,7}.0^{25,28}]hentriaconta-3(30),4,6,20,22,24,28-heptaene-8,11,27-trione × 1 ACT ACETATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M BIS-TRIS pH 5.5, 0.1 M ammonium acetate, 15 % PEG 10,000
Resolution 1.65 Å R-free 0.251
9MNI CGRP Receptor in complex with dC2_050 Deposited 2024-12-21 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 22–461（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.06 Å

24 other PDB entries and 37 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CALRL_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain R； PDBConstruct 32–471； UniProt 22–461

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9mm5

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9mm5
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9mm5
Deposition date deposition_date2024-12-19
Structure title titleCGRP Receptor in complex with dC2_049
Keywords keywordsGPCR, denovo protein design, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

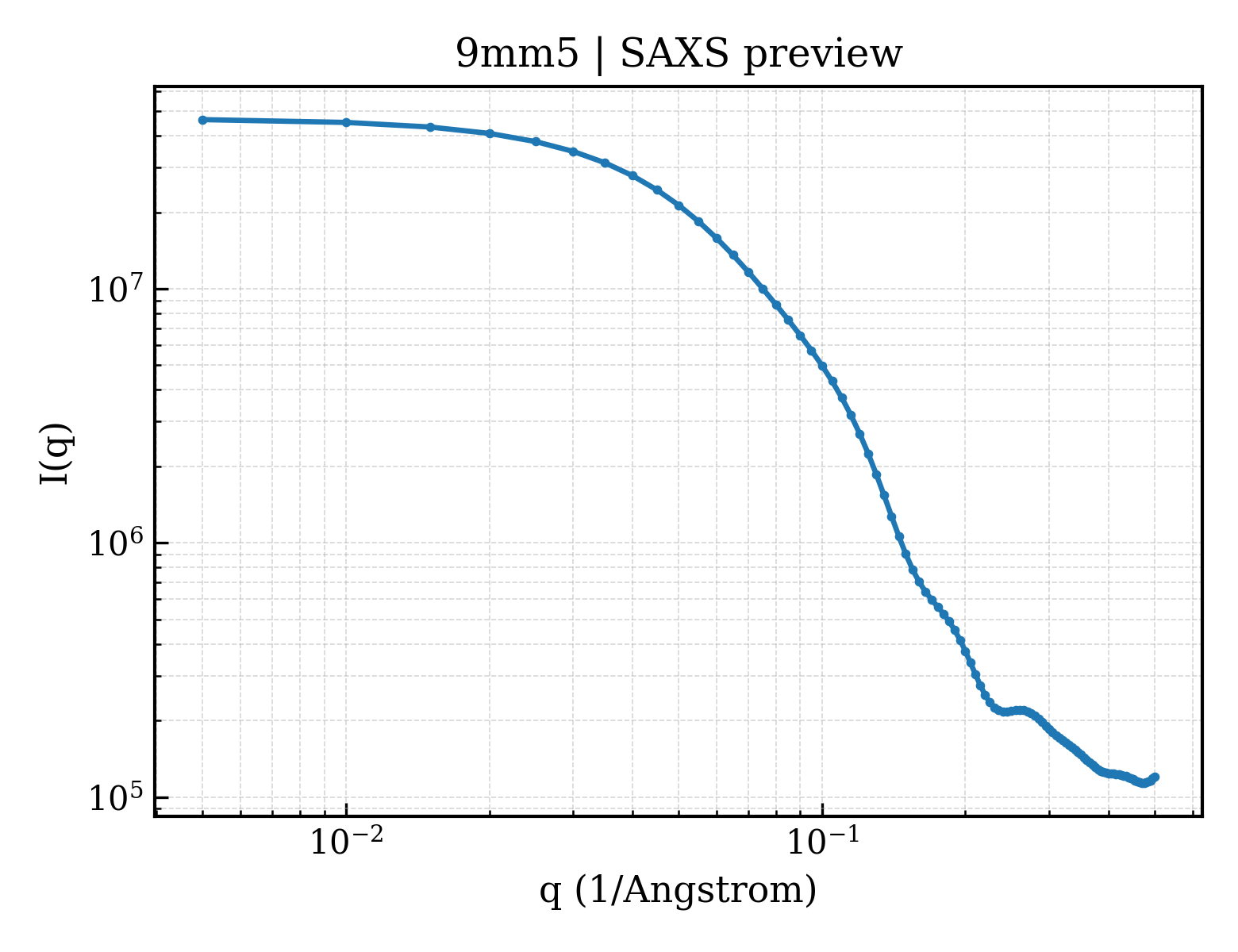

Radius of gyration Rg (Guinier) rg_guinier31.41 Å
Radius of gyration Rg (electron density) rg_electron31.04 Å
Forward intensity I(0) i046711100.00
Molecular weight molecular_weight55755.0 kDa
Excluded volume excluded_volume70603 ų
Envelope volume envelope_volume98926 ų
Hydration-shell volume shell_volume28957 ų
Envelope diameter envelope_diameter106.8 Å
Shell Rg shell_rg35.47 Å
Envelope Rg envelope_rg30.61 Å
Shape Rg shape_rg31.06 Å
Total Rg total_rg31.41 Å
Total atoms total_atoms3946
Residues n_residues534
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

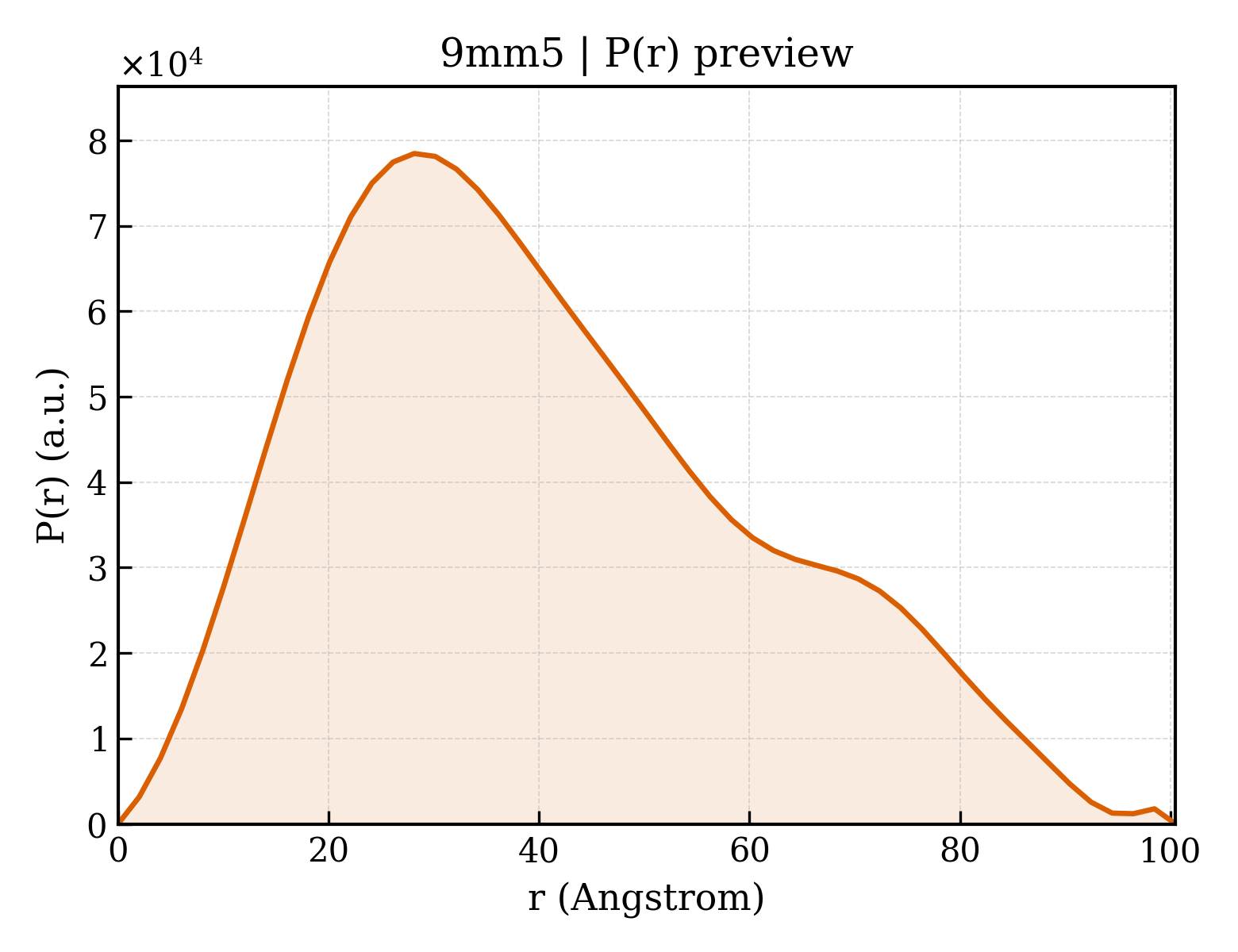

Maximum dimension Dmax dmax100.5 Å
Rg (real space) rg_real31.71 Å
Rg uncertainty (real space) rg_real_error0.84 Å
I(0) (real space) i0_real4.6710e+07
I(0) uncertainty (real space) i0_real_error8.0710e+05
Rg (reciprocal space) rg_reciprocal31.59 Å
I(0) (reciprocal space) i0_reciprocal46710000.0000
Solution quality estimate total_estimate0.8416
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary28.1 Å
Skewness Skewness skewness0.502
Kurtosis Kurtosis kurtosis-0.490
Angular range angular_range— – 0.2500 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha7806000.0000
Real-space data points n_real_points51
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.839; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.860; Smooth: 0.560
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▶

8. Citations (1)

▶

9. Files and Curves (10)
