9mn6

Structure of the human mitochondrial late-stage transcription initiation complex, IC8

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 DNA 2 RNA 1	Non-Template Strand DNA × 1 RNA × 1 Template Strand DNA × 1 Dimethyladenosine transferase 2, mitochondrial × 1 （Q9H5Q4） ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOM_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–1230； UniProt 1–1230

Dimethyladenosine transferase 2, mitochondrial

Homo sapiens

UniProt Q9H5Q4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 DNA 2 RNA 1	Non-Template Strand DNA × 1 RNA × 1 Template Strand DNA × 1 DNA-directed RNA polymerase, mitochondrial × 1 （O00411） ADENOSINE-5'-TRIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TFB2M_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 1–396； UniProt 1–396

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mn6
Deposition date deposition_date	2024-12-20
Structure title title	Structure of the human mitochondrial late-stage transcription initiation complex, IC8
Keywords keywords	Mitochondrial RNA Polymerase, Transcription Initiation complex, TRANSCRIPTION, POLRMT, TRANSCRIPTION-DNA-RNA complex; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9mn6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

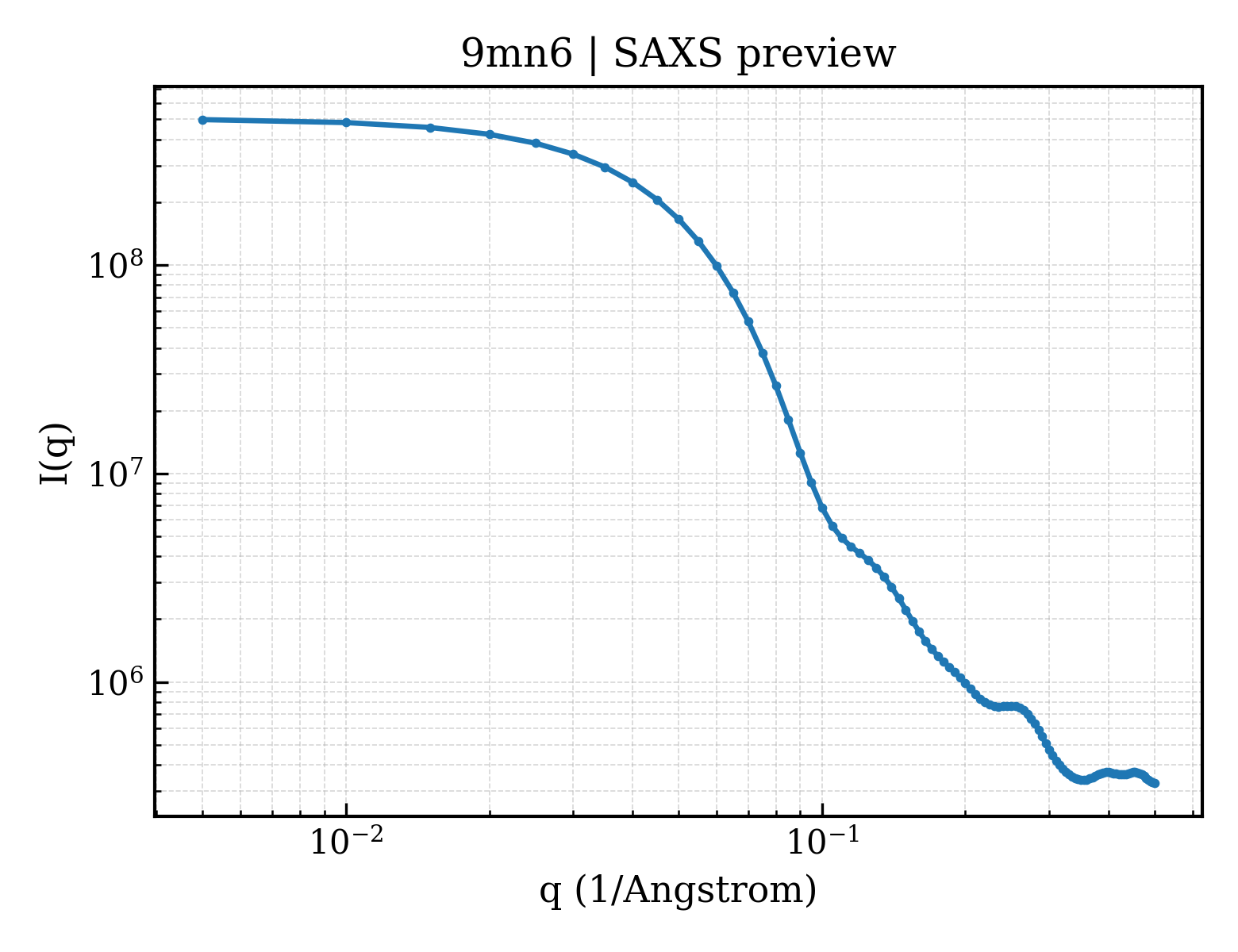

9mn6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9mn6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.04 Å
Rg (electron density)	35.82 Å
Total Rg	36.32 Å
Atom count	11855
Residues	1372
Excluded volume	207560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9mn6__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Non-Template Strand DNA
Molecular weight formula_weight	20524.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N
Atom count atom_count	11855

GTGTTAGTTAGGGAGTGACTGTTAAAAGTGCATACCGCCAAGAGAAAAGAAAACCCAATTGTGGCC

Entity 2 Entity 2 polymer

Description description	RNA
Molecular weight formula_weight	1962.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R

GAAAAG

Entity 3 Entity 3 polymer

Description description	Template Strand DNA
Molecular weight formula_weight	20162.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

GGCCACAATTGGGTTTTCTTTTCTCTTGGCGGTATGCACTTTTAACAGTCACTCCCTAACTAACAC

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase, mitochondrial
Molecular weight formula_weight	138818.2 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSALCWGRGAAGLKRALRPCGRPGLPGKEGTAGGVCGPRRSSSASPQEQDQDRRKDWGHVELLEVLQARVRQLQAESVSEVVVNRVDVARLPECGSGDGSLQPPRKVQMGAKDATPVPCGRWAKILEKDKRTQQMRMQRLKAKLQMPFQSGEFKALTRRLQVEPRLLSKQMAGCLEDCTRQAPESPWEEQLARLLQEAPGKLSLDVEQAPSGQHSQAQLSGQQQRLLAFFKCCLLTDQLPLAHHLLVVHHGQRQKRKLLTLDMYNAVMLGWARQGAFKELVYVLFMVKDAGLTPDLLSYAAALQCMGRQDQDAGTIERCLEQMSQEGLKLQALFTAVLLSEEDRATVLKAVHKVKPTFSLPPQLPPPVNTSKLLRDVYAKDGRVSYPKLHLPLKTLQCLFEKQLHMELASRVCVVSVEKPTLPSKEVKHARKTLKTLRDQWEKALCRALRETKNRLEREVYEGRFSLYPFLCLLDEREVVRMLLQVLQALPAQGESFTTLARELSARTFSRHVVQRQRVSGQVQALQNHYRKYLCLLASDAEVPEPCLPRQYWEELGAPEALREQPWPLPVQMELGKLLAEMLVQATQMPCSLDKPHRSSRLVPVLYHVYSFRNVQQIGILKPHPAYVQLLEKAAEPTLTFEAVDVPMLCPPLPWTSPHSGAFLLSPTKLMRTVEGATQHQELLETCPPTALHGALDALTQLGNCAWRVNGRVLDLVLQLFQAKGCPQLGVPAPPSEAPQPPEAHLPHSAAPARKAELRRELAHCQKVAREMHSLRAEALYRLSLAQHLRDRVFWLPHNMDFRGRTYPCPPHFNHLGSDVARALLEFAQGRPLGPHGLDWLKIHLVNLTGLKKREPLRKRLAFAEEVMDDILDSADQPLTGRKWWMGAEEPWQTLACCMEVANAVRASDPAAYVSHLPVHQDGSCNGLQHYAALGRDSVGAASVNLEPSDVPQDVYSGVAAQVEVFRRQDAQRGMRVAQVLEGFITRKVVKQTVMTVVYGVTRYGGRLQIEKRLRELSDFPQEFVWEASHYLVRQVFKSLQEMFSGTRAIQHWLTESARLISHMGSVVEWVTPLGVPVIQPYRLDSKVKQIGGGIQSITYTHNGDISRKPNTRKQKNGFPPNFIHSLDSSHMMLTALHCYRKGLTFVSVHDCYWTHAADVSVMNQVCREQFVRLHSEPILQDLSRFLVKRFCSEPQKILEASQLKETLQAVPKPGAFDLEQVKRSTYFFS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Dimethyladenosine transferase 2, mitochondrial
Molecular weight formula_weight	45416.8 kDa
EC 编号 ec_number	2.1.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MWIPVVGLPRRLRLSALAGAGRFCILGSEAATRKHLPARNHCGLSDSSPQLWPEPDFRNPPRKASKASLDFKRYVTDRRLAETLAQIYLGKPSRPPHLLLECNPGPGILTQALLEAGAKVVALESDKTFIPHLESLGKNLDGKLRVIHCDFFKLDPRSGGVIKPPAMSSRGLFKNLGIEAVPWTADIPLKVVGMFPSRGEKRALWKLAYDLYSCTSIYKFGRIEVNMFIGEKEFQKLMADPGNPDLYHVLSVIWQLACEIKVLHMEPWSSFDIYTRKGPLENPKRRELLDQLQQKLYLIQMIPRQNLFTKNLTPMNYNIFFHLLKHCFGRRSATVIDHLRSLTPLDARDILMQIGKQEDEKVVNMHPQDFKTLFETIERSKDCAYKWLYDETLEDR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.710 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.71 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	147533
