SAXSdb — 9mpv

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mpv
沉积日期 deposition_date	2024-12-31
最后修订 last_revision	2025-10-15
结构标题 title	Cryo-EM structure of three VCPIP1 VCPIDs bound to VCP
关键词 keywords	;double-ring hexameric complex, valosin containing protein, ATPase, VCP, mammalian, DUB, deubiquitinase, deubiquitinating enzyme, VCIP135, p97, VCPIP1, hydrolase, VCPID, p47, adapter ;; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.18 Å
回转半径 Rg (电子) rg_electron	47.16 Å
零角强度 I(0) i0	2381650000.00
分子量 molecular_weight	405200.0 kDa
排除体积 excluded_volume	506820 Å³
包络体积 envelope_volume	717350 Å³
水化壳体积 shell_volume	118600 Å³
包络直径 envelope_diameter	159.9 Å
壳层 Rg shell_rg	57.65 Å
包络 Rg envelope_rg	46.13 Å
形状 Rg shape_rg	47.16 Å
总 Rg total_rg	47.50 Å
总原子数 total_atoms	56770
残基数 n_residues	3641
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	149.4 Å
Rg (实空间) rg_real	47.75 Å
Rg 误差 (实空间) rg_real_error	1.02 Å
I(0) (实空间) i0_real	2.3820e+09
I(0) 误差 (实空间) i0_real_error	4.5200e+07
Rg (倒空间) rg_reciprocal	48.18 Å
I(0) (倒空间) i0_reciprocal	2383000000.0000
解质量估计 total_estimate	0.8846
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	63.4 Å
偏度 Skewness skewness	0.065
峰度 Kurtosis kurtosis	-0.494
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	790600000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.879; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.919

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Deubiquitinating protein VCPIP1
分子量 formula_weight	137335.4 kDa
EC 编号 ec_number	3.4.19.12
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I
原子数 atom_count	56770

MGDWSHPQFEKSGGGSGGLEVLFQGPGSMSQPPPPPPPLPPPPPPPEAPQTPSSLASAAASGGLLKRRDRRILSGSCPDPKCQARLFFPASGSVSIECTECGQRHEQQQLLGVEEVTDPDVVLHNLLRNALLGVTGAPKKNTELVKVMGLSNYHCKLLSPILARYGMDKQTGRAKLLRDMNQGELFDCALLGDRAFLIEPEHVNTVGYGKDRSGSLLYLHDTLEDIKRANKSQECLIPVHVDGDGHCLVHAVSRALVGRELFWHALRENLKQHFQQHLARYQALFHDFIDAAEWEDIINECDPLFVPPEGVPLGLRNIHIFGLANVLHRPIILLDSLSGMRSSGDYSATFLPGLIPAEKCTGKDGHLNKPICIAWSSSGRNHYIPLVGIKGAALPKLPMNLLPKAWGVPQDLIKKYIKLEEDGGCVIGGDRSLQDKYLLRLVAAMEEVFMDKHGIHPSLVADVHQYFYRRTGVIGVQPEEVTAAAKKAVMDNRLHKCLLCGALSELHVPPEWLAPGGKLYNLAKSTHGQLRTDKNYSFPLNNLVCSYDSVKDVLVPDYGMSNLTACNWCHGTSVRKVRGDGSIVYLDGDRTNSRSTGGKCGCGFKHFWDGKEYDNLPEAFPITLEWGGRVVRETVYWFQYESDSSLNSNVYDVAMKLVTKHFPGEFGSEILVQKVVHTILHQTAKKNPDDYTPVNIDGAHAQRVGDVQGQESESQLPTKIILTGQKTKTLHKEELNMSKTERTIQQNITEQASVMQKRKTEKLKQEQKGQPRTVSPSTIRDGPSSAPATPTKAPYSPTTSKEKKIRITTNDGRQSMVTLKSSTTFFELQESIAREFNIPPYLQCIRYGFPPKELMPPQAGMEKEPVPLQHGDRITIEILKSKAEGGQSAAAHSAHTVKQEDIAVTGKLSSKELQEQAEKEMYSLCLLATLMGEDVWSYAKGLPHMFQQGGVFYSIMKKTMGMADGKHCTFPHLPGKTFVYNASEDRLELCVDAAGHFPIGPDVEDLVKEAVSQVRAEATTRSRESSPSHGLLKLGSGGVVKKKSEQLHNVTAFQGKGHSLGTASGNPHLDPRARETSVVRKHNTGTDFSNSSTKTEPSVFTASSSNSELIRIAPGVVTMRDGRQLDPDLVEAQRKKLQEMVSSIQASMDRHLRDQSTEQSPSDLPQRKTEVVSSSAKSGSLQTGLPESFPLTGGTENLNTETTDGCVADALGAAFATRSKAQRGNSVEELEEMDSQDAEMTNTTEPMDHS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Transitional endoplasmic reticulum ATPase
分子量 formula_weight	92022.5 kDa
EC 编号 ec_number	3.6.4.6
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F

MGDYKDDDDKGGGSGGLEVLFQGPGSMASGADSKGDDLSTAILKQKNRPNRLIVDEAINEDNSVVSLSQPKMDELQLFRGDTVLLKGKKRREAVCIVLSDDTCSDEKIRMNRVVRNNLRVRLGDVISIQPCPDVKYGKRIHVLPIDDTVEGITGNLFEVYLKPYFLEAYRPIRKGDIFLVRGGMRAVEFKVVETDPSPYCIVAPDTVIHCEGEPIKREDEEESLNEVGYDDIGGCRKQLAQIKEMVELPLRHPALFKAIGVKPPRGILLYGPPGTGKTLIARAVANETGAFFFLINGPEIMSKLAGESESNLRKAFEEAEKNAPAIIFIDELDAIAPKREKTHGEVERRIVSQLLTLMDGLKQRAHVIVMAATNRPNSIDPALRRFGRFDREVDIGIPDATGRLEILQIHTKNMKLADDVDLEQVANETHGHVGADLAALCSEAALQAIRKKMDLIDLEDETIDAEVMNSLAVTMDDFRWALSQSNPSALRETVVEVPQVTWEDIGGLEDVKRELQELVQYPVEHPDKFLKFGMTPSKGVLFYGPPGCGKTLLAKAIANECQANFISIKGPELLTMWFGESEANVREIFDKARQAAPCVLFFDELDSIAKARGGNIGDGGGAADRVINQILTEMDGMSTKKNVFIIGATNRPDIIDPAILRPGRLDQLIYIPLPDEKSRVAILKANLRKSPVAKDVDLEFLAKMTNGFSGADLTEICQRACKLAIRESIESEIRRERERQTNPSAMEVEEDDPVPEIRRDHFEEAMRFARRSVSDNDIRKYEMFAQTLQQSRGFGSFRFPSGNQGGAGPSQGSGGGTGGSVYTEDNDDDLYG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	77321

fit	/app/data/saxs_computation/mp/9mpv/9mpv.fit
pddf	/app/data/pr_computation/mp/9mpv/9mpv.pr.out
profile	/app/data/saxs_computation/mp/9mpv/9mpv.dat

Cryo-EM structure of three VCPIP1 VCPIDs bound to VCP

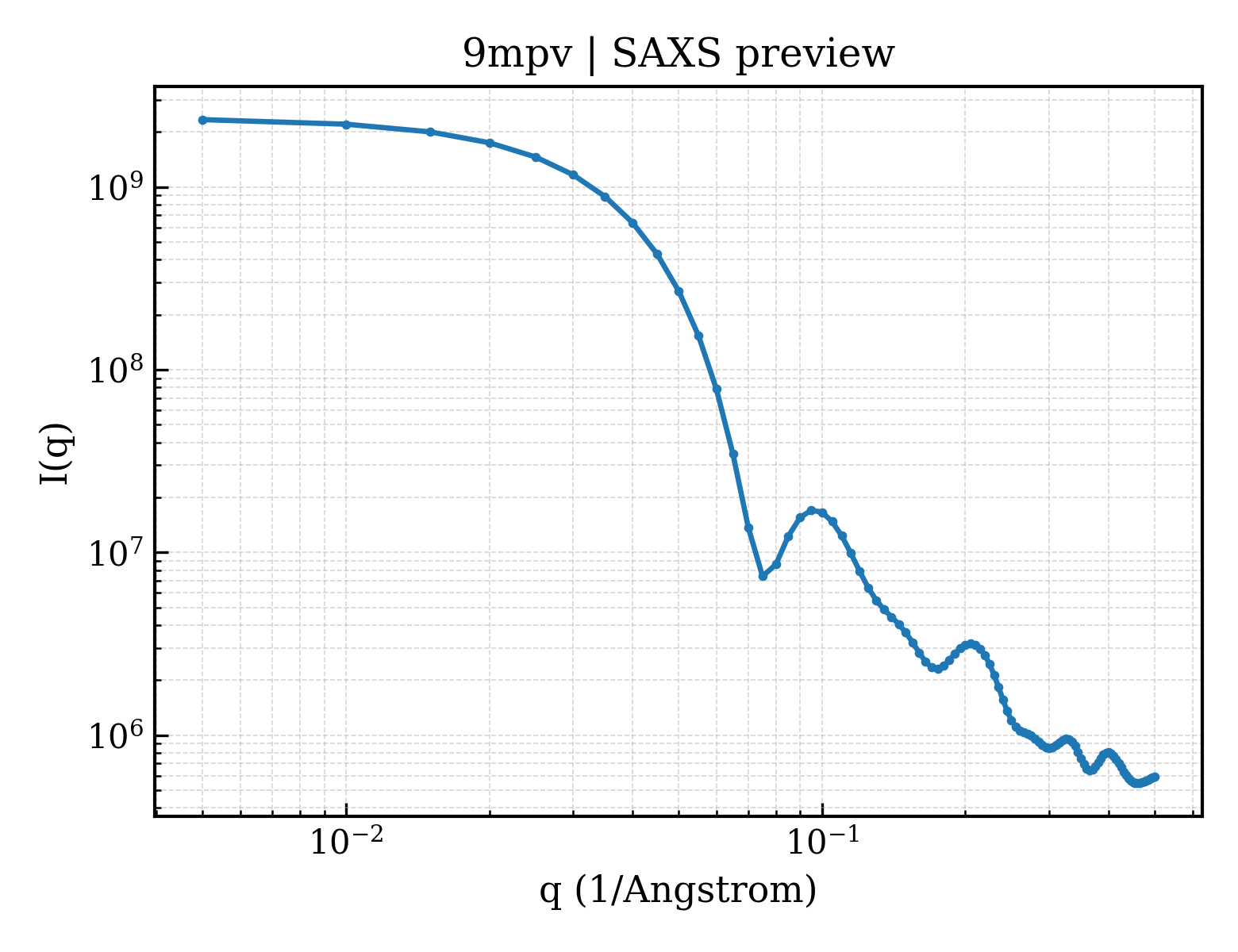

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
