SAXSdb — 11ta

▼

1. Structure Basics

entry_id	11ta
deposition_date	2026-03-11
title	Cryo-EM structure of substrate engaged p97-Ufd1-NPL4-Faf1 complex (motor focused)
keywords	ERAD, ubiquitin, AAA+ ATPase, unfoldase, HYDROLASE; HYDROLASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	57.53 Å
rg_electron	57.21 Å
i0	4209220000.00
molecular_weight	539840.0 kDa
excluded_volume	673970 Å³
envelope_volume	1032400 Å³
shell_volume	144040 Å³
envelope_diameter	195.1 Å
shell_rg	63.94 Å
envelope_rg	56.97 Å
shape_rg	57.24 Å
total_rg	57.25 Å
total_atoms	37891
n_residues	4773
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	190.0 Å
rg_real	57.31 Å
rg_real_error	2.03 Å
i0_real	4.2090e+09
i0_real_error	8.4350e+07
rg_reciprocal	57.70 Å
i0_reciprocal	4212000000.0000
total_estimate	0.8599
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	70.4 Å
skewness	0.254
kurtosis	-0.284
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0000
highest_alpha	438600000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.772

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Nuclear protein localization protein 4 homolog
formula_weight	68373.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G
atom_count	37891

MGGGAESIIIRVQSPDGVKRITATKRETAATFLKKVAKEFGFQNNGFSVYINRNKTGEITASSNKSLNLLKIKHGDLLFLFPSSLAGPSSEMETSVPPGFKVFGAPNVVEDEIDQYLSKQDGKIYRSRDPQLCRHGPLGKCVHCVPLEPFDEDYLNHLEPPVKHMSFHAYIRKLTGGADKGKFVALENISCKIKSGCEGHLPWPNGICTKCQPSAITLNRQKYRHVDNIMFENHTVADRFLDFWRKTGNQHFGYLYGRYTEHKDIPLGIRAEVAAIYEPPQIGTQNSLELLEDPKAEVVDEIAAKLGLRKVGWIFTDLVSEDTRKGTVRYSRNKDTYFLSSEECITAGDFQNKHPNMCRLSPDGHFGSKFVTAVATGGPDNQVHFEGYQVSNQCMALVRDECLLPCKDAPELGYAKESSSEQYVPDVFYKDVDKFGNEITQLARPLPVEYLIIDITTTFPKDPVYTFSISQNPFPIENRDVLGETQDFHSLATYLSQNTSSVFLDTISDFHLLLFLVTNEVMPLQDSISLLLEAVRTRNEELAQTWKRSEQWATIEQLCSTVGGQLPGLHEYGAVGGSTHTATAAMWACQHCTFMNQPGTGHCEMCSLPRT

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 polymer

description	Ubiquitin
formula_weight	8576.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	I,K

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 polymer

description	FAS-associated factor 1
formula_weight	20495.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	M,O

PLGMAAMEIFTAQQQEDIKDEDEREARENVKREQDEAYRLSLEADRAKREAHEREMAEQFRLEQIRKEQEEEREAIRLSLEQALPPEPKEENAEPVSKLRIRTPSGEFLERRFLASNKLQIVFDFVASKGFPWDEYKLLSTFPRRDVTQLDPNKSLLEVKLFPQETLFLEAKE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 4 polymer

description	Ubiquitin recognition factor in ER-associated degradation protein 1
formula_weight	35373.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	P

MFSFNMFDHPIPRVFQNRFSTQYRCFSVSMLAGPNDRSDVEKGGKIIMPPSALDQLSRLNITYPMLFKLTNKNSDRMTHCGVLEFVADEGICYLPHWMMQNLLLEEGGLVQVESVNLQVATYSKFQPQSPDFLDITNPKAVLENALRNFACLTTGDVIAINYNEKIYELRVMETKPDKAVSIIECDMNVDFDAPLGYKEPERQVQHEESTEGEADHSGYAGELGFRAFSGSGNRLDGKKKGVEPSPSPIKPGDIKRGIPNYEFKLGKITFIRNSRPLVKKVEEDEAGGRFVAFSGEGQSLRKKGRKPHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 5 polymer

description	Transitional endoplasmic reticulum ATPase
formula_weight	91177.8 kDa
ec_number	3.6.4.6
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F

MASGADSKGDDLSTAILKQKNRPNRLIVDEAINEDNSVVSLSQPKMDELQLFRGDTVLLKGKKRREAVCIVLSDDTCSDEKIRMNRVVRNNLRVRLGDVISIQPCPDVKYGKRIHVLPIDDTVEGITGNLFEVYLKPYFLEAYRPIRKGDIFLVRGGMRAVEFKVVETDPSPYCIVAPDTVIHCEGEPIKREDEEESLNEVGYDDIGGCRKQLAQIKEMVELPLRHPALFKAIGVKPPRGILLYGPPGTGKTLIARAVANETGAFFFLINGPEIMSKLAGESESNLRKAFEEAEKNAPAIIFIDELDAIAPKREKTHGEVERRIVSQLLTLMDGLKQRAHVIVMAATNRPNSIDPALRRFGRFDREVDIGIPDATGRLEILQIHTKNMKLADDVDLEQVANETHGHVGADLAALCSEAALQAIRKKMDLIDLEDETIDAEVMNSLAVTMDDFRWALSQSNPSALRETVVEVPQVTWEDIGGLEDVKRELQELVQYPVEHPDKFLKFGMTPSKGVLFYGPPGCGKTLLAKAIANECQANFISIKGPELLTMWFGESEANVREIFDKARQAAPCVLFFDELDSIAKARGGNIGDGGGAADRVINQILTEMDGMSTKKNVFIIGATNRPDIIDPAILRPGRLDQLIYIPLPDEKSRVAILKANLRKSPVAKDVDLEFLAKMTNGFSGADLTEICQRACKLAIRESIESEIRRERERQTNPSAMEVEEDDPVPEIRRDHFEEAMRFARRSVSDNDIRKYEMFAQTLQQSRGFGSFRFPSGNQGGAGPSQGSGGGTGGSVYTEDNDDDLYGVDKLAAALEHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 6 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 7 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	3

Entity 8 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	9

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.58 Å
resolution_method	—
num_particles	102875

fit	/app/data/saxs_computation/1t/11ta/11ta.fit
pddf	/app/data/pr_computation/1t/11ta/11ta.pr.out
profile	/app/data/saxs_computation/1t/11ta/11ta.dat

Cryo-EM structure of substrate engaged p97-Ufd1-NPL4-Faf1 complex (motor focused)

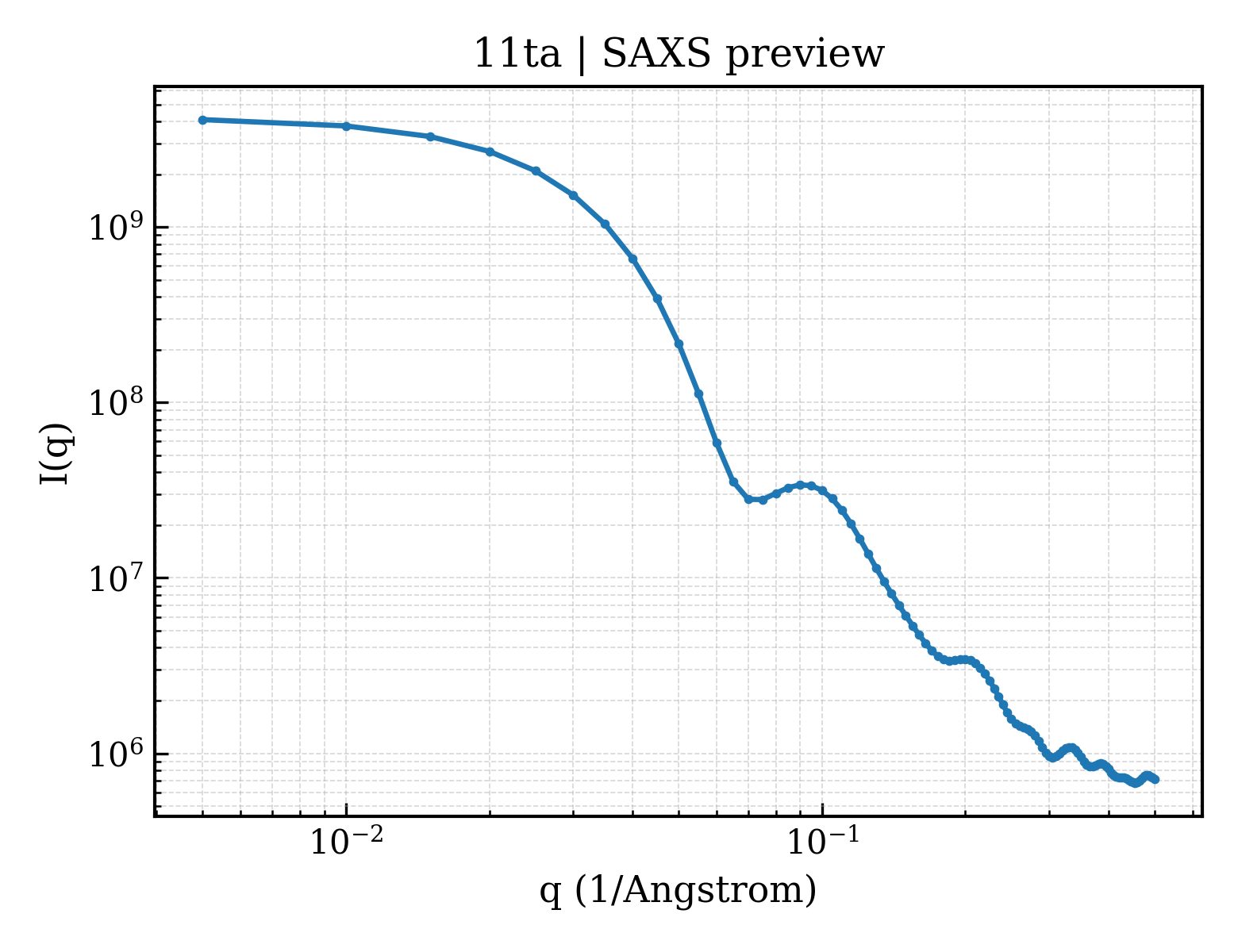

SAXS Profile

P(r) Distribution
