9n07

Mfd-bound E.coli RNA polymerase elongation complex + ADP-BeF3 - L1 state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription-repair-coupling factor

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	DNA-directed RNA polymerase subunit alpha × 2 （A0A5B9AW69） DNA-directed RNA polymerase subunit beta × 1 （C3SIA7） DNA-directed RNA polymerase subunit beta × 1 （A0AAW8PRI5） DNA-directed RNA polymerase subunit omega × 1 （P0A800） DNA (49-MER) × 1 ;RNA (5'-R(PGPGPAPGPAPGPGPUP*A)-3') ; × 1 DNA (55-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A024L3Y3_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 19–1166； UniProt 1–1148

DNA-directed RNA polymerase subunit alpha

Escherichia coli

UniProt A0A5B9AW69

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	Transcription-repair-coupling factor × 1 （A0A024L3Y3） DNA-directed RNA polymerase subunit beta × 1 （C3SIA7） DNA-directed RNA polymerase subunit beta × 1 （A0AAW8PRI5） DNA-directed RNA polymerase subunit omega × 1 （P0A800） DNA (49-MER) × 1 ;RNA (5'-R(PGPGPAPGPAPGPGPUP*A)-3') ; × 1 DNA (55-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A5B9AW69_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–234； UniProt 4–237 Author chain H； PDBConstruct 1–234； UniProt 4–237

DNA-directed RNA polymerase subunit beta

Escherichia coli

UniProt C3SIA7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	Transcription-repair-coupling factor × 1 （A0A024L3Y3） DNA-directed RNA polymerase subunit alpha × 2 （A0A5B9AW69） DNA-directed RNA polymerase subunit beta × 1 （A0AAW8PRI5） DNA-directed RNA polymerase subunit omega × 1 （P0A800） DNA (49-MER) × 1 ;RNA (5'-R(PGPGPAPGPAPGPGPUP*A)-3') ; × 1 DNA (55-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3SIA7_ECOLX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–1340； UniProt 2–1341

DNA-directed RNA polymerase subunit beta

Escherichia coli

UniProt A0AAW8PRI5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	Transcription-repair-coupling factor × 1 （A0A024L3Y3） DNA-directed RNA polymerase subunit alpha × 2 （A0A5B9AW69） DNA-directed RNA polymerase subunit beta × 1 （C3SIA7） DNA-directed RNA polymerase subunit omega × 1 （P0A800） DNA (49-MER) × 1 ;RNA (5'-R(PGPGPAPGPAPGPGPUP*A)-3') ; × 1 DNA (55-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0AAW8PRI5_ECOLX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain J； PDBConstruct 1–1359； UniProt 16–1374

DNA-directed RNA polymerase subunit omega

Escherichia coli

UniProt P0A800

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 DNA 2 RNA 1	Transcription-repair-coupling factor × 1 （A0A024L3Y3） DNA-directed RNA polymerase subunit alpha × 2 （A0A5B9AW69） DNA-directed RNA polymerase subunit beta × 1 （C3SIA7） DNA-directed RNA polymerase subunit beta × 1 （A0AAW8PRI5） DNA (49-MER) × 1 ;RNA (5'-R(PGPGPAPGPAPGPGPUP*A)-3') ; × 1 DNA (55-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOZ_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain K； PDBConstruct 1–91； UniProt 1–91

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9n07
Deposition date deposition_date	2025-01-23
Structure title title	Mfd-bound E.coli RNA polymerase elongation complex + ADP-BeF3 - L1 state
Keywords keywords	RNA polymerase, MFD, Transcription-coupled repair, TCR, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9n07__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9n07__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

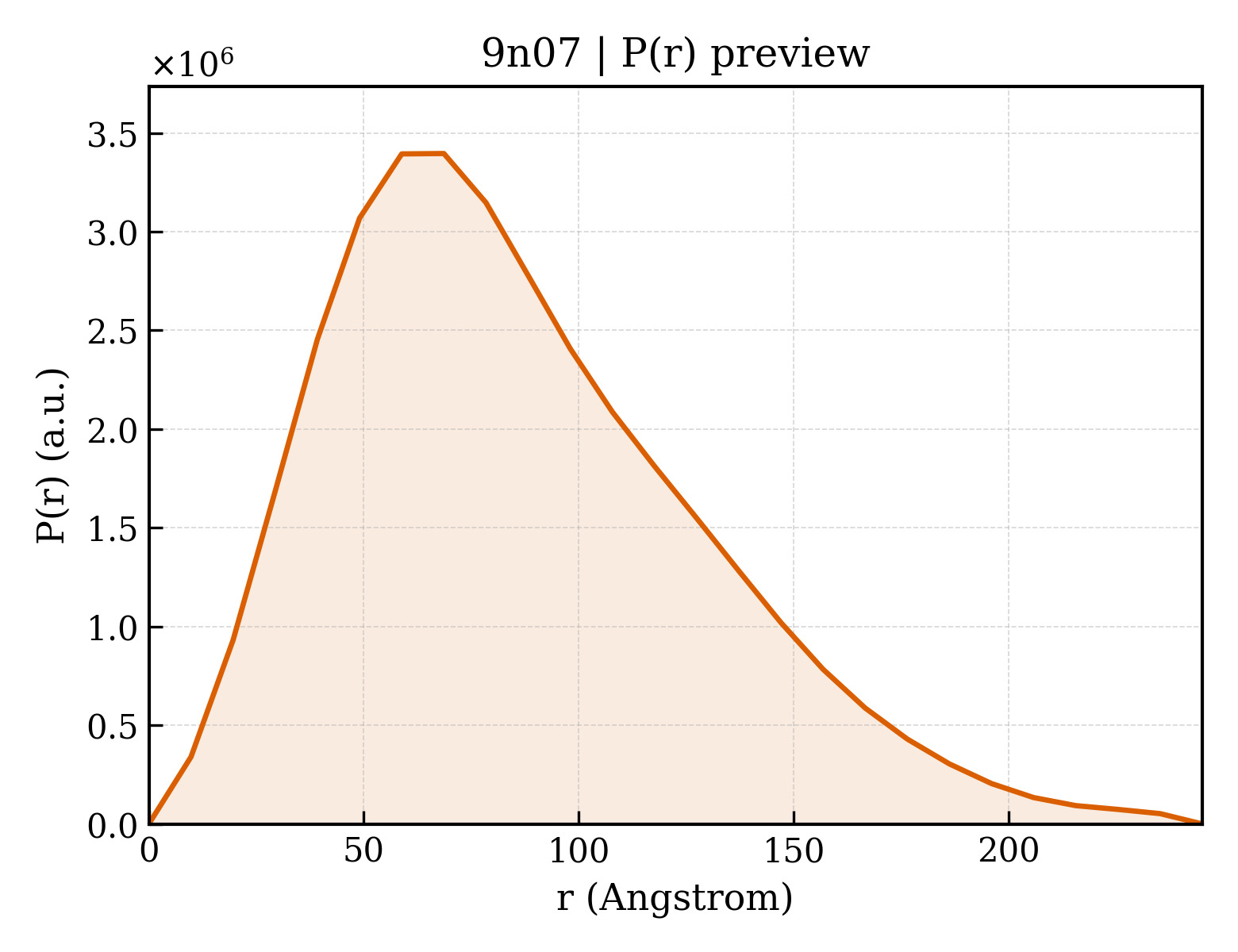

9n07__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.85 Å
Rg (electron density)	63.31 Å
Total Rg	63.25 Å
Atom count	71200
Residues	4429
Excluded volume	633610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9n07__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	Transcription-repair-coupling factor
Molecular weight formula_weight	132234.7 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	71200

HHHHHHSSGLEVLFQGPHMPEQYRYTLPVKAGEQRLLGELTGAACATLVAEIAERHAGPVVLIAPDMQNALRLHDEISQFTDQMVMNLADWETLPYDSFSPHQDIISSRLSTLYQLPTMQRGVLIVPVNTLMQRVCPHSFLHGHALVMKKGQRLSRDALRTQLDSAGYRHVDQVMEHGEYATRGALLDLFPMGSELPYRLDFFDDEIDSLRVFDVDSQRTLEEVEAINLLPAHEFPTDKAAIELFRSQWRDTFEVKRDPEHIYQQVSKGTLPAGIEYWQPLFFSEPLPPLFSYFPANTLLVNTGDLETSAERFQADTLARFENRGVDPMRPLLPPQSLWLRVDELFSELKNWPRVQLKTEHLPTKAANANLGFQKLPDLAVQAQQKAPLDALRKFLETFDGPVVFSVESEGRREALGELLARIKIAPQRIMRLDEASDRGRYLMIGAAEHGFVDTVRNLALICESDLLGERVARRRQDSRRTINPDTLIRNLAELHIGQPVVHLEHGVGRYAGMTTLEAGGITGEYLMLTYANDAKLYVPVSSLHLISRYAGGAEENAPLHKLGGDAWSRARQKAAEKVRDVAAELLDIYAQRAAKEGFAFKHDREQYQLFCDSFPFETTPDQAQAINAVLSDMCQPLAMDRLVCGDVGFGKTEVAMRAAFLAVDNHKQVAVLVPTTLLAQQHYDNFRDRFANWPVRIEMISRFRSAKEQTQILAEVAEGKIDILIGTHKLLQSDVKFKDLGLLIVDEEHRFGVRHKERIKAMRANVDILTLTATPIPRTLNMAMSGMRDLSIIATPPARRLAVKTFVREYDSMVVREAILREILRGGQVYYLYNDVENIQKAAERLAELVPEARIAIGHGQMRERELERVMNDFHHQRFNVLVCTTIIETGIDIPTANTIIIERADHFGLAQLHQLRGRVGRSHHQAYAWLLTPHPKAMTTDAQKRLEAIASLEDLGAGFALATHDLEIRGAGELLGEEQSGSMETIGFSLYMELLENAVDALKAGREPSLEDLTSQQTEVELRMPSLLPDDFIPDVNTRLSFYKRIASAKTENELEEIKVELIDRFGLLPDPARTLLDIARLRQQAQKLGIRKLEGNEKGGVIEFAEKNHVNPAWLIGLLQKQPQHYRLDGPTRLKFIQDLSERKTRIEWVRQFMRELEENAIA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	25897.5 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

SVTEFLKPRLVDIEQVSSTHAKVTLEPLERGFGHTLGNALRRILLSSMPGCAVTEVEIDGVLHEYSTKEGVQEDILEILLNLKGLAVRVQGKDEVILTLNKSGIGPVTAADITHDGDVEIVKPQHVICHLTDENASISMRIKVQRGRGYVPASTRIHSEEDERPIGRLLVDACYSPVERIAYNVEAARVEQRTDLDKLVIEMETNGTIDPEEAIRRAATILAEQLEAFVDLRDV

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	150560.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

VYSYTEKKRIRKDFGKRPQVLDVPYLLSIQLDSFQKFIEQDPEGQYGLEAAFRSVFPIQSYSGNSELQYVSYRLGEPVFDVQECQIRGVTYSAPLRVKLRLVIYEREAPEGTVKDIKEQEVYMGEIPLMTDNGTFVINGTERVIVSQLHRSPGVFFDSDKGKTHSSGKVLYNARIIPYRGSWLDFEFDPKDNLFVRIDRRRKLPATIILRALNYTTEQILDLFFEKVIFEIRDNKLQMELVPERLRGETASFDIEANGKVYVEKGRRITARHIRQLEKDDVKLIEVPVEYIAGKVVAKDYIDESTGELICAANMELSLDLLAKLSQSGHKRIETLFTNDLDHGPYISETLRVDPTNDRLSALVEIYRMMRPGEPPTREAAESLFENLFFSEDRYDLSAVGRMKFNRSLLREEIEGSGILSKDDIIDVMKKLIDIRNGKGEVDDIDHLGNRRIRSVGEMAENQFRVGLVRVERAVKERLSLGDLDTLMPQDMINAKPISAAVKEFFGSSQLSQFMDQNNPLSEITHKRRISALGPGGLTRERAGFEVRDVHPTHYGRVCPIETPEGPNIGLINSLSVYAQTNEYGFLETPYRKVTDGVVTDEIHYLSAIEEGNYVIAQANSNLDEEGHFVEDLVTCRSKGESSLFSRDQVDYMDVSTQQVVSVGASLIPFLEHDDANRALMGANMQRQAVPTLRADKPLVGTGMERAVAVDSGVTAVAKRGGVVQYVDASRIVIKVNEDEMYPGEAGIDIYNLTKYTRSNQNTCINQMPCVSLGEPVERGDVLADGPSTDLGELALGQNMRVAFMPWNGYNFEDSILVSERVVQEDRFTTIHIQELACVSRDTKLGPEEITADIPNVGEAALSKLDESGIVYIGAEVTGGDILVGKVTPKGETQLTPEEKLLRAIFGEKASDVKDSSLRVPNGVSGTVIDVQVFTRDGVEKDKRALEIEEMQLKQAKKDLSEELQILEAGLFSRIRAVLVAGGVEAEKLDKLPRDRWLELGLTDEEKQNQLEQLAEQYDELKHEFEKKLEAKRRKITQGDDLAPGVLKIVKVYLAVKRRIQPGDKMAGRHGNKGVISKINPIEDMPYDENGTPVDIVLNPLGVPSRMNIGQILETHLGMAAKGIGDKINAMLKQQQEVAKLREFIQRAYDLGADVRQKVDLSTFSDEEVMRLAENLRKGMPIATPVFDGAKEAEIKELLKLGDLPTSGQIRLYDGRTGEQFERPVTVGYMYMLKLNHLVDDKMHARSTGSYSLVTQQPLGGKAQFGGQRFGEMEVWALEAYGAAYTLQEMLTVKSDDVNGRTKMYKNIVDGNHQMEPGMPESFNVLLKEIRSLGINIELED

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	150507.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

EFDAIKIALASPDMIRSWSFGEVKKPETINYRTFKPERDGLFCARIFGPVKDYECLCGKYKRLKHRGVICEKCGVEVTQTKVRRERMGHIELASPTAHIWFLKSLPSRIGLLLDMPLRDIERVLYFESYVVIEGGMTNLERQQILTEEQYLDALEEFGDEFDAKMGAEAIQALLKSMDLEQECEQLREELNETNSETKRKKLTKRIKLLEAFVQSGNKPEWMILTVLPVLPPDLRPLVPLDGGRFATSDLNDLYRRVINRNNRLKRLLDLAAPDIIVRNEKRMLQEAVDALLDNGRRGRAITGSNKRPLKSLADMIKGKQGRFRQNLLGKRVDYSGRSVITVGPYLRLHQCGLPKKMALELFKPFIYGKLELRGLATTIKAAKKMVEREEAVVWDILDEVIREHPVLLNRAPTLHRLGIQAFEPVLIEGKAIQLHPLVCAAYNADFDGDQMAVHVPLTLEAQLEARALMMSTNNILSPANGEPIIVPSQDVVLGLYYMTRDCVNAKGEGMVLTGPKEAERLYRSGLASLHARVKVRITEYEKDANGELVAKTSLKDTTVGRAILWMIVPKGLPYSIVNQALGKKAISKMLNTCYRILGLKPTVIFADQIMYTGFAYAARSGASVGIDDMVIPEKKHEIISEAEAEVAEIQEQFQSGLVTAGERYNKVIDIWAAANDRVSKAMMDNLQTETVINRDGQEEKQVSFNSIYMMADSGARGSAAQIRQLAGMRGLMAKPDGSIIETPITANFREGLNVLQYFISTHGARKGLADTALKTANSGYLTRRLVDVAQDLVVTEDDCGTHEGIMMTPVIEGGDVKEPLRDRVLGRVTAEDVLKPGTADILVPRNTLLHEQWCDLLEENSVDAVKVRSVVSCDTDFGVCAHCYGRDLARGHIINKGEAIGVIAAQSIGEPGTQLTMRTFHIGGAASRAAAESSIQVKNKGSIKLSNVKSVVNSSGKLVITSRNTELKLIDEFGRTKESYKVPYGAVLAKGDGEQVAGGETVANWDPHTMPVITEVSGFVRFTDMIDGQTITRQTDELTGLSSLVVLDSAERTAGGKDLRPALKIVDAQGNDVLIPGTDMPAQYFLPGKAIVQLEDGVQISSGDTLARIPQESGGTKDITGGLPRVADLFEARRPKEPAILAEISGIVSFGKETKGKRRLVITPVDGSDPYEEMIPKWRQLNVFEGERVERGDVISDGPEAPHDILRLRGVHAVTRYIVNEVQDVYRLQGVKINDKHIEVIVRQMLRKATIVNAGSSDFLEGEQVEYSRVKIANRELEANGKVGATYSRDLLGITKASLATESFISAASFQETTRVLTEAAVAGKRDELRGLKENVIVGRLIPAGTGYAYHQDRMRRRA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	10249.5 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MARVTVQDAVEKIGNRFDLVLVAARRARQMQVGGKDPLVPEENDKTTVIALREIEEGLINNQILDVRERQEQQEQEAAELQAVTAIAEGRR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (49-MER)
Molecular weight formula_weight	19748.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N

CCCAACGGCACCGCTGCAAGGAATAGGATACTTGCGGGCTAGGCTCTTATGGCGGCGAATACCC

Entity 7 Entity 7 polymer

Description description	;RNA (5'-R(PGPGPAPGPAPGPGPUP*A)-3') ;
Molecular weight formula_weight	6510.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R

GCAUUCAAAGCGGAGAGGUA

Entity 8 Entity 8 polymer

Description description	DNA (55-MER)
Molecular weight formula_weight	19630.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

GGGTATTCGCCGCGTACCTCTCCTAGCCCGCAAGTATCCTATTCCTTGCAGCGGTGCCGTTGGG

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 12 Entity 12 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.48 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	96588
