SAXSdb — 9nds

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CSM8 A*02:01/MHC class I antigen chimera

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	X protein × 1 （Q80817） A6c134 TCR alpha chain × 1 A6c134 TCR beta chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SULFATE ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	X protein × 1 （Q80817） A6c134 TCR alpha chain × 1 A6c134 TCR beta chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SULFATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9TPS0_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 71–250； UniProt 18–197 Author chain H； PDBConstruct 71–250； UniProt 18–197

X protein

OrganismNot specified

UniProt Q80817

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	CSM8 A*02:01/MHC class I antigen chimera × 1 （Q9TPS0） A6c134 TCR alpha chain × 1 A6c134 TCR beta chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SULFATE ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	CSM8 A*02:01/MHC class I antigen chimera × 1 （Q9TPS0） A6c134 TCR alpha chain × 1 A6c134 TCR beta chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 SULFATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q80817_9DELA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–9； UniProt 11–19 Author chain P； PDBConstruct 1–9； UniProt 11–19

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nds
Deposition date deposition_date	2025-02-18
Last revision last_revision	2026-01-14
Structure title title	Miniaturized HLA A*02-TAX bound to A6c134 TCR
Keywords keywords	synthetic protein, protein design, complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nds__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9nds__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

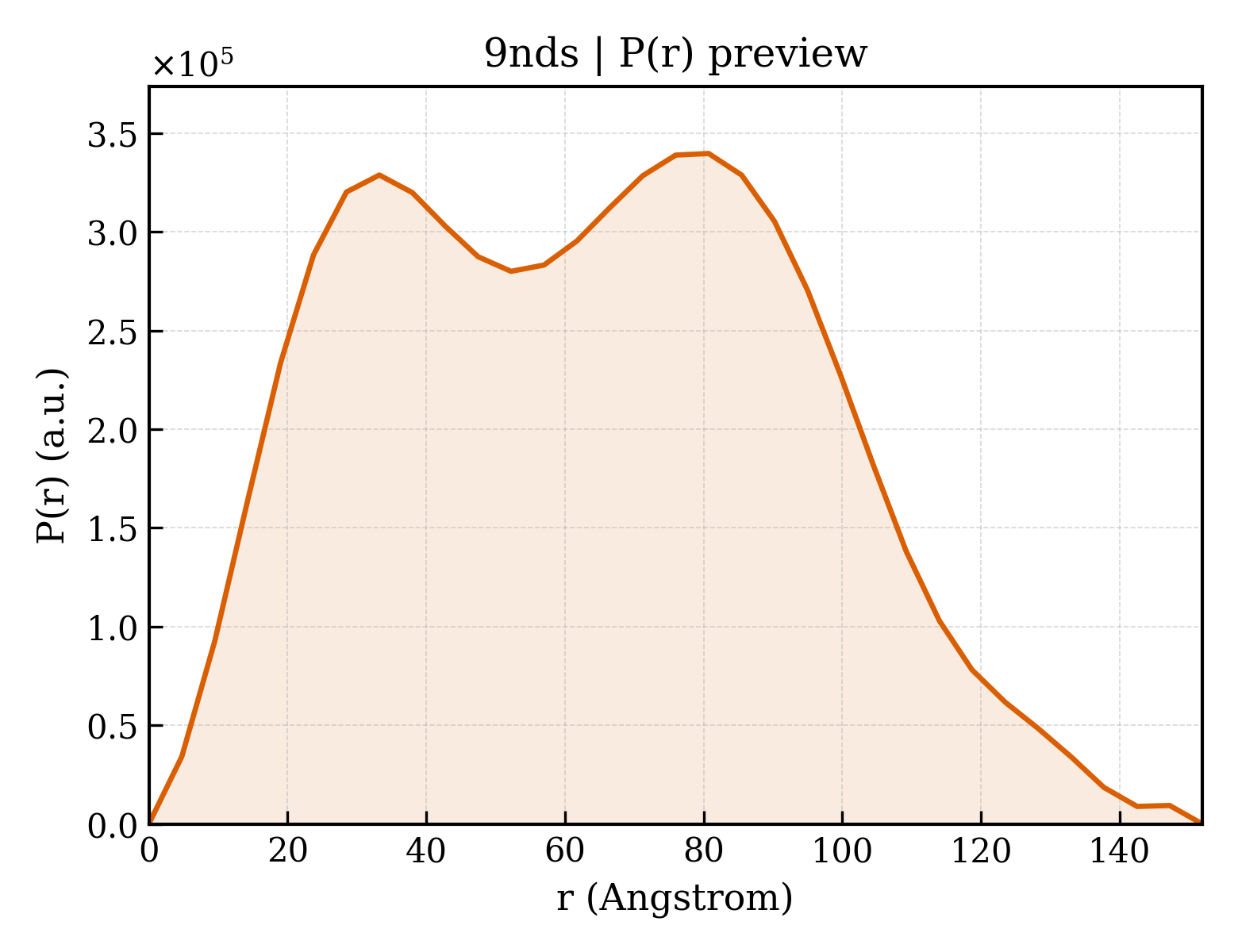

9nds__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.53 Å
Rg (electron density)	32.24 Å
Total Rg	32.64 Å
Atom count	5484
Residues	686
Excluded volume	95892 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nds__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9nds__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	CSM8 A*02:01/MHC class I antigen chimera
Molecular weight formula_weight	29192.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,H
Atom count atom_count	10960

DREDVERLLRAVEWAIKAGDPYSARVLVELAREDAEKIGDERLRREVEELLRELEELEEELARLPKLPPDGSHSMRYFFTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDGETRKVKAHSQTHRVDLGTLRGYYNQSEAGSHTVQRMYGCDVGSDWRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQTTKHKWEAAHVAEQLRAYLEGTCVEWLRRYLENGKETLQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	X protein
Molecular weight formula_weight	1070.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,P

LLFGYPVYV

Entity 3 Entity 3 polymer

Description description	A6c134 TCR alpha chain
Molecular weight formula_weight	23543.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,J

KEVEQNSGPLSVPEGAIASLNCTYSDRGSQSFFWYRQYSGKSPELIMSIYSNGDKEDGRFTAQLNKASQYVSLLIRDSQPSDSATYLCAVTTDSWGKLQFGAGTQVVVTPDIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSDTFFPSPESSSRGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	A6c134 TCR beta chain
Molecular weight formula_weight	28450.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,K

NAGVTQTPKFQVLKTGQSMTLQCAQDMNHEYMSWYRQDPGMGLRLIHYSVGAGITDQGEVPNGYNVSRSTTEDFPLRLLSAAPSQTSVYFCASRPGLMSAQPEQYFGPGTRLTVTEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRADADSRGGLEVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	106.906 Å
Unit-cell length b length_b	106.906 Å
Unit-cell length c length_c	190.592 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	trigonal

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	46.620 Å
R factor r_factor	0.2204
R_work r_work	0.2182
R_free r_free	0.2690
