SAXSdb — 9nsj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Superoxide dismutase [Mn], mitochondrial

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	HYDROGEN PEROXIDE × 101 PHOSPHATE ION × 11 POTASSIUM ION × 13 MANGANESE (II) ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SODM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–199； UniProt 25–222 Author chain B； PDBConstruct 2–199； UniProt 25–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nsj
Deposition date deposition_date	2025-03-17
Structure title title	Finding the exit route of hydrogen peroxide from the manganese superoxide dismutase (MnSOD) active site
Keywords keywords	Manganese superoxide dismutase, metalloenzyme, peroxide, METAL BINDING PROTEIN, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nsj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9nsj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

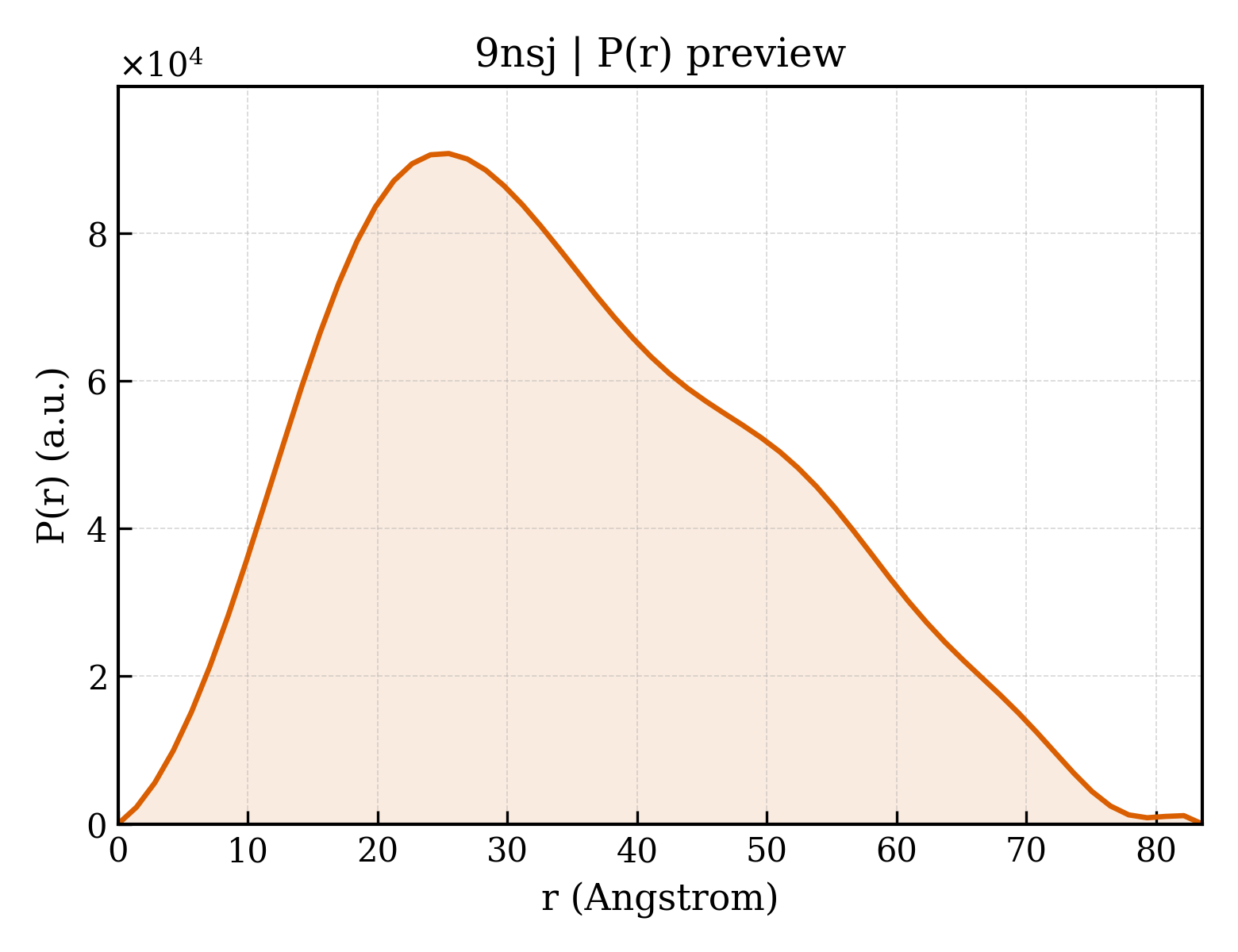

9nsj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.75 Å
Rg (electron density)	26.23 Å
Total Rg	27.06 Å
Atom count	6636
Residues	395
Excluded volume	59923 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nsj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Superoxide dismutase [Mn], mitochondrial
Molecular weight formula_weight	22350.3 kDa
EC 编号 ec_number	1.15.1.1
Mutation mutation	Q143N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8107

MKHSLPDLPYDYGALEPHINAQIMQLHHSKHHAAYVNNLNVTEEKYQEALAKGDVTAQIALQPALKFNGGGHINHSIFWTNLSPNGGGEPKGELLEAIKRDFGSFDKFKEKLTAASVGVQGSGWGWLGFNKERGHLQIAACPNNDPLQGTTGLIPLLGIDVWEHAYYLQYKNVRPDYLKAIWNVINWENVTERYMACKK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	HYDROGEN PEROXIDE
Molecular weight formula_weight	34.0 kDa
Source method src_method	man
Copy count entity_count	101

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	man
Copy count entity_count	11

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	man
Copy count entity_count	13

Entity 5 Entity 5 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	698

▶

Unit-cell length a length_a	78.112 Å
Unit-cell length b length_b	78.112 Å
Unit-cell length c length_c	236.020 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	1.330 Å
Low-resolution limit resolution_low	39.340 Å
R factor r_factor	0.1629
R_work r_work	0.1622
R_free r_free	0.1959
