9o45

Crystal structure of the L411W mutant of pregnane X receptor ligand binding domain in complex with SJPYT-328

Method: X-RAY DIFFRACTION D_max: 108.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

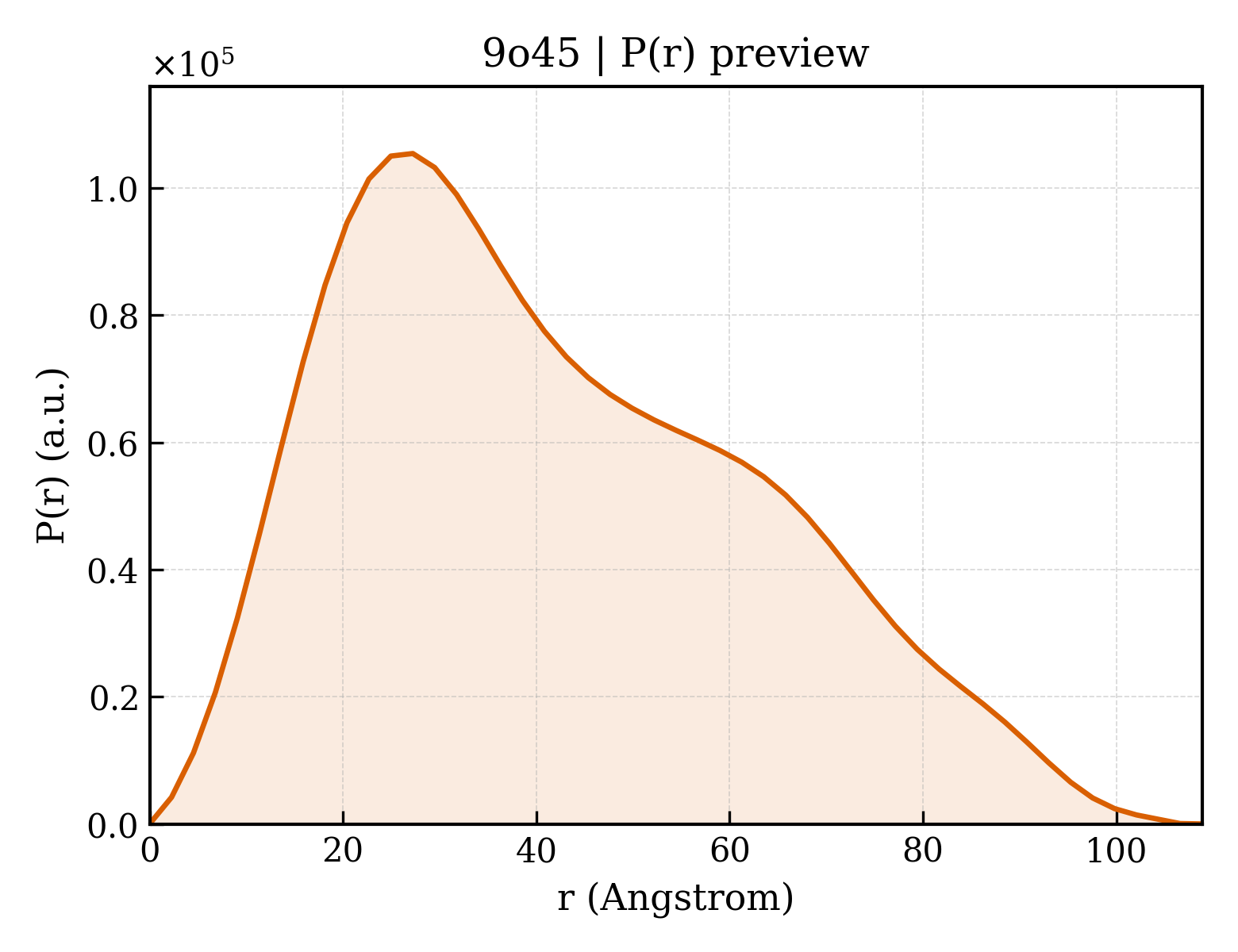

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9o45
沉积日期 deposition_date	2025-04-08
结构标题 title	Crystal structure of the L411W mutant of pregnane X receptor ligand binding domain in complex with SJPYT-328
关键词 keywords	Pregnane X receptor, PXR, NR1I2, transcription factor, nuclear receptor, drug metabolism, TRANSCRIPTION; TRANSCRIPTION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.84 Å
回转半径 Rg (电子) rg_electron	32.86 Å
零角强度 I(0) i0	65816900.00
分子量 molecular_weight	66125.0 kDa
排除体积 excluded_volume	83430 Å³
包络体积 envelope_volume	104430 Å³
水化壳体积 shell_volume	28225 Å³
包络直径 envelope_diameter	109.6 Å
壳层 Rg shell_rg	36.89 Å
包络 Rg envelope_rg	32.69 Å
形状 Rg shape_rg	32.81 Å
总 Rg total_rg	33.39 Å
总原子数 total_atoms	4655
残基数 n_residues	582
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.9 Å
Rg (实空间) rg_real	33.23 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	6.5820e+07
I(0) 误差 (实空间) i0_real_error	1.2900e+06
Rg (倒空间) rg_reciprocal	33.07 Å
I(0) (倒空间) i0_reciprocal	65810000.0000
解质量估计 total_estimate	0.7901
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	27.2 Å
偏度 Skewness skewness	0.474
峰度 Kurtosis kurtosis	-0.595
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	29090000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.689; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.619; Smooth: 0.580

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Pregnane X receptor ligand binding domain tethered to steroid receptor coactivator-1 peptide
分子量 formula_weight	40415.3 kDa
EC 编号 ec_number	2.3.1.48
突变 mutation	L411W
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4693

MKKGHHHHHHGSERTGTQPLGVQGLTEEQRMMIRELMDAQMKTFDTTFSHFKNFRLPGVLSSGCELPESLQAPSREEAAKWSQVRKDLCSLKVSLQLRGEDGSVWNYKPPADSGGKEIFSLLPHMADMSTYMFKGIISFAKVISYFRDLPIEDQISLLKGAAFELCQLRFNTVFNAETGTWECGRLSYCLEDTAGGFQQLLLEPMLKFHYMLKKLQLHEEEYVLMQAISLFSPDRPGVLQHRVVDQLQEQFAITLKSYIECNRPQPAHRFLFLKIMAMLTELRSINAQHTQRWLRIQDIHPFATPLMQELFGITGSSGGSGGSSHSSLTERHKILHRLLQEGSPSDITTLSVEPD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	(1P)-N-(5-tert-butyl-2-{[(3S)-hexan-3-yl]oxy}phenyl)-1-(2,4-dimethoxy-5-methylphenyl)-5-methyl-1H-1,2,3-triazole-4-carboxamide
分子量 formula_weight	508.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	28

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	85.002 Å
晶胞边长 b length_b	88.525 Å
晶胞边长 c length_c	105.076 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	2.560 Å
最低分辨率 resolution_low	45.180 Å
R 因子 r_factor	0.2023
R_work r_work	0.1999
R_free r_free	0.2408
