1tfc
;CRYSTAL STRUCTURE OF THE LIGAND-BINDING DOMAIN OF THE ESTROGEN-RELATED RECEPTOR GAMMA IN COMPLEX WITH A STEROID RECEPTOR COACTIVATOR-1 PEPTIDE ;
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1tfc |
| 沉积日期 deposition_date | 2004-05-27 |
| 结构标题 title | ;CRYSTAL STRUCTURE OF THE LIGAND-BINDING DOMAIN OF THE ESTROGEN-RELATED RECEPTOR GAMMA IN COMPLEX WITH A STEROID RECEPTOR COACTIVATOR-1 PEPTIDE ; |
| 关键词 keywords | TRANSCRIPTIONALLY ACTIVE CONFORMATION IN ABSENCE OF LIGAND, TRANSCRIPTION; TRANSCRIPTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 23.76 Å |
| 回转半径 Rg (电子) rg_electron | 22.59 Å |
| 零角强度 I(0) i0 | 43027200.00 |
| 分子量 molecular_weight | 52698.0 kDa |
| 排除体积 excluded_volume | 66817 ų |
| 包络体积 envelope_volume | 79580 ų |
| 水化壳体积 shell_volume | 28615 ų |
| 包络直径 envelope_diameter | 76.5 Å |
| 壳层 Rg shell_rg | 30.15 Å |
| 包络 Rg envelope_rg | 22.70 Å |
| 形状 Rg shape_rg | 22.60 Å |
| 总 Rg total_rg | 23.45 Å |
| 总原子数 total_atoms | 3699 |
| 残基数 n_residues | 472 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

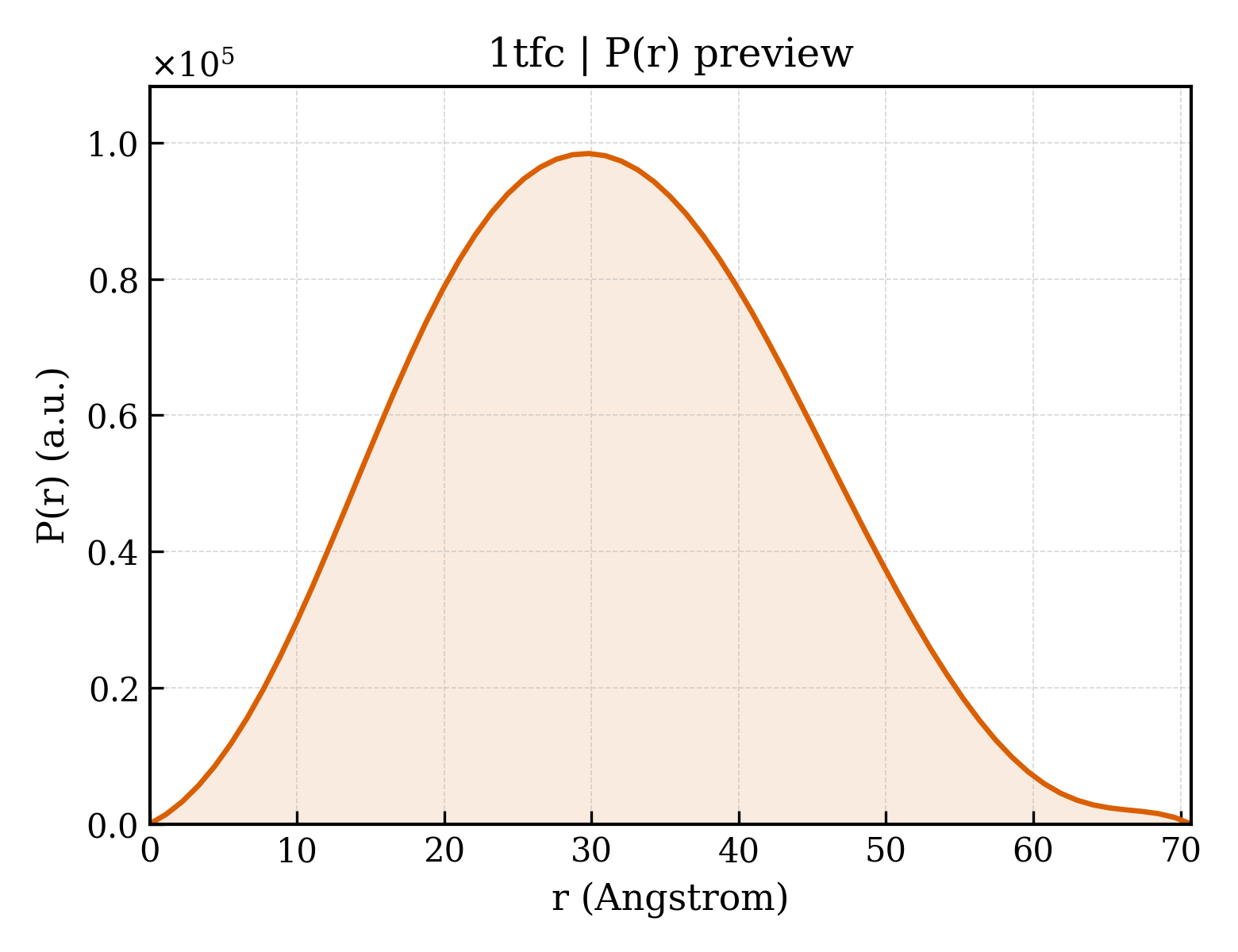

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 70.7 Å |
| Rg (实空间) rg_real | 23.65 Å |
| Rg 误差 (实空间) rg_real_error | 0.11 Å |
| I(0) (实空间) i0_real | 4.1640e+07 |
| I(0) 误差 (实空间) i0_real_error | 3.9170e+05 |
| Rg (倒空间) rg_reciprocal | 23.64 Å |
| I(0) (倒空间) i0_reciprocal | 43030000.0000 |
| 解质量估计 total_estimate | 0.7149 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 29.8 Å |
| 偏度 Skewness skewness | 0.163 |
| 峰度 Kurtosis kurtosis | -0.447 |
| 角度范围 angular_range | — – 0.3350 Å−1 |
| 当前正则化参数 α current_alpha | 7.8880 |
| 最高正则化参数 α highest_alpha | 11110000.0000 |
| 实空间数据点数 n_real_points | 65 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.960; Stabil: 0.919; Sysdev: 0.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.690 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 7 domains
SCOP 2.08 (5 domains)
| 结构域编号 domain_id | d1tfca_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.123 — Nuclear receptor ligand-binding domain |
| 超家族 Superfamily superfamily | a.123.1 — Nuclear receptor ligand-binding domain |
| 家族 Family family | a.123.1.1 — Nuclear receptor ligand-binding domain |
| 结构域编号 domain_id | d1tfcb_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.123 — Nuclear receptor ligand-binding domain |
| 超家族 Superfamily superfamily | a.123.1 — Nuclear receptor ligand-binding domain |
| 家族 Family family | a.123.1.1 — Nuclear receptor ligand-binding domain |
| 结构域编号 domain_id | d1tfcc_ |
| 类 Class class | j — Peptides |
| 折叠类型 Fold fold | j.112 — Nuclear receptor coactivator Src-1 |
| 超家族 Superfamily superfamily | j.112.1 — Nuclear receptor coactivator Src-1 |
| 家族 Family family | j.112.1.1 — Nuclear receptor coactivator Src-1 |
| 结构域编号 domain_id | d1tfcd1 |
| 类 Class class | j — Peptides |
| 折叠类型 Fold fold | j.112 — Nuclear receptor coactivator Src-1 |
| 超家族 Superfamily superfamily | j.112.1 — Nuclear receptor coactivator Src-1 |
| 家族 Family family | j.112.1.1 — Nuclear receptor coactivator Src-1 |
| 结构域编号 domain_id | d1tfcd2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1tfcA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 565 — Retinoid X Receptor |
| 同源超家族 H-superfamily homologous superfamily | 10 — Retinoid X Receptor |
| 结构域编号 domain_id | 1tfcB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 565 — Retinoid X Receptor |
| 同源超家族 H-superfamily homologous superfamily | 10 — Retinoid X Receptor |
