9op4

Herpes simplex virus type 1 (HSV-1) A-capsid pUL6 portal protein, dodecameric complex

Method: ELECTRON MICROSCOPY D_max: 168.3 Å Quality: GOOD

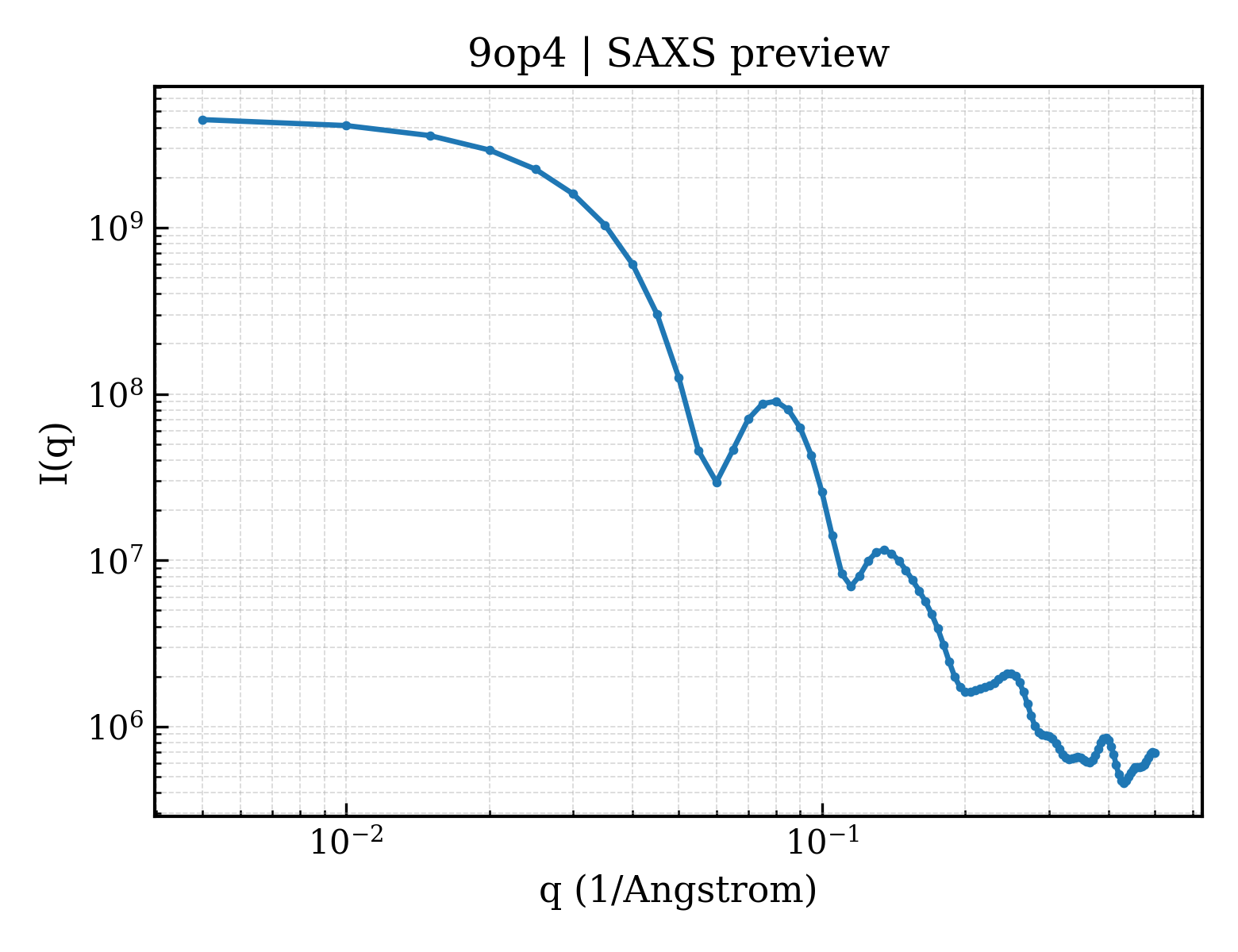

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9op4
沉积日期 deposition_date	2025-05-16
结构标题 title	Herpes simplex virus type 1 (HSV-1) A-capsid pUL6 portal protein, dodecameric complex
关键词 keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.48 Å
回转半径 Rg (电子) rg_electron	56.53 Å
零角强度 I(0) i0	4584340000.00
分子量 molecular_weight	572070.0 kDa
排除体积 excluded_volume	716180 Å³
包络体积 envelope_volume	1151900 Å³
水化壳体积 shell_volume	160260 Å³
包络直径 envelope_diameter	162.8 Å
壳层 Rg shell_rg	68.43 Å
包络 Rg envelope_rg	53.48 Å
形状 Rg shape_rg	56.53 Å
总 Rg total_rg	56.79 Å
总原子数 total_atoms	40476
残基数 n_residues	5076
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

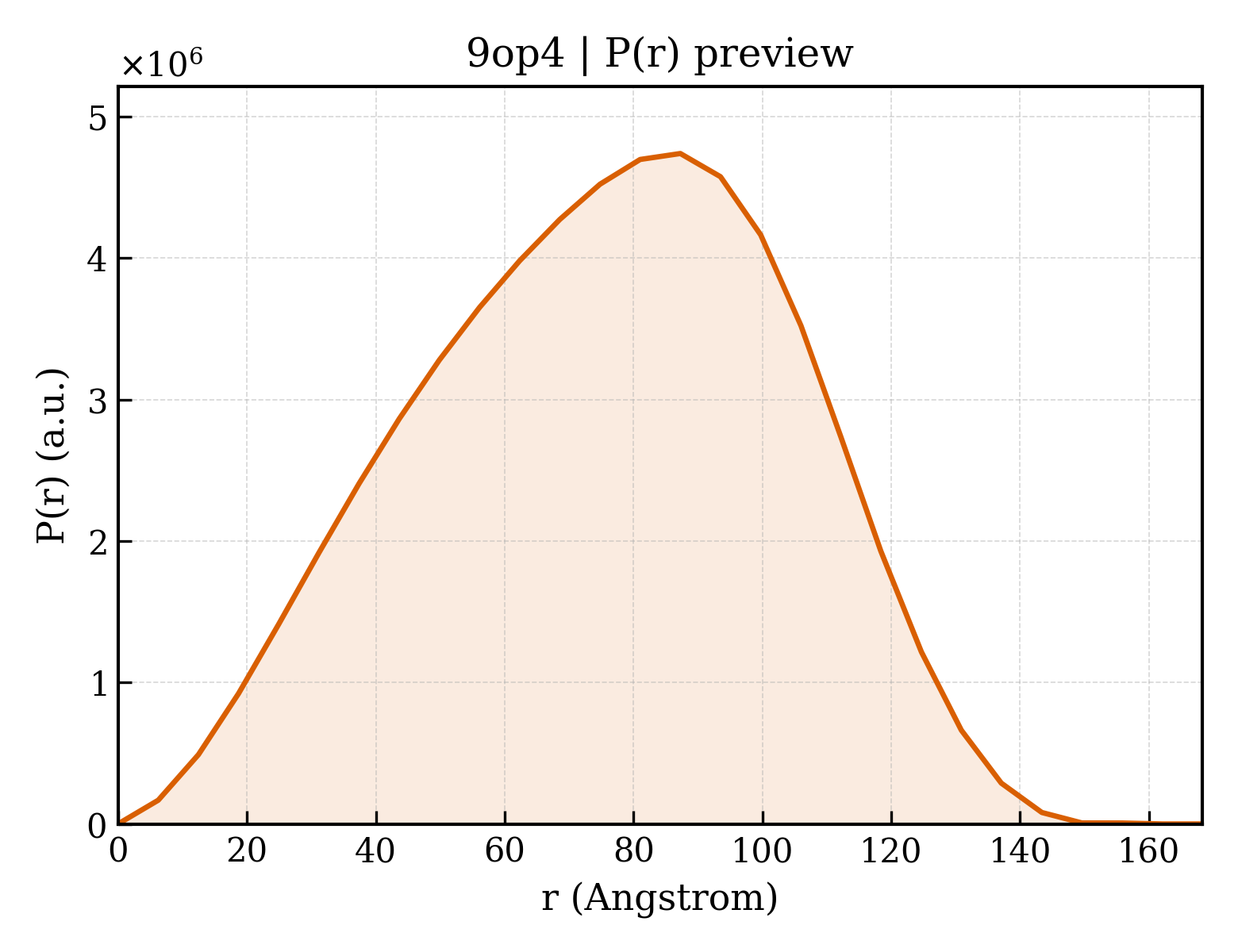

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	168.3 Å
Rg (实空间) rg_real	56.96 Å
Rg 误差 (实空间) rg_real_error	0.92 Å
I(0) (实空间) i0_real	4.5840e+09
I(0) 误差 (实空间) i0_real_error	7.8400e+07
Rg (倒空间) rg_reciprocal	57.91 Å
I(0) (倒空间) i0_reciprocal	4591000000.0000
解质量估计 total_estimate	0.8697
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	87.3 Å
偏度 Skewness skewness	-0.142
峰度 Kurtosis kurtosis	-0.640
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1046000000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.897; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.682

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Capsid scaffolding protein
分子量 formula_weight	66501.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	40476

MAADAPGDRMEEPLPDRAVPIYVAGFLALYDSGDSGELALDPDTVRAALPPDNPLPINVDHRAGCEVGRVLAVVDDPRGPFFVGLIACVQLERVLETAASAAIFERRGPPLSREERLLYLITNYLPSVSLATKRLGGEAHPDRTLFAHVALCAIGRRLGTIVTYDTGLDAAIAPFRHLSPASREGARRLAAEAEIALSGRTWAPGVEALTHTLLSTAVNNMMLRDRWSLVAERRRQAGIAGHTYLQASEKFKMWGAEPVSAPARGYKNGAPESTDIPPGSIAAAPQGDRCPIVRQRGVALSPVLPPMNPVPTSGTPAPAPPGDGSYLWIPASHYNQLVAGHAAPQPQPHSAFGFPAAAGAVAYGPHGAGLSQHYPPHVAHQYPGVLFSGPSPLEAQIAALVGAIAADRQAGGQPAAGDPGVRGSGKRRRYEAGPSESYCDQDEPDADYPYYPGEARGGPRGVDSRRAARQSPGTNETITALMGAVTSLQQELAHMRARTSAPYGMYTPVAHYRPQVGEPEPTTTHPALCPPEAVYRPPPHSAPYGPPQGPASHAPTPPYAPAACPPGPPPPPCPSTQTRAPLPTEPAFPPAATGSQPEASNAEAGALVNASSAAHVDVDTARAADLFVSQMMGAR

Entity 2 polymer

描述 description	Capsid portal protein
分子量 formula_weight	74178.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f,g,h,i,j,k,l

MTAPRSWAPTTRARGDTEALCSPEDGWVKVHPTPGTMLFREILHGQLGYTEGQGVYNVVRSSEATTRQLQAAIFHALLNATTYRDLEADWLGHVAARGLQPQRLVRRYRNAREADIAGVAERVFDTWRNTLRTTLLDFAHGLVACFAPGGPSGPSSFPKYIDWLTCLGLVPILRKRQEGGVTQGLRAFLKQHPLTRQLATVAEAAERAGPGFFELALAFDSTRVADYDRVYIYYNHRRGDWLVRDPISGQRGECLVLWPPLWTGDRLVFDSPVQRLFPEIVACHSLREHAHVCRLRNTASVKVLLGRKSDSERGVAGAARVVNKVLGEDDETKAGSAASRLVRLIINMKGMRHVGDINDTVRSYLDEAGGHLIDAPAVDGTLPGFGKGGNSRGSAGQDQGGRAPQLRQAFRTAVVNNINGVLEGYINNLFGTIERLRETNAGLATQLQERDRELRRATAGALERQQRAADLAAESVTGGCGSRPAGADLLRADYDIIDVSKSMDDDTYVANSFQHPYIPSYAQDLERLSRLWEHELVRCFKILCHRNNQGQETSISYSSGAIAAFVAPYFESVLRAPRVGAPITGSDVILGEEELWDAVFKKTRLQTYLTDIAALFVADVQHAALPPPPSPVGADFRPGASPRGRSRSRSPGRTAPGAPDQGGGIGHRDGRRDGRR

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	363576

fit	/app/data/saxs_computation/op/9op4/9op4.fit
pddf	/app/data/pr_computation/op/9op4/9op4.pr.out
profile	/app/data/saxs_computation/op/9op4/9op4.dat
