SAXSdb — 9opb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Capsid portal protein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H9E912_HHV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain M； PDBConstruct 1–676； UniProt 1–676 Author chain N； PDBConstruct 1–676； UniProt 1–676 Author chain O； PDBConstruct 1–676； UniProt 1–676 Author chain P； PDBConstruct 1–676； UniProt 1–676 Author chain Q； PDBConstruct 1–676； UniProt 1–676 Author chain R； PDBConstruct 1–676； UniProt 1–676 Author chain S； PDBConstruct 1–676； UniProt 1–676 Author chain T； PDBConstruct 1–676； UniProt 1–676 Author chain U； PDBConstruct 1–676； UniProt 1–676 Author chain V； PDBConstruct 1–676； UniProt 1–676

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9opb
Deposition date deposition_date	2025-05-17
Structure title title	Herpes simplex virus type 1 (HSV-1) D-capsid pUL6 portal protein turrets, decamer
Keywords keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9opb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9opb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

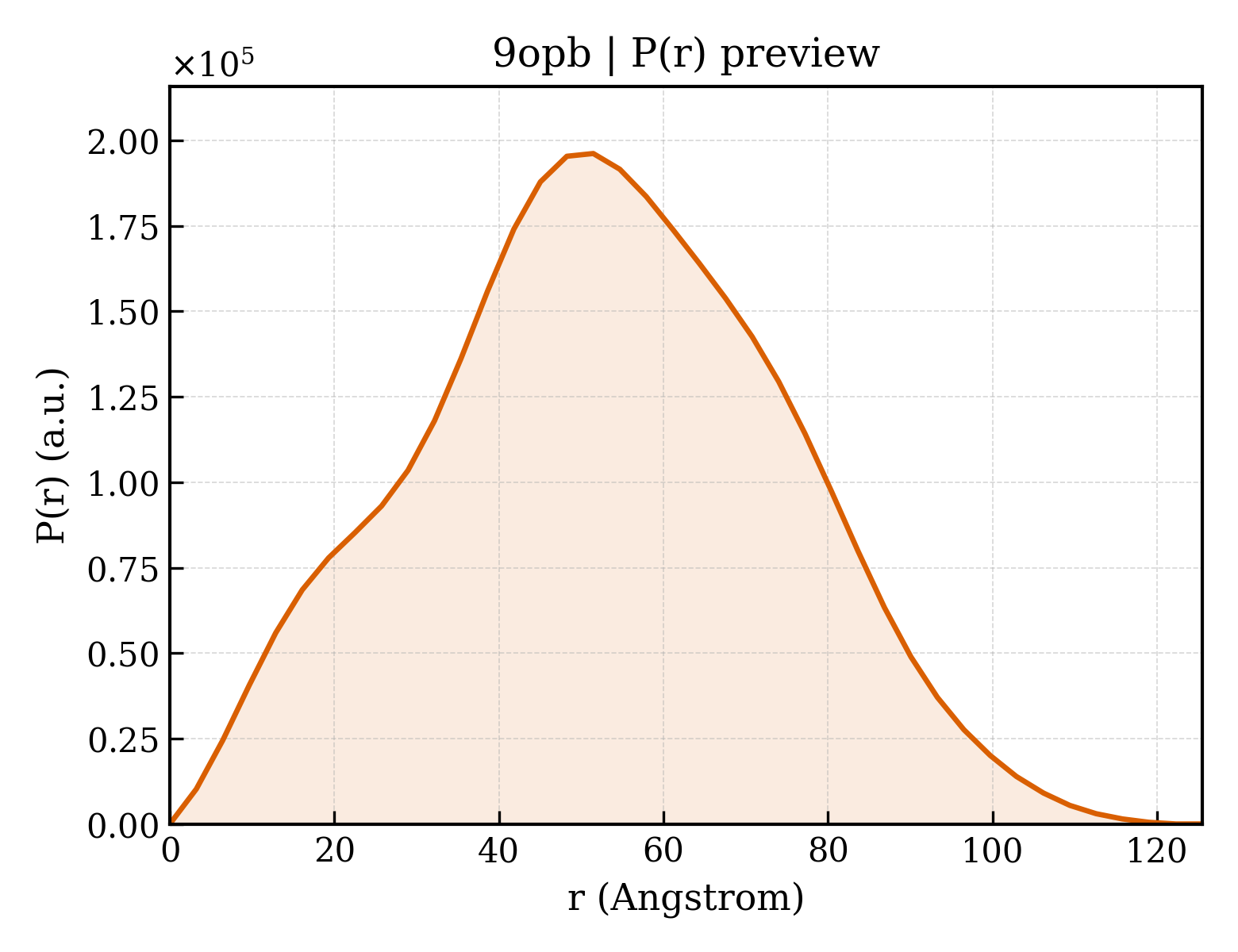

9opb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.46 Å
Rg (electron density)	39.43 Å
Total Rg	39.82 Å
Atom count	6145
Residues	780
Excluded volume	107420 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9opb__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	135916

Description description	Capsid portal protein
Molecular weight formula_weight	74178.5 kDa
Source method src_method	nat
Copy count entity_count	10

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,P,Q,R,S,T,U,V
Atom count atom_count	6145

Herpes simplex virus type 1 (HSV-1) D-capsid pUL6 portal protein turrets, decamer
